Ford F150 Pickup. Manual - part 219

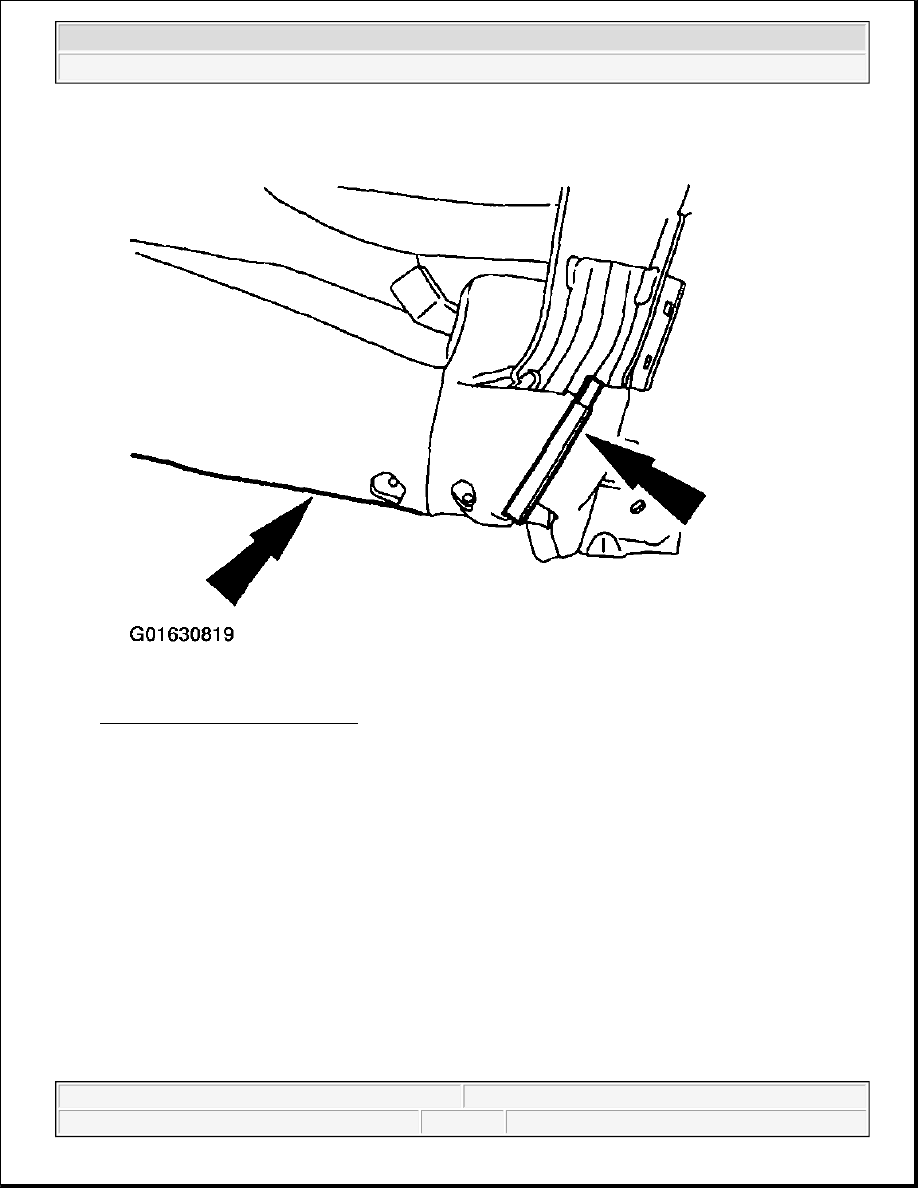

Fig. 215: Attaching Three J-Clips
Courtesy of FORD MOTOR CO.

40 percent seat

4. Position the seat cushion and install the four seat cushion bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

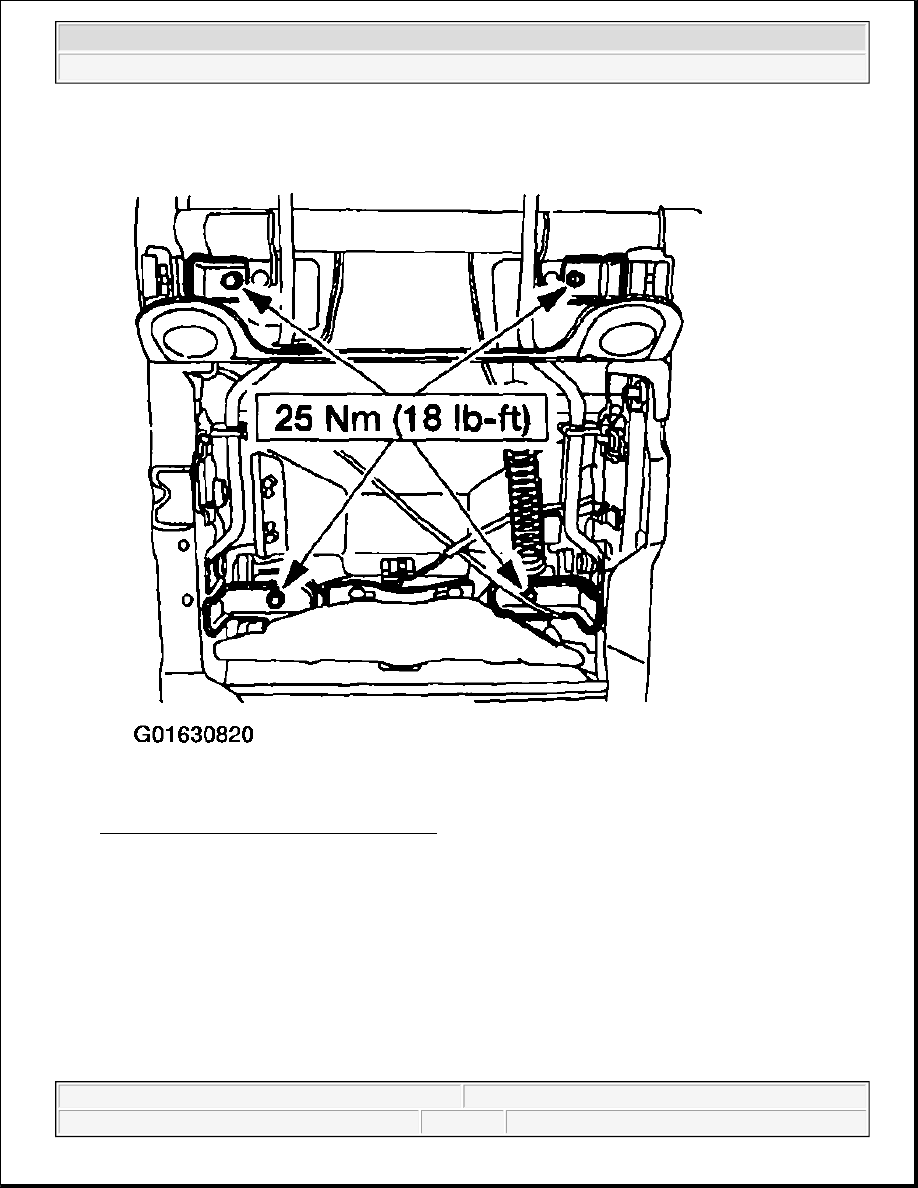

Fig. 216: Installing Four Seat Cushion Bolts
Courtesy of FORD MOTOR CO.

Power seats

5. Connect power seat switch electrical connector and the seat actuator motors electrical connector. Attach

the connectors to the cushion pan.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

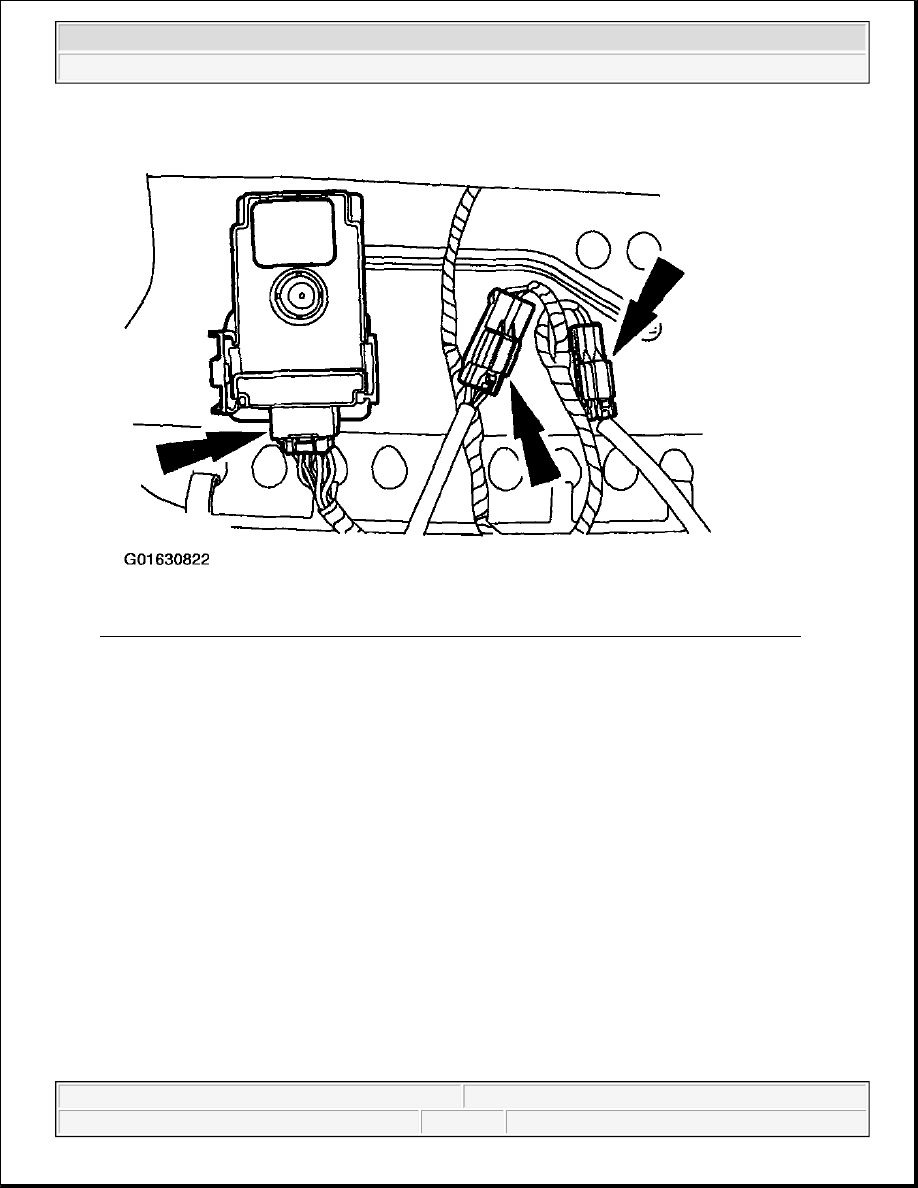

Fig. 217: Connecting Power Seat Switch Electrical Connector And Seat Actuator Motors Electrical
Connector
Courtesy of FORD MOTOR CO.

Heated seats

6. Attach the components to the seat cushion pan. Connect heated seat elements and the heated seat module

electrical connectors.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

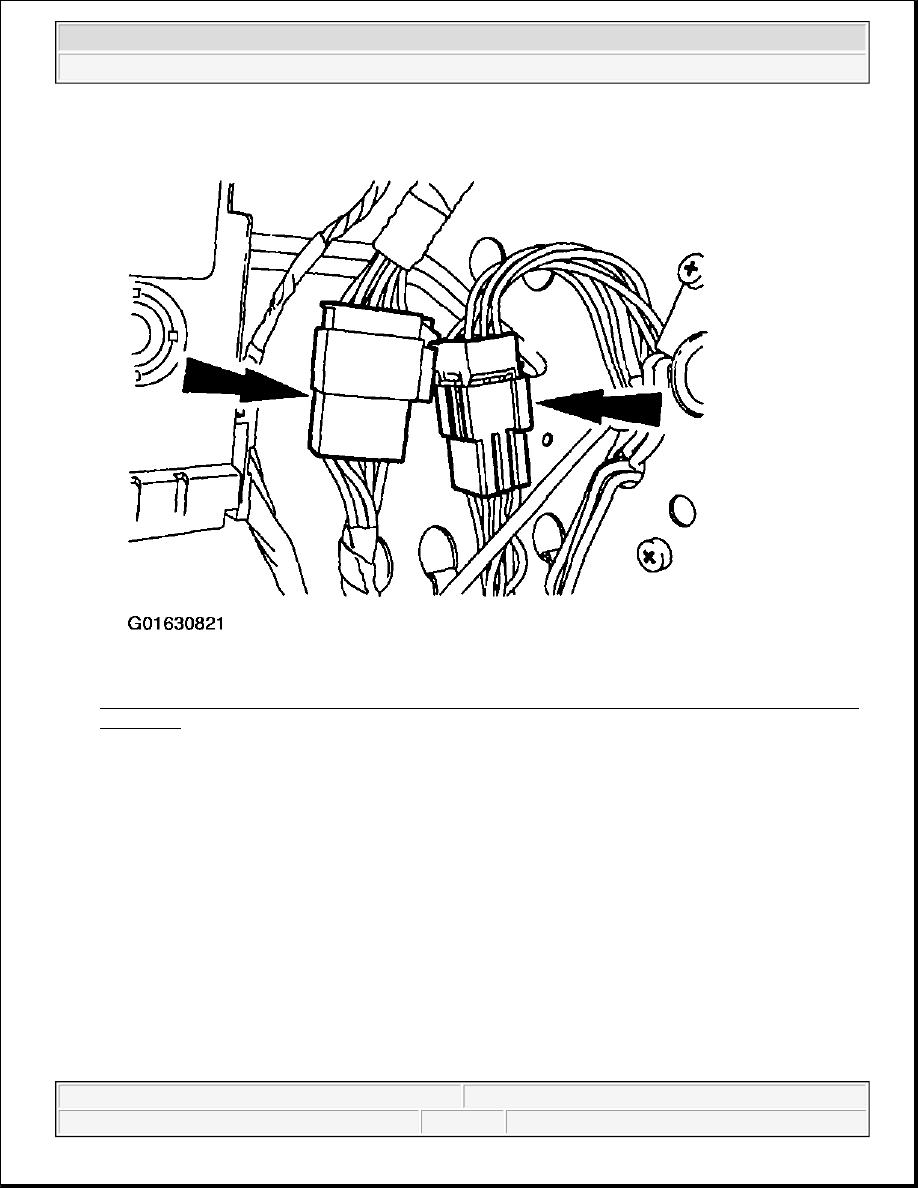

Fig. 218: Connecting Heated Seat Elements And Heated Seat Module Electrical Connectors
Courtesy of FORD MOTOR CO.

7. Connect the heated seat switch electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
