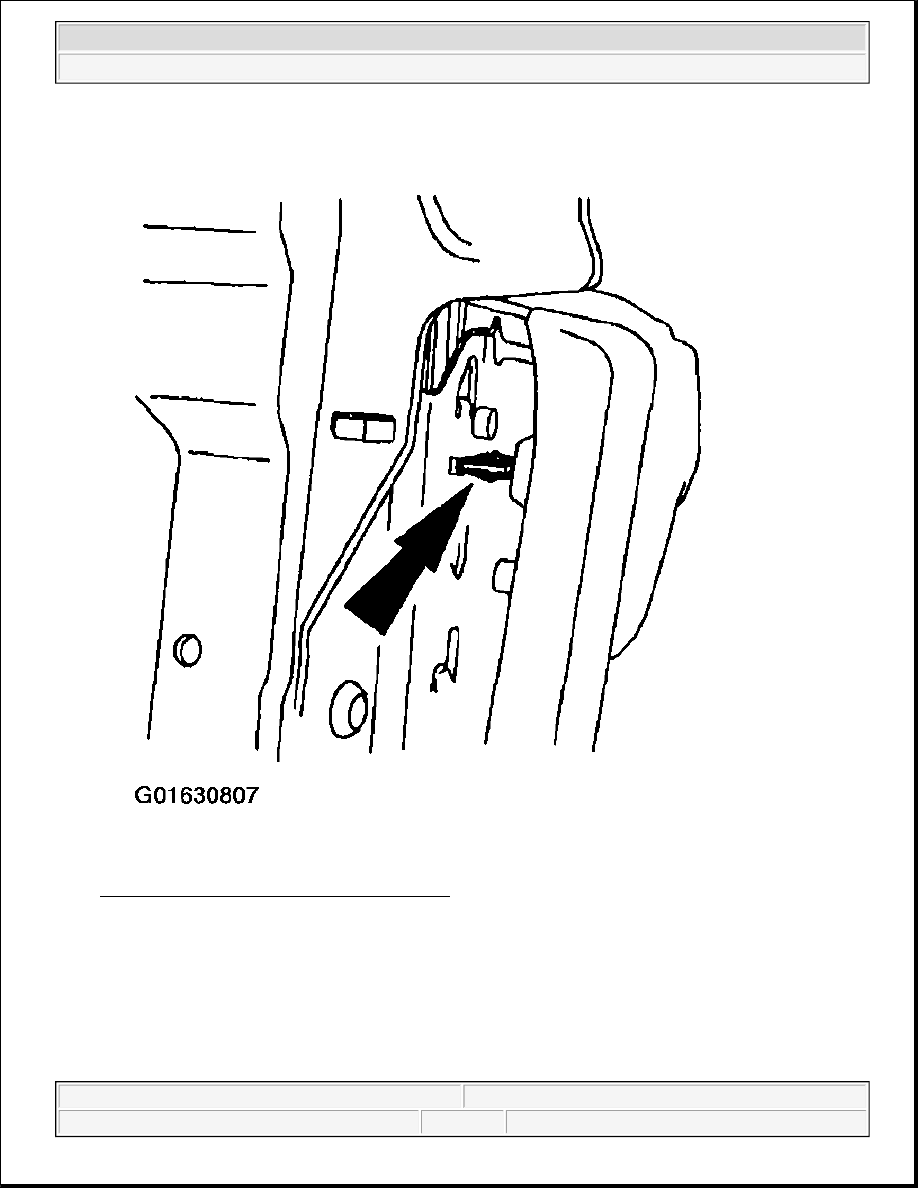

Fig. 203: Releasing Side Shield Rear Retainer
Courtesy of FORD MOTOR CO.

Power seats

7. Disconnect the seat control switch electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

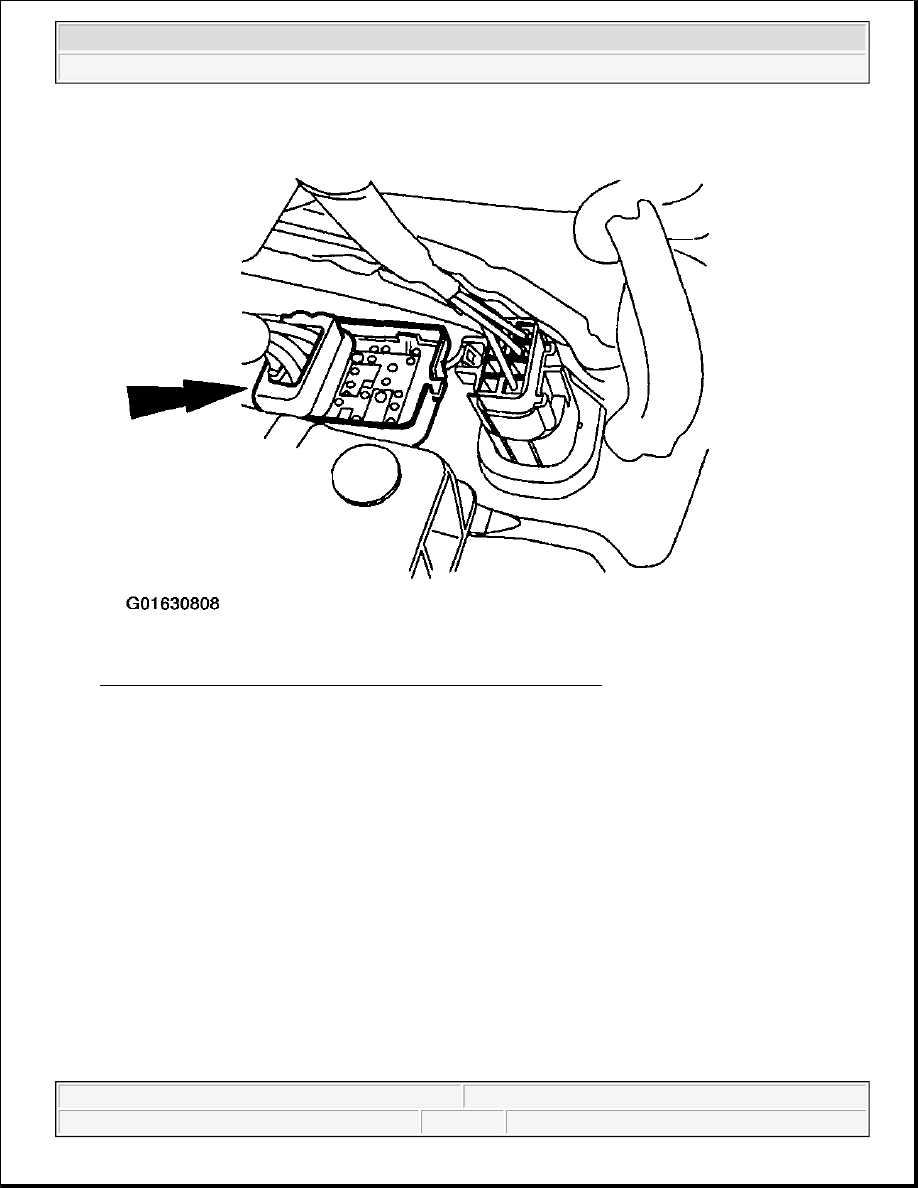

Fig. 204: Disconnecting Seat Control Switch Electrical Connector
Courtesy of FORD MOTOR CO.

Heated seats

8. Disconnect the heated seat switch electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

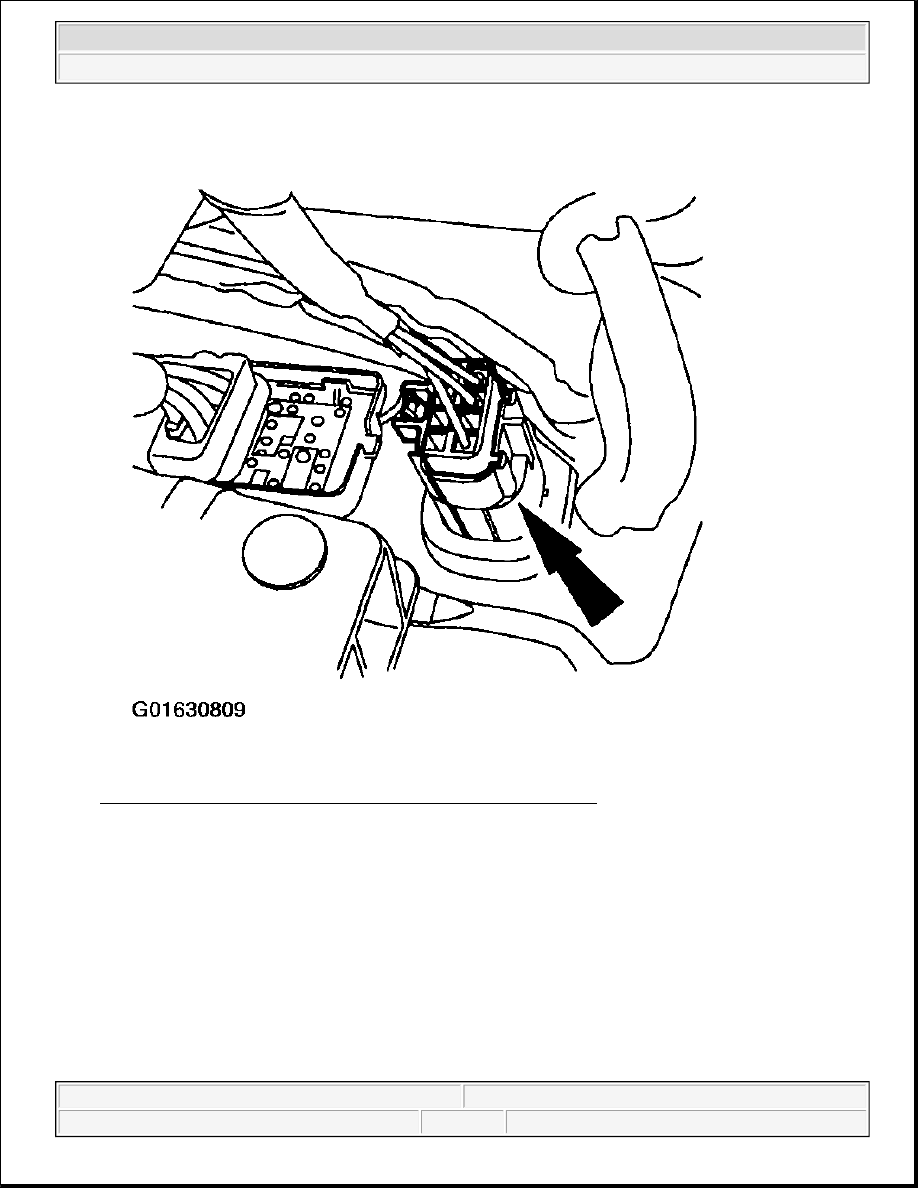

Fig. 205: Disconnecting Heated Seat Switch Electrical Connector
Courtesy of FORD MOTOR CO.

9. Disconnect the heated seat elements and the heated seat module electrical connectors. Release the

electrical connectors from their cushion pan attachments.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

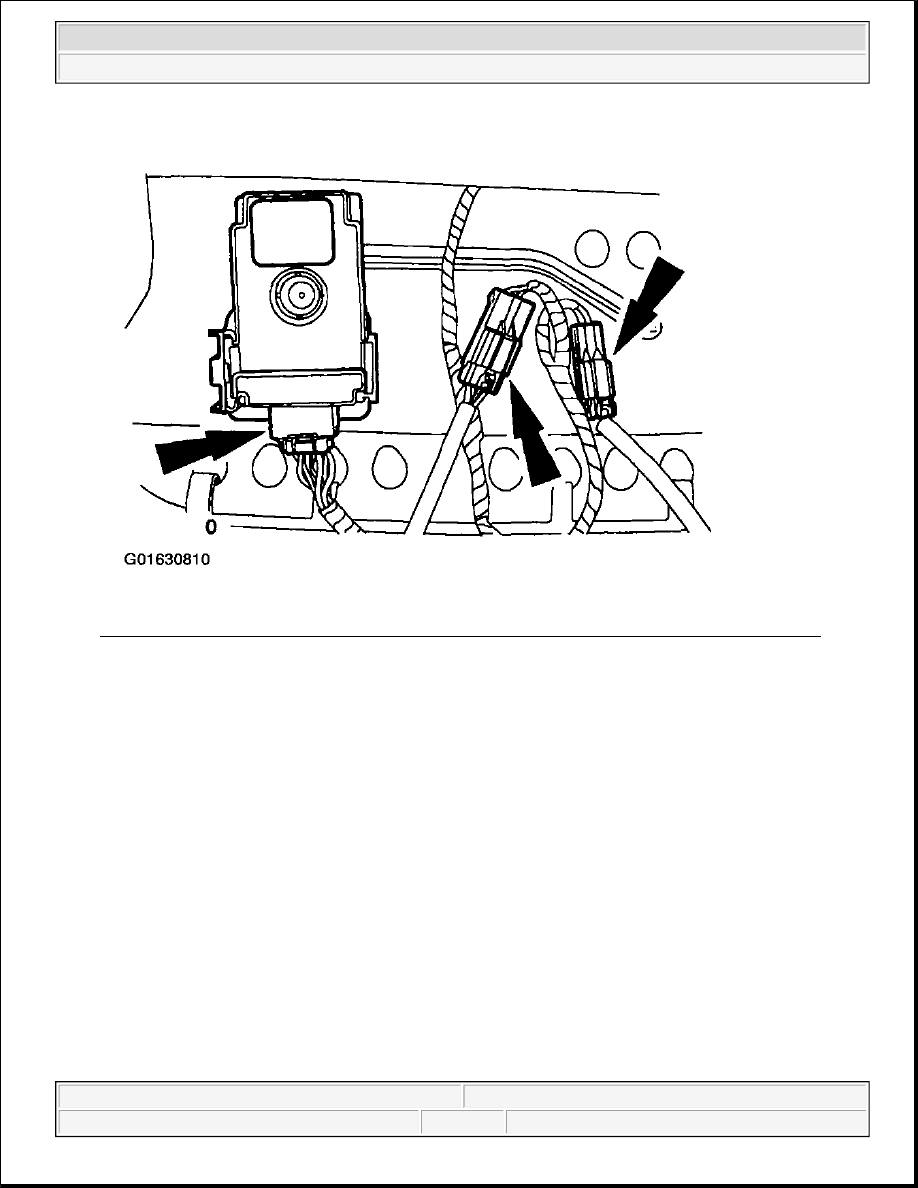

Fig. 206: Disconnecting Heated Seat Elements And Heated Seat Module Electrical Connectors
Courtesy of FORD MOTOR CO.

Power seats

10. Disconnect power seat switch electrical connector and the seat actuator motors electrical connector.

Release the electrical connectors from their cushion pan attachments.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
