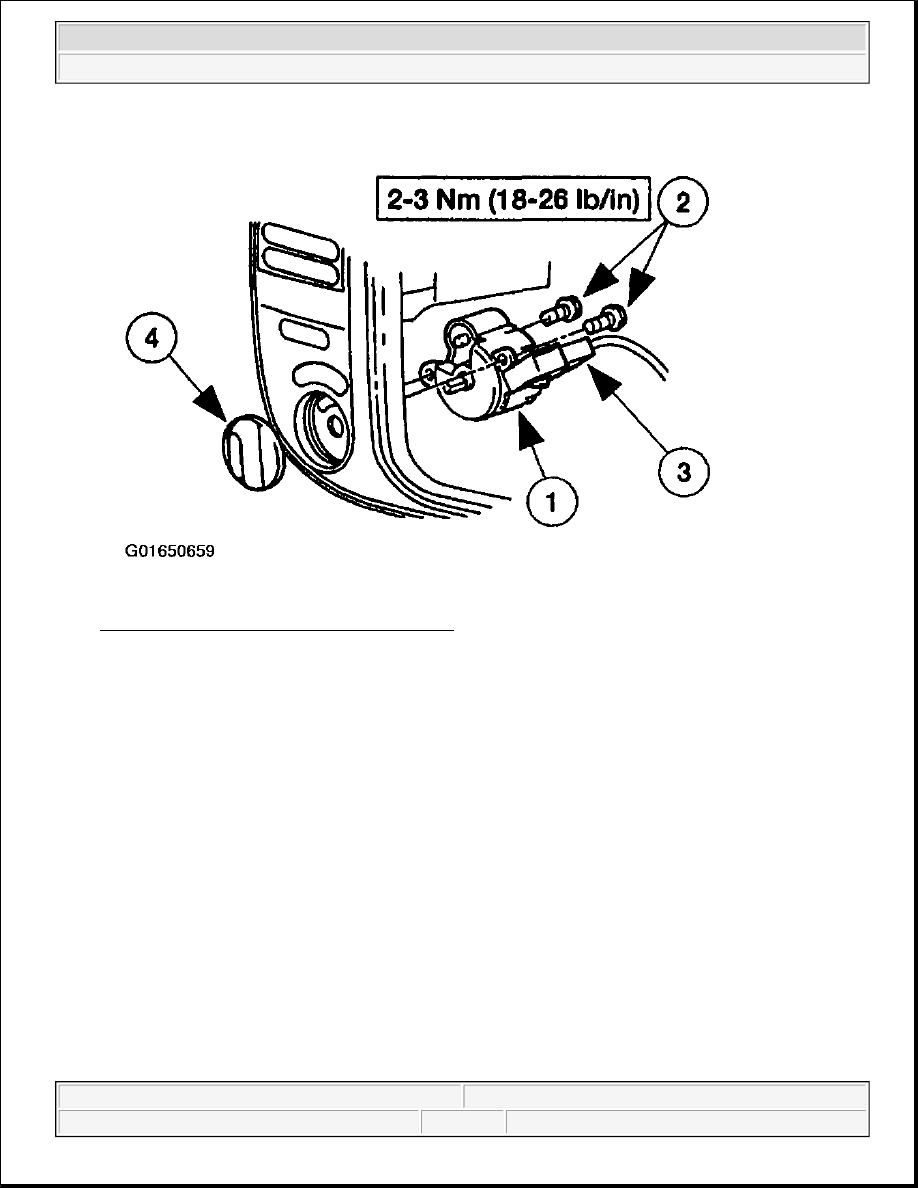

Fig. 26: Installing Shift Range Selector Switch
Courtesy of FORD MOTOR CO.

2. Install the center instrument panel trim plate.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



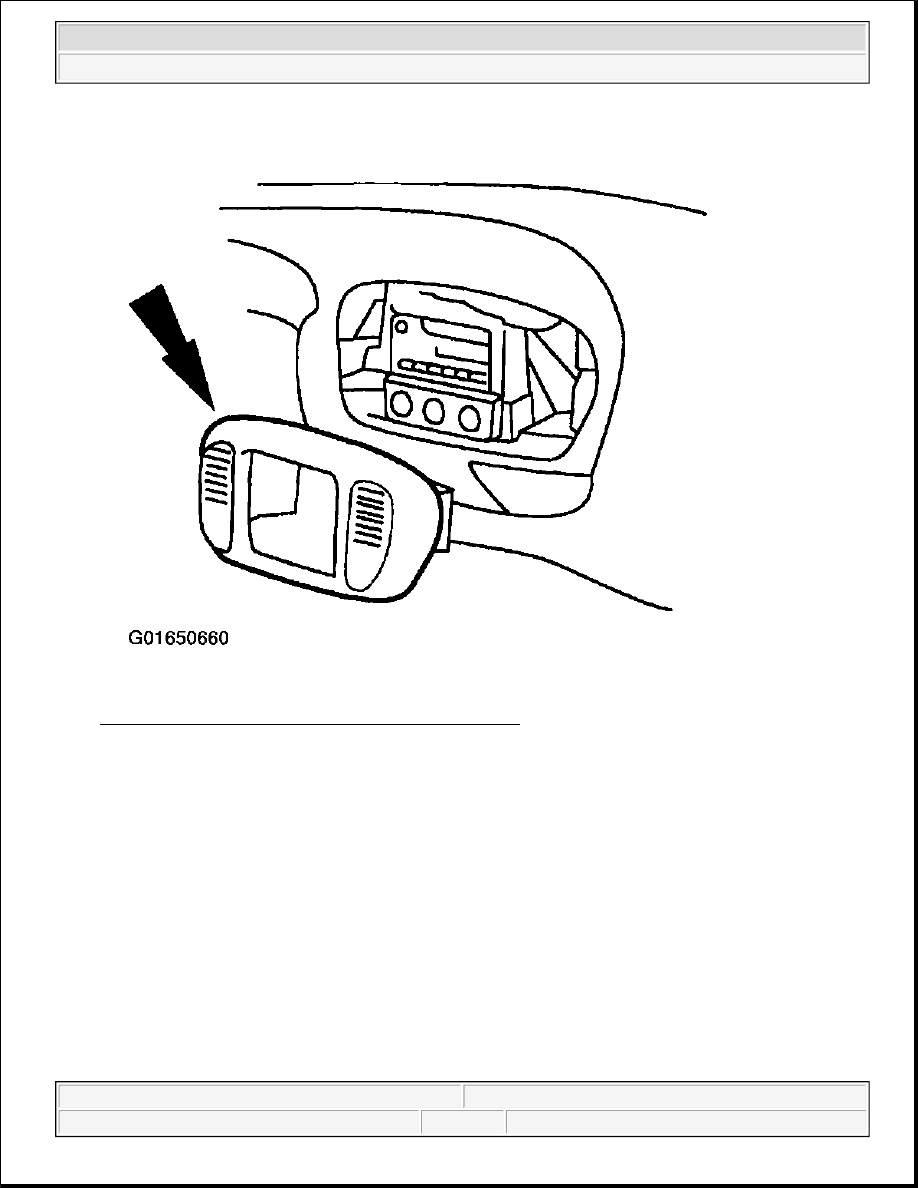

Fig. 27: Installing Center Instrument Panel Trim Plate
Courtesy of FORD MOTOR CO.

OUTPUT SHAFT SPEED SENSOR

Removal

1. Remove the output shaft speed sensor connector.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

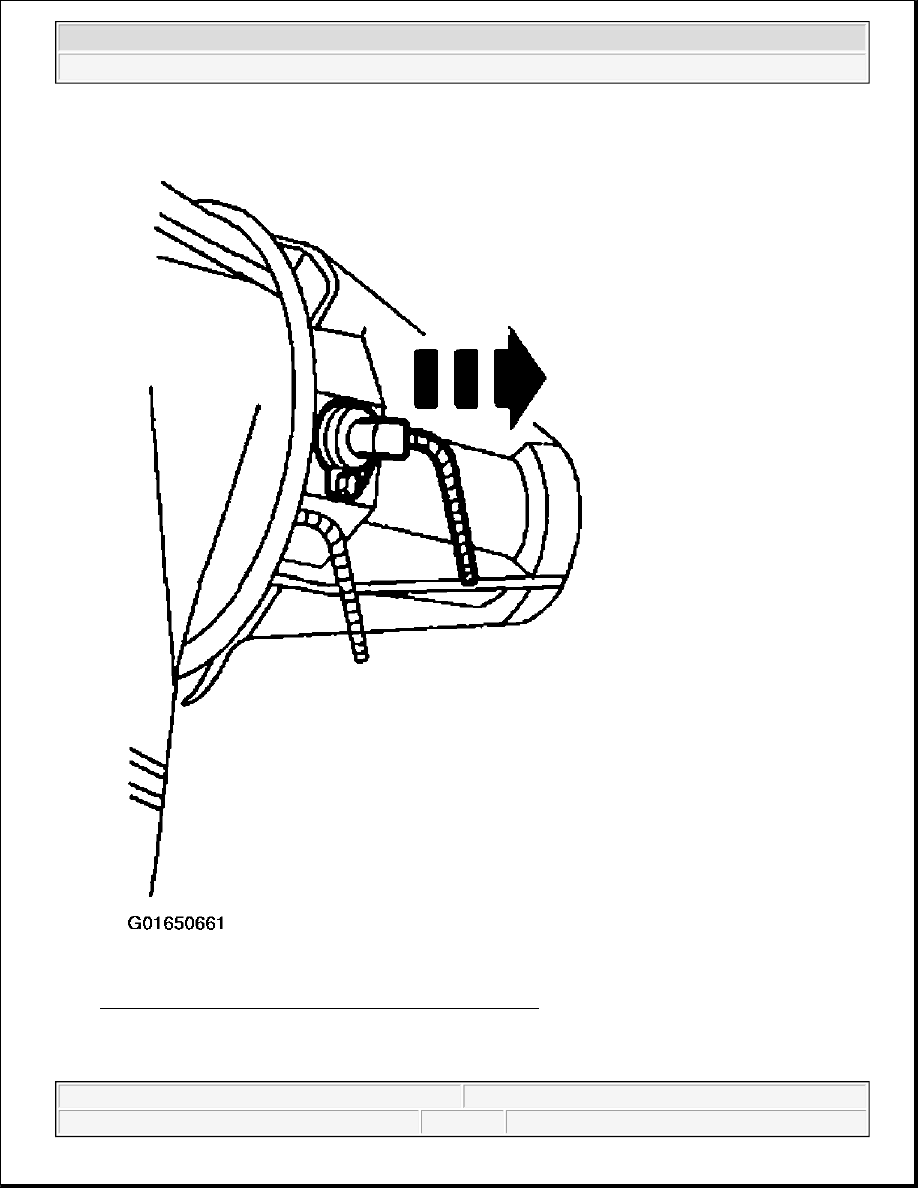

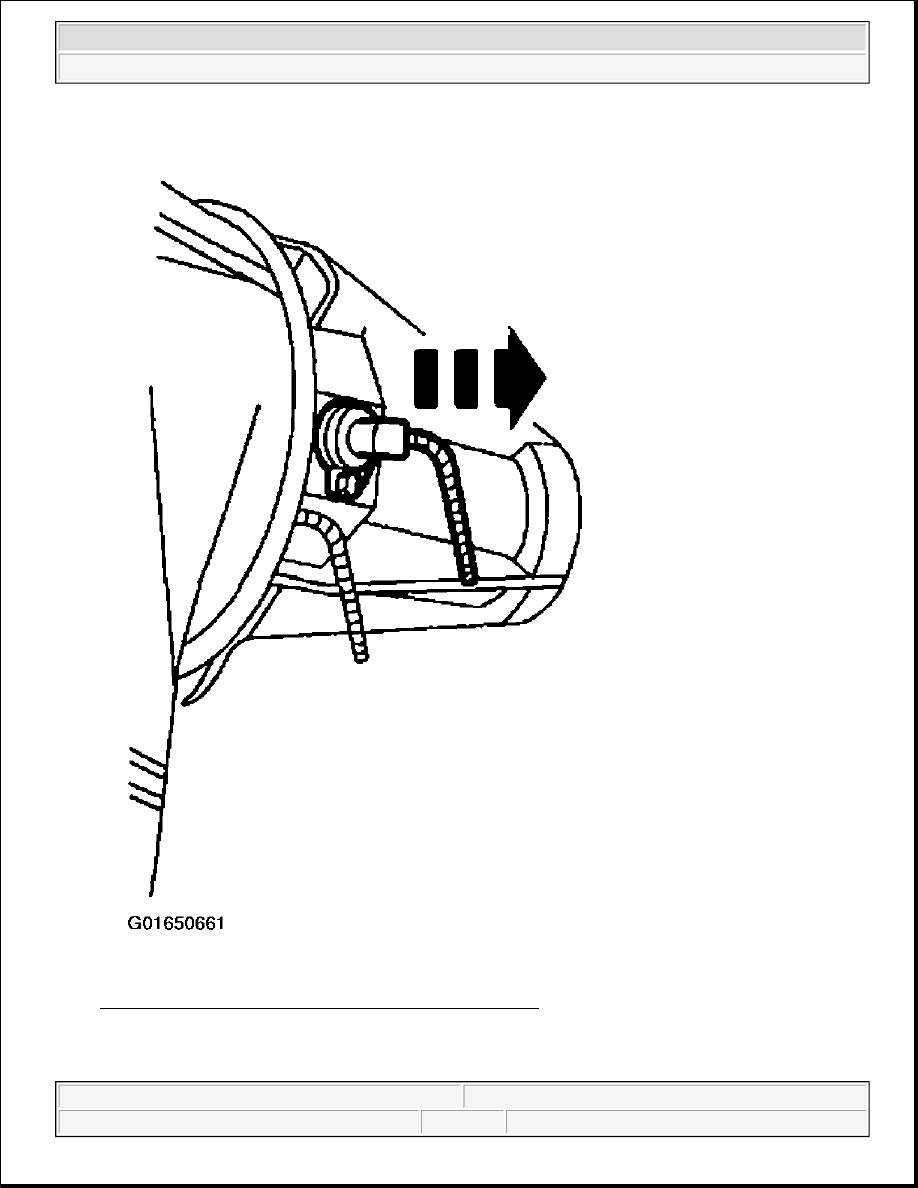

Fig. 28: Removing Output Shaft Speed Sensor Connector
Courtesy of FORD MOTOR CO.

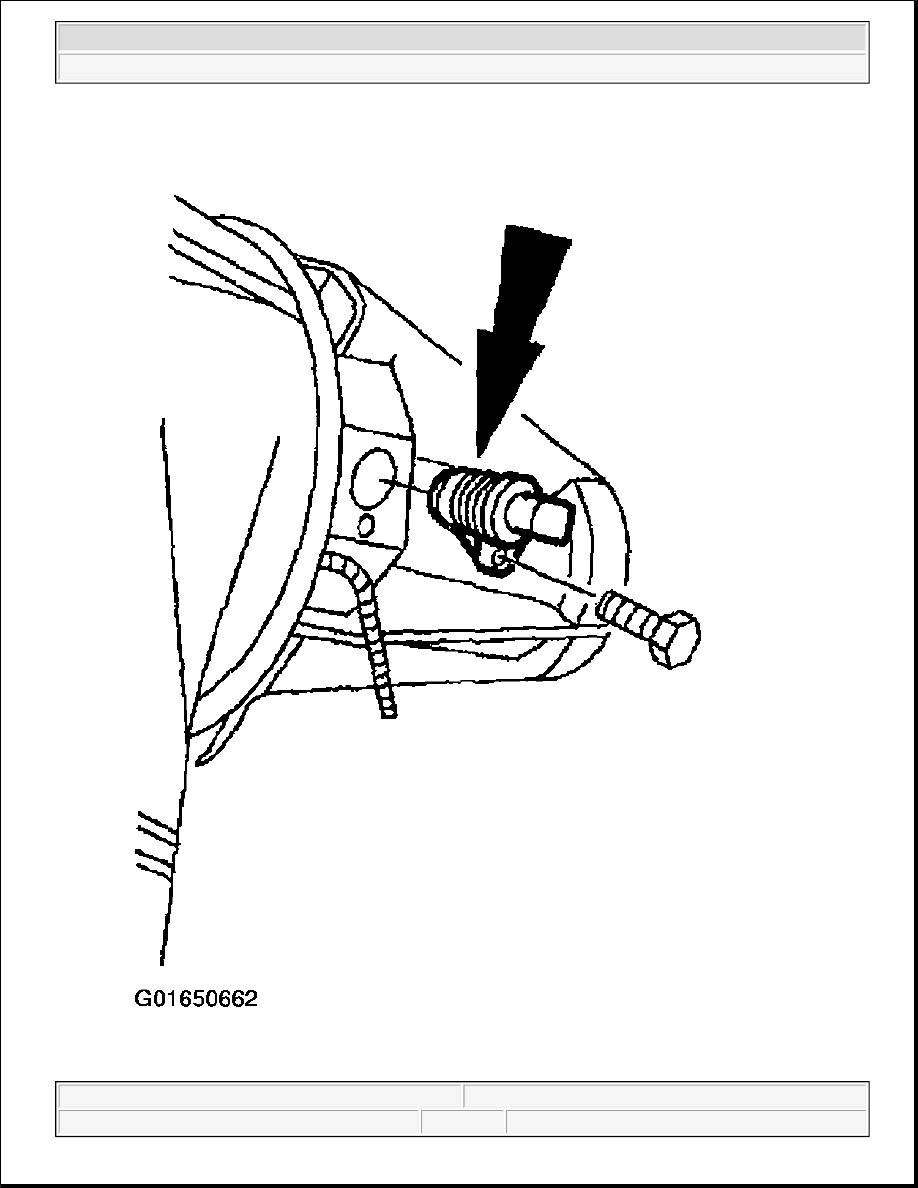

2. Remove the bolt and the output shaft speed sensor.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup





2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
