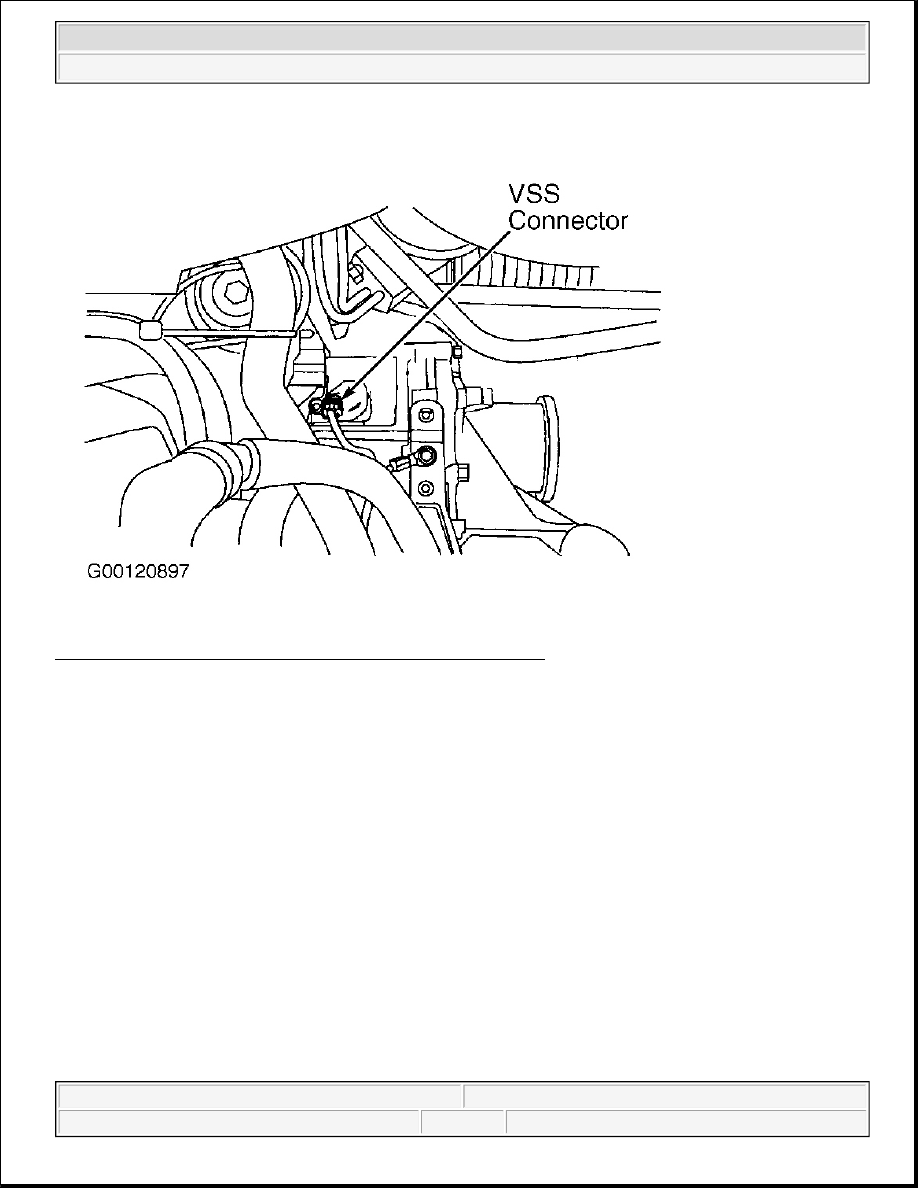

Fig. 24: Locating G5M Vehicle Speed Sensor Connector (RWD)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 MANUAL TRANSMISSIONS Servicing - Pickup & Sport Utility

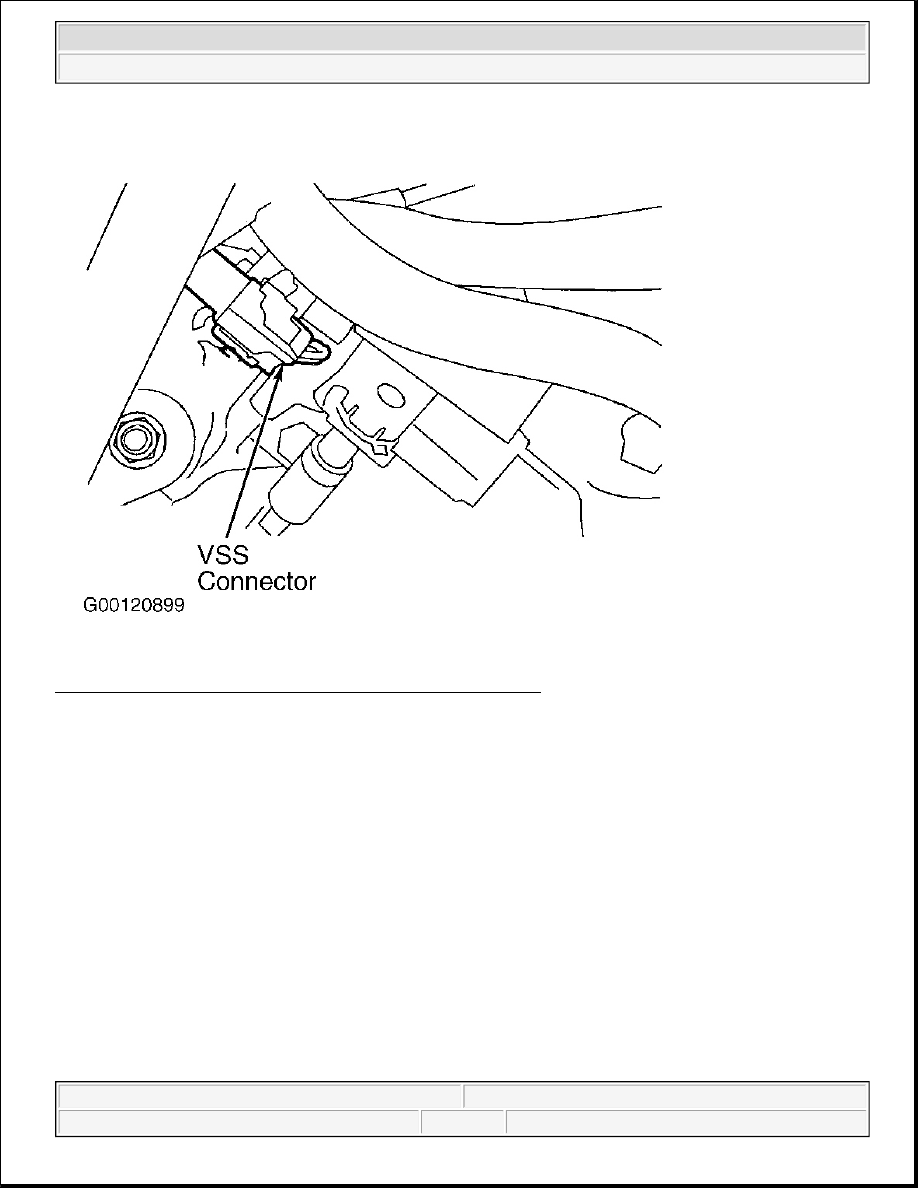

Fig. 25: Locating G5M Vehicle Speed Sensor Connector (4WD)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 MANUAL TRANSMISSIONS Servicing - Pickup & Sport Utility

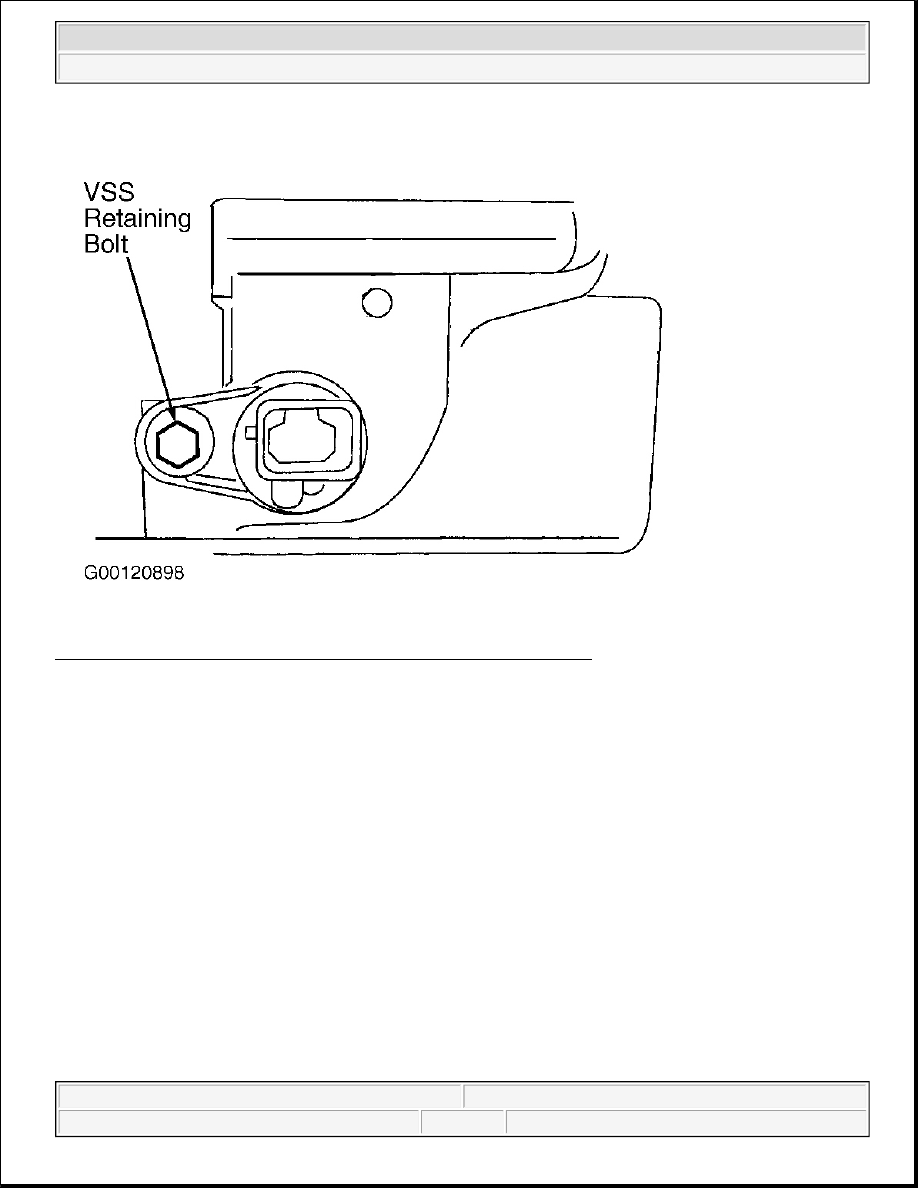

Fig. 26: Identifying G5M Vehicle Speed Sensor Retaining Bolt (RWD)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 MANUAL TRANSMISSIONS Servicing - Pickup & Sport Utility

Fig. 27: Identifying G5M Vehicle Speed Sensor Retaining Bolt (4WD)
Courtesy of FORD MOTOR CO.

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Crossmember Bolts & Nuts

M5OD-R1

46 (63)

M5OD-R2

58-75 (78-103)

Drain Plug

G5M

35 (47)

M5OD-R1

36 (48)

Exhaust Bracket Bolts (M5OD-R1)

72 (98)

Exhaust Pipe Bracket Nuts (M5OD-R2)

25-33 (34-46)

Extension Housing Bolts
