Fig. 166: Installing Fluid Passage Bolt
Courtesy of FORD MOTOR CO.

21. Install the output shaft fifth speed gear.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup



Fig. 167: Installing Output Shaft Fifth Speed Gear
Courtesy of FORD MOTOR CO.

22. Install the locating ball, then the race and fifth speed gear split bearing on the countershaft.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

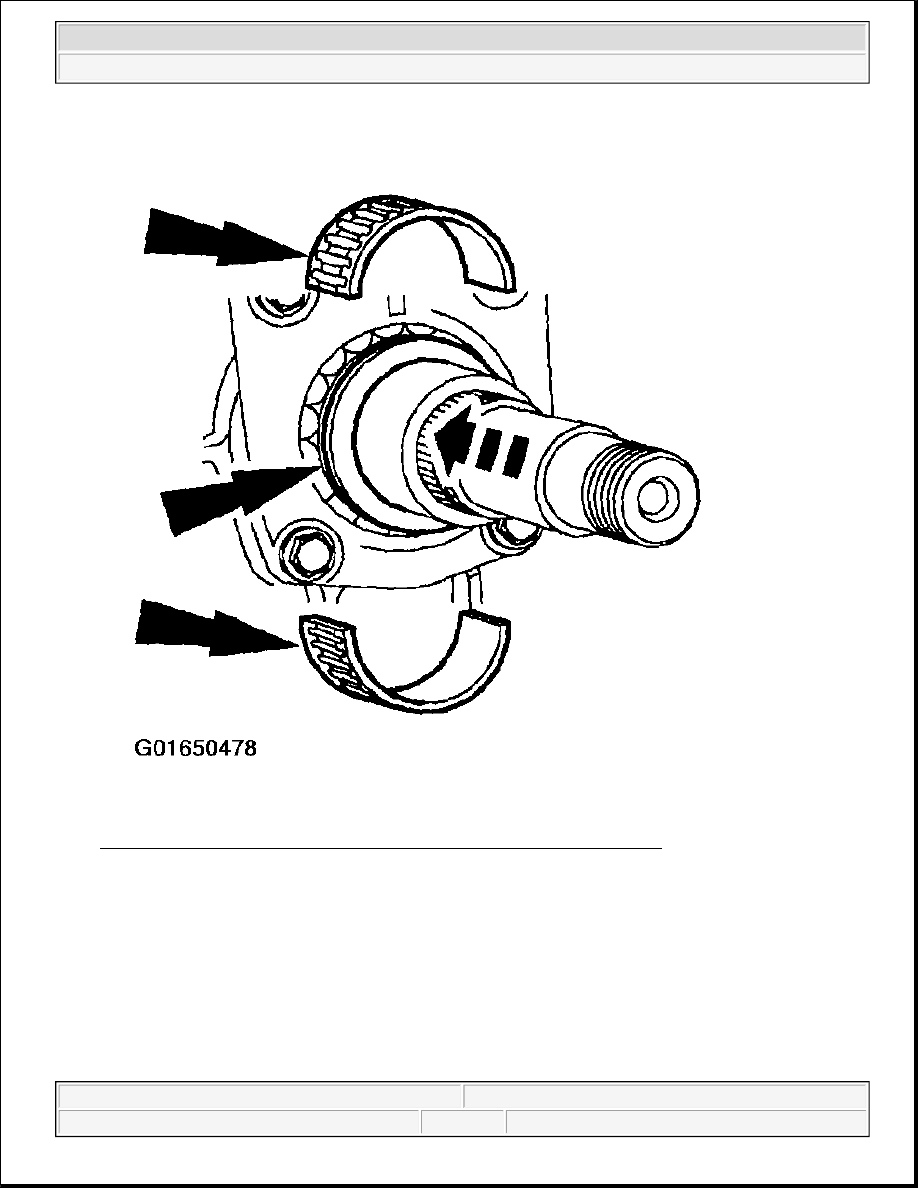

Fig. 168: Installing Locating Ball, Race & Fifth Speed Gear Split Bearing
Courtesy of FORD MOTOR CO.

23. Install the countershaft fifth speed gear.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

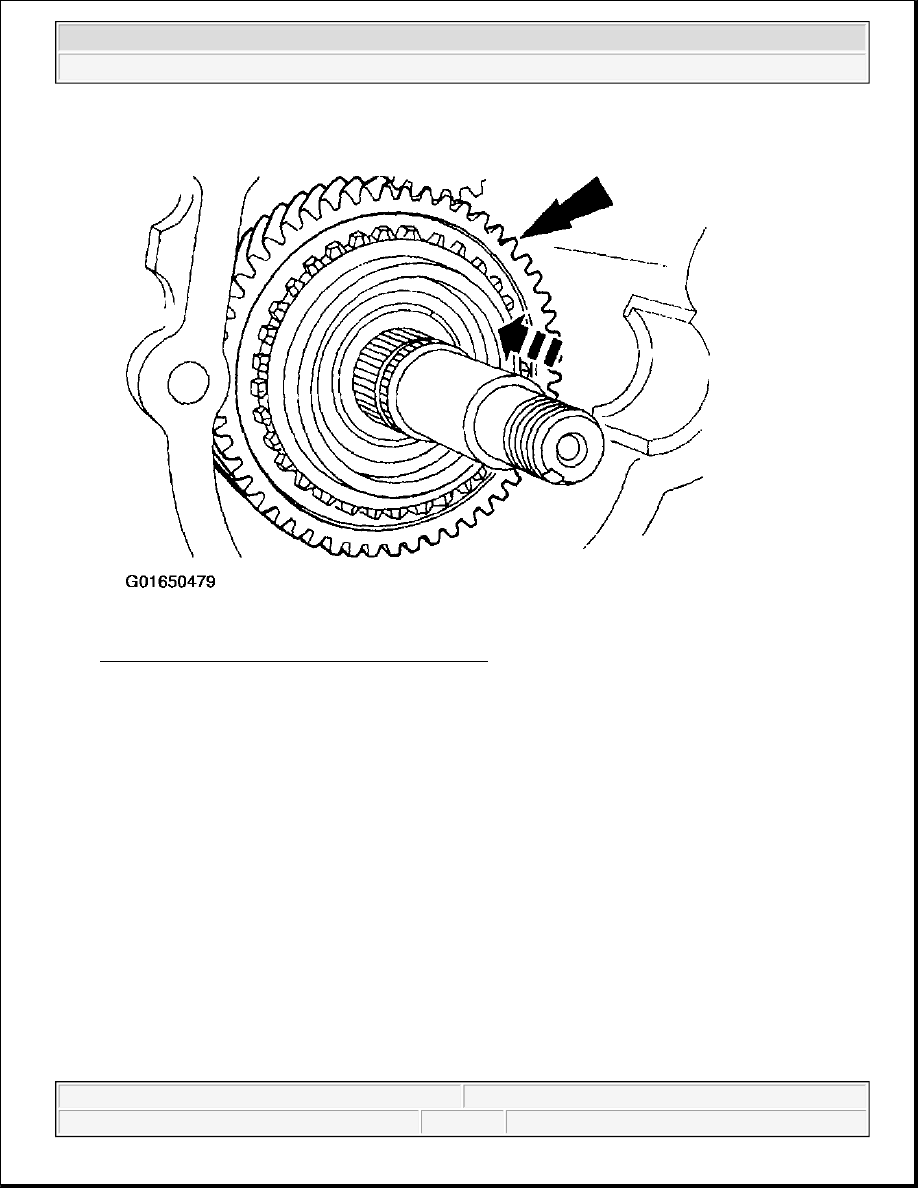

Fig. 169: Installing Countershaft Fifth Speed Gear
Courtesy of FORD MOTOR CO.

24. Install the counter lever shaft assembly.

1. Position the counter lever shaft and plate.

2. Install the counter lever shaft bolt.
