Fig. 91: Removing Input Shaft Front Bearing Race
Courtesy of FORD MOTOR CO.

36. Remove the output shaft center bearing race.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup



Fig. 92: Removing Output Shaft Center Bearing Race
Courtesy of FORD MOTOR CO.

37. Remove the center countershaft bearing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

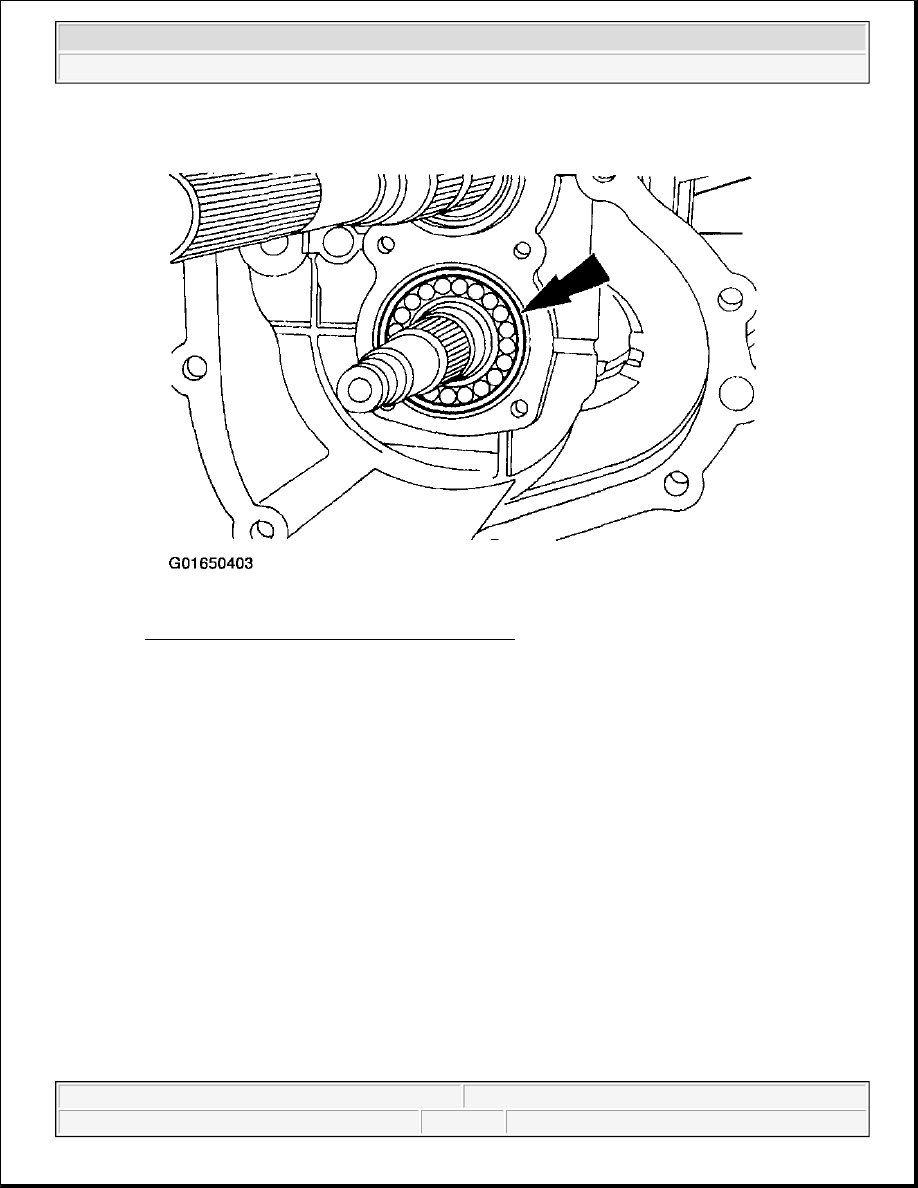

Fig. 93: Removing Center Countershaft Bearing
Courtesy of FORD MOTOR CO.

38. Separate the input shaft and the output shaft.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

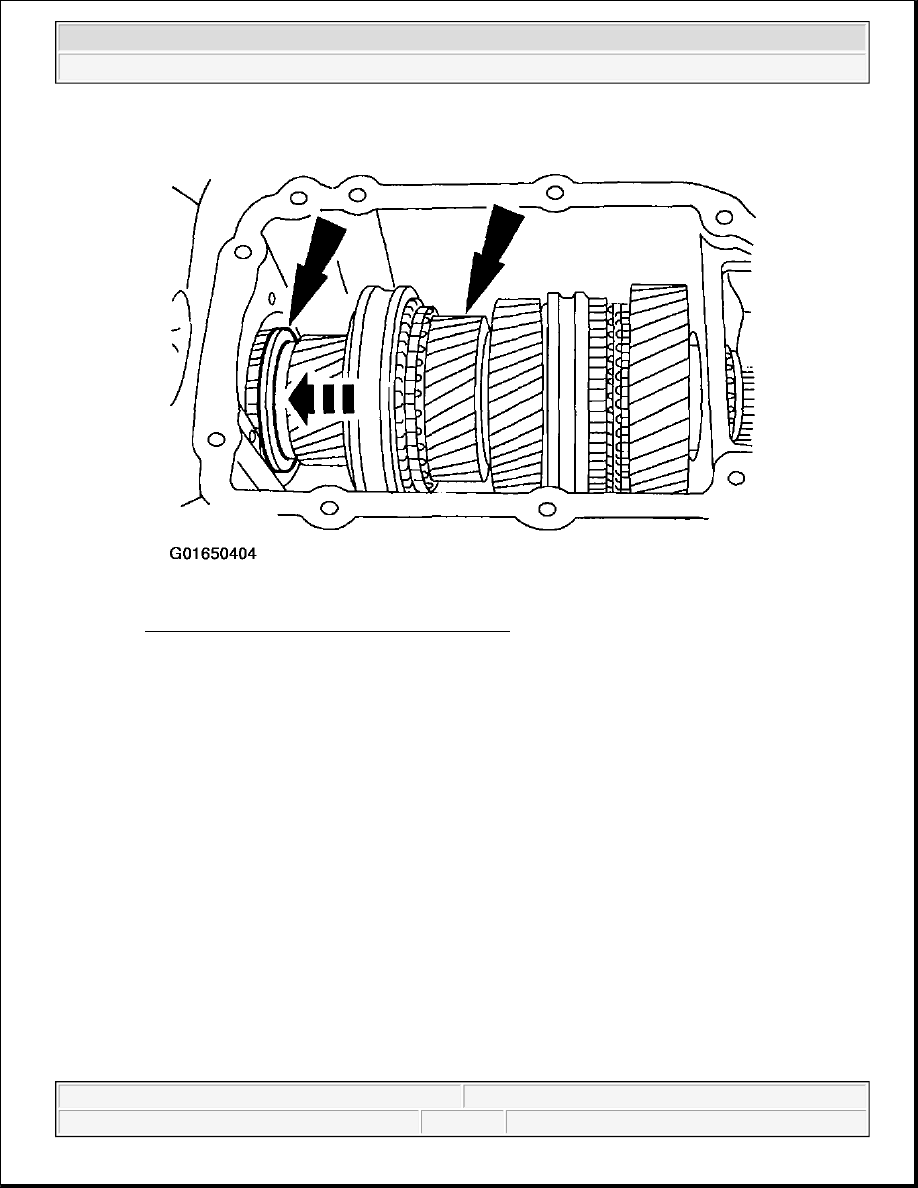

Fig. 94: Separating Input Shaft & Output Shaft
Courtesy of FORD MOTOR CO.

39. Remove the output shaft.

z

Move the countershaft down to gain room then remove the output shaft.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup
