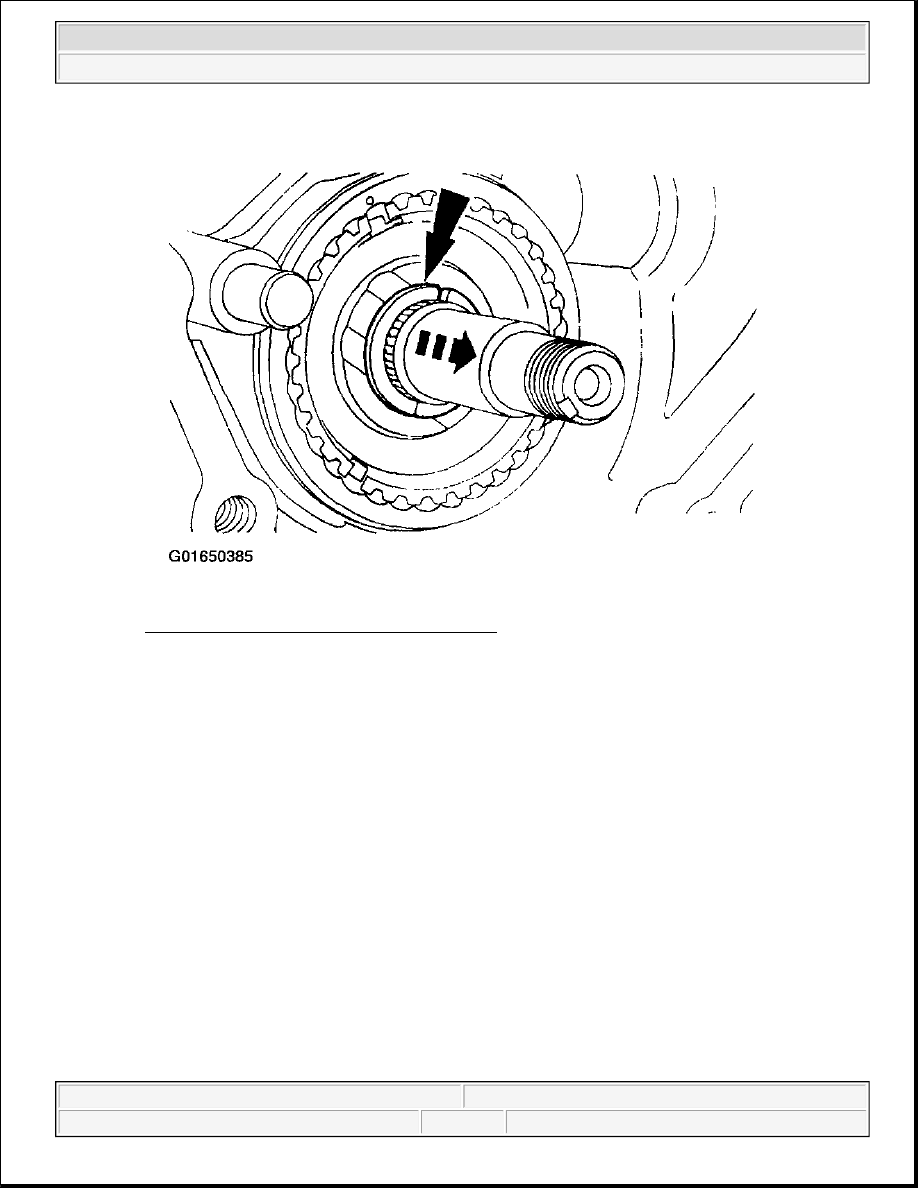

Fig. 75: Removing Countershaft Split Washer
Courtesy of FORD MOTOR CO.

19. Remove the reverse gear shift rail bolt.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

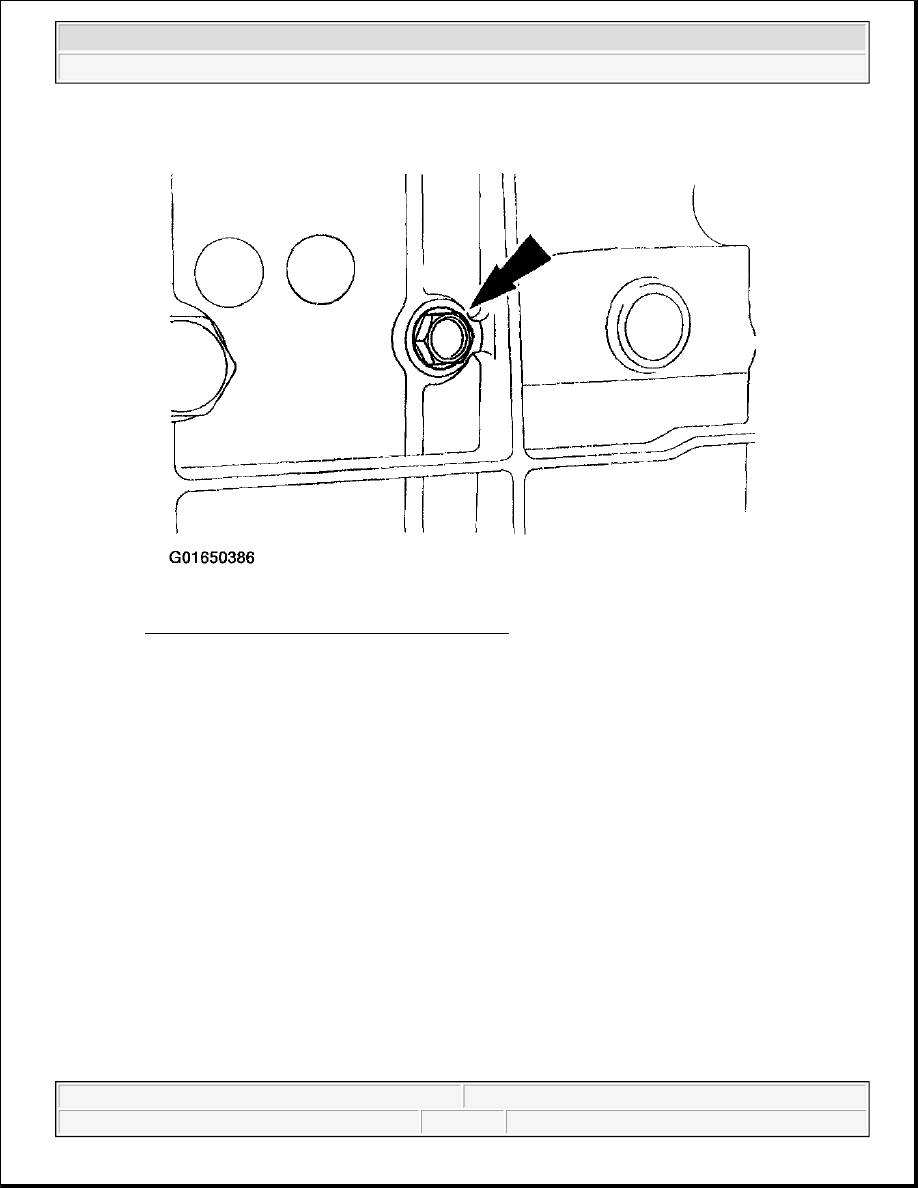

Fig. 76: Removing Reverse Gear Shift Rail Bolt
Courtesy of FORD MOTOR CO.

20. Remove the fifth/reverse synchronizer, the gear shifter fork and the reverse gear shift rail as an

assembly.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

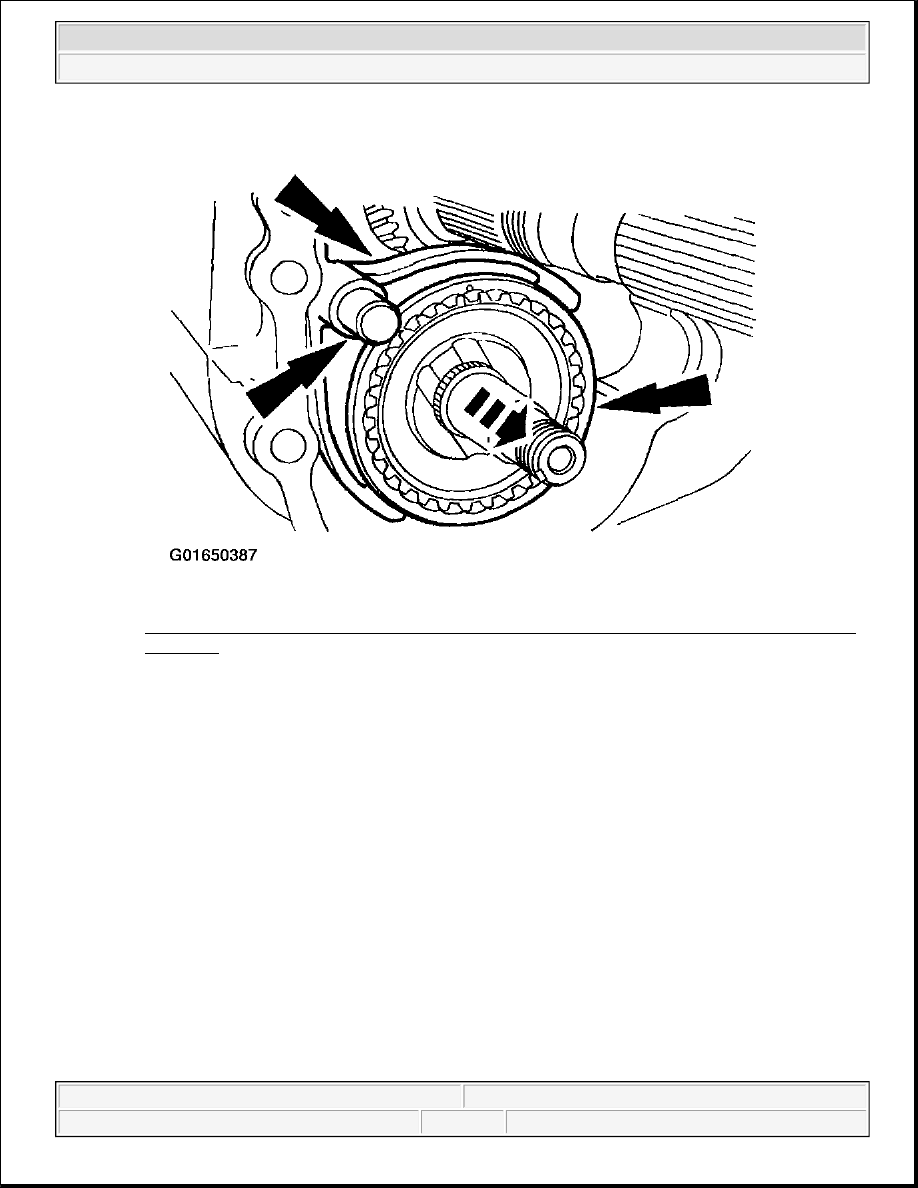

Fig. 77: Removing Fifth/Reverse Synchronizer, Gear Shifter Fork & Reverse Gear Shift Rail
Assembly
Courtesy of FORD MOTOR CO.

21. Remove the countershaft fifth gear synchronizer blocking ring.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

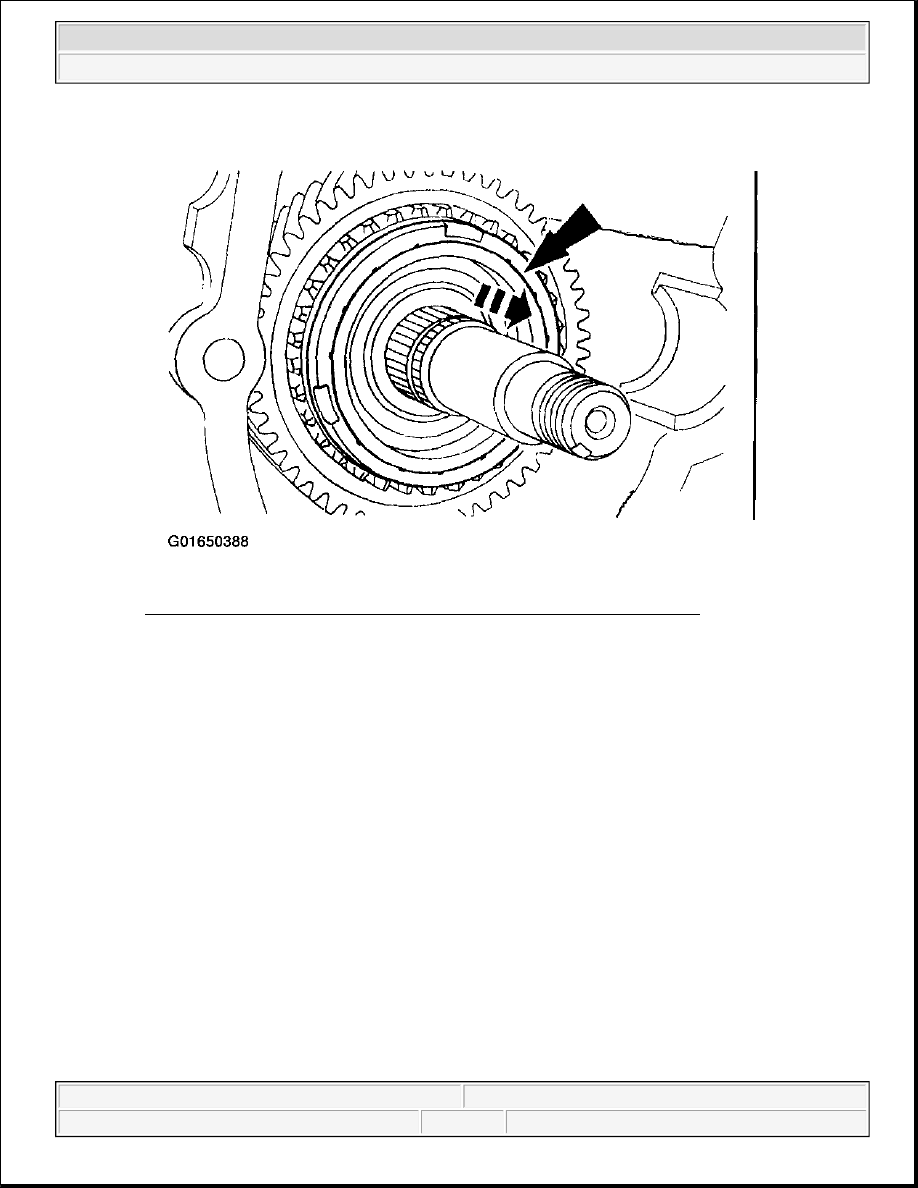

Fig. 78: Removing Countershaft Fifth Gear Synchronizer Blocking Ring
Courtesy of FORD MOTOR CO.

22. Remove the countershaft fifth speed gear.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup
