Ford F150 Pickup. Manual - part 1875

Fig. 39: Installing Inner Gearshift Lever Boot
Courtesy of FORD MOTOR CO.

2. Install the gearshift lever.

1. Position the gearshift lever.

2. Install the bolt.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup



Fig. 40: Installing Gearshift Lever
Courtesy of FORD MOTOR CO.

3. Install the screws.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

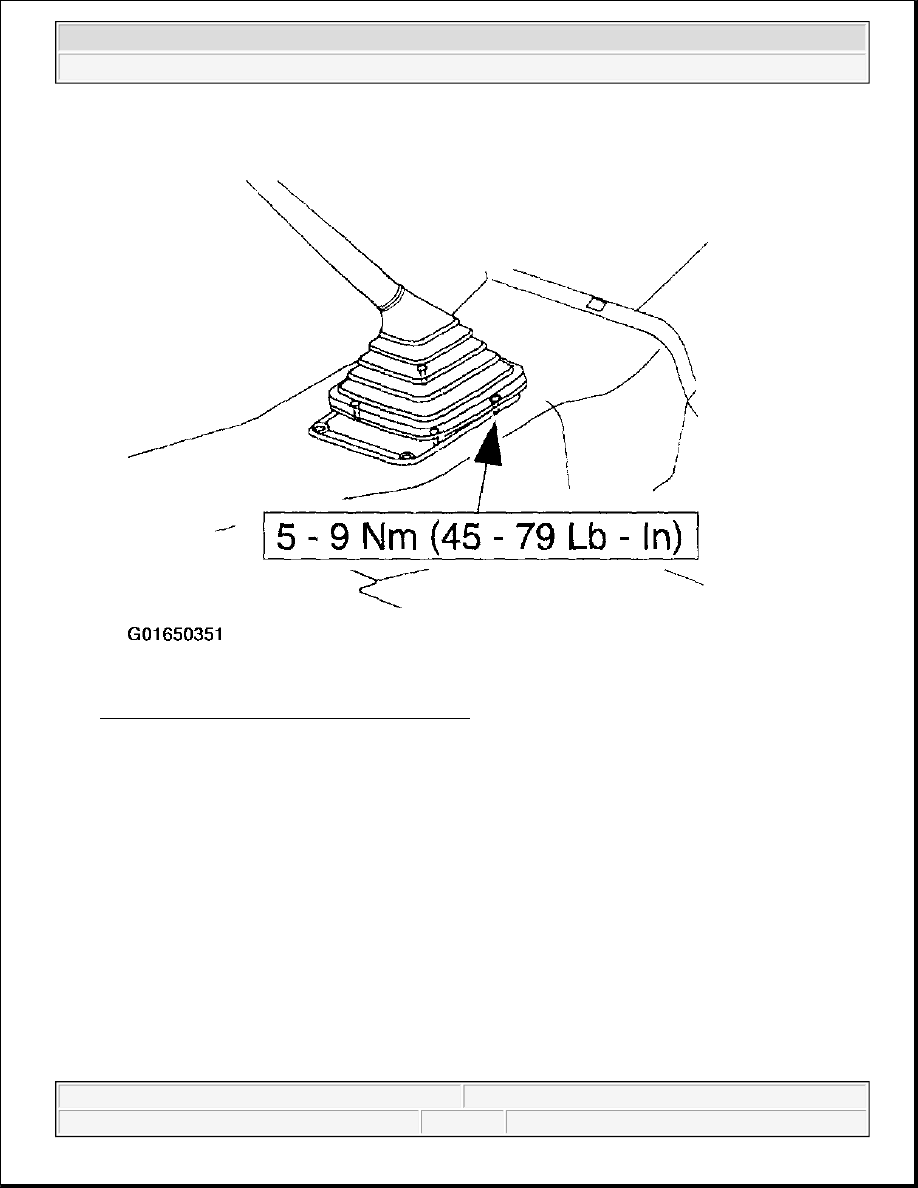

Fig. 41: Installing Outer Gear Shift Boot Screws
Courtesy of FORD MOTOR CO.

REMOVAL

TRANSMISSION

Special Tool(s)



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

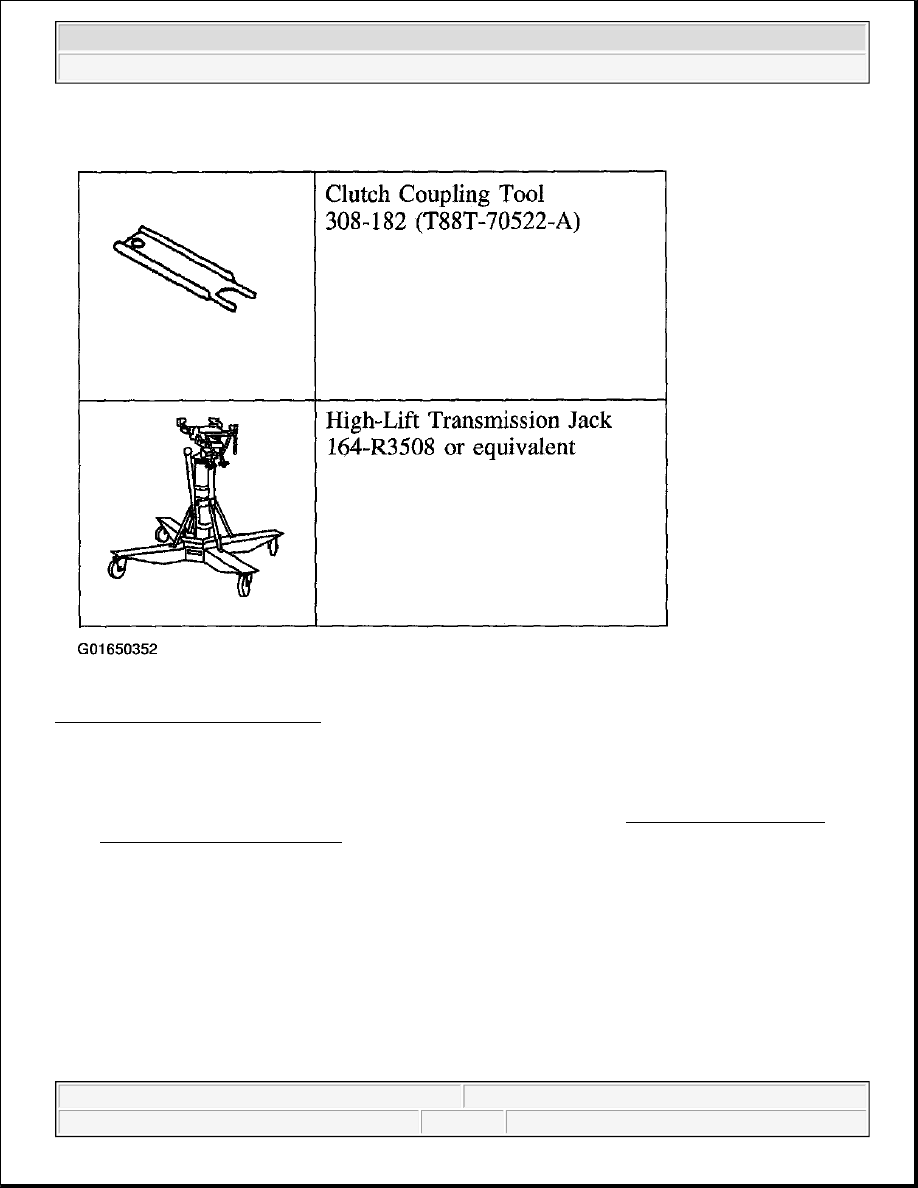

Fig. 42: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

All Vehicles

1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING

AND CABLES - F150 PICKUP .

2. Remove the four screws and pull the gearshift lever upward.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup
