Fig. 11: Inspecting Bearing For Heat Discoloration (Dark Blue)
Courtesy of FORD MOTOR CO.

7. Inspect the bearing for fatigue spelling (metal flaking).



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup



Fig. 12: Inspecting Bearing For Fatigue Spelling (Metal Flaking)
Courtesy of FORD MOTOR CO.

IN-VEHICLE REPAIR

EXTENSION HOUSING

Special Tool(s)



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup

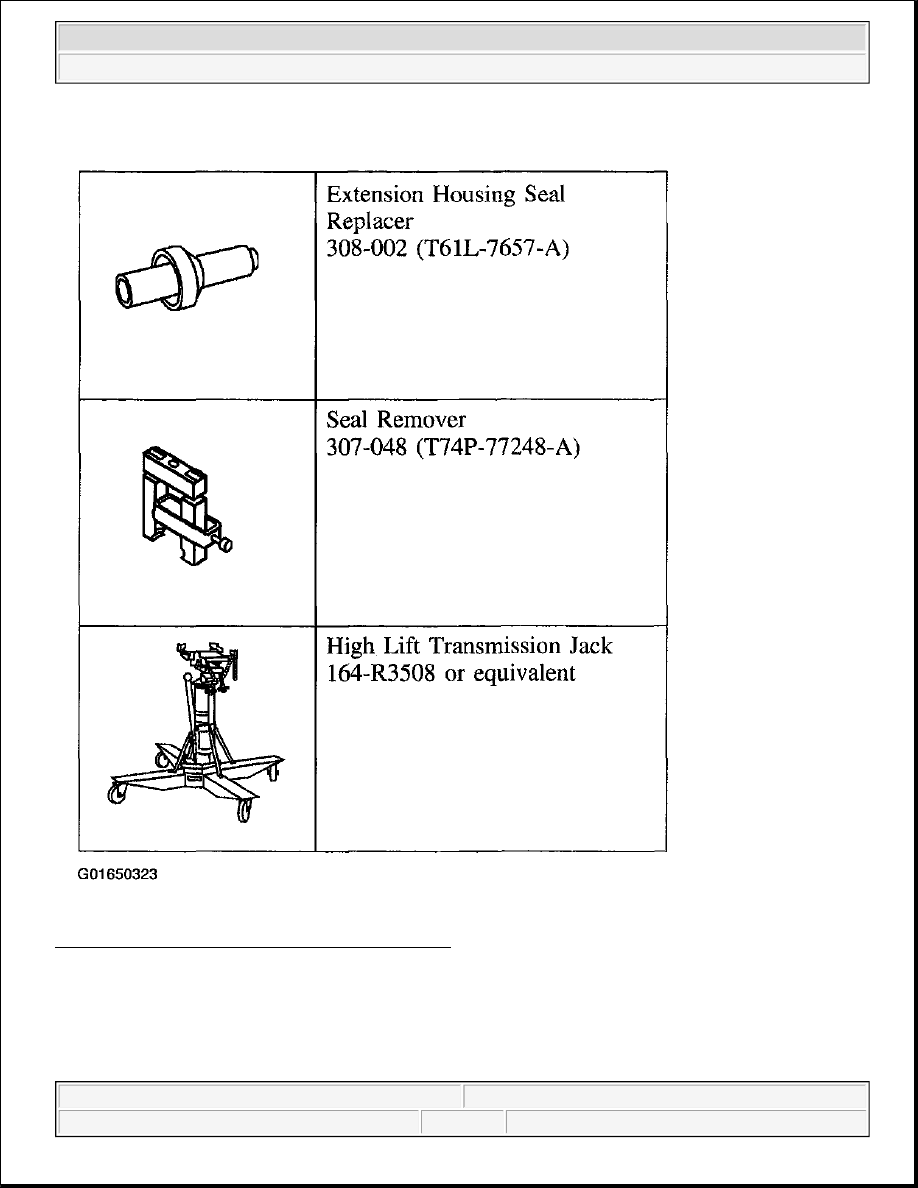

Fig. 13: Identifying Extension Housing Special Tool
Courtesy of FORD MOTOR CO.

Removal

1. Disconnect the battery ground cable (14301).

2. If equipped, turn the air suspension switch off.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup



3. Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .

4. Drain the transmission fluid.

5. Remove and support the rear driveshaft (4602).

1. Remove the bolts.

2. Remove the rear driveshaft.

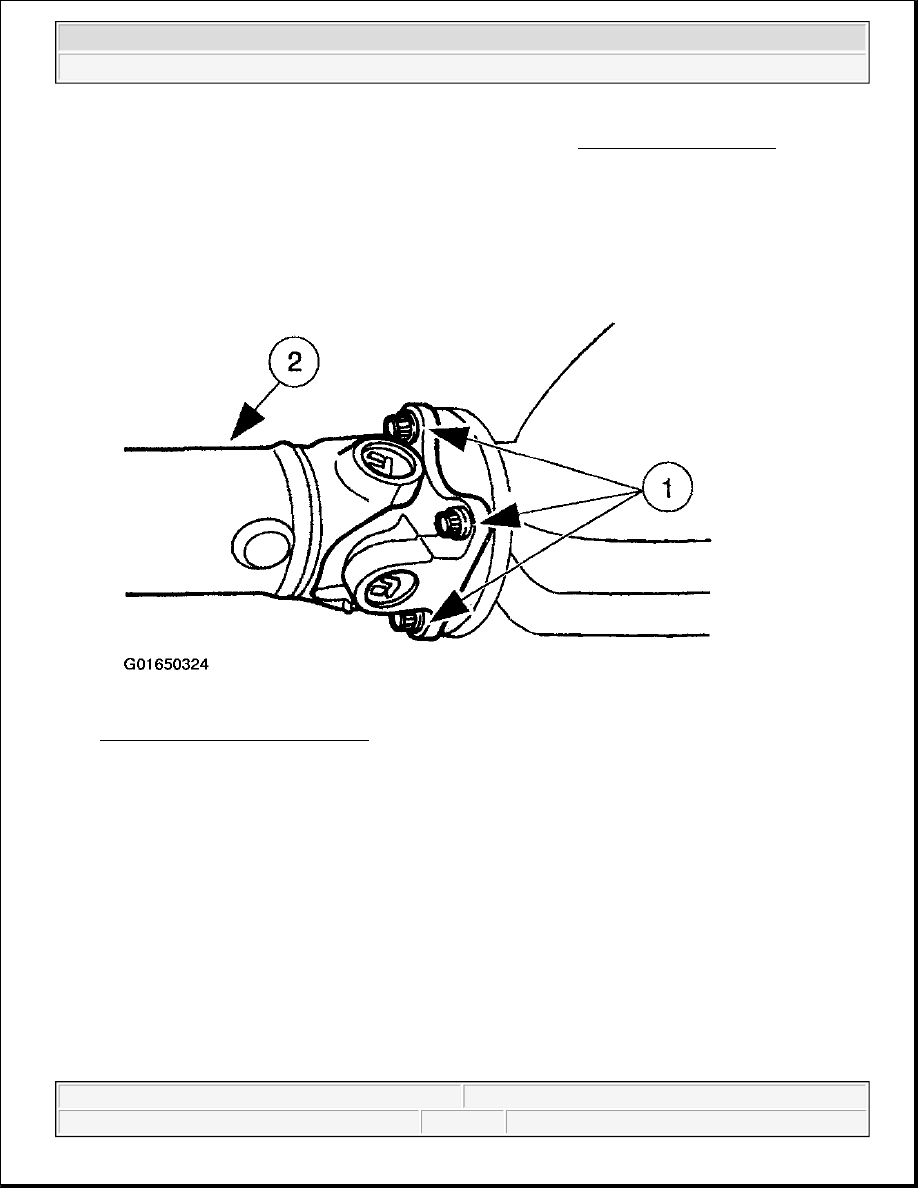

Fig. 14: Removing Rear Driveshaft
Courtesy of FORD MOTOR CO.

6. Remove the Vehicle Speed Sensor (VSS).

1. Disconnect the electrical connector.

2. Remove the bolt.

3. Remove the VSS.



2003 Ford Pickup F150

2003 TRANSMISSIONS Manual Transmission - F150 Pickup
