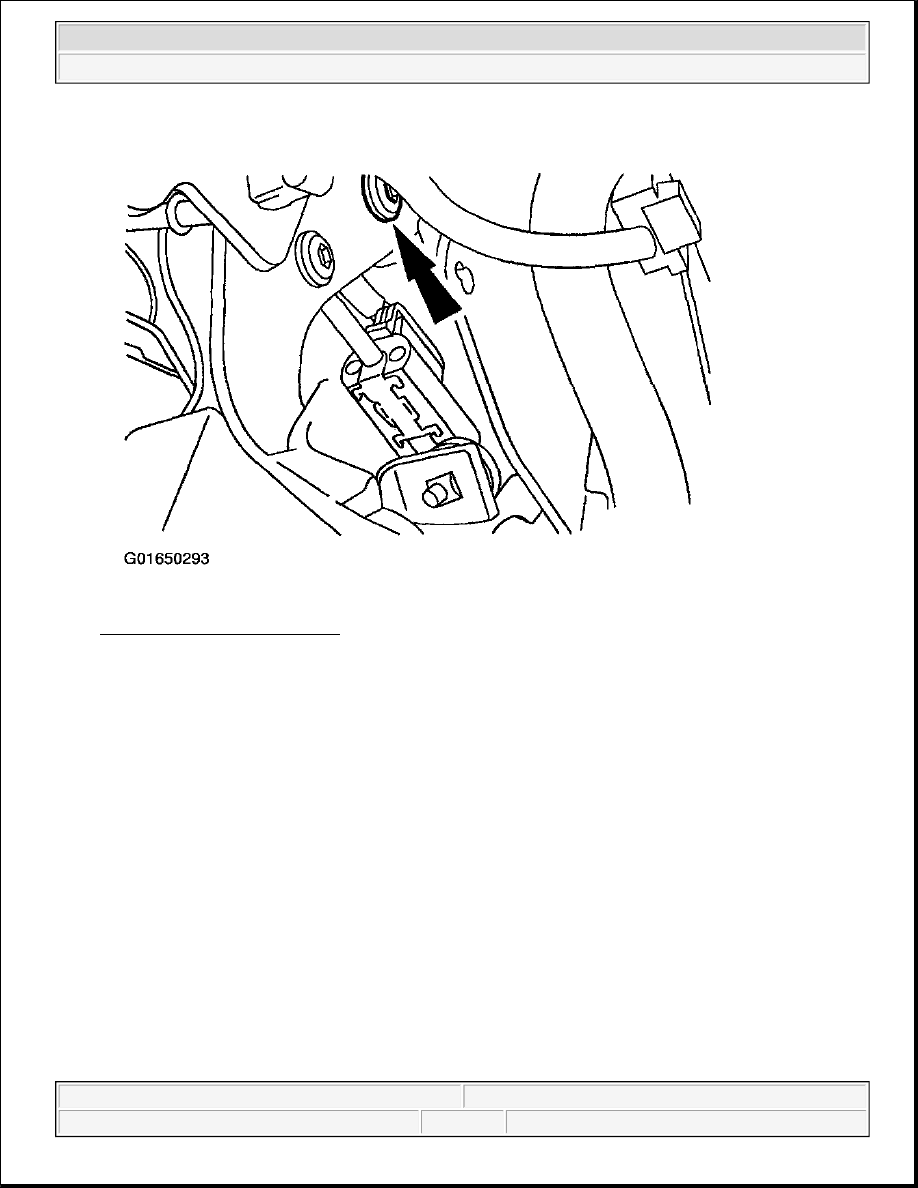

Fig. 7: Installing Retainer Ring
Courtesy of FORD MOTOR CO.

3. Install the clutch master cylinder (7A543) push rod to pedal pin.



2003 Ford Pickup F150

2003 TRANSMISSIONS Clutch Controls - F150 Pickup

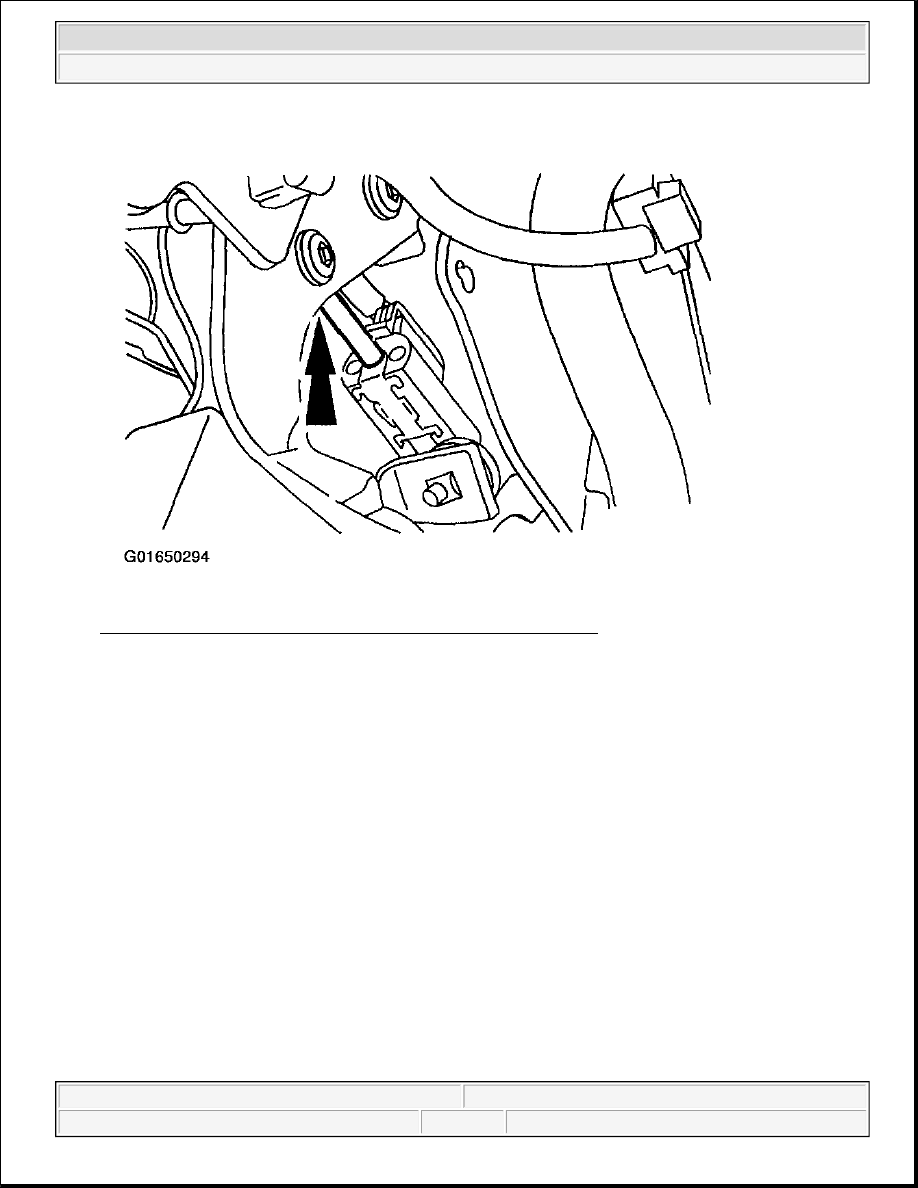

Fig. 8: Installing Clutch Master Cylinder Push Rod To Pedal Pin
Courtesy of FORD MOTOR CO.

CLUTCH MASTER CYLINDER/RESERVOIR

Removal

1. Disconnect the clutch master cylinder push rod from the clutch and brake pedal pivot shaft lever.

NOTE:

When replacing clutch master cylinder (7A543), remove tubing from vehicle for
bench bleeding procedure.



2003 Ford Pickup F150

2003 TRANSMISSIONS Clutch Controls - F150 Pickup

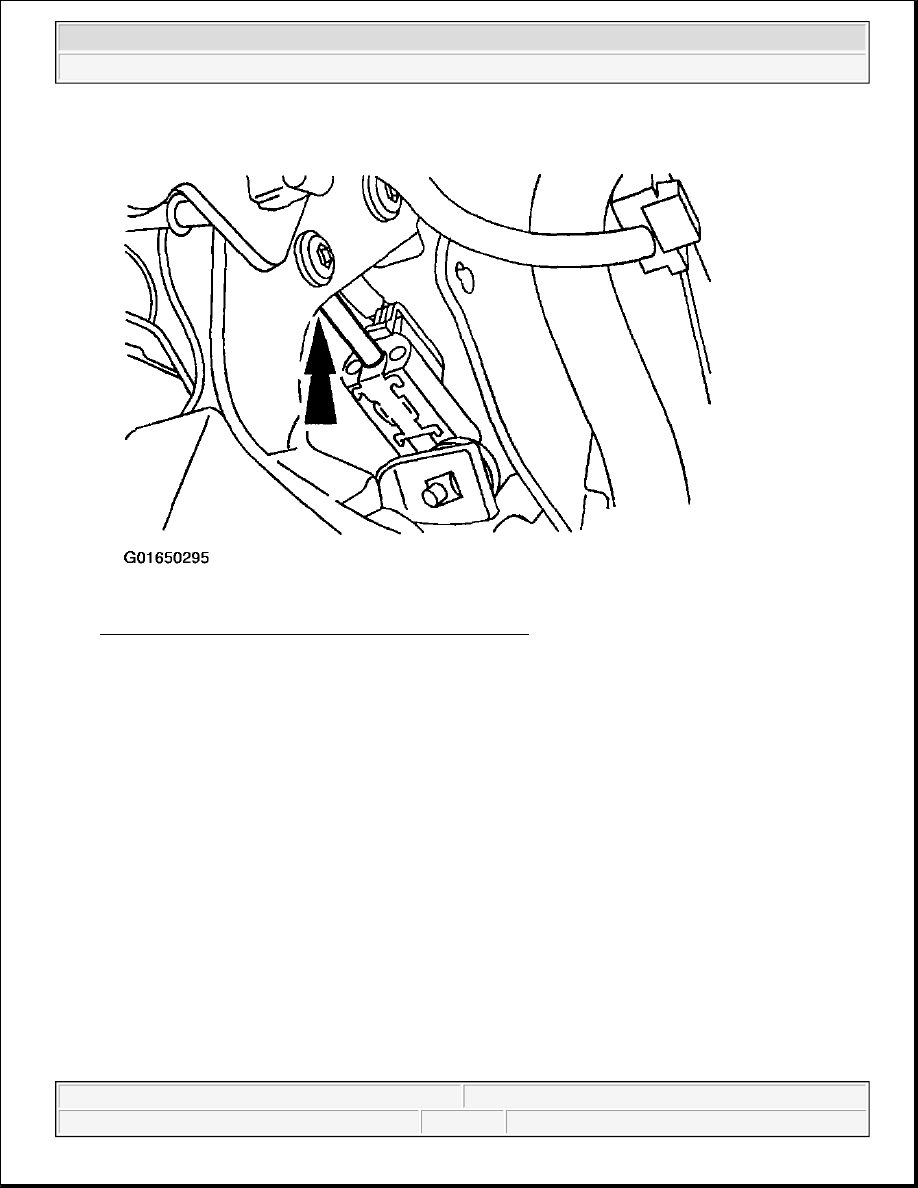

Fig. 9: Disconnecting Clutch Master Cylinder Push Rod
Courtesy of FORD MOTOR CO.

2. Disconnect the Clutch Pedal Position switch (CPP) (11A152).



2003 Ford Pickup F150

2003 TRANSMISSIONS Clutch Controls - F150 Pickup

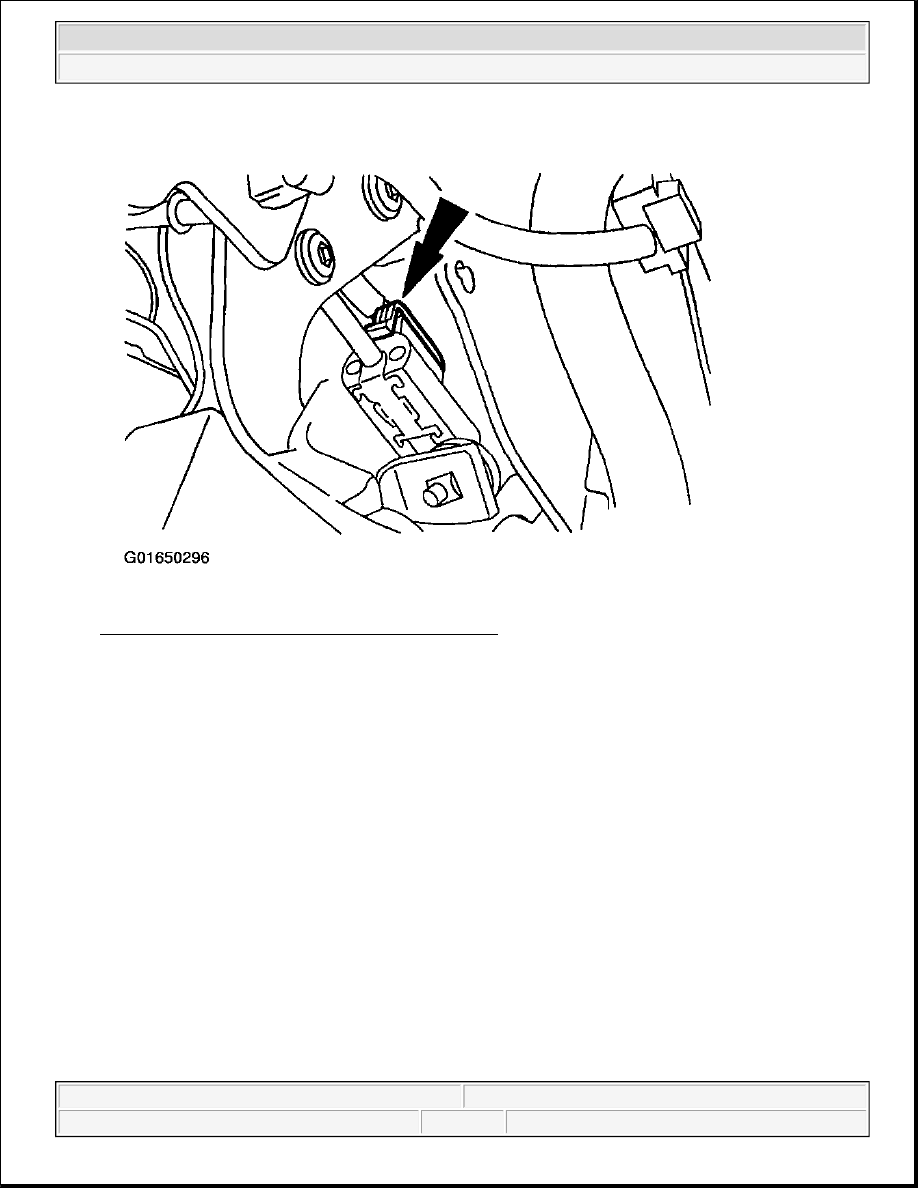

Fig. 10: Disconnecting Clutch Pedal Position Switch
Courtesy of FORD MOTOR CO.

3. Remove the pushpins.
