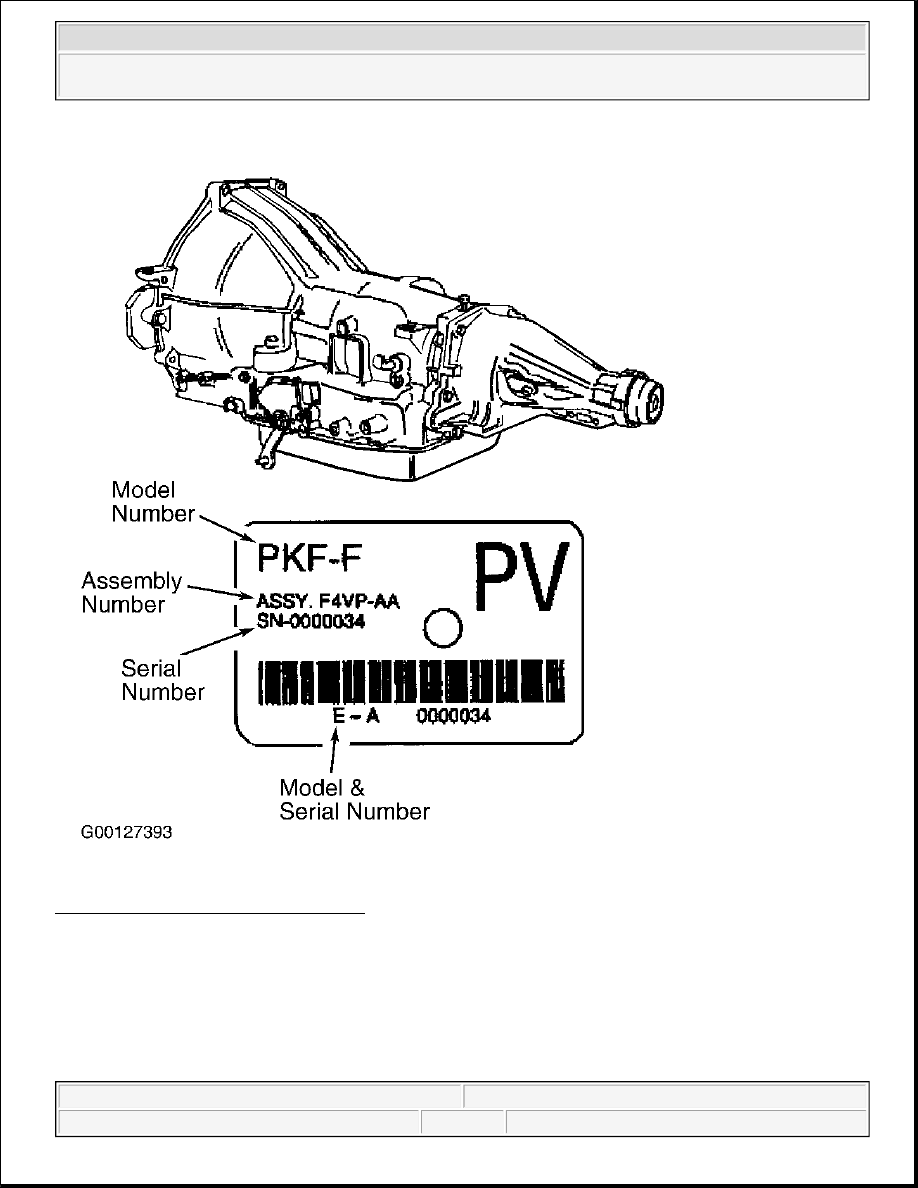

Fig. 2: Identifying 4R70W Transmission
Courtesy of FORD MOTOR CO.

OIL PAN GASKET



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator

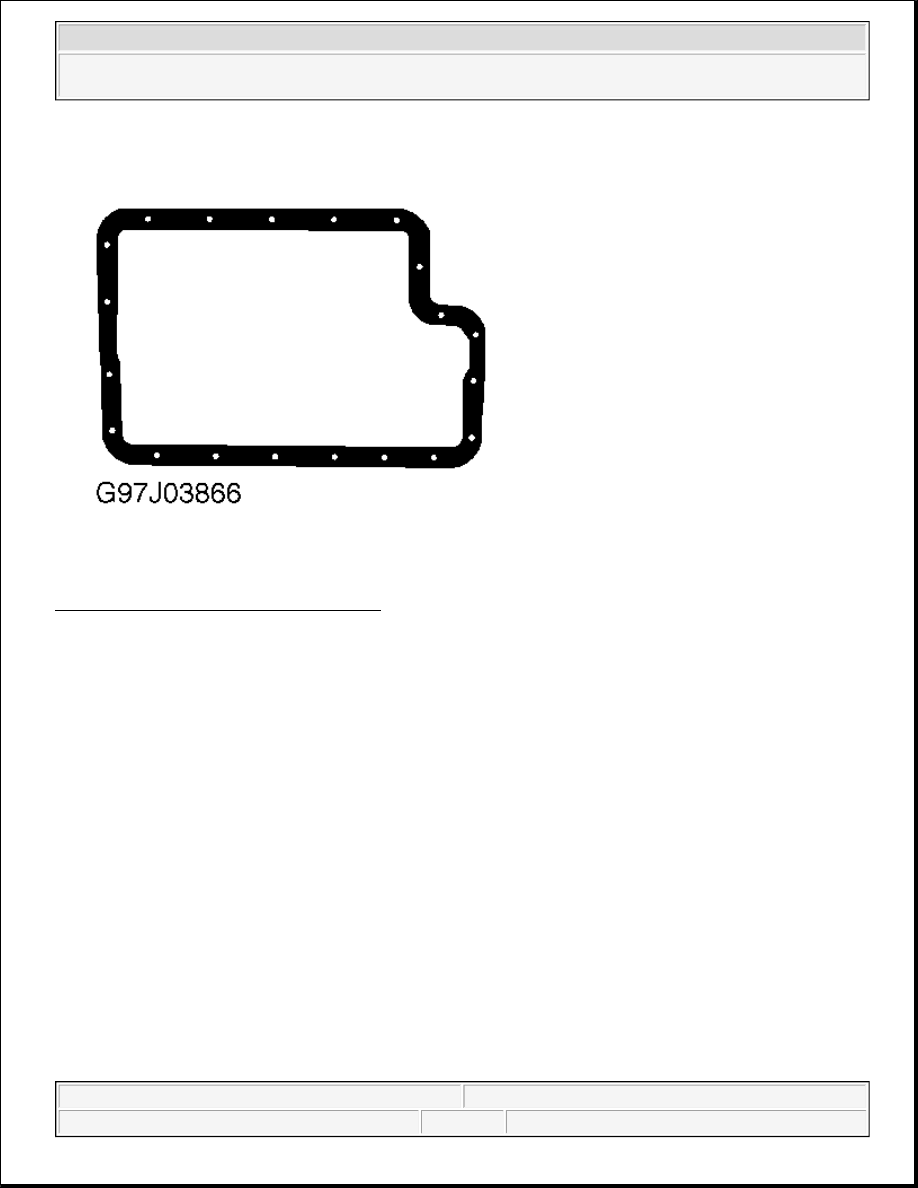

Fig. 3: Identifying Oil Pan Gasket (4R100)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator

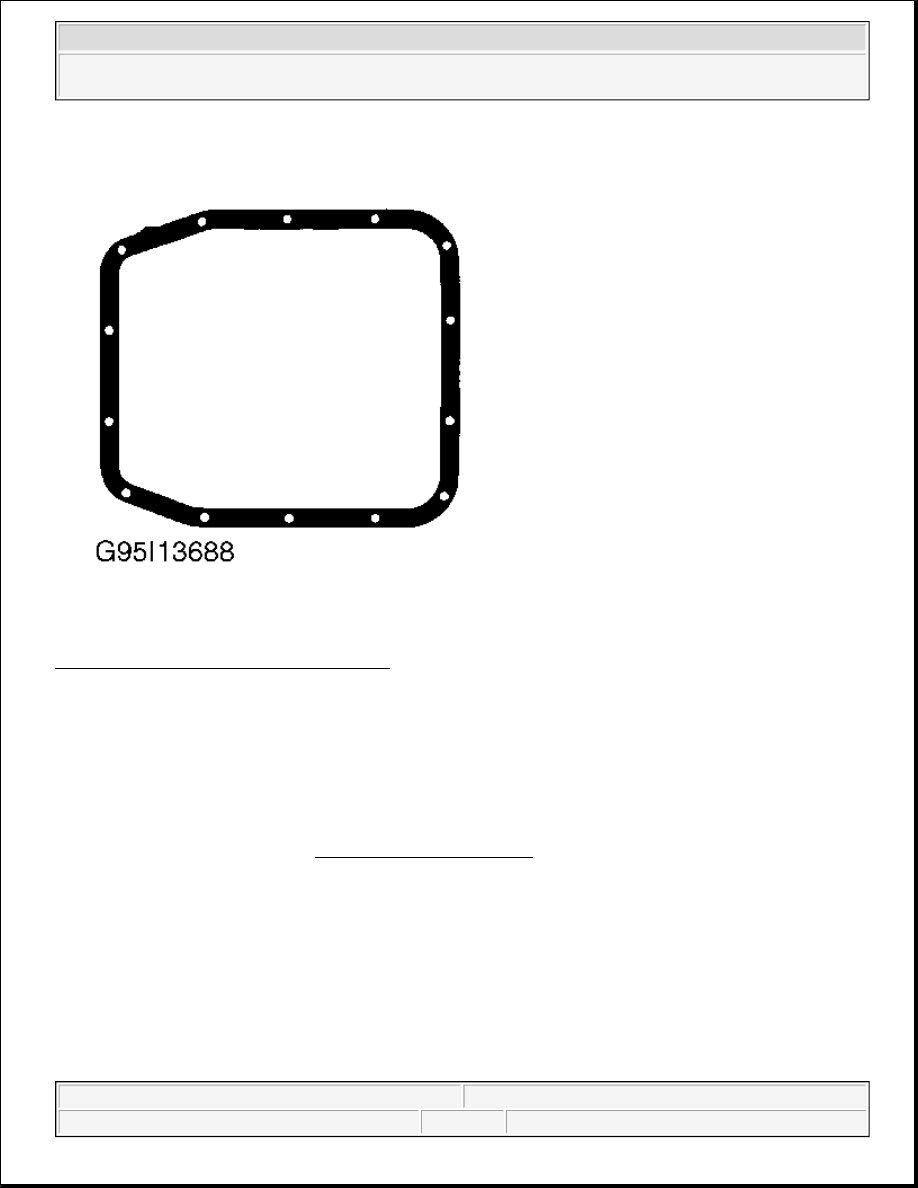

Fig. 4: Identifying Oil Pan Gasket (4R70W)
Courtesy of FORD MOTOR CO.

LUBRICATION

SERVICE INTERVALS

On all models, check fluid level at 15,000-mile intervals. On 4R100 equipped models and under normal service,
change fluid at 30,000-mile intervals. On 4R70W equipped models and under normal service, change fluid and
filter at 150,000-mile intervals. See DRAINING & REFILLING . Service all models at 30,000-mile intervals
when used under the following conditions:

z

In hot weather with temperature greater than 90°F (32°C), carrying heavy loads and/or in hilly terrain.

z

Towing a trailer or using a car top carrier.

z

In police, taxi or door-to-door delivery service.

z

Extreme dusty conditions or off-road use.

CHECKING FLUID LEVEL



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator



1. Transmission/transaxle temperature must be 150-170°F (66-77°C). With vehicle on level ground, apply

parking brake, and run engine at idle. Move gearshift selector lever through all ranges, ending in Park.

2. Fluid level should be in crosshatch area on dipstick. If transmission is at 50-95°F (10-35°C), fluid level

should be between 2 dimples on bottom of dipstick.

3. Add fluid as necessary. See RECOMMENDED FLUIDS . DO NOT overfill. Check condition of fluid

for contamination and burned smell. Ensure dipstick is fully installed.

RECOMMENDED FLUIDS

TRANSMISSION FLUID APPLICATION

FLUID CAPACITIES

TRANSMISSION FLUID CAPACITIES

(1)



DRAINING & REFILLING

Vehicles Equipped With Torque Converter Drain Plug

1. With the vehicle in Neutral, position on a hoist. Loosen the transmission fluid pan bolts and allow the

fluid to drain.

CAUTION: Transmission fluid level should be checked when fluid is normal operating

temperature to ensure fluid level is above ADD mark or lowest dimple on
dipstick. Once fluid is above ADD mark, follow normal checking
procedure.

Application

Fluid Type

4R70W

Mercon(R)V (XT-5-QM)

4R100

Mercon(R) (XT-2-QDX)

Application

Dry Refill - Qts. (L)

4R70W

13.9 (13.1)

4R100

Econoline, Excursion (2WD) & F150 (2WD)

17 (16.1)

E450, E550, Excursion (4WD), F150 (4WD), F250, F350, F450 & F550

17.7 (16.7)

Navigator (2WD) & RV Cutaway

15.9 (15)

Navigator (4WD)

16.4 (15.5)

(1)

Approximate dry refill capacity including in-tank oil cooler. Actual refill capacities will vary based
on model and oil cooler size. Correct fluid level should be determined by fluid level check
procedure, rather than amount of fluid added. See CHECKING FLUID LEVEL .

NOTE:

There is a new procedure for draining and adding transmission fluid using a
suitable transmission flush and fill machine. If using machine, read manuals
provided with machine before proceeding to drain and refill transmission.
