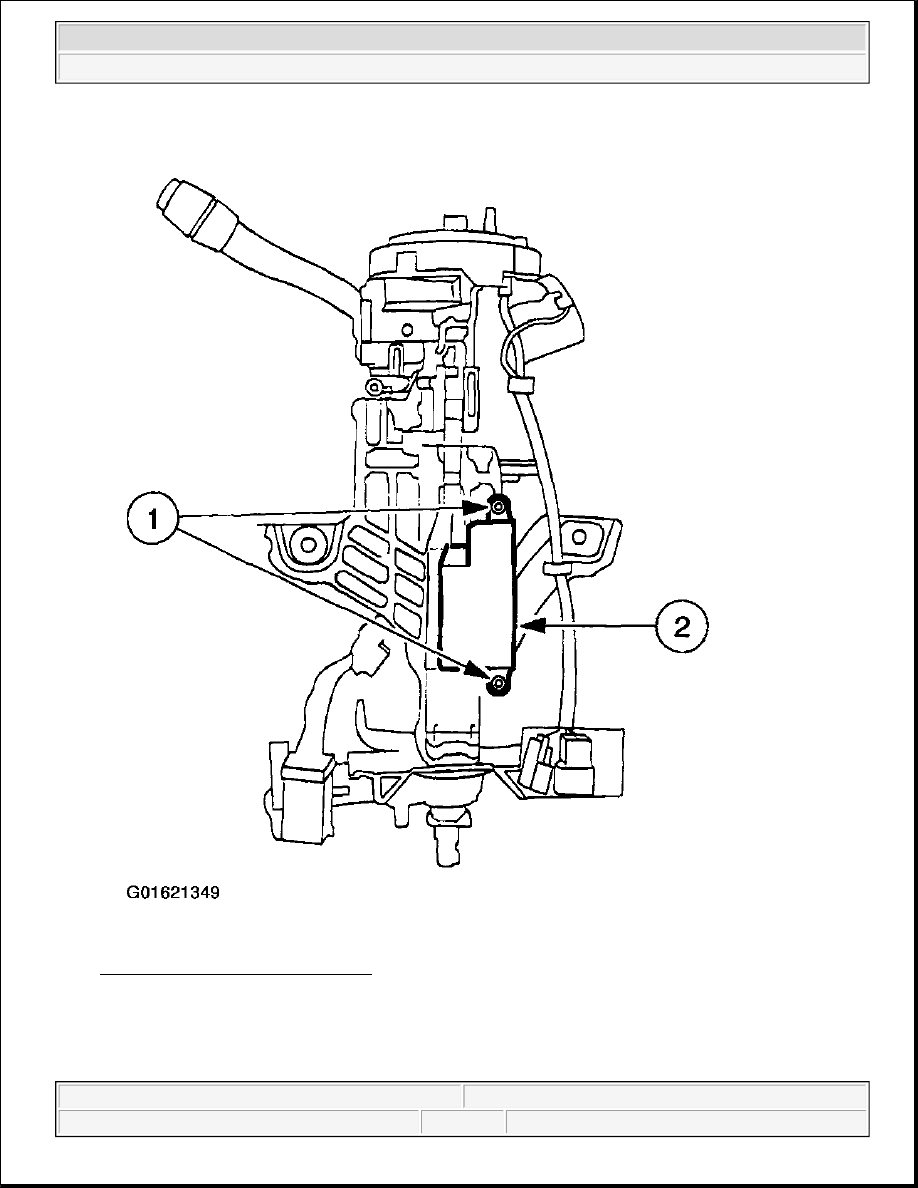

Fig. 173: Removing Ignition Switch
Courtesy of FORD MOTOR CO.

28. Remove the lower steering column bearing and sleeve.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

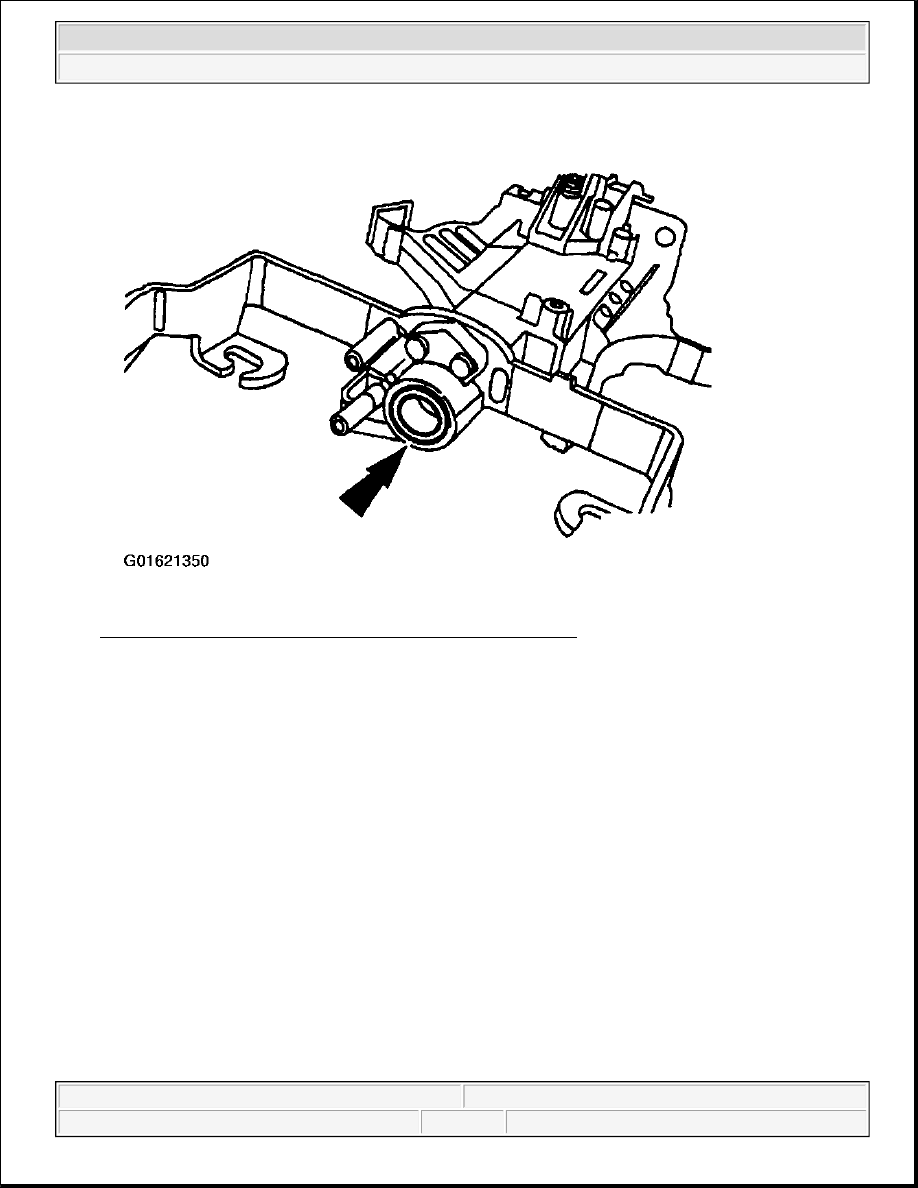

Fig. 174: Removing Lower Steering Column Bearing & Sleeve
Courtesy of FORD MOTOR CO.

29. Remove the steering column lower bearing retainer.

1. Remove the three bolts.

2. Remove the steering column lower bearing retainer.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

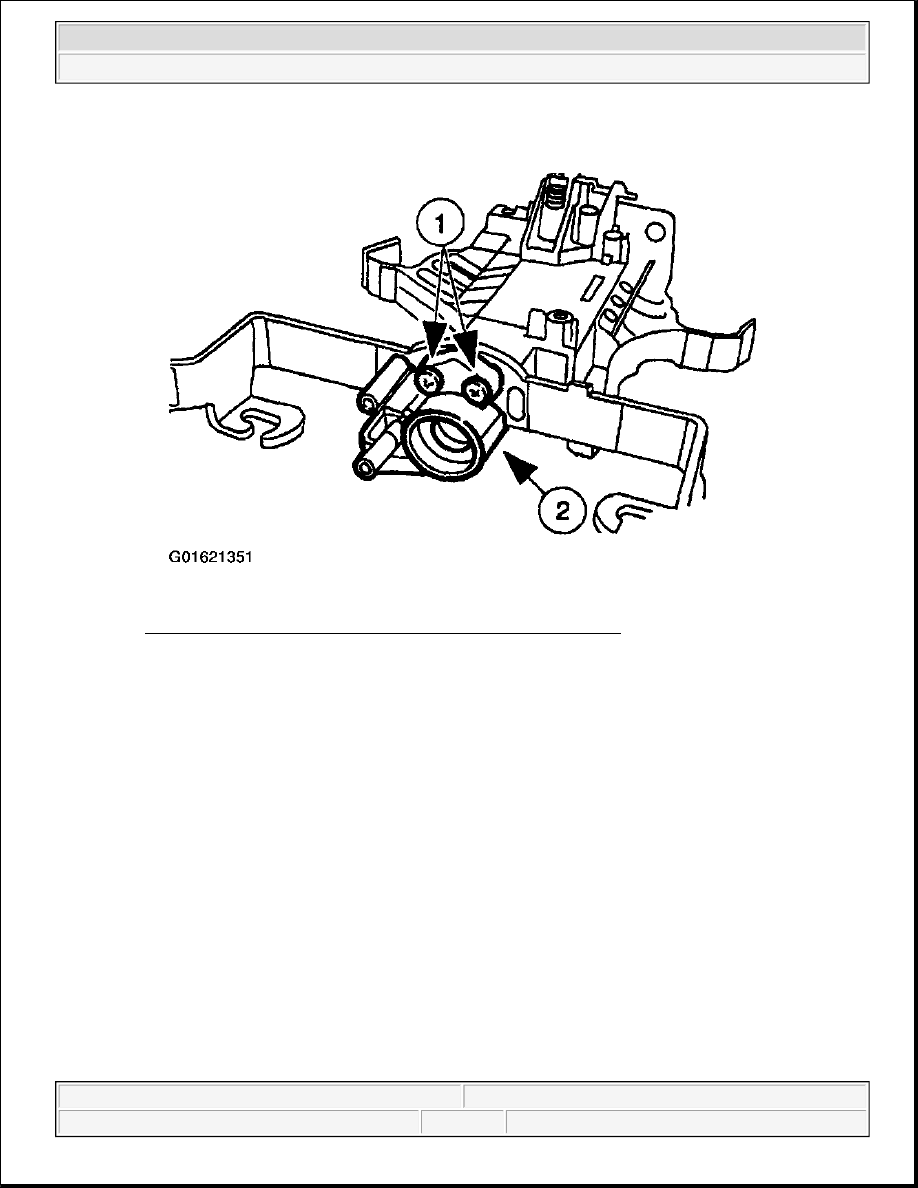

Fig. 175: Removing Steering Column Lower Bearing Retainer
Courtesy of FORD MOTOR CO.

30. Remove the upper steering column lock actuator and the lower steering column lock actuator.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

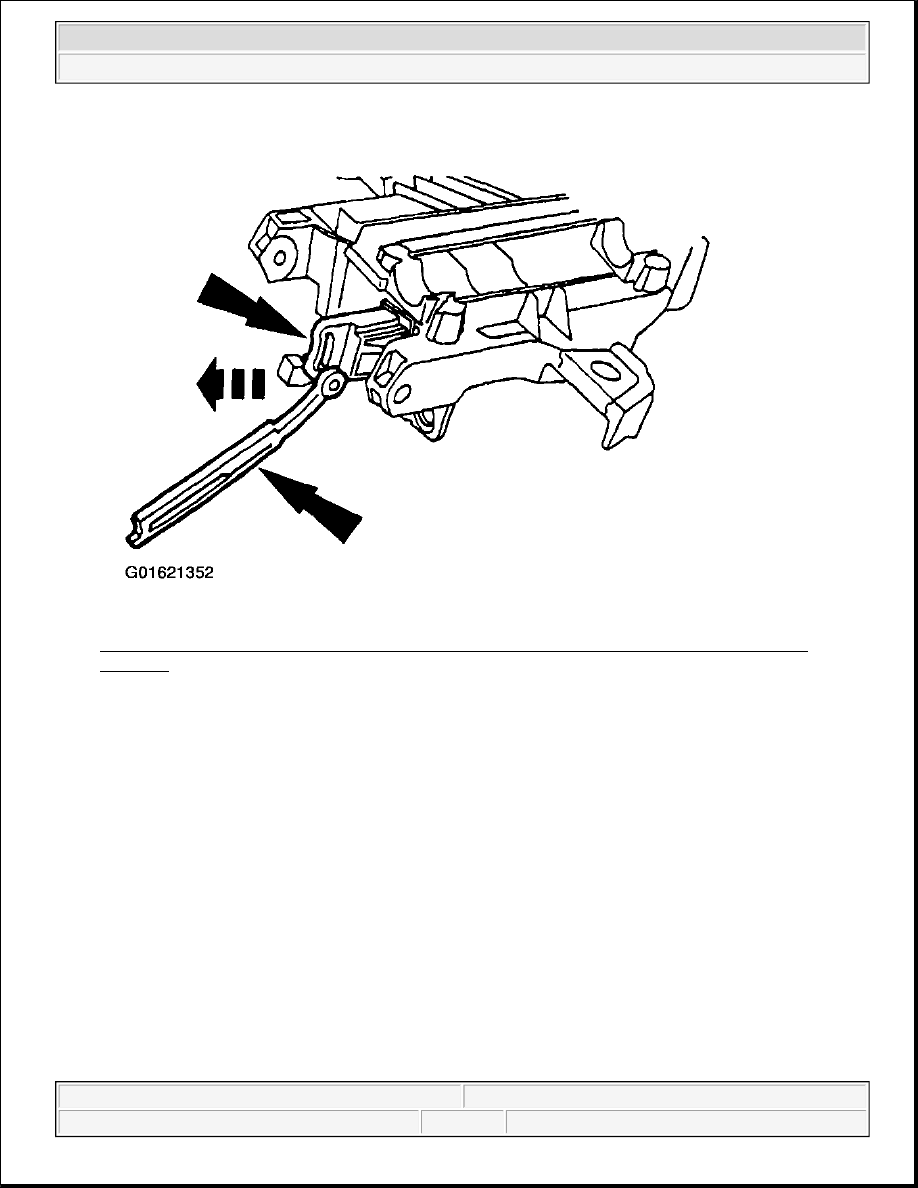

Fig. 176: Removing Upper Steering Column Lock Actuator & Lower Steering Column Lock
Actuator
Courtesy of FORD MOTOR CO.

Assembly

1. Install the steering column lock actuators.

1. Use ignition lock grease to lubricate the steering column lock actuators.

2. Install the steering column lock actuators.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup
