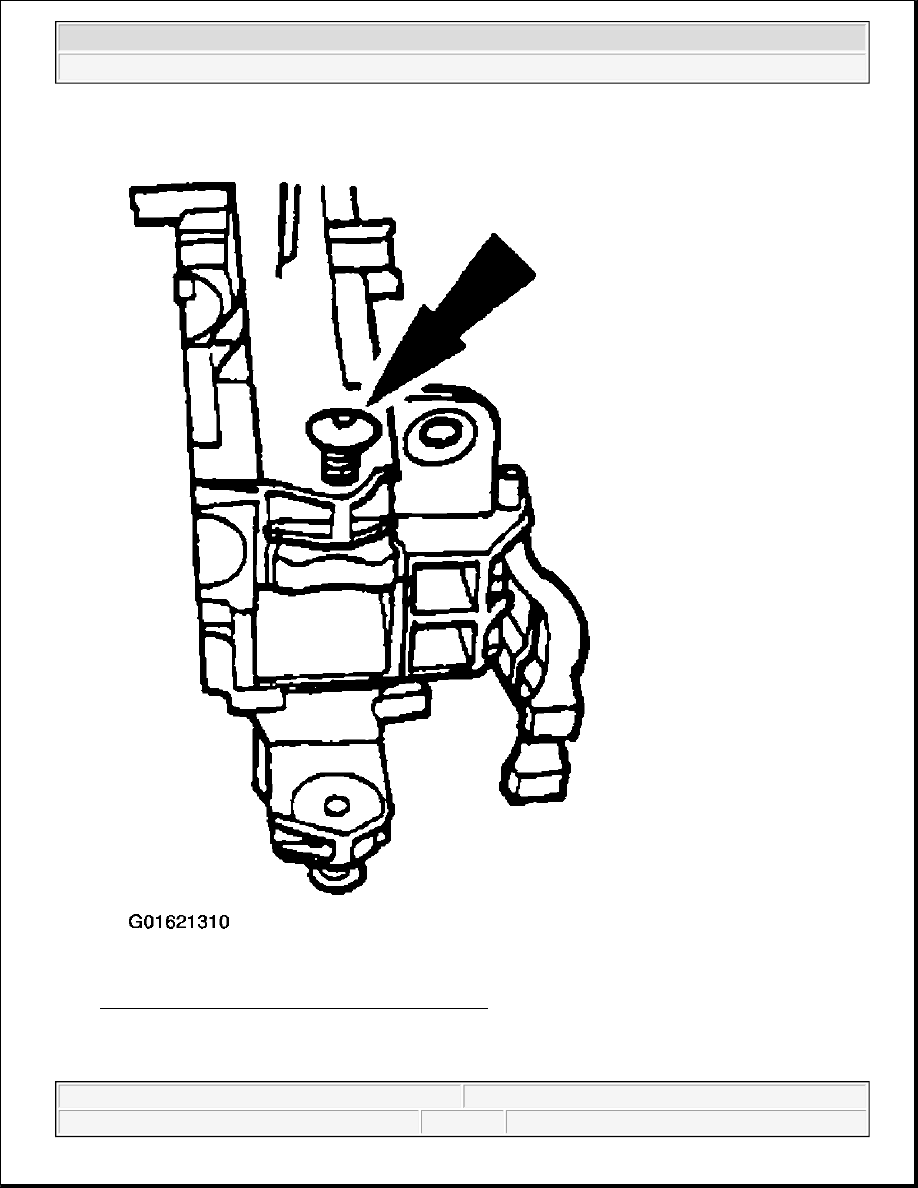

Fig. 134: Installing Lock Cylinder Housing Screws
Courtesy of FORD MOTOR CO.

12. Install the turn signal cancel cam.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

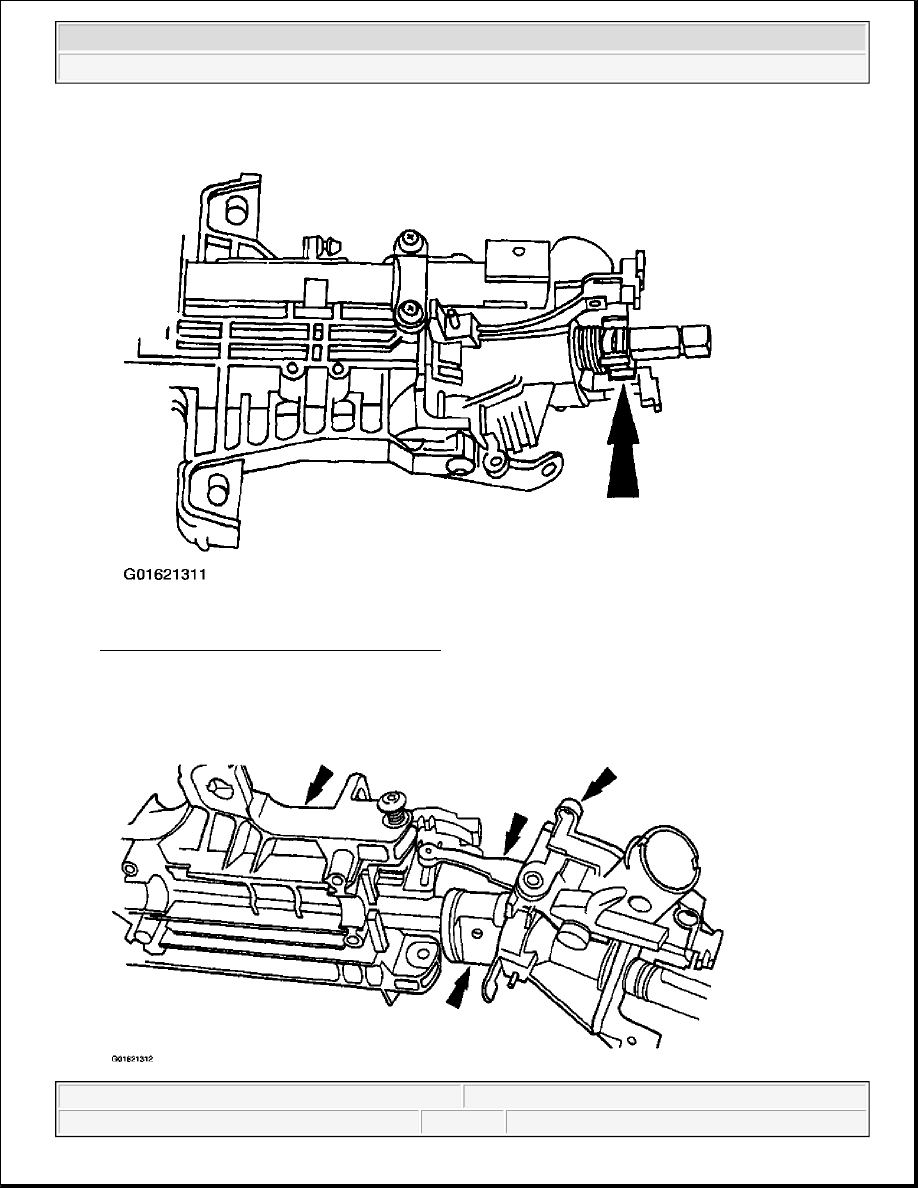

Fig. 135: Installing Turn Signal Cancel Cam
Courtesy of FORD MOTOR CO.

NOTE:

Lubricate the lock cylinder housing bushings with ignition lock grease.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 136: Positioning Steering Column Lock Cylinder Housing & Steering Column Shaft On
Steering Actuator Housing
Courtesy of FORD MOTOR CO.

13. Position the steering column lock cylinder housing and the steering column shaft on the steering actuator

housing.

z

Make sure the upper and lower steering column lock actuators are aligned.

14. Position the steering column locking levers (3B661) on the steering actuator housing.

1. Use a shop fabricated tool.

2. On tilt steering columns, install and compress the steering column position spring.

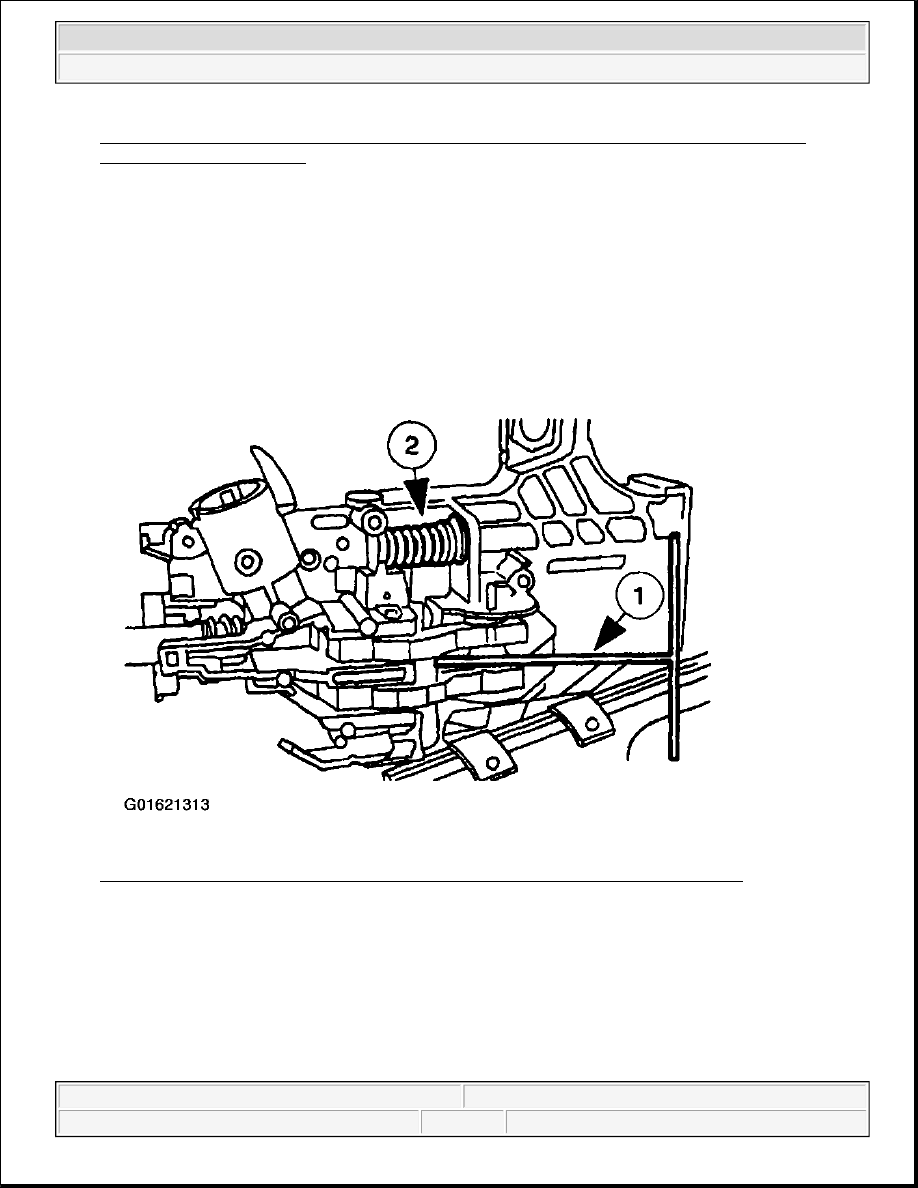

Fig. 137: Installing Steering Column Locking Levers On Steering Actuator Housing
Courtesy of FORD MOTOR CO.

15. Tighten the lock cylinder housing screws.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

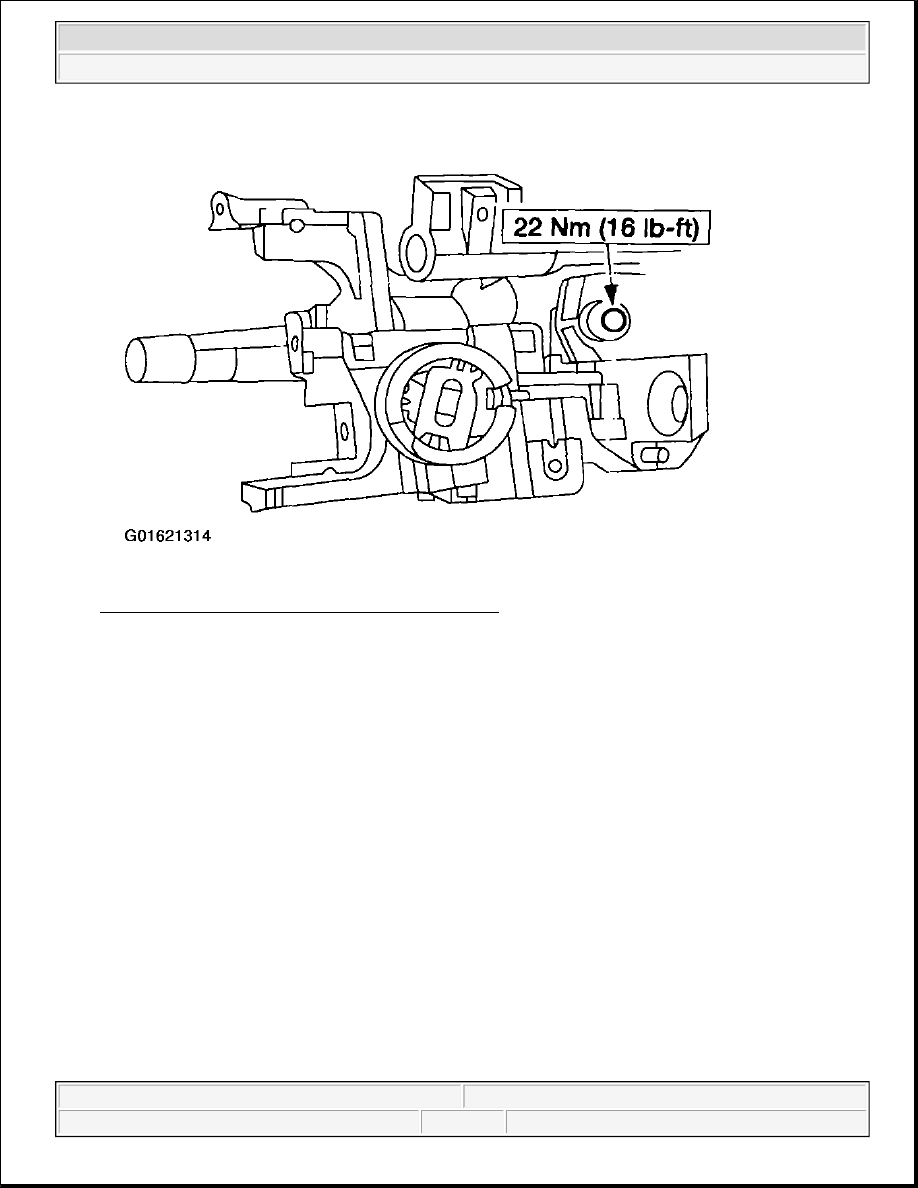

Fig. 138: Tightening Lock Cylinder Housing Screws
Courtesy of FORD MOTOR CO.

16. Install the steering column bearing tolerance ring.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup
