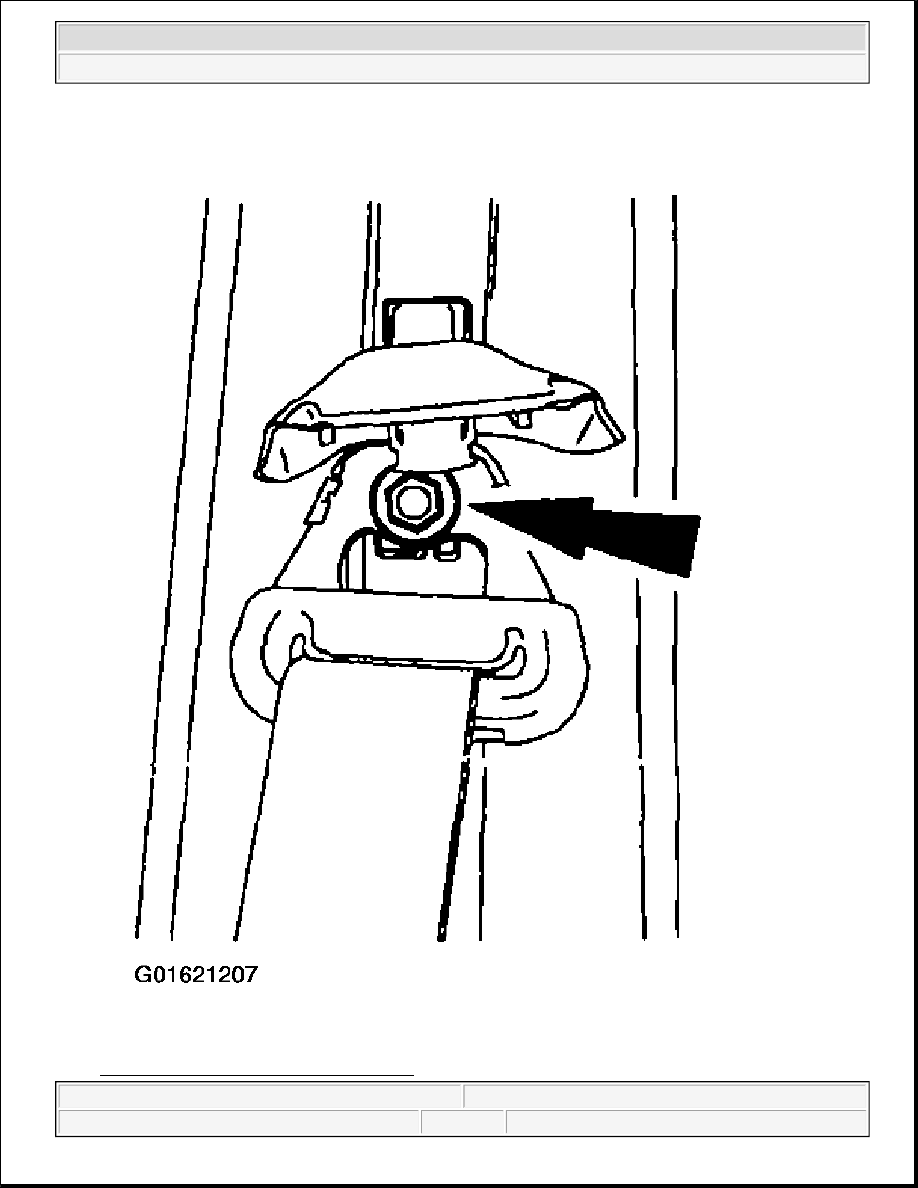

Fig. 31: Removing Safety Belt Guide Nut



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Courtesy of FORD MOTOR CO.

40. Remove the weatherstripping from the passenger side B-pillar.

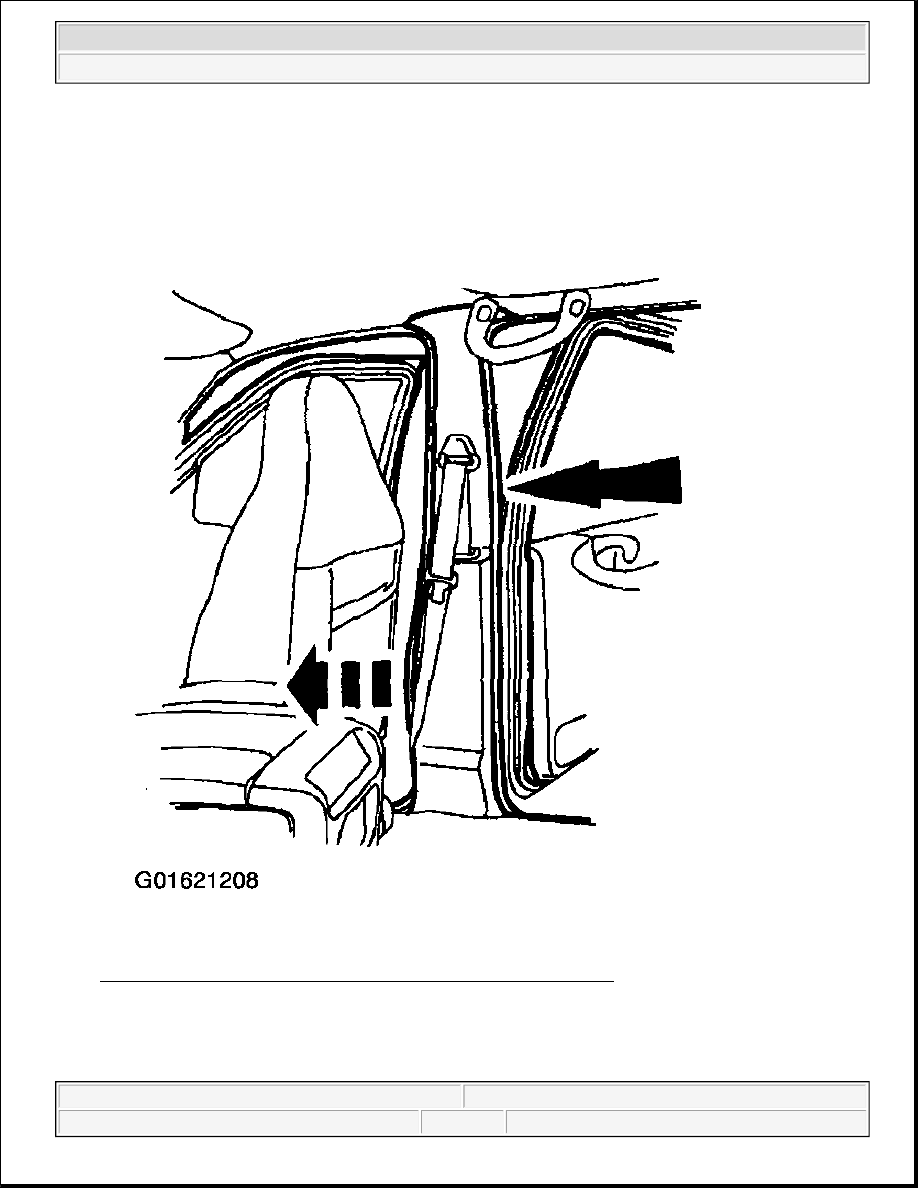

Fig. 32: Removing Weatherstripping From Passenger Side B-Pillar
Courtesy of FORD MOTOR CO.

41. Remove the passenger B-pillar assist handle.

1. Remove the caps.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



2. Remove the screws.

3. Remove the assist handle.

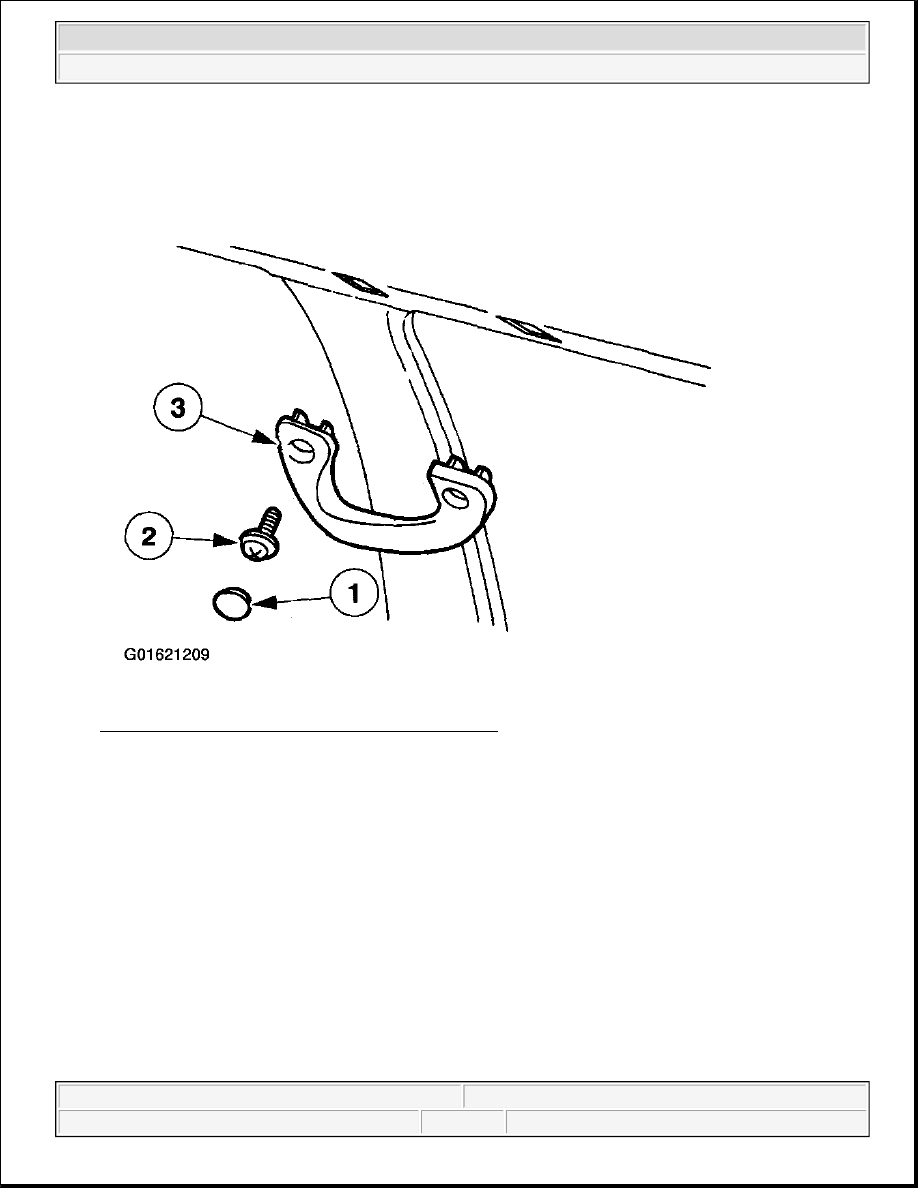

Fig. 33: Removing Passenger B-Pillar Assist Handle
Courtesy of FORD MOTOR CO.

42. Pull outward to release the clips. Position the passenger side B-pillar trim panel away from the B-pillar.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

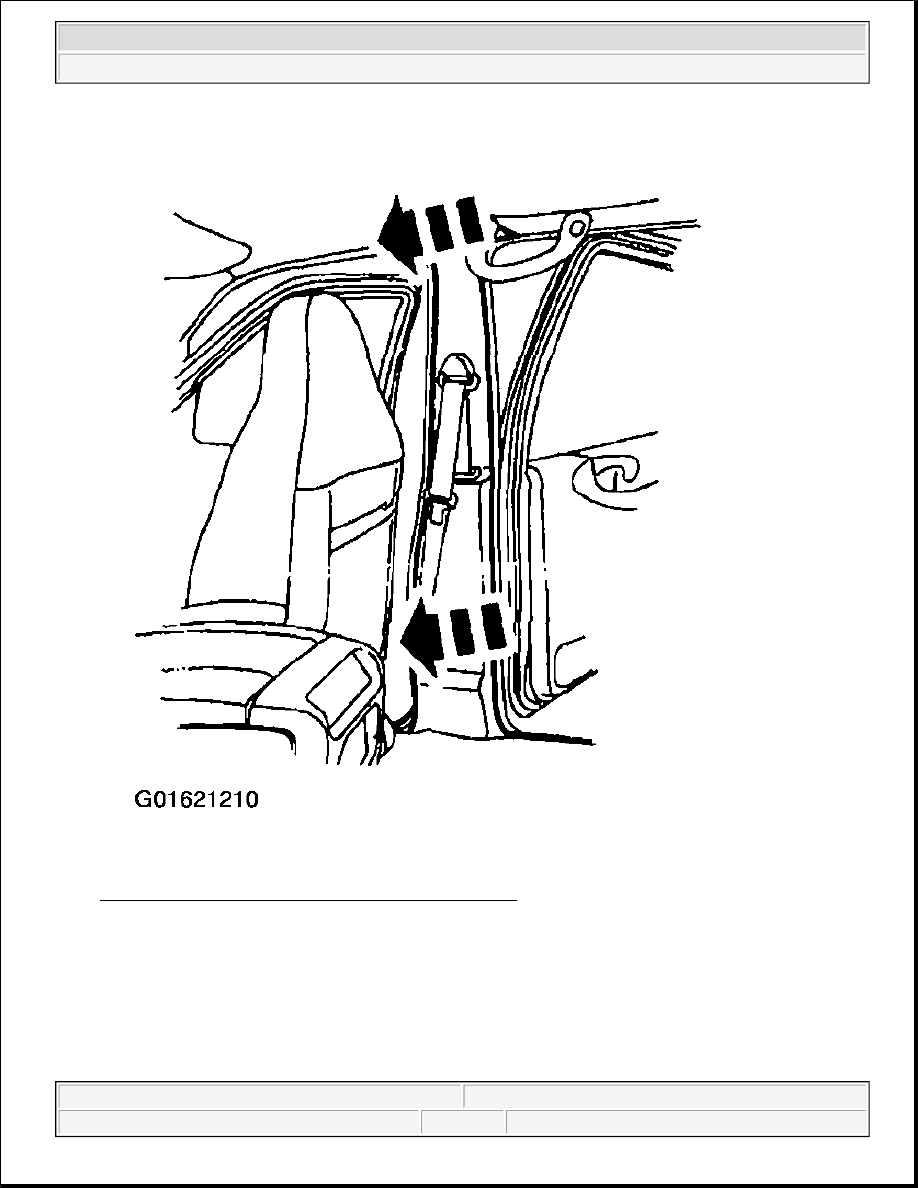

Fig. 34: Removing Passenger Side B-Pillar Trim Panel
Courtesy of FORD MOTOR CO.

NOTE:

The safety belt retractor pretensioner electrical connector has been
removed for clarity.
