2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

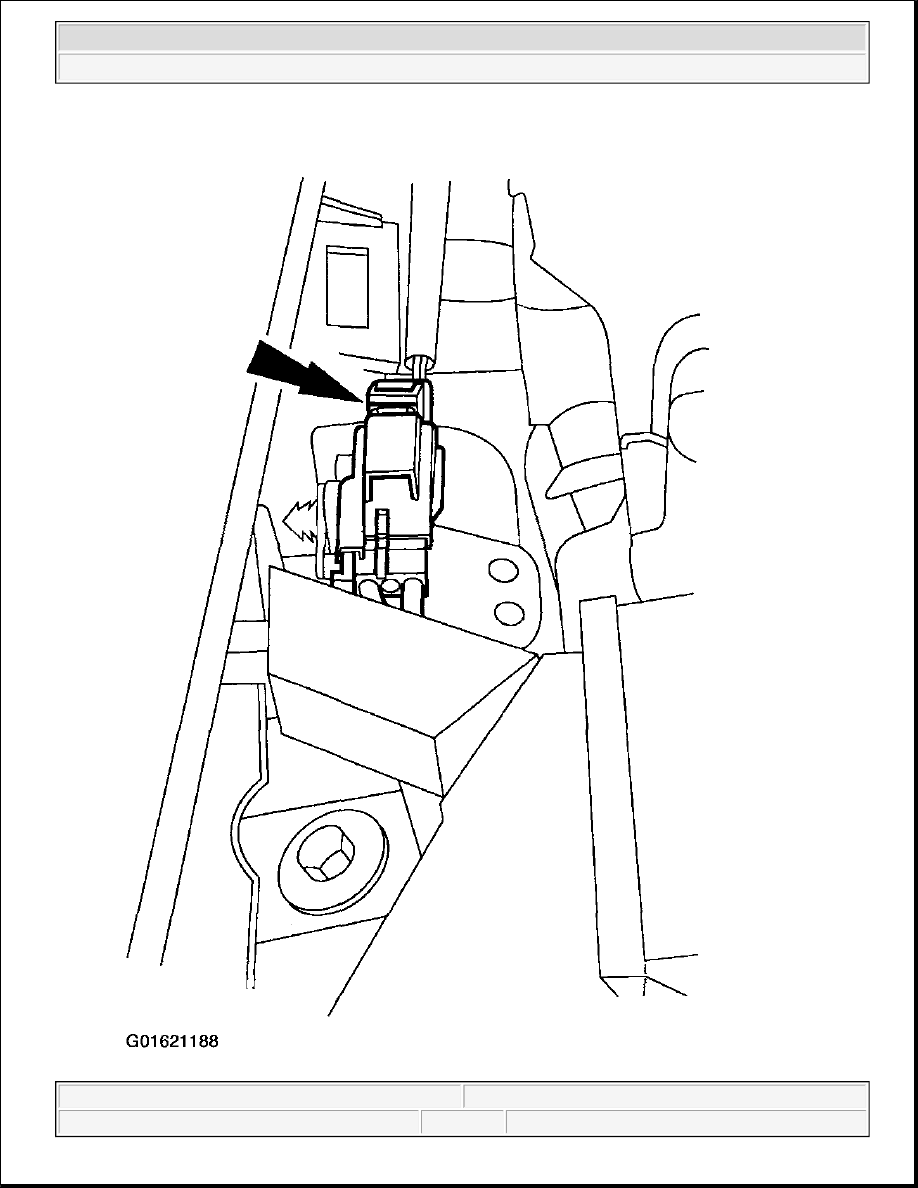

Fig. 12: Disconnecting Passenger Air Bag Module Electrical Connector
Courtesy of FORD MOTOR CO.

9. Attach the restraint system diagnostic tool to the vehicle harness side of the passenger air bag electrical

connector.

Fig. 13: Attaching Restraint System Diagnostic Tool
Courtesy of FORD MOTOR CO.

Regular Cab With Safety Belt Retractor Pretensioners

10. Remove the passenger side corner upper trim panel. For additional information, refer to INTERIOR

TRIM AND ORNAMENTATION .

11. Remove the passenger door scuff plate and weatherstripping.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

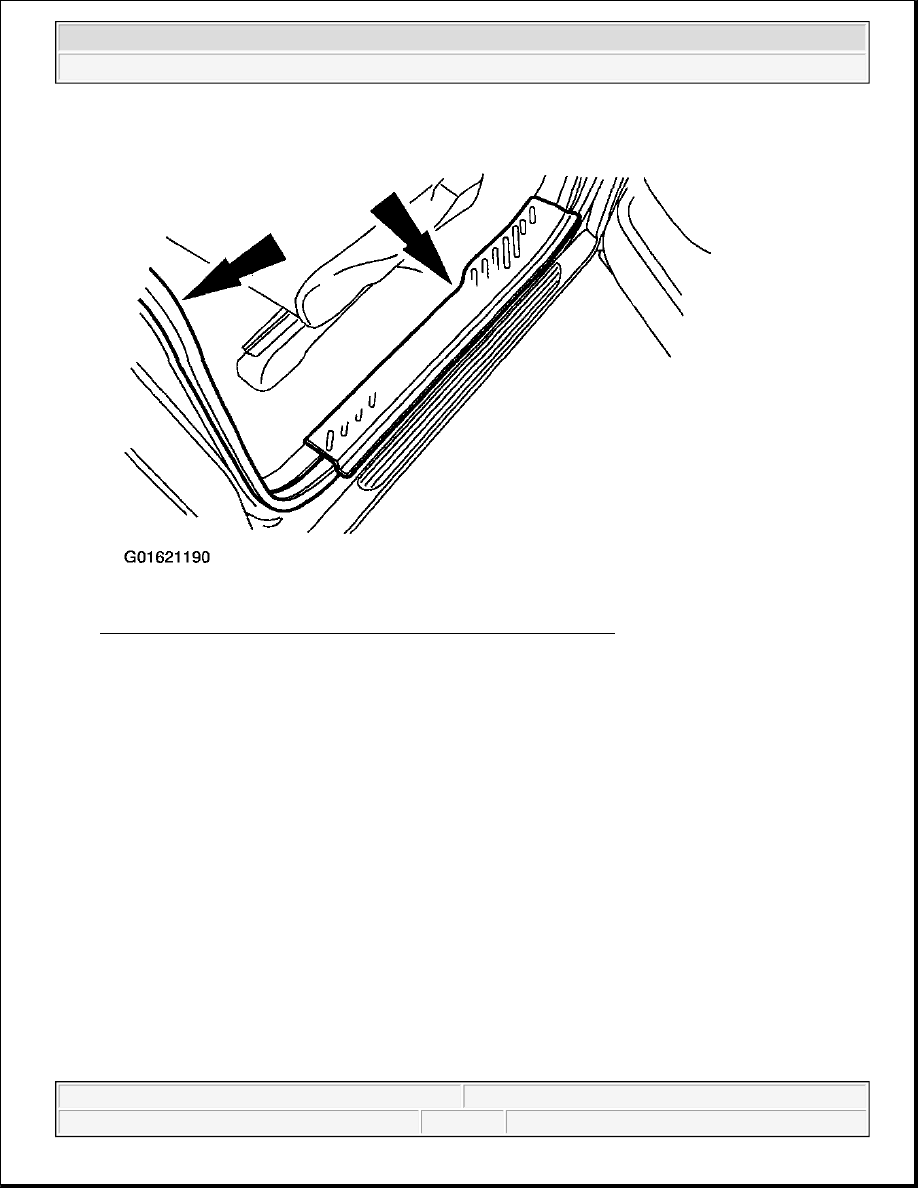

Fig. 14: Removing Passenger Door Scuff Plate & Weatherstripping
Courtesy of FORD MOTOR CO.

12. Remove the three pin-type retainers, pull out on the passenger side lower corner trim panel near the door

jamb and release the lower corner trim panel from the vehicle.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup

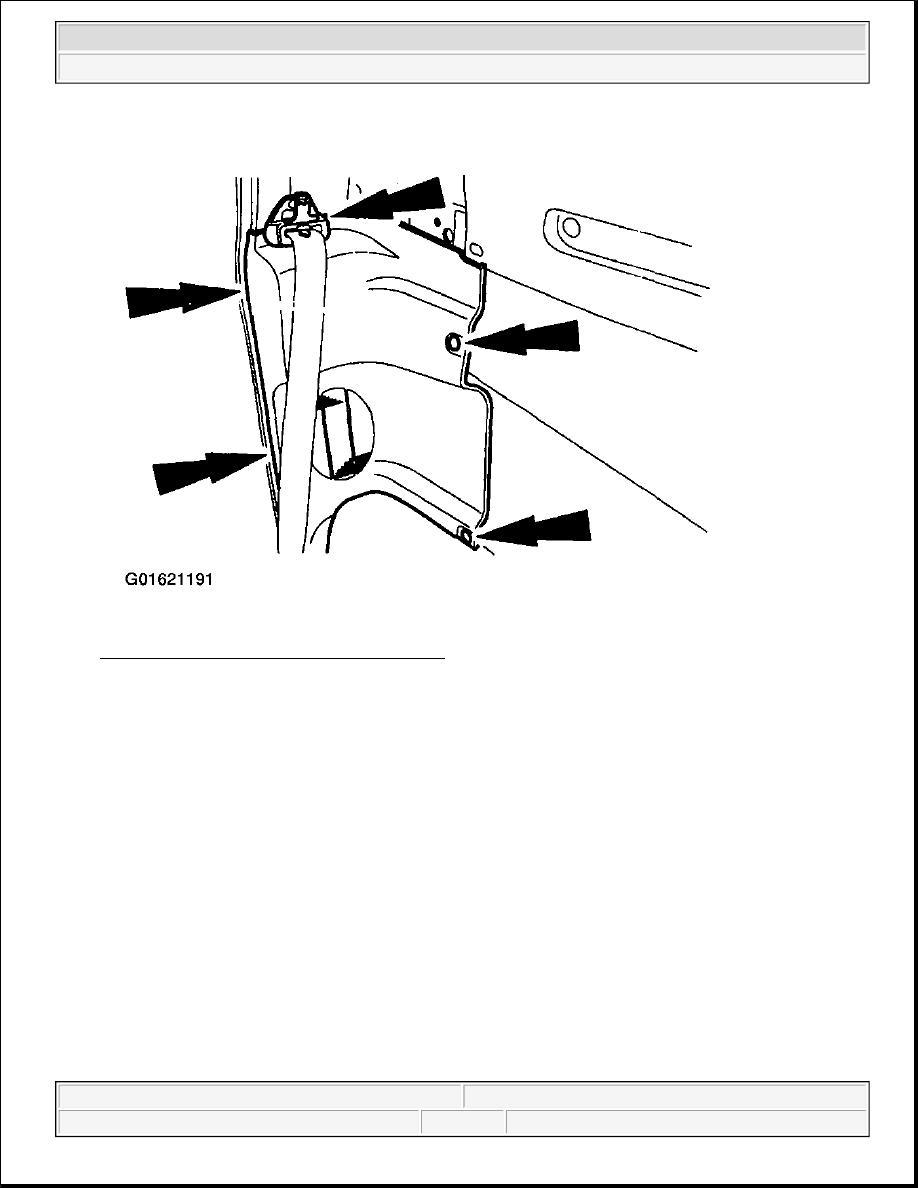

Fig. 15: Removing Three Pin-Type Retainers
Courtesy of FORD MOTOR CO.

13. Separate the safety belt and remove the lower corner trim panel.
