Ford F150 Pickup. Manual - part 171

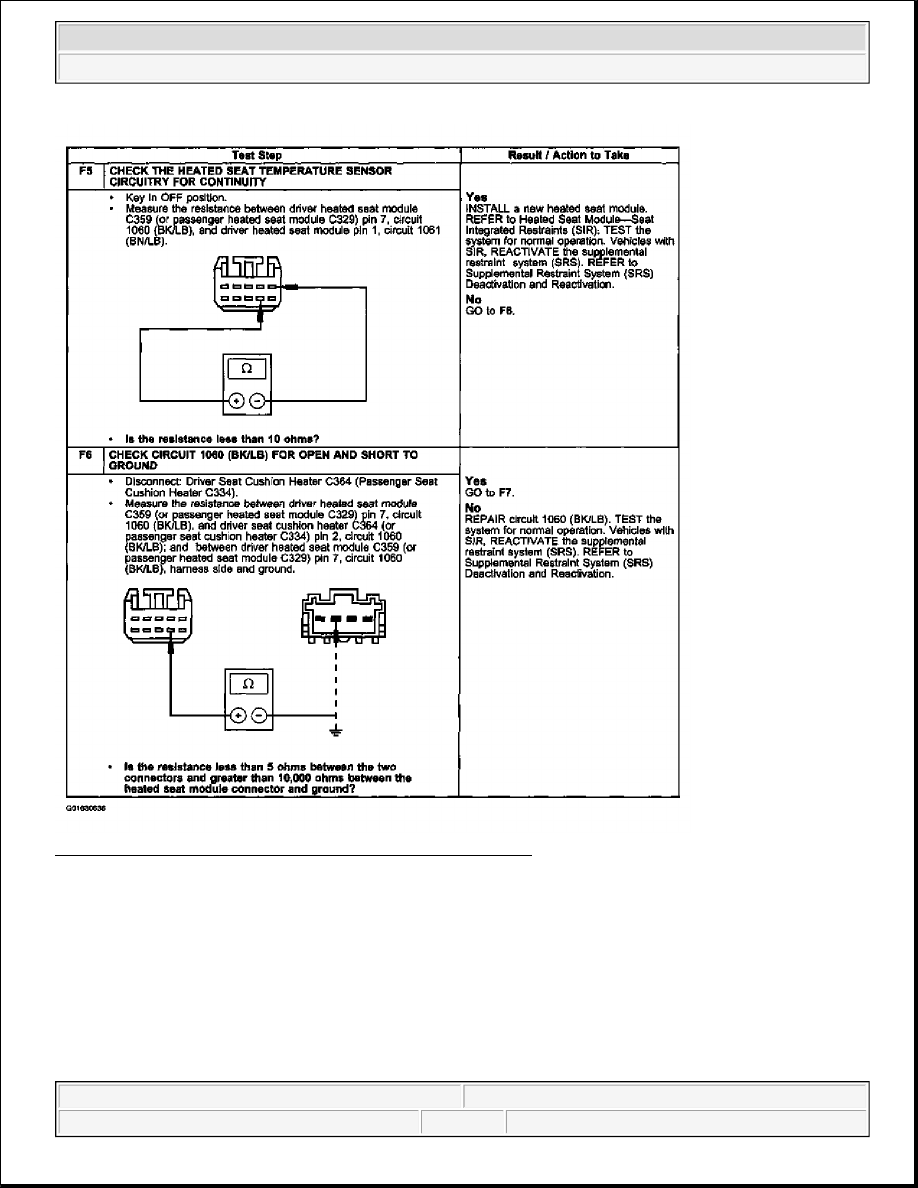

Fig. 34: Pinpoint Test F: Heated Seat Is Inoperative (F5 & F6)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

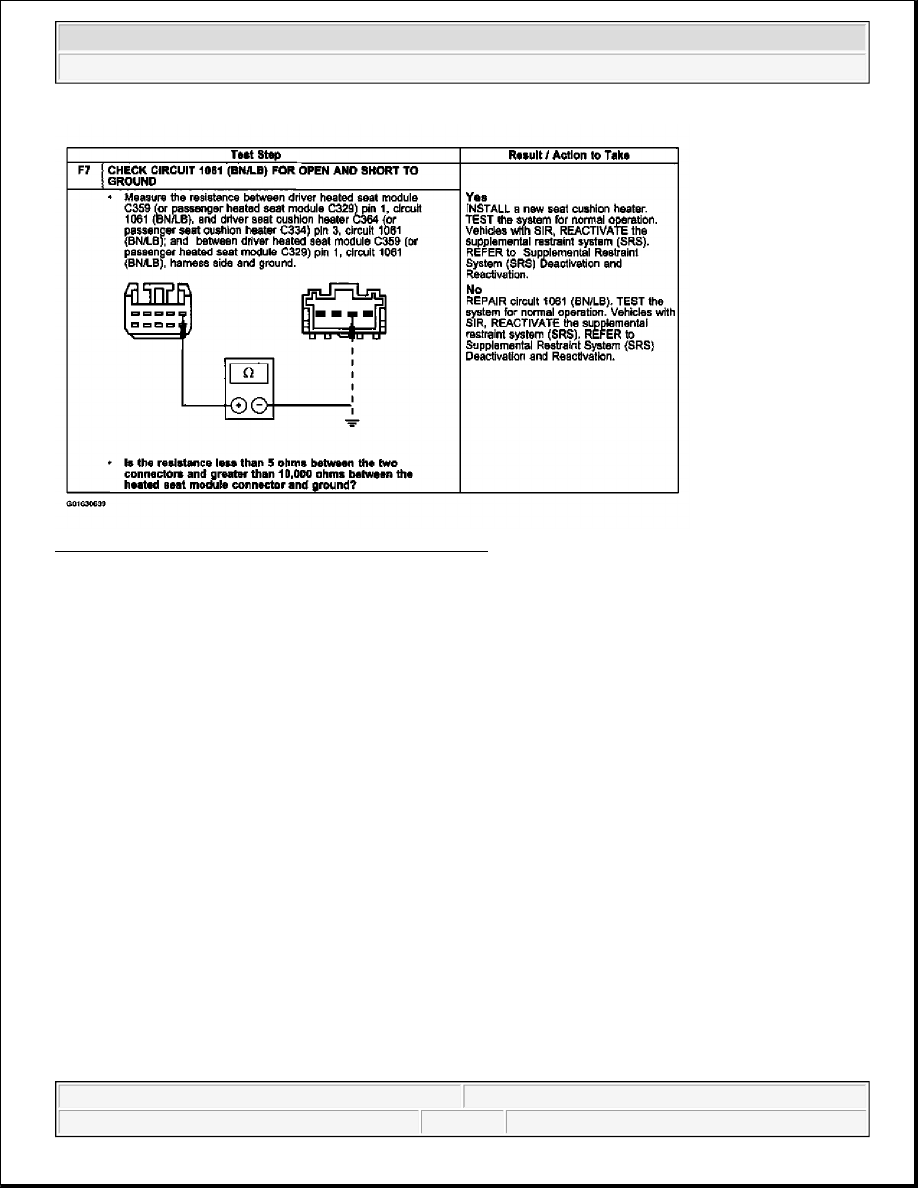

Fig. 35: Pinpoint Test F: Heated Seat Is Inoperative (F7)
Courtesy of FORD MOTOR CO.

PINPOINT TEST G: HEATED SEAT IS INOPERATIVE



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

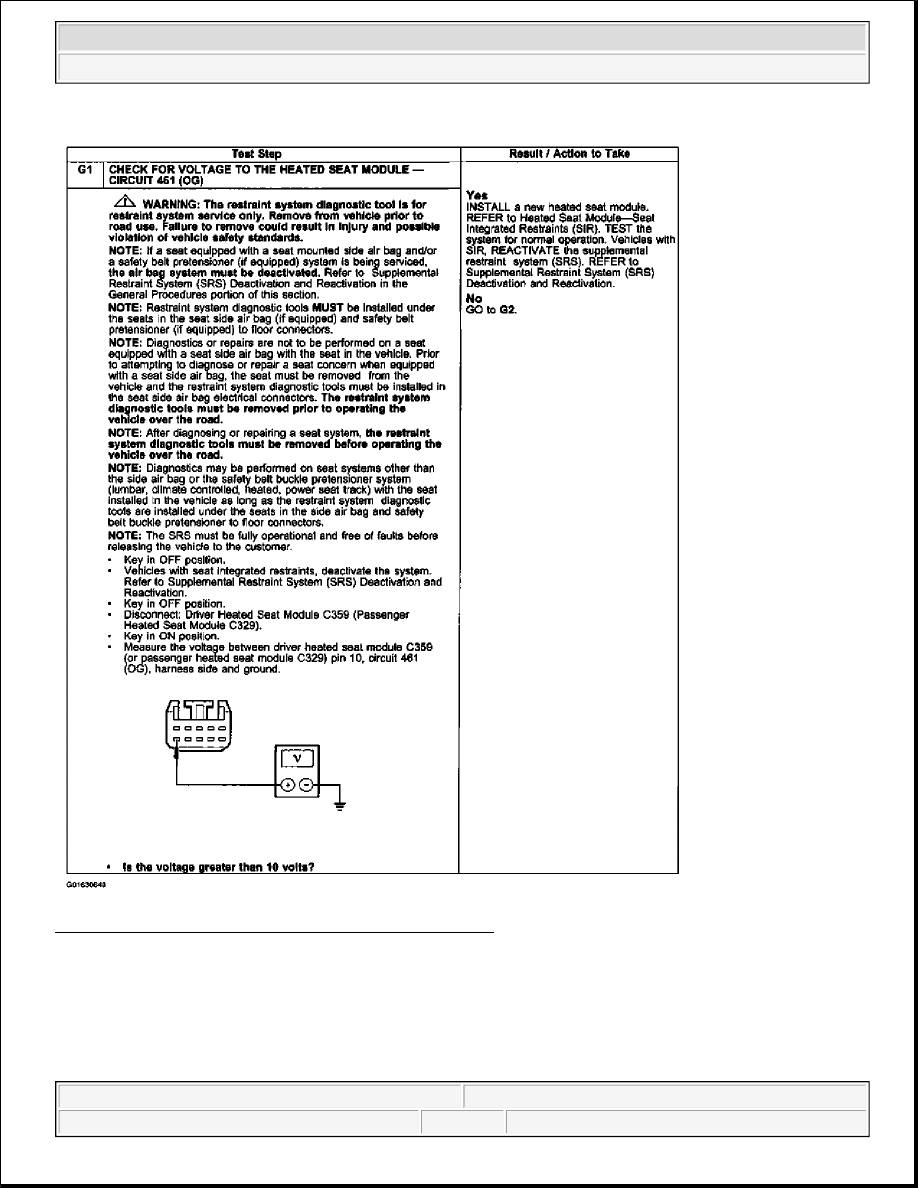

Fig. 36: Pinpoint Test G: Heated Seat Is Inoperative (G1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

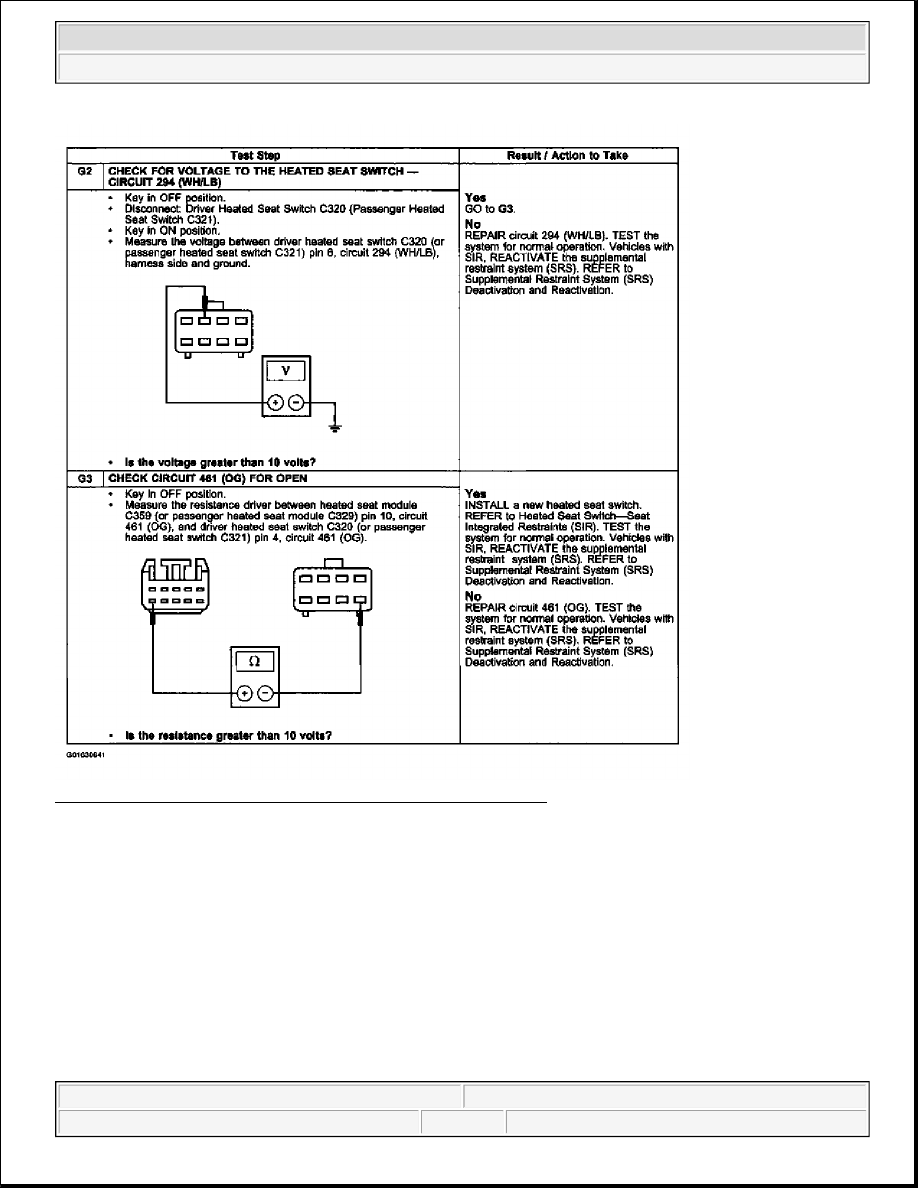

Fig. 37: Pinpoint Test G: Heated Seat Is Inoperative (G2 To G3)
Courtesy of FORD MOTOR CO.

GENERAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION

Special Tool(s)



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
