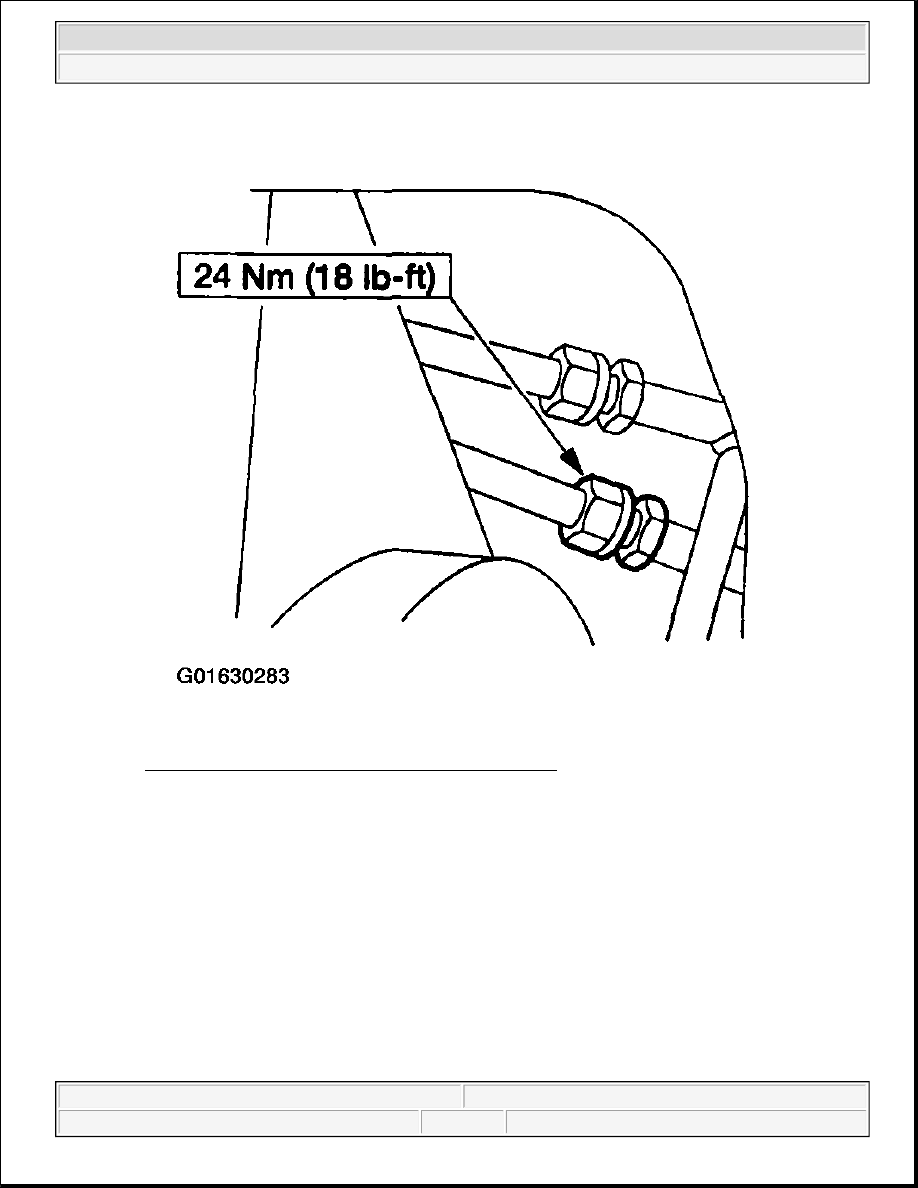

Fig. 109: Disconnecting Condenser Lower Fitting Nut
Courtesy of FORD MOTOR CO.

4. Remove the condenser to evaporator line.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

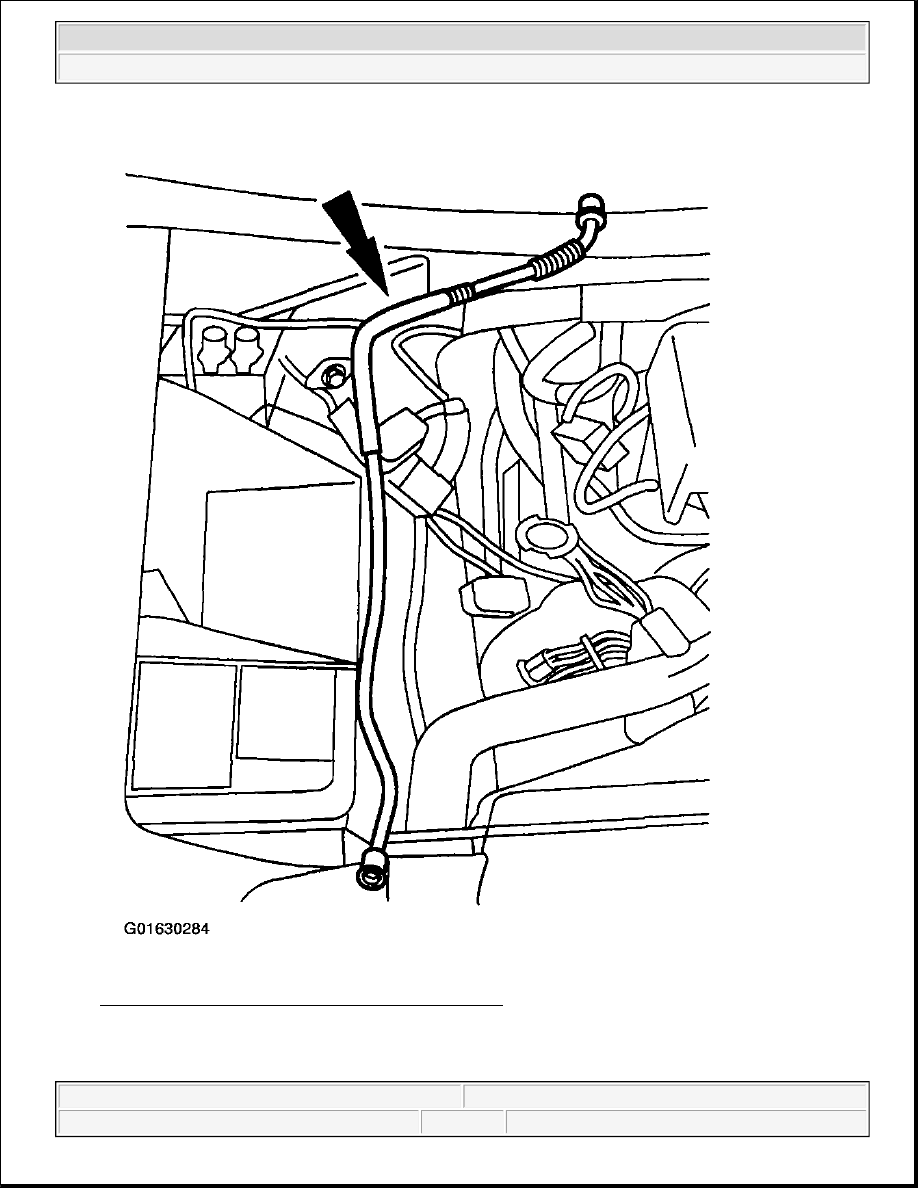

Fig. 110: Identifying Condenser To Evaporator Line
Courtesy of FORD MOTOR CO.

5. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup



z

Install new O-ring seals lubricated in clean PAG oil.

z

Lubricate the refrigerant system with the correct amount of clean PAG oil. Refer to CLIMATE
CONTROL SYSTEM .

6. Evacuate, leak test and charge the refrigerant system. Refer to CLIMATE CONTROL SYSTEM .

LINE - 4.6L AND 5.4L

Material

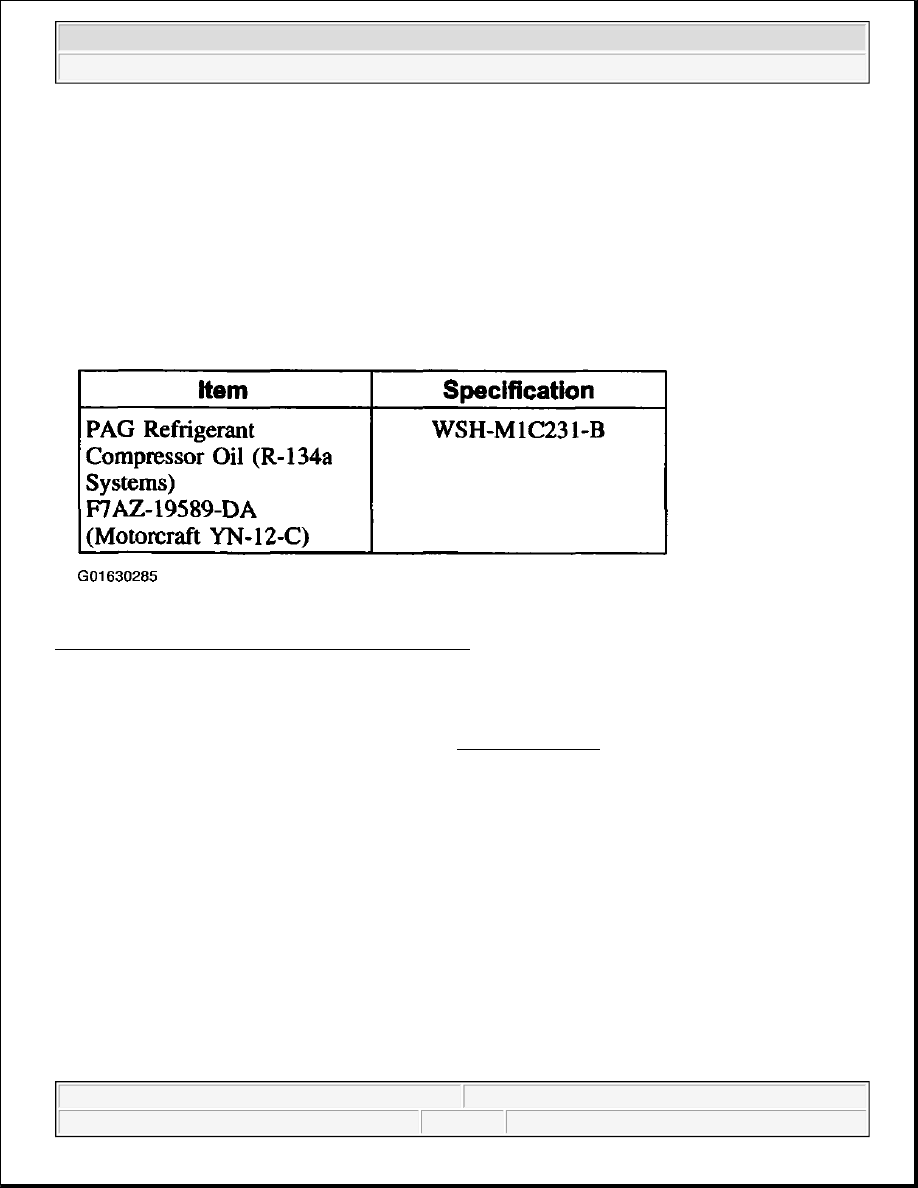

Fig. 111: Line - 4.6L And 5.4L Material Specifications
Courtesy of FORD MOTOR CO.

Removal and Installation

1. Remove the battery and the battery tray. Refer to BATTERY TRAY

2. Recover the refrigerant. Refer to CLIMATE CONTROL SYSTEM .

3. Disconnect the condenser to evaporator line spring lock coupling from the A/C evaporate] core (19860).

z

Discard the O-ring seals.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

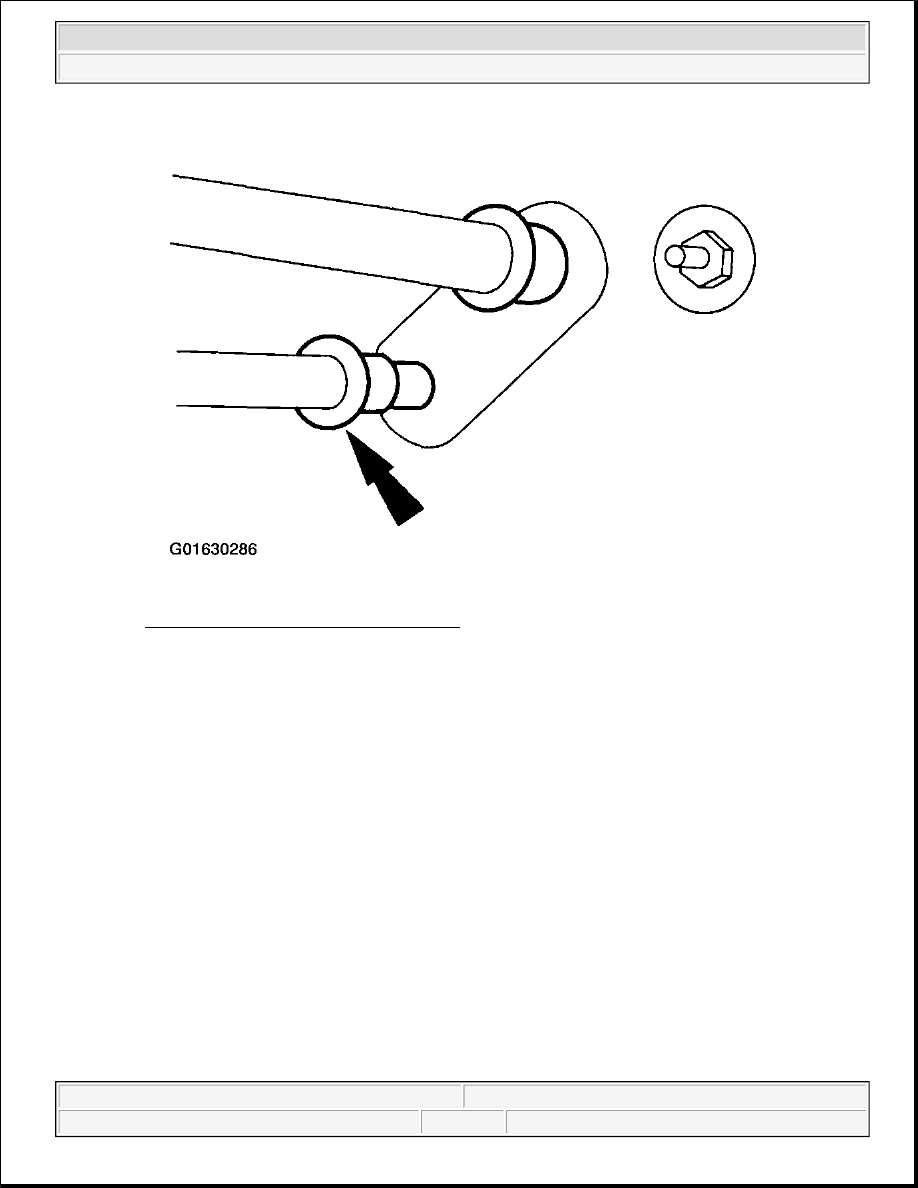

Fig. 112: Locating Spring Lock Coupling
Courtesy of FORD MOTOR CO.

4. Disconnect the condenser lower fitting.

z

Discard the O-ring seal.

NOTE:

Use a backup wrench to hold the line during disconnection to prevent
damage to the condenser to evaporator line.
