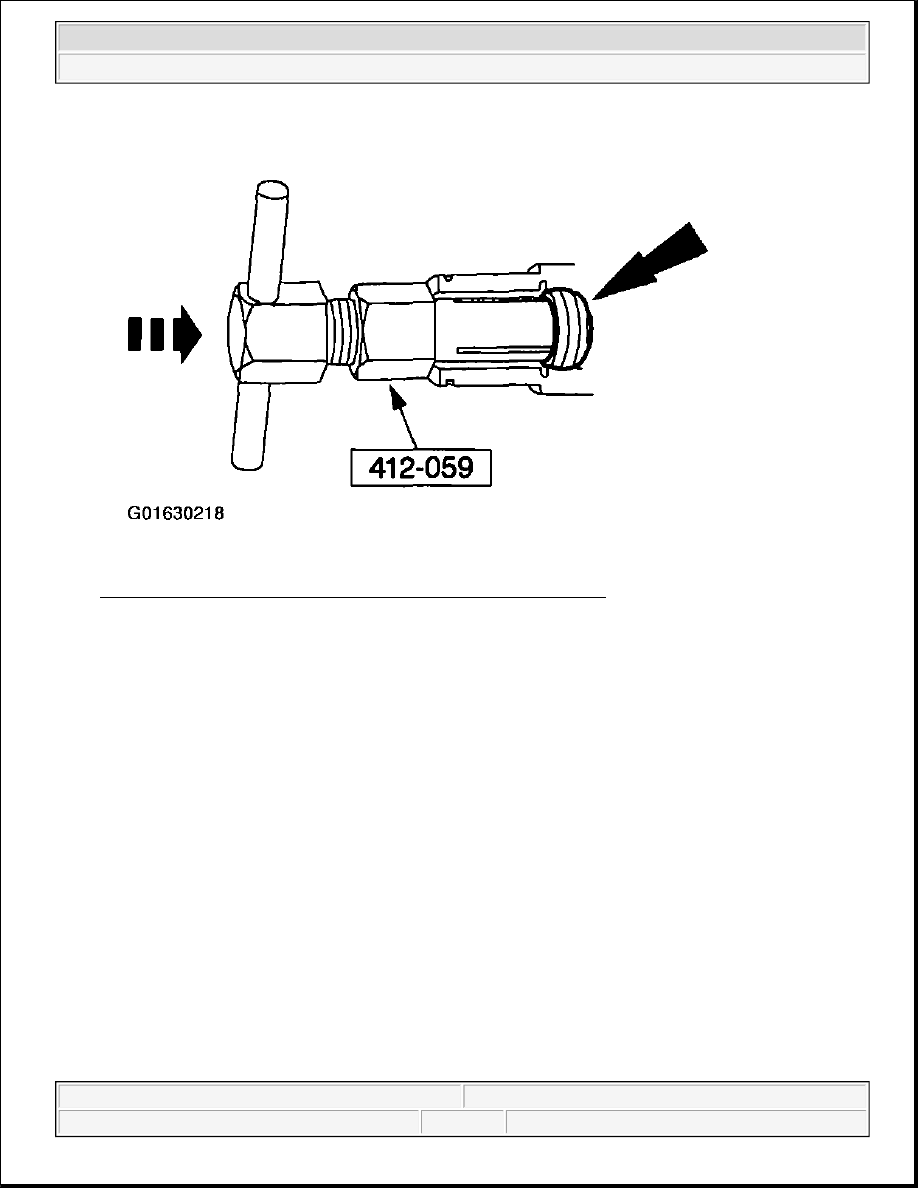

Fig. 44: Engaging Special Tool Into Inside Diameter Of Shaft Seal
Courtesy of FORD MOTOR CO.

8. Turn the tool handle clockwise to expand the tool tip inside of the shaft seal.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

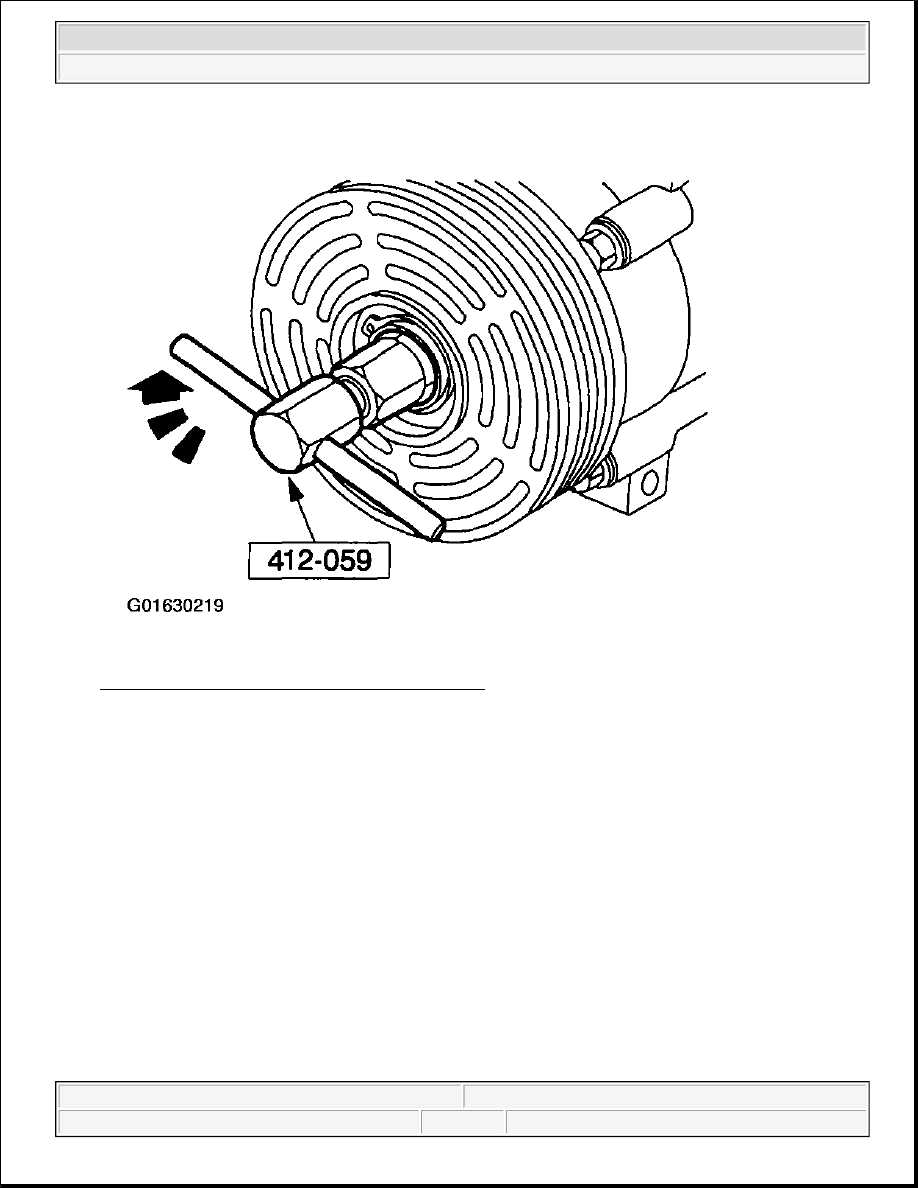

Fig. 45: View For Turning Tool Handle Clockwise
Courtesy of FORD MOTOR CO.

9. Pull the seal from the A/C compressor.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

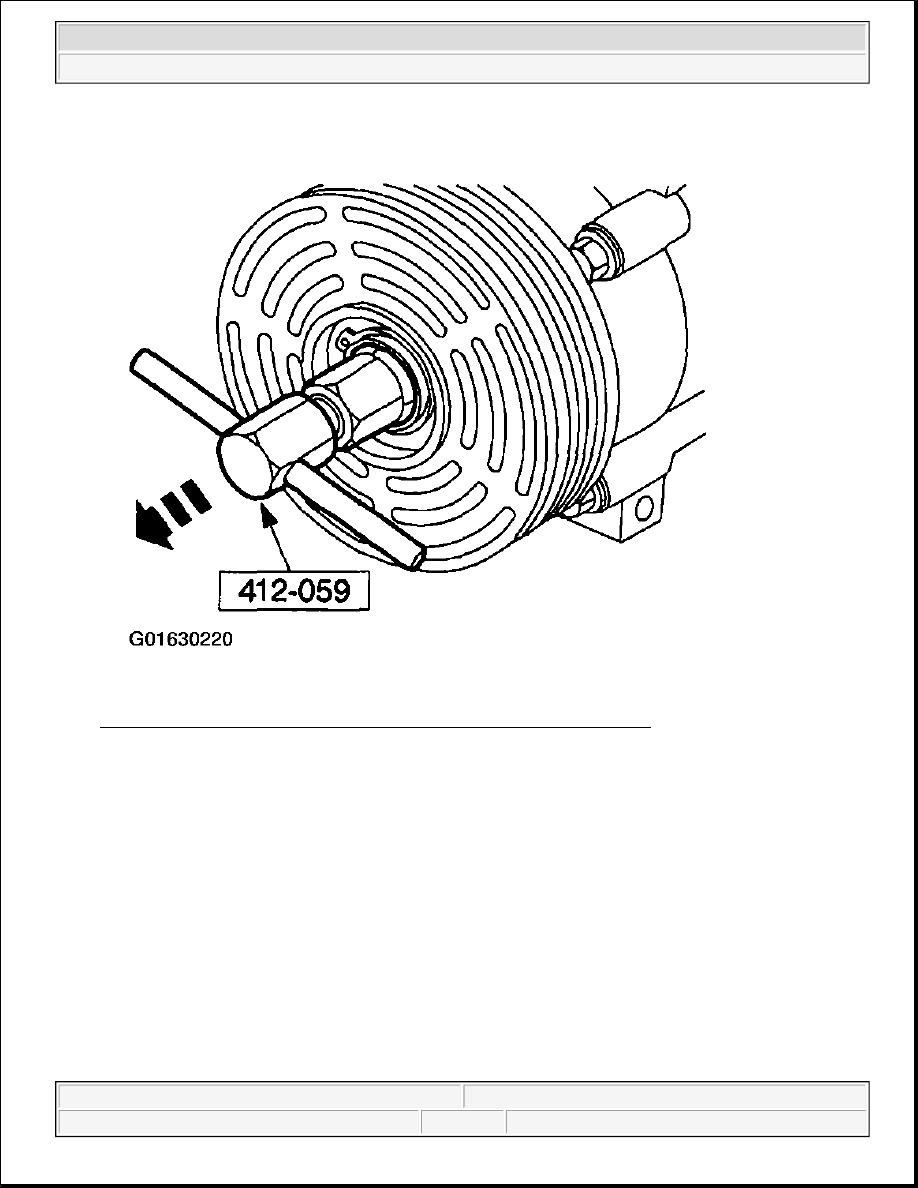

Fig. 46: View Of Pulling Seal From A/C Compressor Using Special Tool
Courtesy of FORD MOTOR CO.

Installation

1. Clean the A/C compressor nose area.

2. Place the shaft seal on the special tool. Lubricate the shaft seal and the special tool with PAG oil or

equivalent.

CAUTION: Do not allow dirt or other foreign materials to enter the A/C

compressor.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

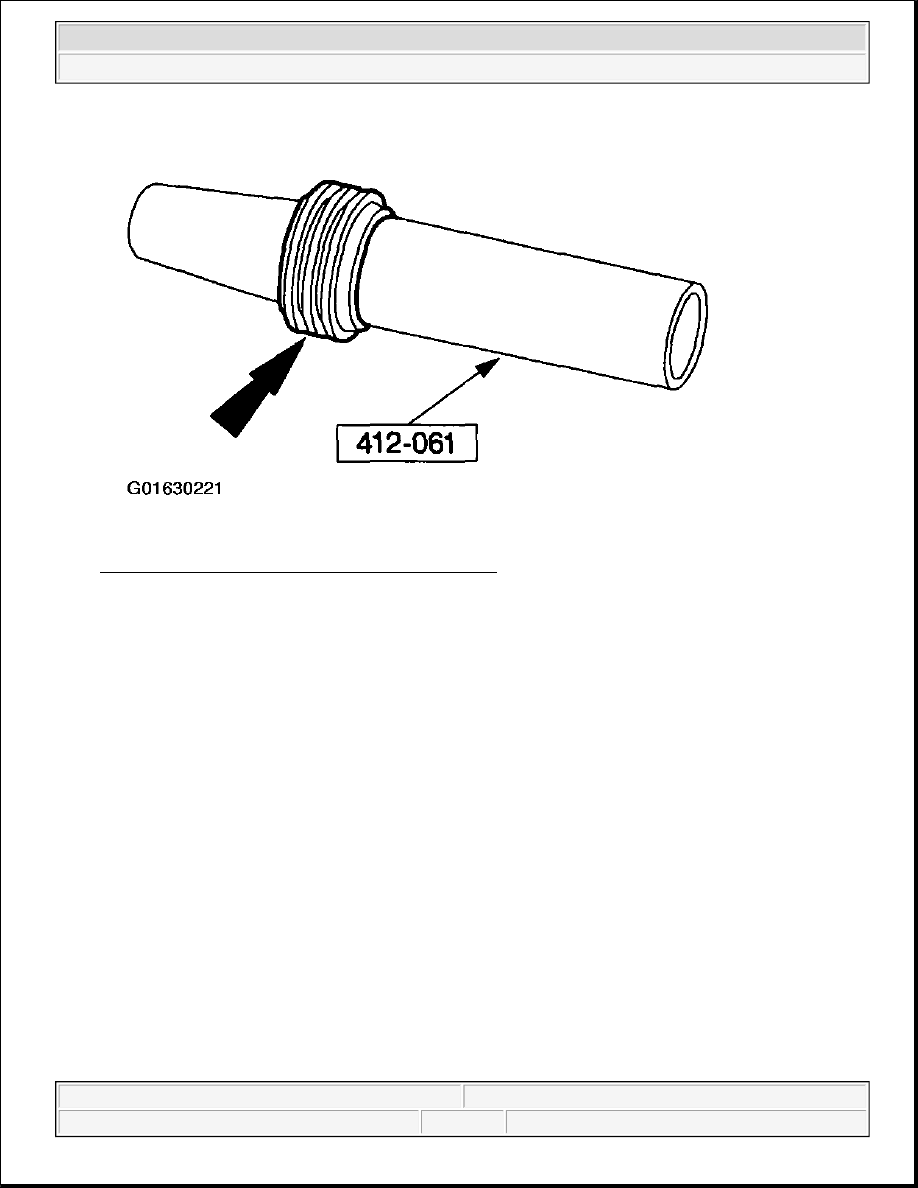

Fig. 47: View Of Placing Shaft Seal On Special Tool
Courtesy of FORD MOTOR CO.

3. Position the shaft seal and the special tool over the A/C compressor shaft.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup
