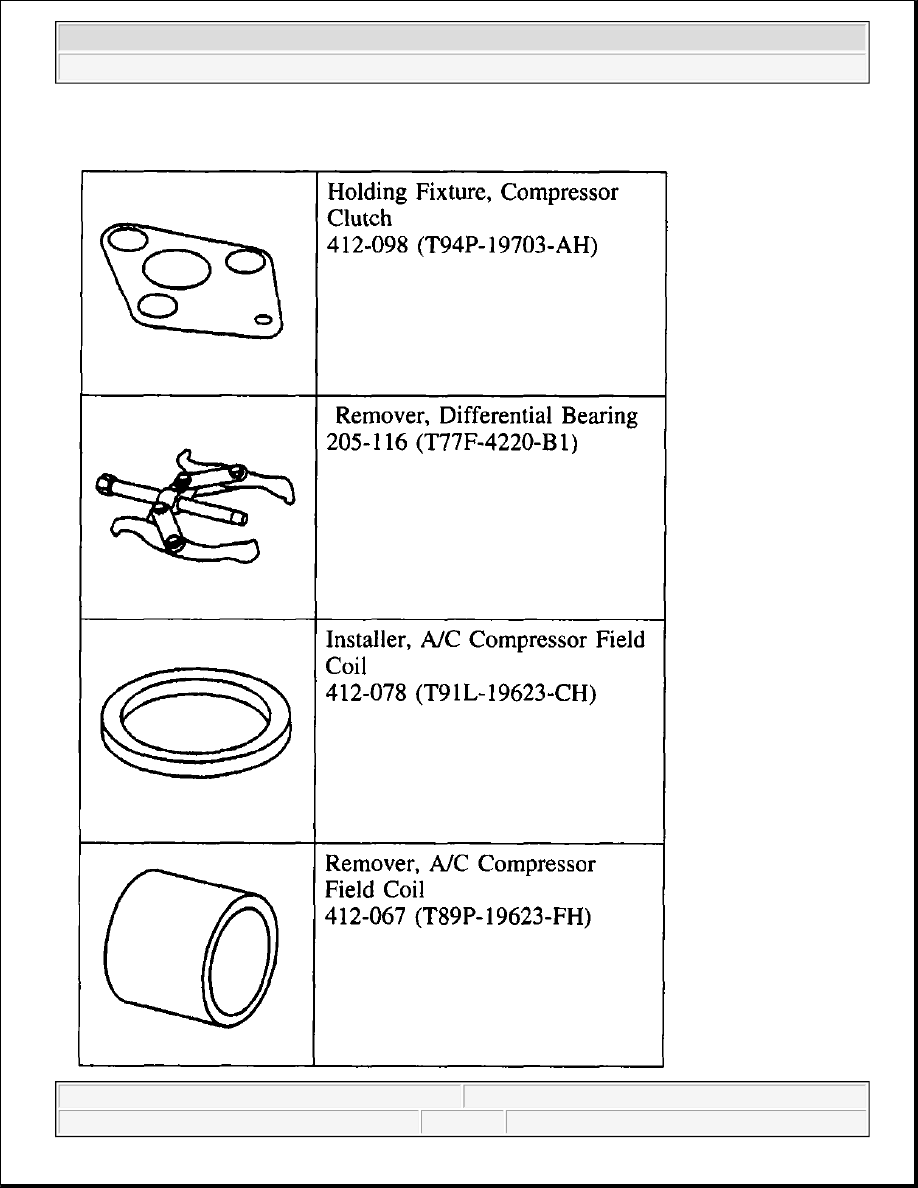

Fig. 24: Clutch And Clutch Field Coil Special Tools (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup





2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

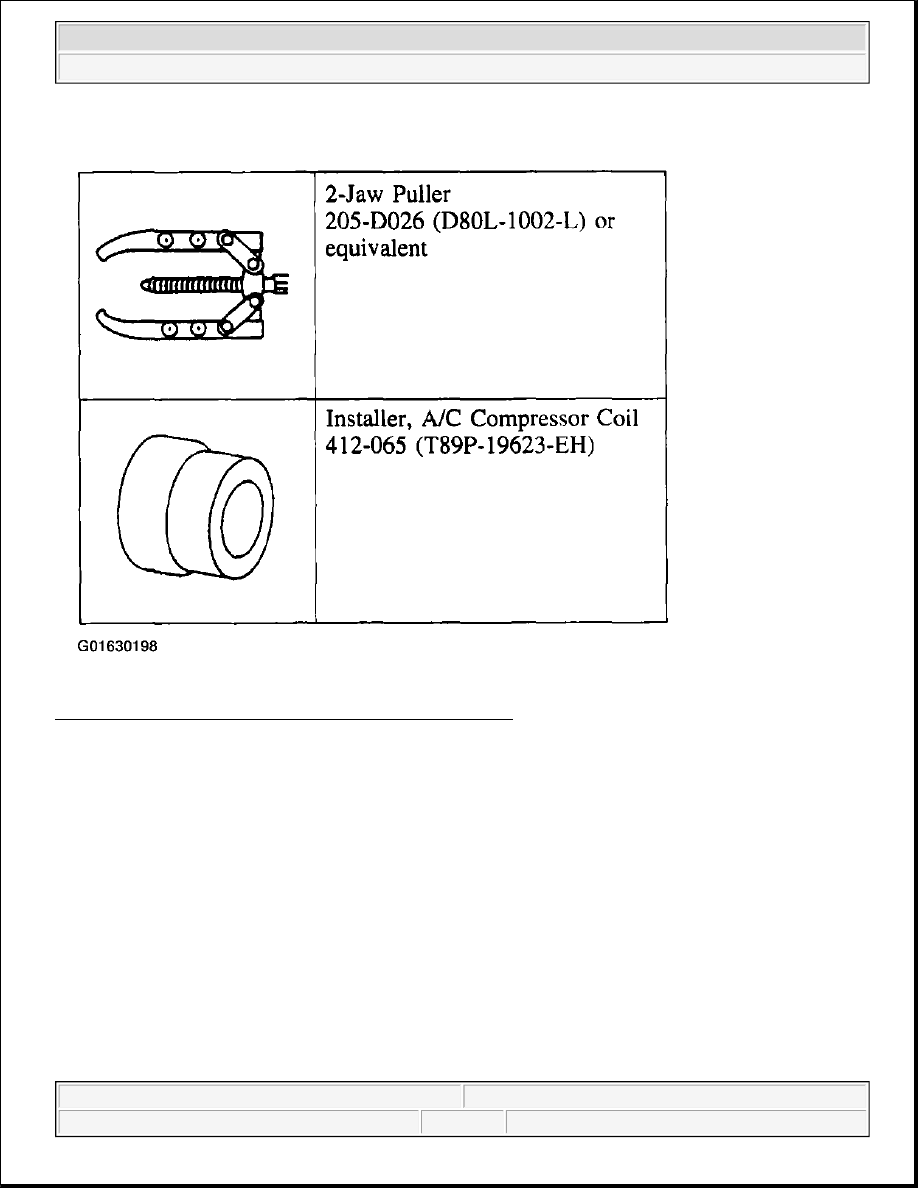

Fig. 25: Clutch And Clutch Field Coil Special Tools (2 Of 2)
Courtesy of FORD MOTOR CO.

Removal

1. Remove the A/C compressor (19703). Refer to AIR CONDITIONING (A/C) COMPRESSOR-4.2L or

refer to AIR CONDITIONING (A/C) COMPRESSOR-4.6L AND 5.4L .

2. Remove the A/C clutch hub retaining bolt.

1. Hold the A/C clutch hub with the special tool.

2. Remove the bolt.

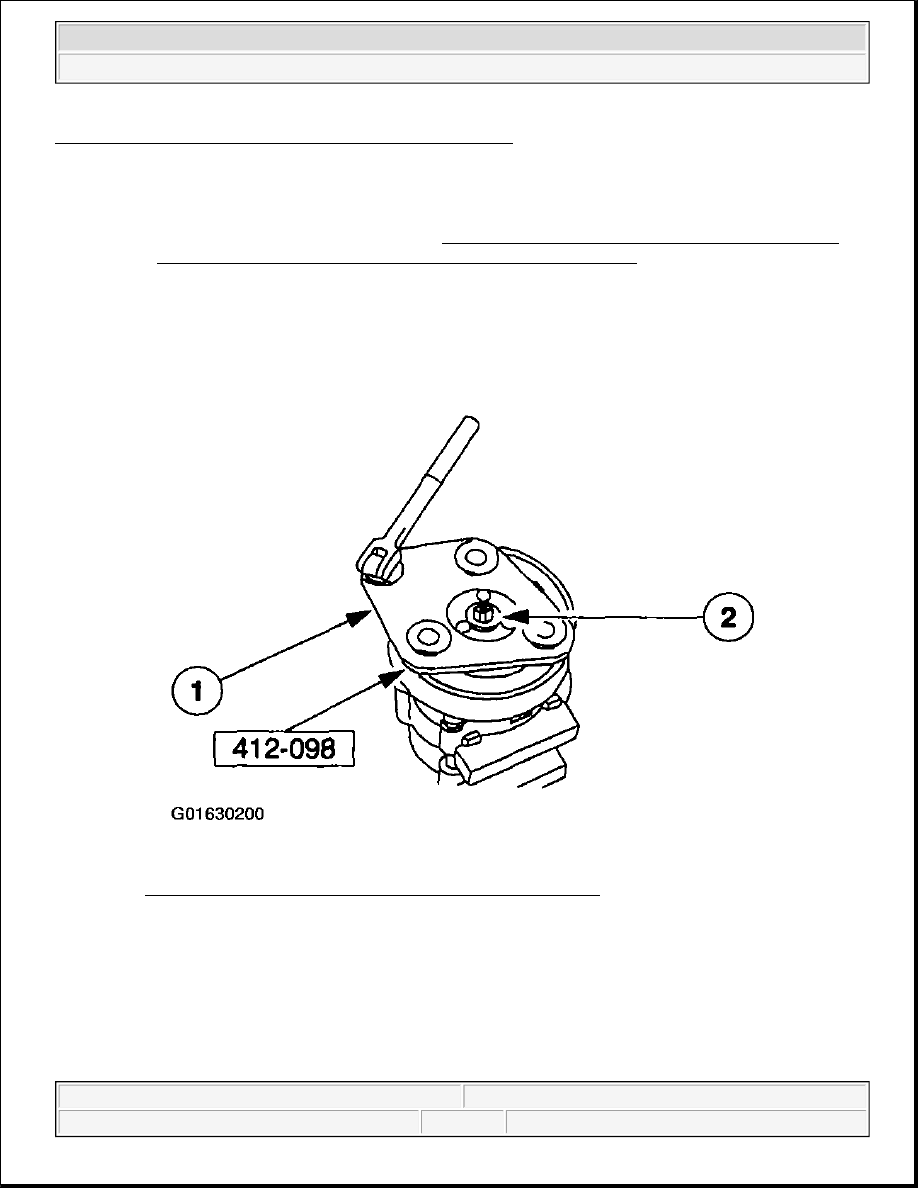

Fig. 26: View Of Removing A/C Clutch Hub Retaining Bolt
Courtesy of FORD MOTOR CO.

3. Remove the A/C clutch (2884) and the A/C clutch hub spacer (19D648).

1. Thread an 8 x 1.25 mm bolt into the A/C clutch hub spacer to force it from the compressor shaft.

2. Lift the A/C clutch and the A/C clutch hub spacer from the compressor shaft.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

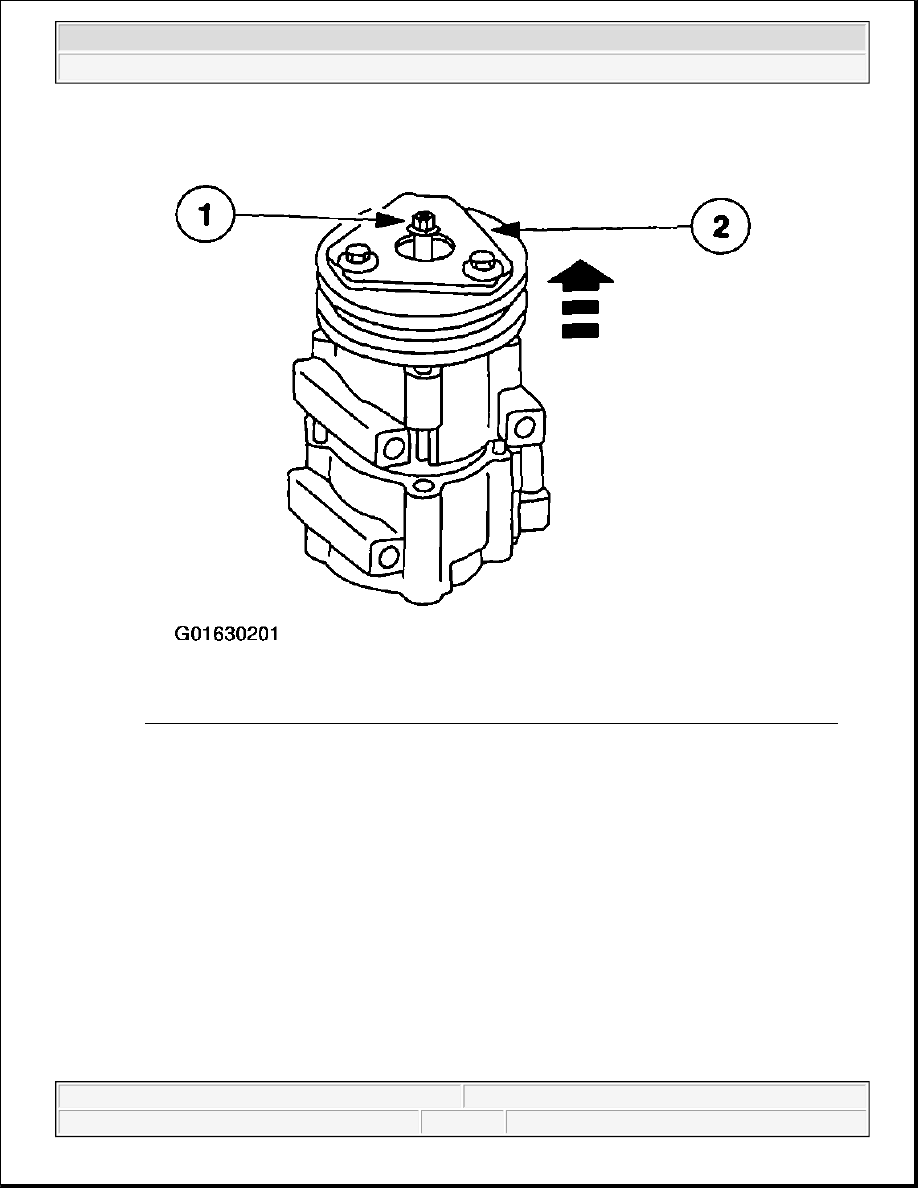

Fig. 27: View Of Lifting A/C Clutch And A/C Clutch Hub Spacer From Compressor Shaft
Courtesy of FORD MOTOR CO.

4. Remove the pulley snap ring.
