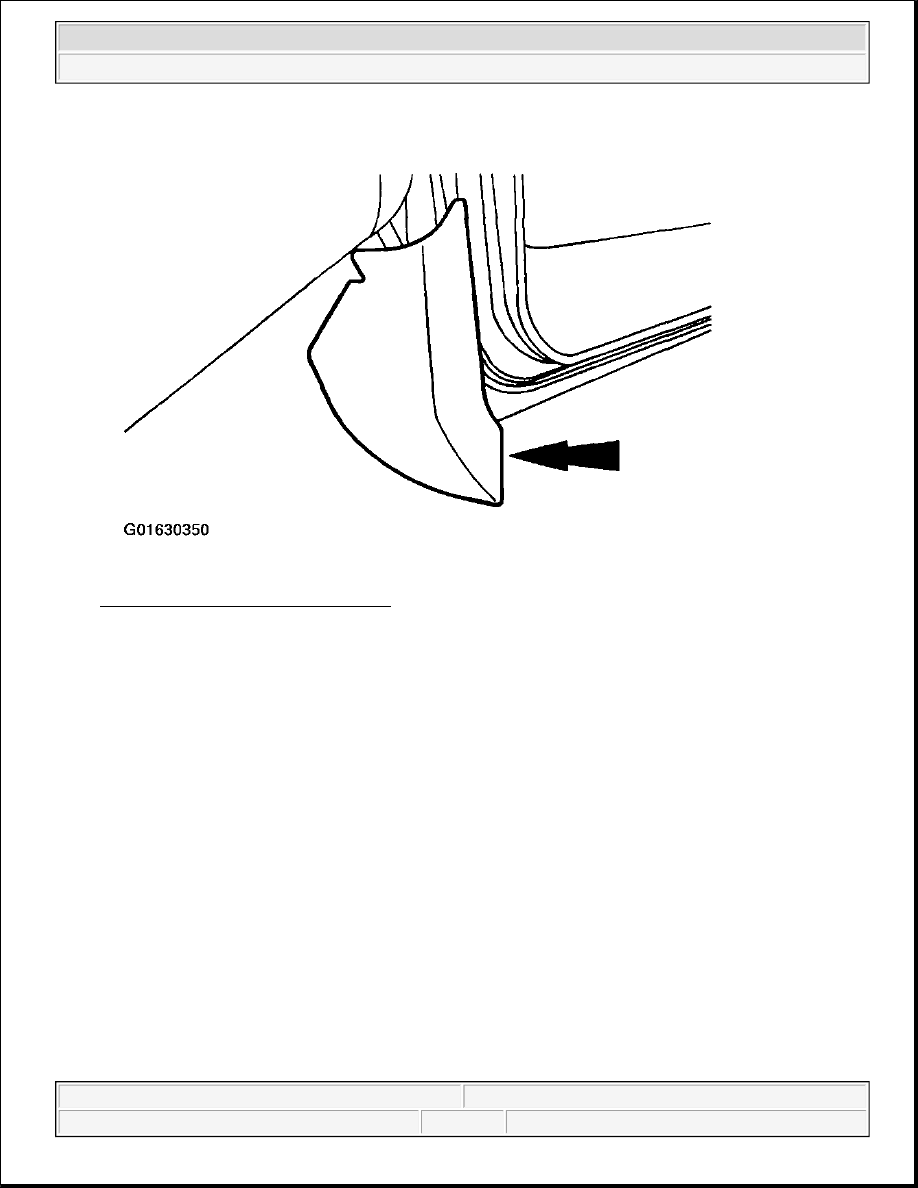

Fig. 60: Removing RH Front Kickpad
Courtesy of FORD MOTOR CO.

5. Remove the RH lower instrument panel insulator.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup

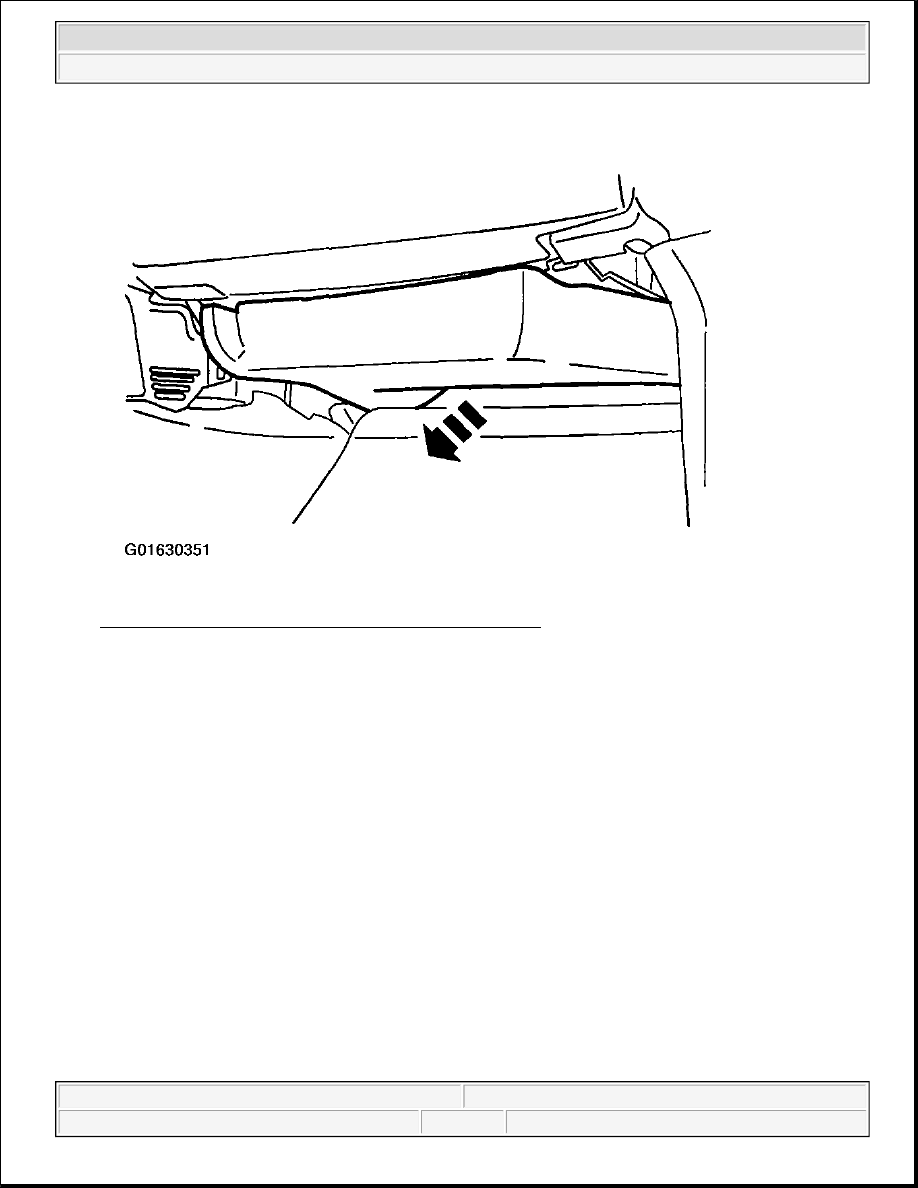

Fig. 61: Removing RH Lower Instrument Panel Insulator
Courtesy of FORD MOTOR CO.

NOTE:

Part shown out of vehicle position.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup

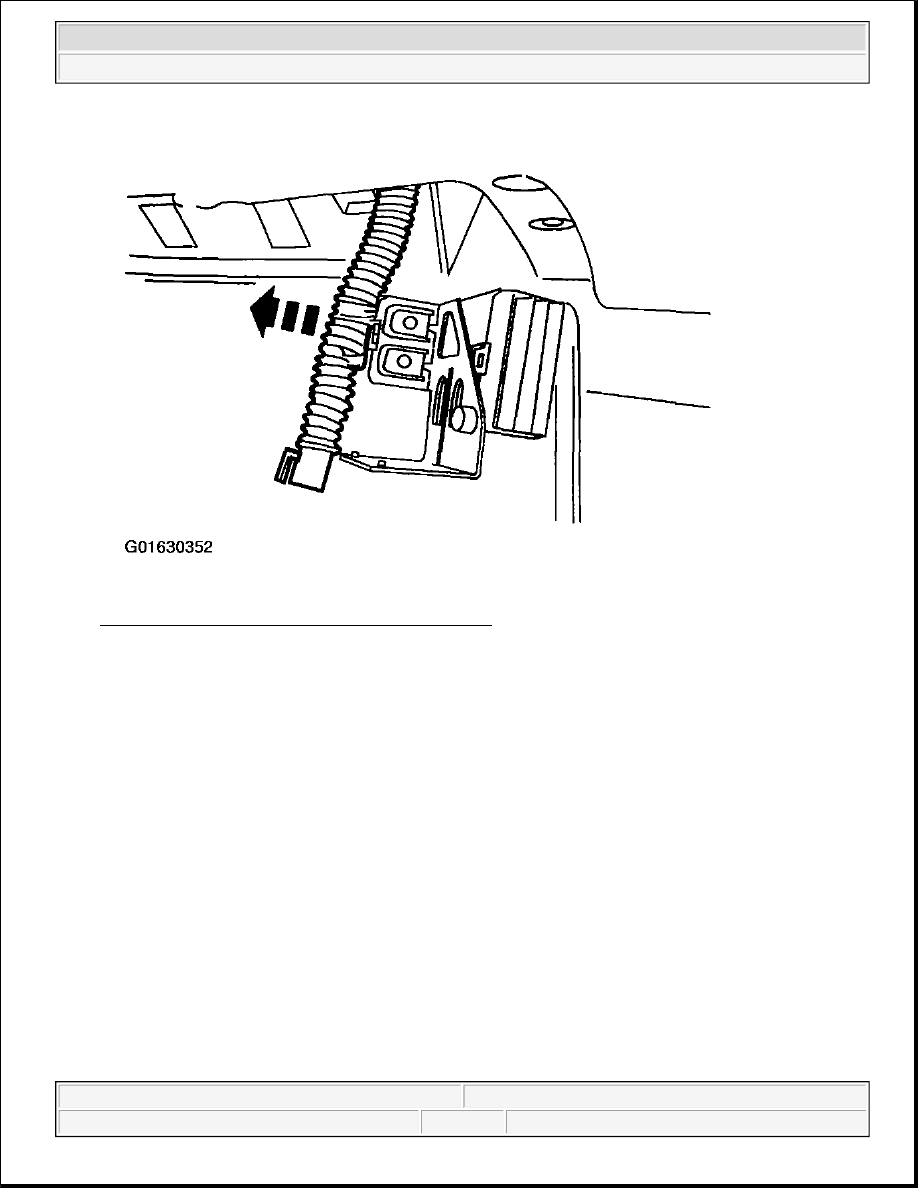

Fig. 62: Disengaging Aspirator Hose From Bracket
Courtesy of FORD MOTOR CO.

6. Disengage the aspirator hose from the bracket.

7. Disengage the blower motor speed control mounting bracket from the instrument panel.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



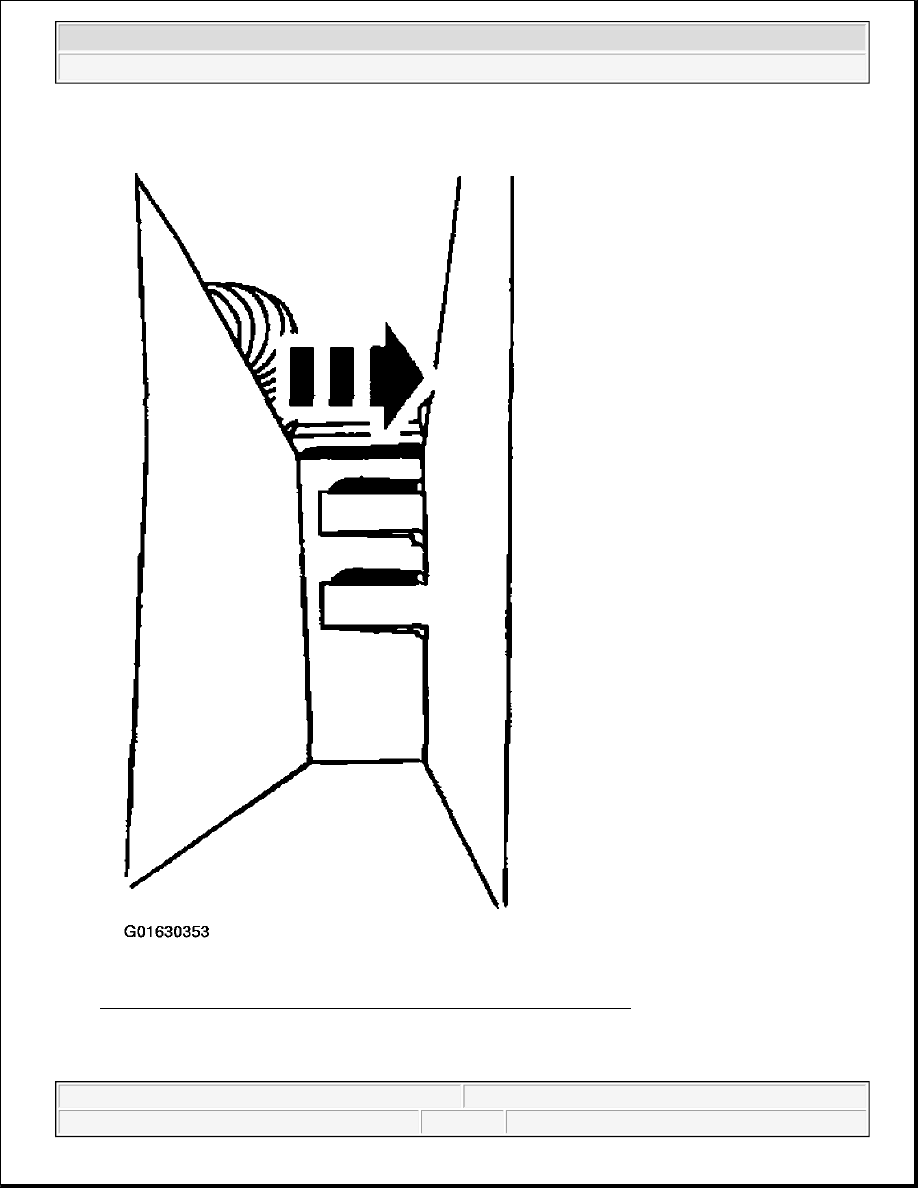

Fig. 63: Disengaging Blower Motor Speed Control Mounting Bracket
Courtesy of FORD MOTOR CO.

8. Disconnect the connectors.
