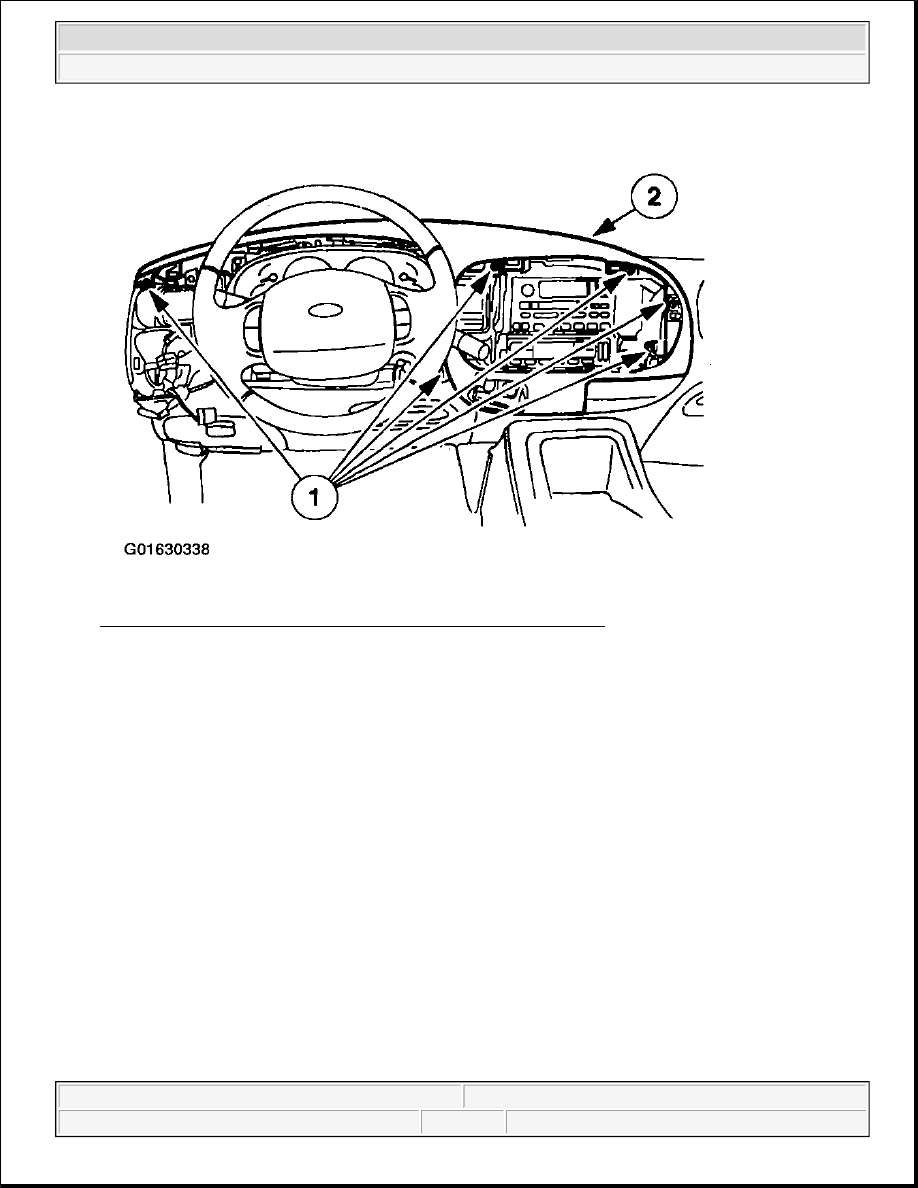

Fig. 48: View Of Removing Center Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.

7. Remove the screw.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup

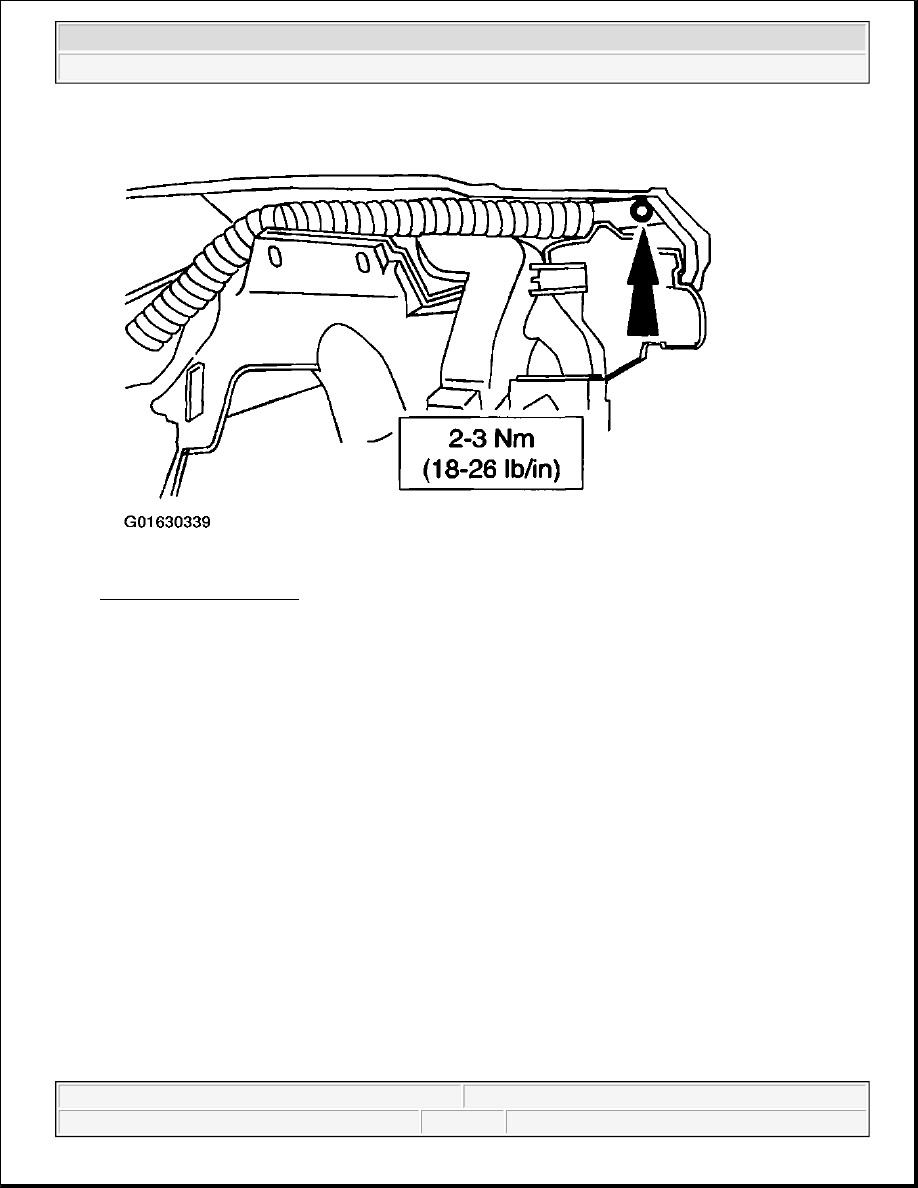

Fig. 49: Identifying Screw
Courtesy of FORD MOTOR CO.

8. Disconnect the electrical connector and remove the sensor from the hose.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup

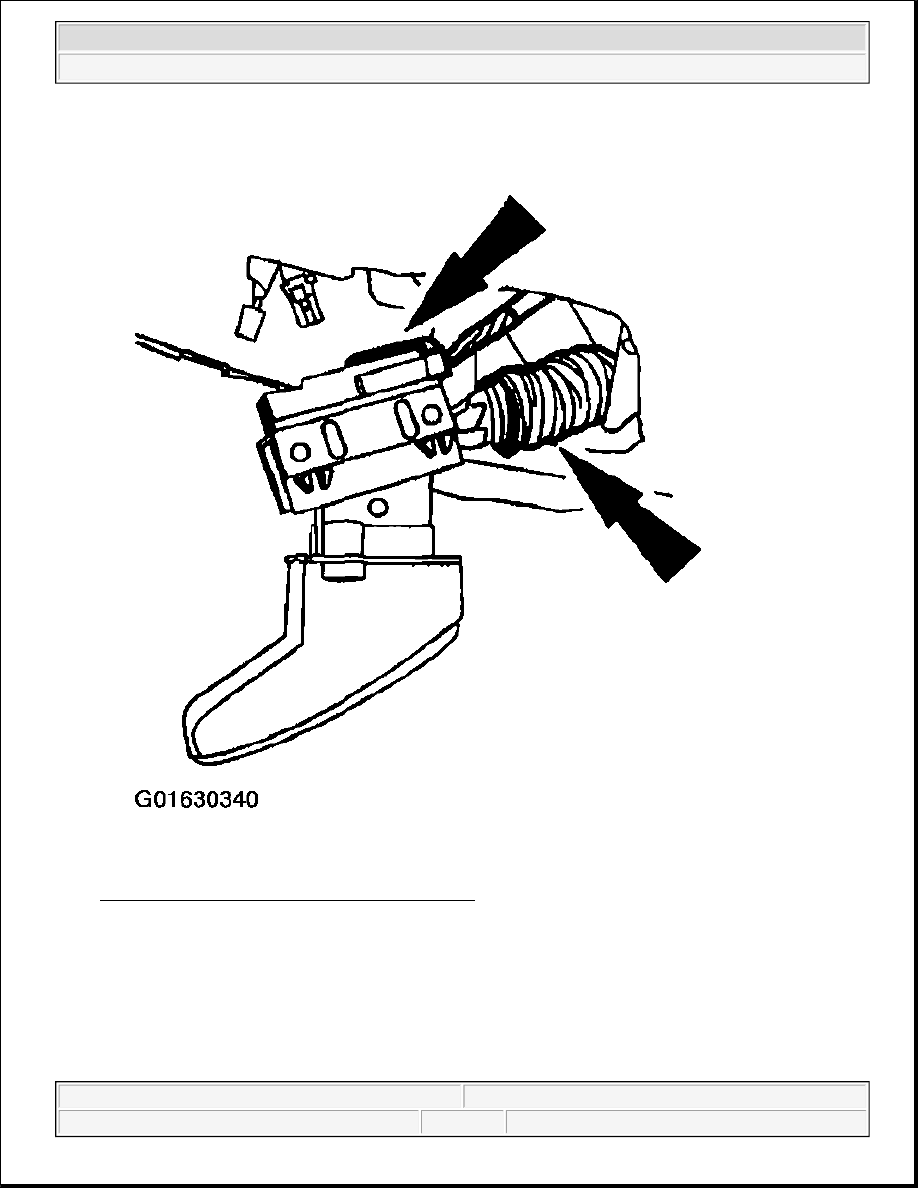

Fig. 50: Locating Electrical Connector And Hose
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.

SUNLOAD SENSOR

Removal



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



1. Remove the instrument panel upper finish panel.

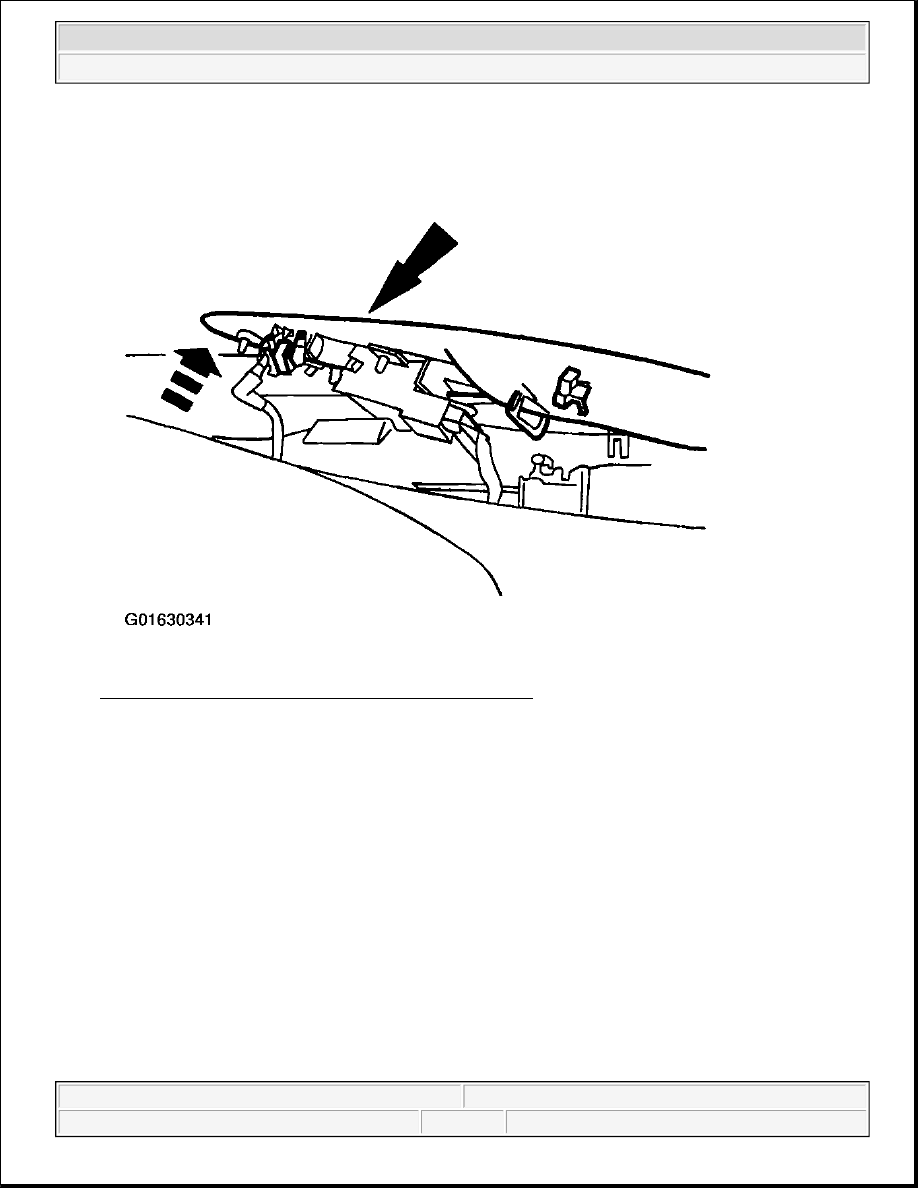

Fig. 51: Removing Instrument Panel Upper Finish Panel
Courtesy of FORD MOTOR CO.

2. Disconnect the connector.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup
