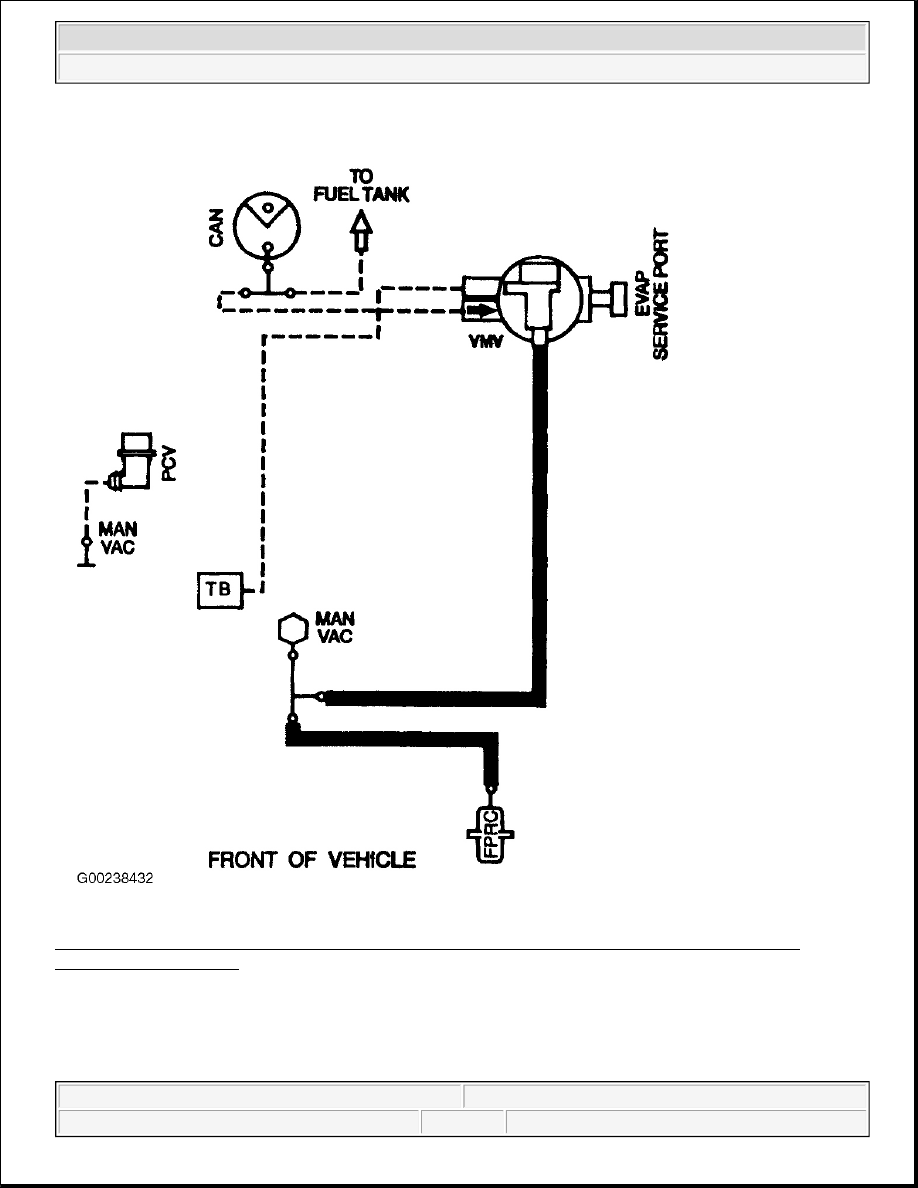

Fig. 23: Vacuum Diagram - Excursion & F250-350 Super Duty Pickup (5.4L & 6.8L Medium & Heavy-
Duty W/O EGR Valve)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks

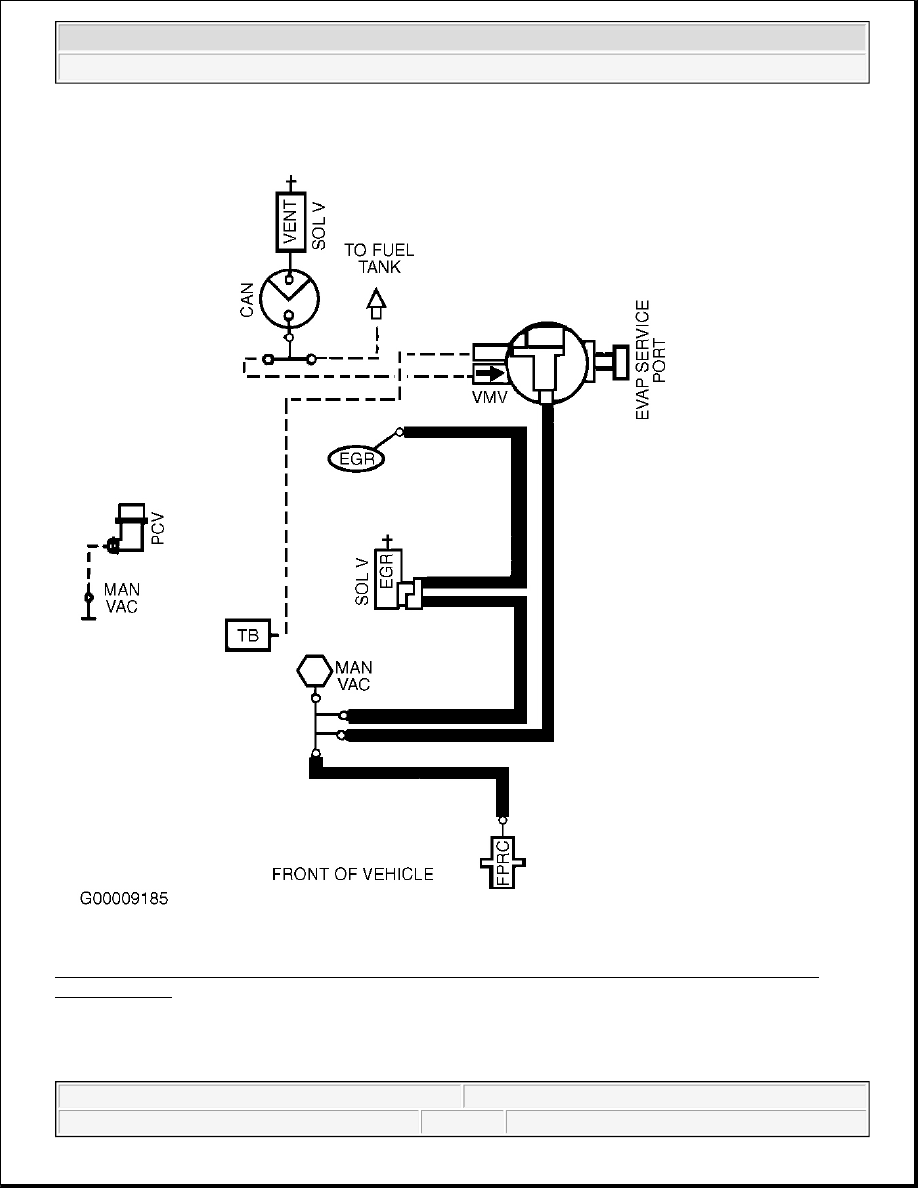

Fig. 24: Vacuum Diagram - Excursion & F250-350 Super Duty Pickup (5.4L Light & Medium-Duty
W/EGR Valve)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks

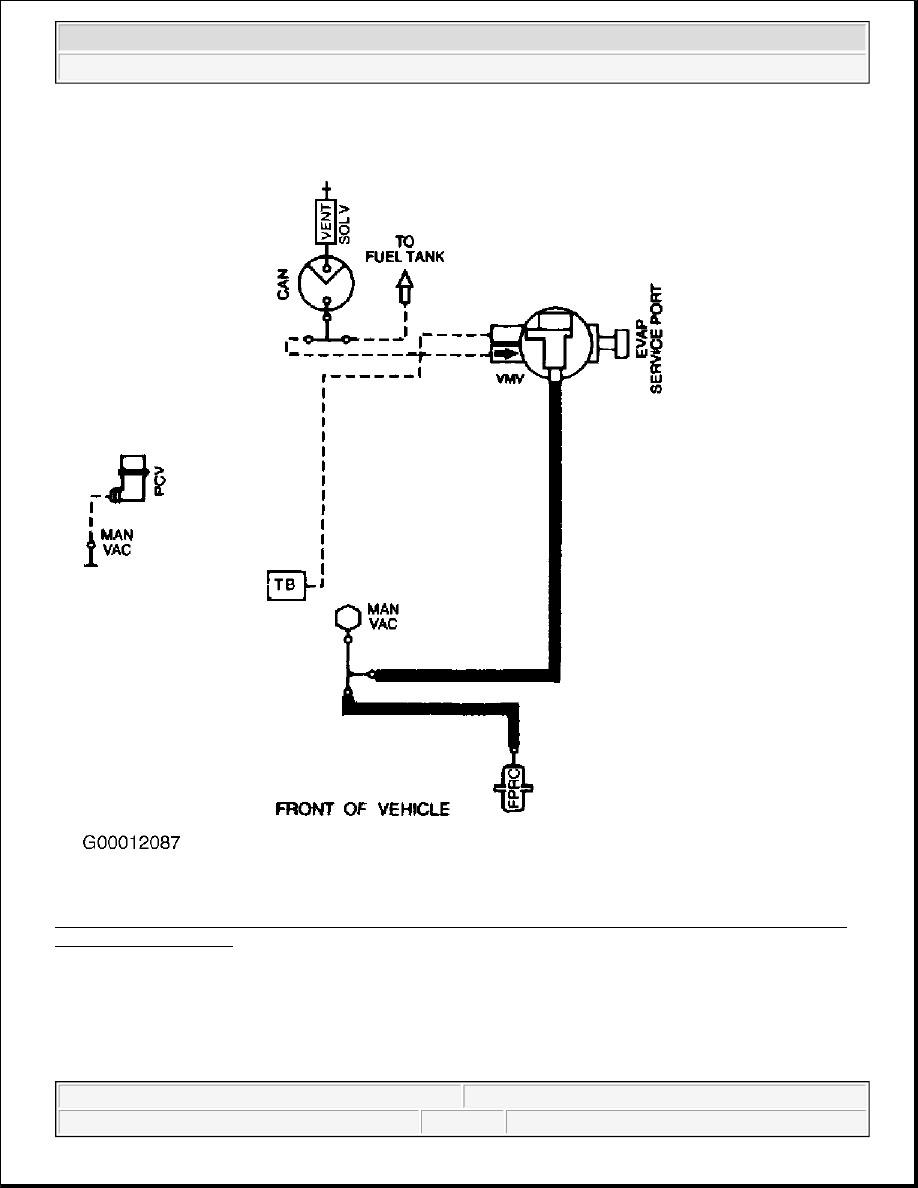

Fig. 25: Vacuum Diagrams - Excursion & F250-350 Super Duty Pickup (5.4L & 6.8L W/O EVAP
Canister Vent Solenoid)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks

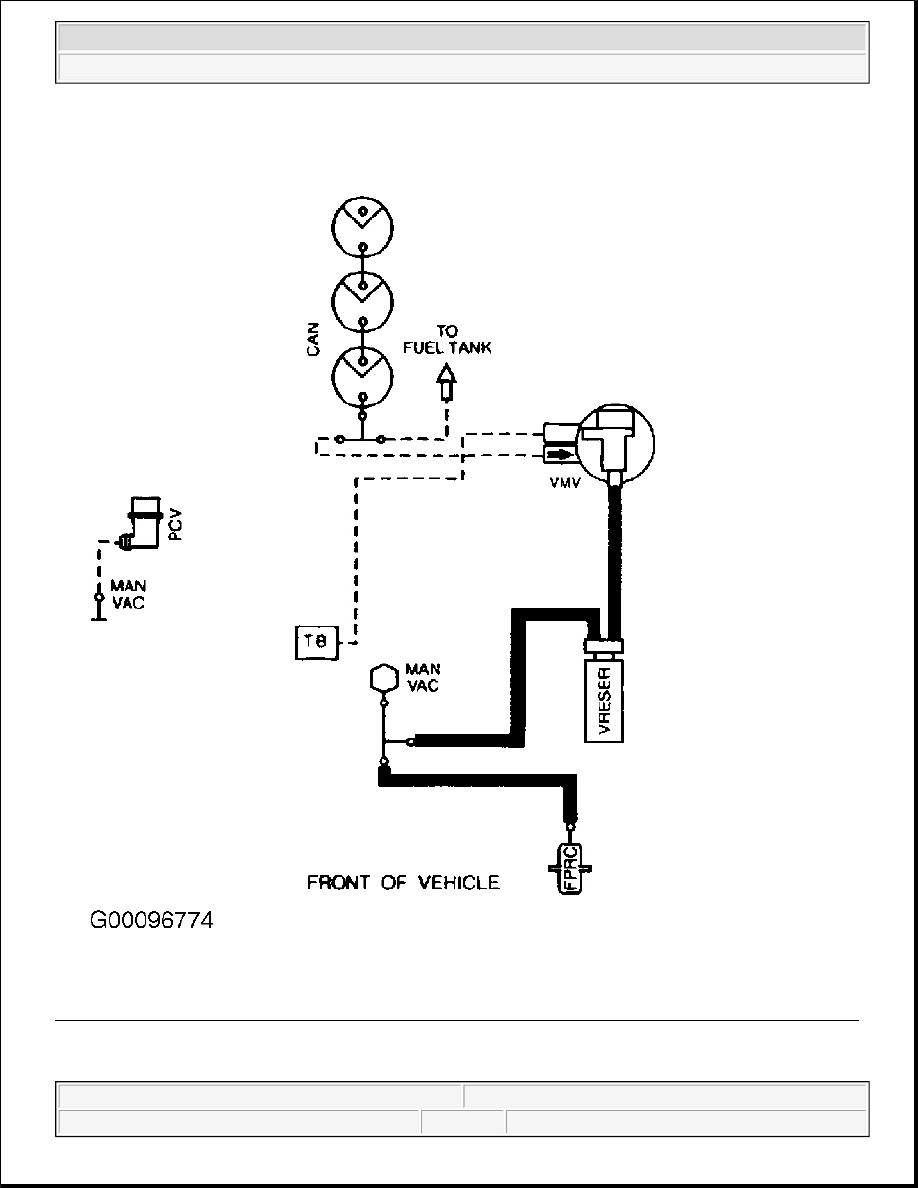

Fig. 26: Vacuum Diagram - F450-F550 Super Duty Pickup (6.8L Heavy-Duty W/Triple EVAP Canisters)
Courtesy of FORD MOTOR CO.

EXPLORER & MOUNTAINEER

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks
