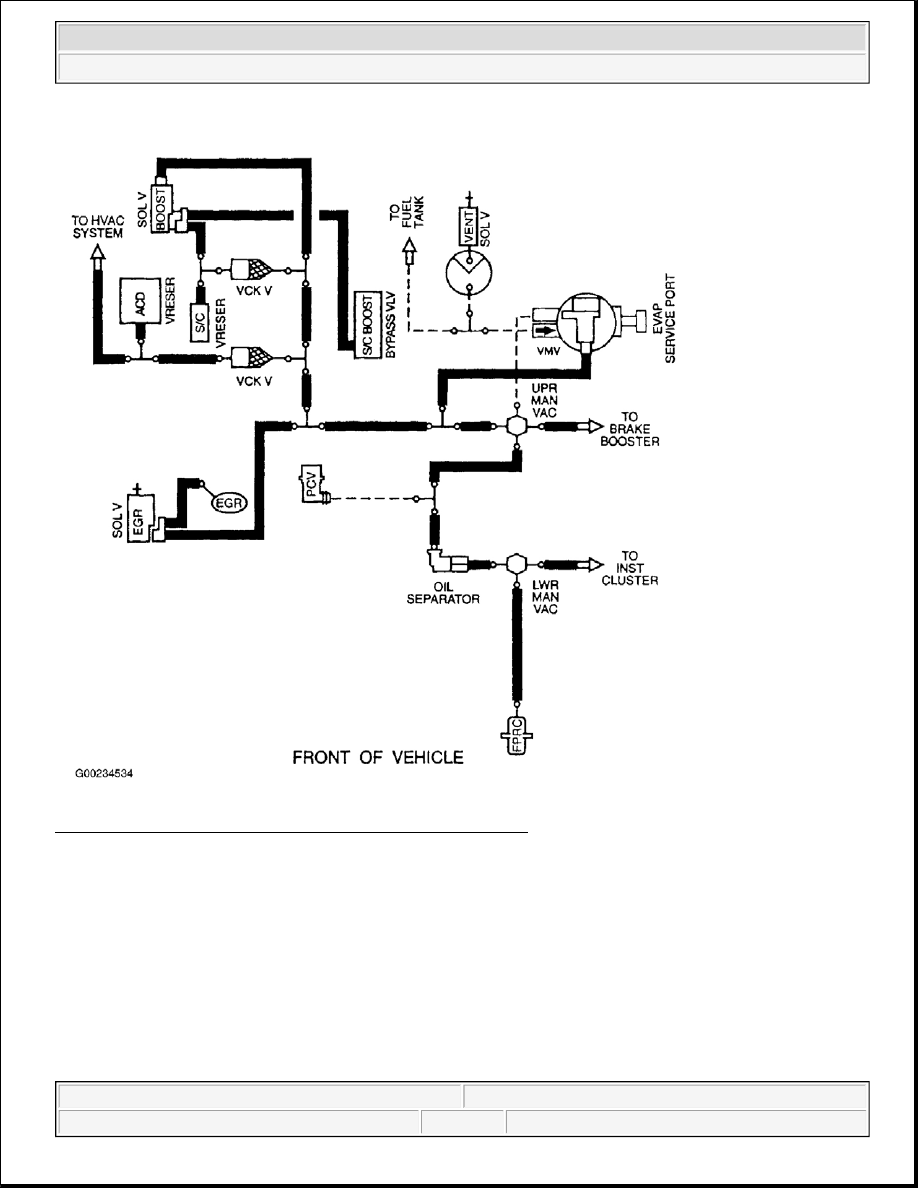

Fig. 9: Vacuum Diagrams - F150 Pickup (5.4L Supercharged)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks

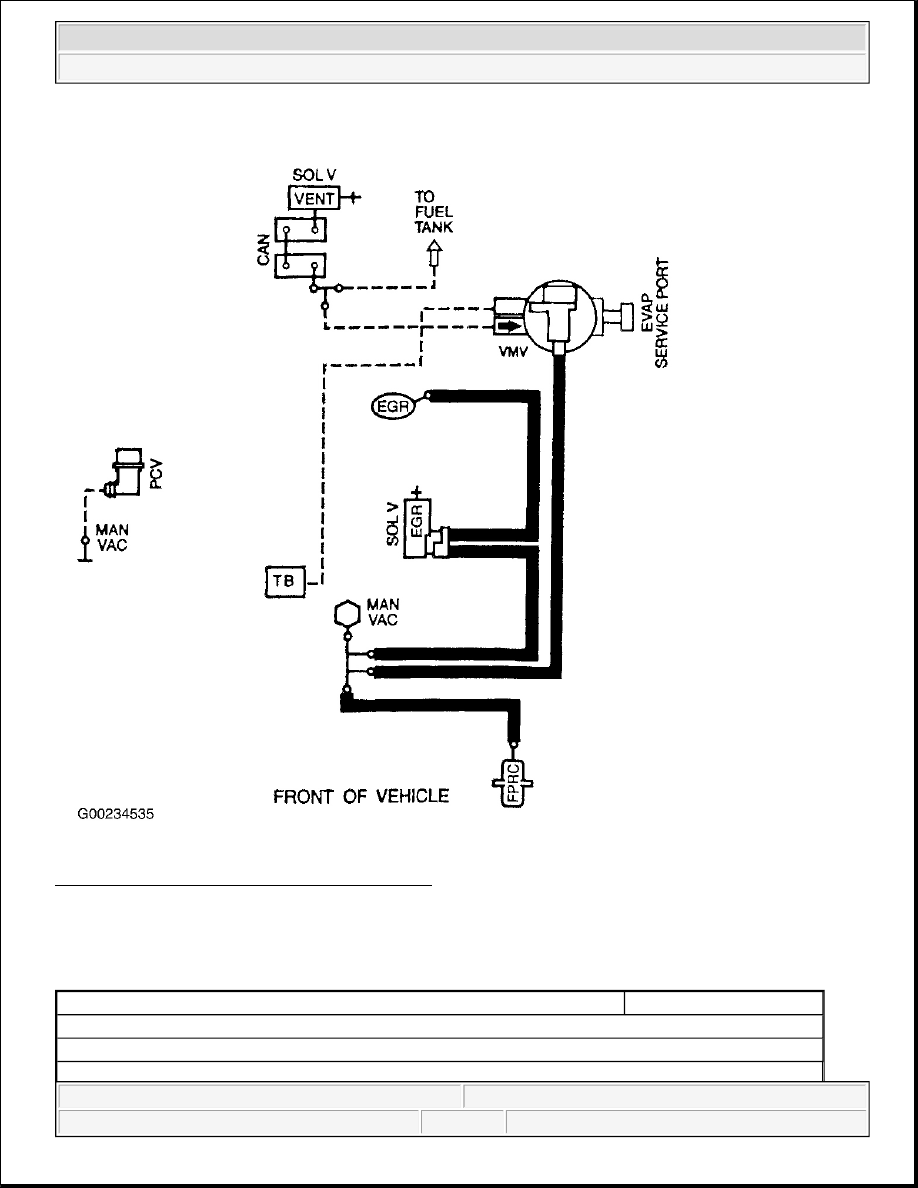

Fig. 10: Vacuum Diagrams - Expedition (5.4L)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks

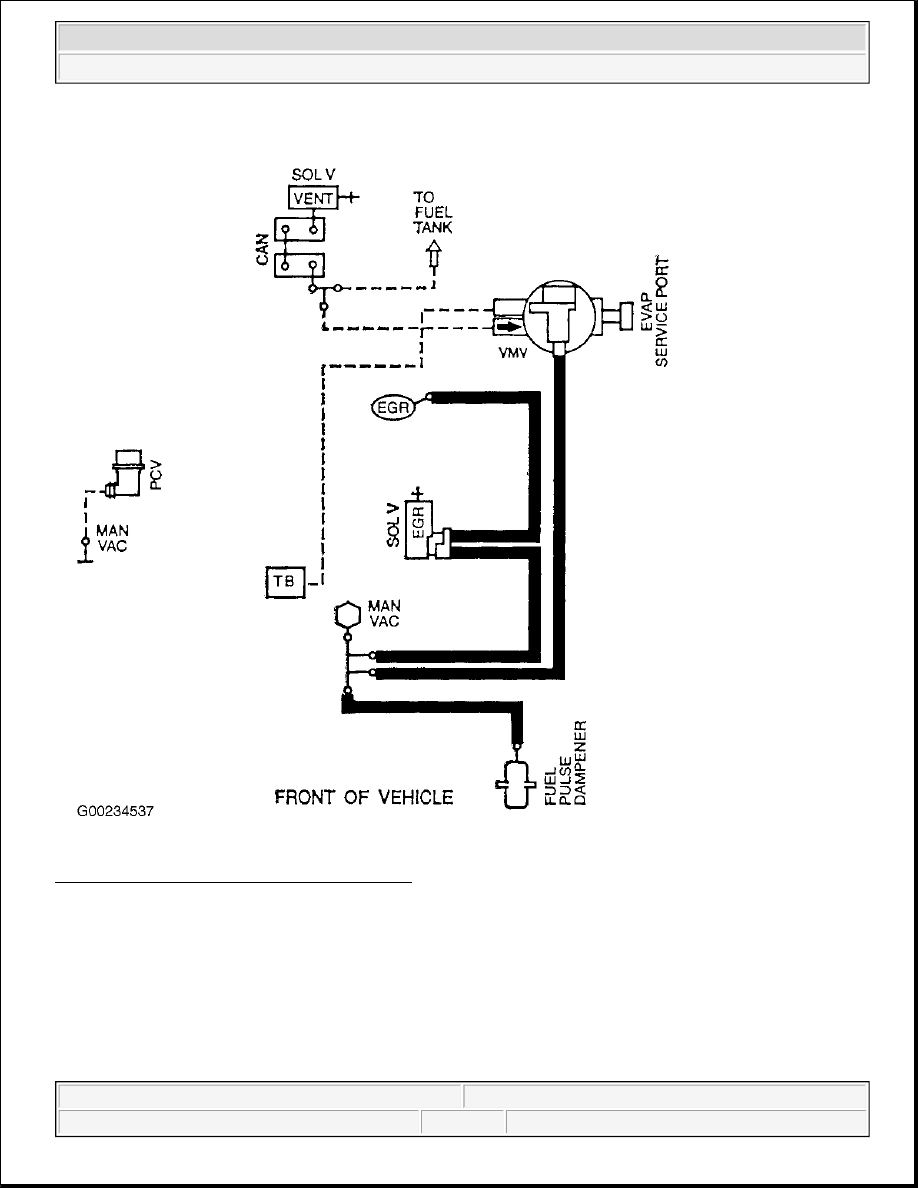

Fig. 11: Vacuum Diagrams - Navigator (5.4L 4V)
Courtesy of FORD MOTOR CO.

ECONOLINE

CALIBRATION-TO-VACUUM DIAGRAM REFERENCE (ECONOLINE)

Application/Calibration No.

See

4.2L

Federal & Canada



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks



6700 GVW

3-E41-2D0-A05

Fig. 12

7000 GVW

3-E41-2D0-A05

Fig. 12

3-E41-2D0-A05/00

Fig. 12

7000/7300 GVW

3-E41-2E0-A05

Fig. 12

7200/7300 GVW

3-E41-2E0-A05/00, 3-E41-2E0-A05

Fig. 12

8600 GVW

3-E41-2F0-A05

Fig. 12

3-E41-2F0-A05/00

Fig. 12

3-E41-2G0-A05, 3-E41-2G0-A05/00

Fig. 12

Green States

6700 GVW

3-E41-2H0-B05, 3-E41-2H0-B05/00

Fig. 12

7000 GVW

3-E41-2H0-B05

Fig. 12

7200/7300 GVW

3-E41-2L0-B05, 3-E41-2L0-B05/00

Fig. 12

8600 GVW

3-E41-2J0-B05/00

Fig. 12

3-E41-2K0-B00

Fig. 12

4.6L

50 States & Canada

6700 GVW

3-E41-6D0-505

Fig. 13

Under 8500 GVW

3-E41-6F0-505

Fig. 13

Over 8500 GVW

3-E41-6H0-505

Fig. 13

5.4L

Green States

Over 8500 GVW

3-E41-4J0-B05

Fig. 14

3-E41-4R0-B05

Fig. 15

3-E41-4U0-B05

Fig. 16

Federal & Canada

Over 8500 GVW

3-E41-4N0-A10/05

Fig. 17

3-E41-4Y0-505

Fig. 18
