Ford F150 Pickup. Manual - part 154

Fig. 23: Removing Exterior Rear View Mirror
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup

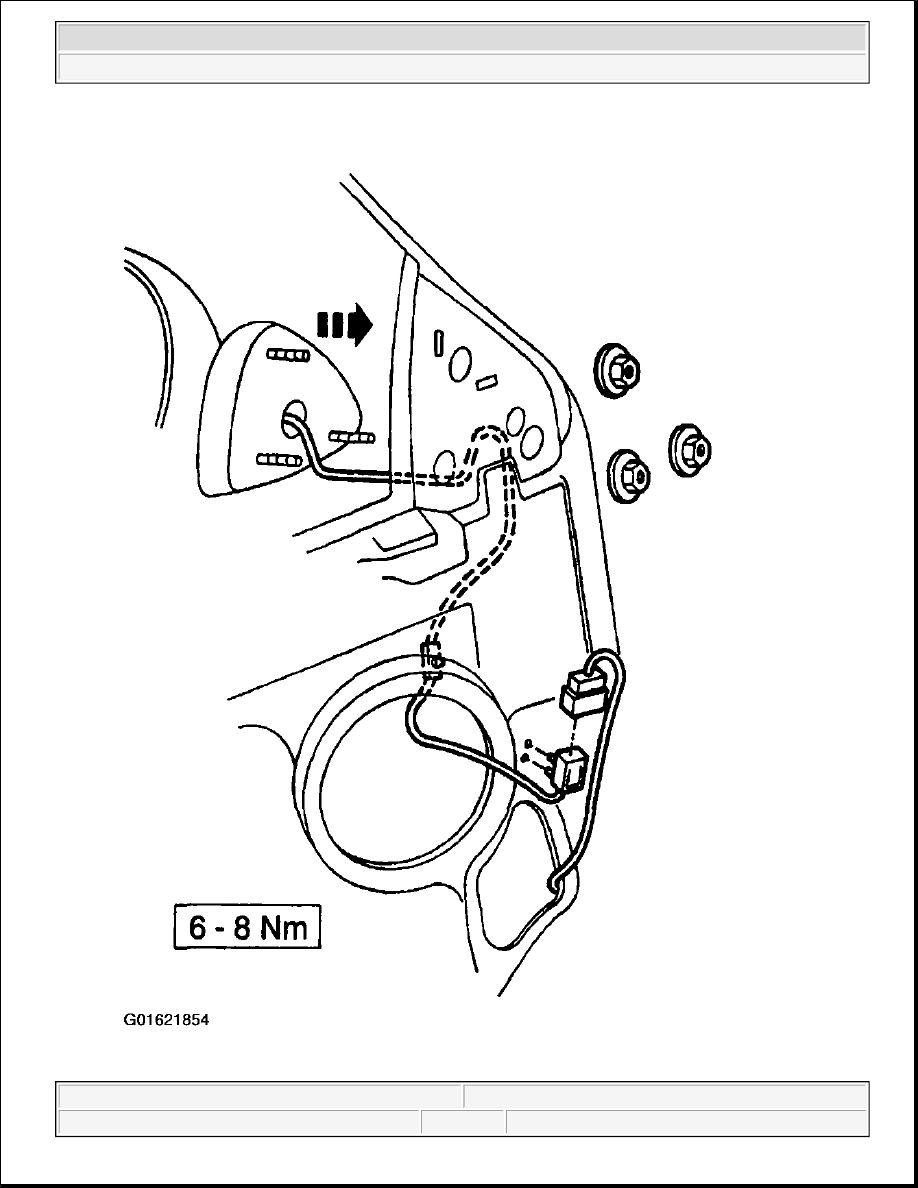

Fig. 24: Installing Exterior Rear View Mirror
Courtesy of FORD MOTOR CO.

MIRROR - COVER, EXTERIOR REAR VIEW MIRROR

Removal

All Mirrors

1. Position the mirror glass to obtain a gap at the upper edge of the mirror assembly.

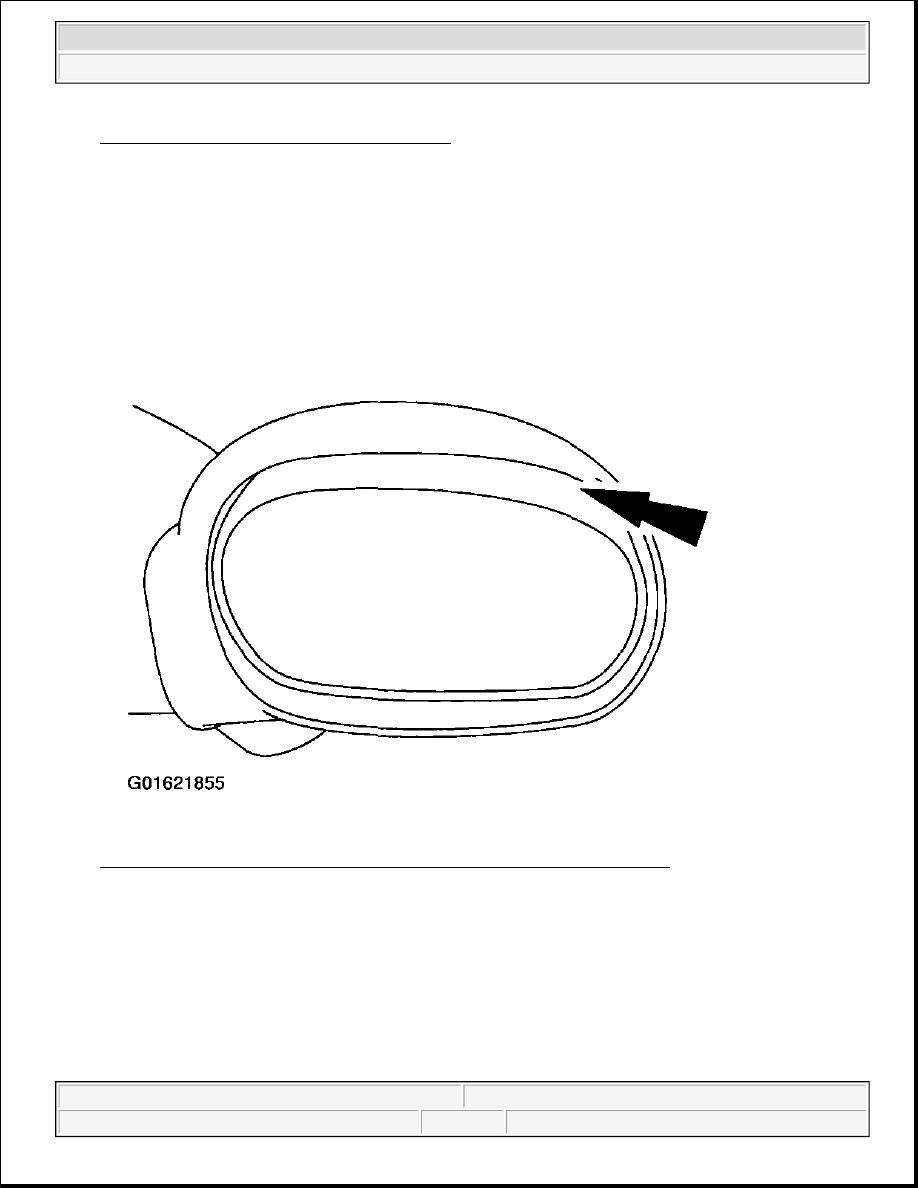

Fig. 25: Locating Position Of Mirror Glass To Obtain Gap At Upper Edge
Courtesy of FORD MOTOR CO.

2. Release the mirror cover upper clips.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup

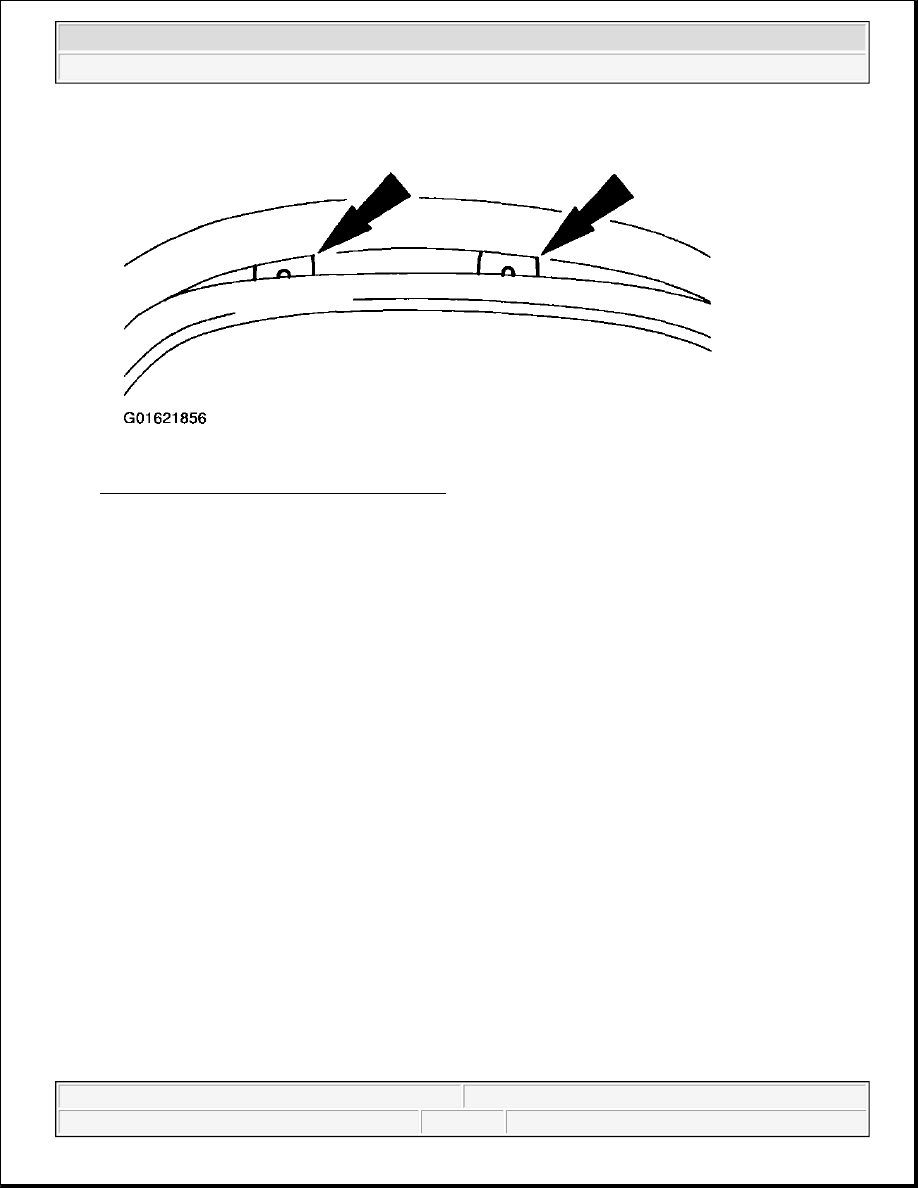

Fig. 26: Releasing Mirror Cover Upper Clips
Courtesy of FORD MOTOR CO.

Non-Signal Mirror

3. Position the mirror glass to obtain a gap at the inboard edge of the mirror assembly.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup
