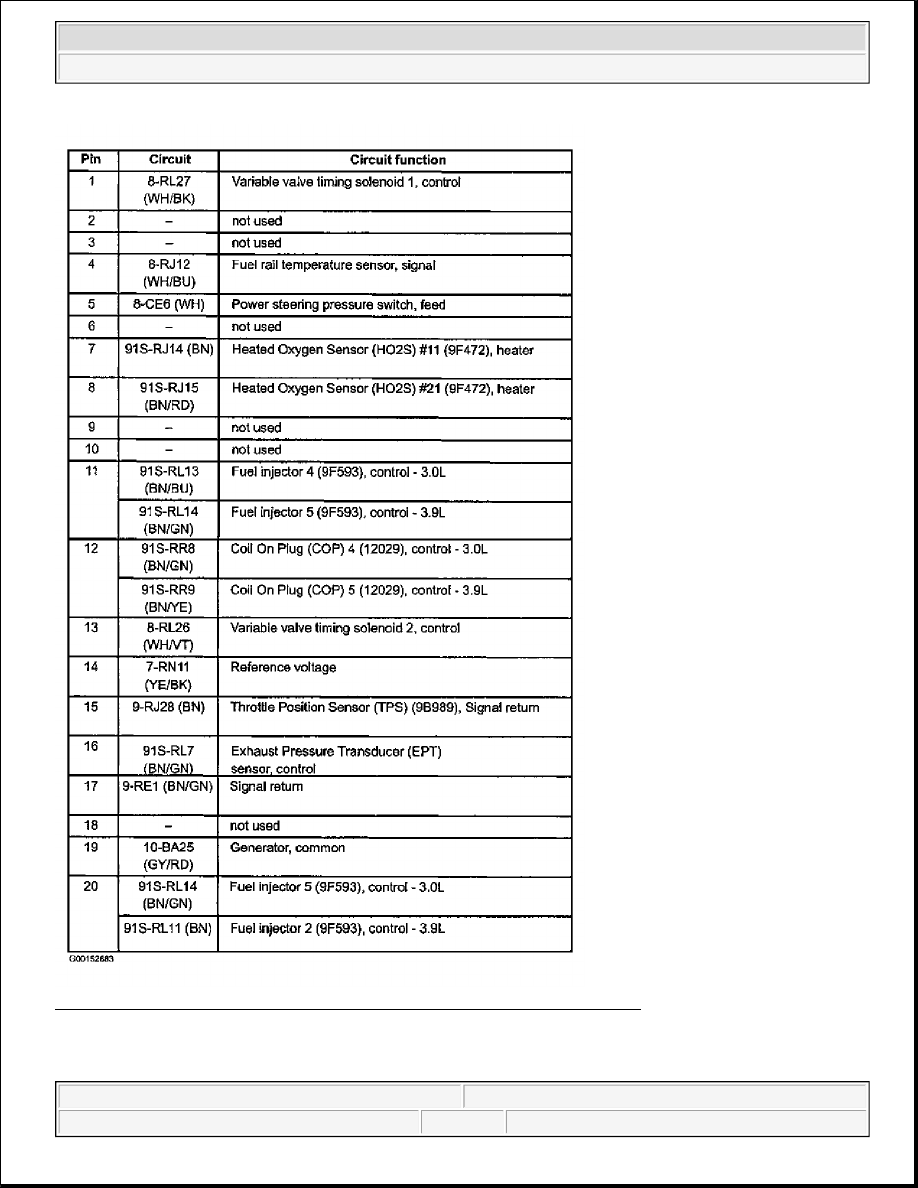

Fig. 131: Identifying PCM Connector C175C Circuit Functions (1 Of 3 - LS)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



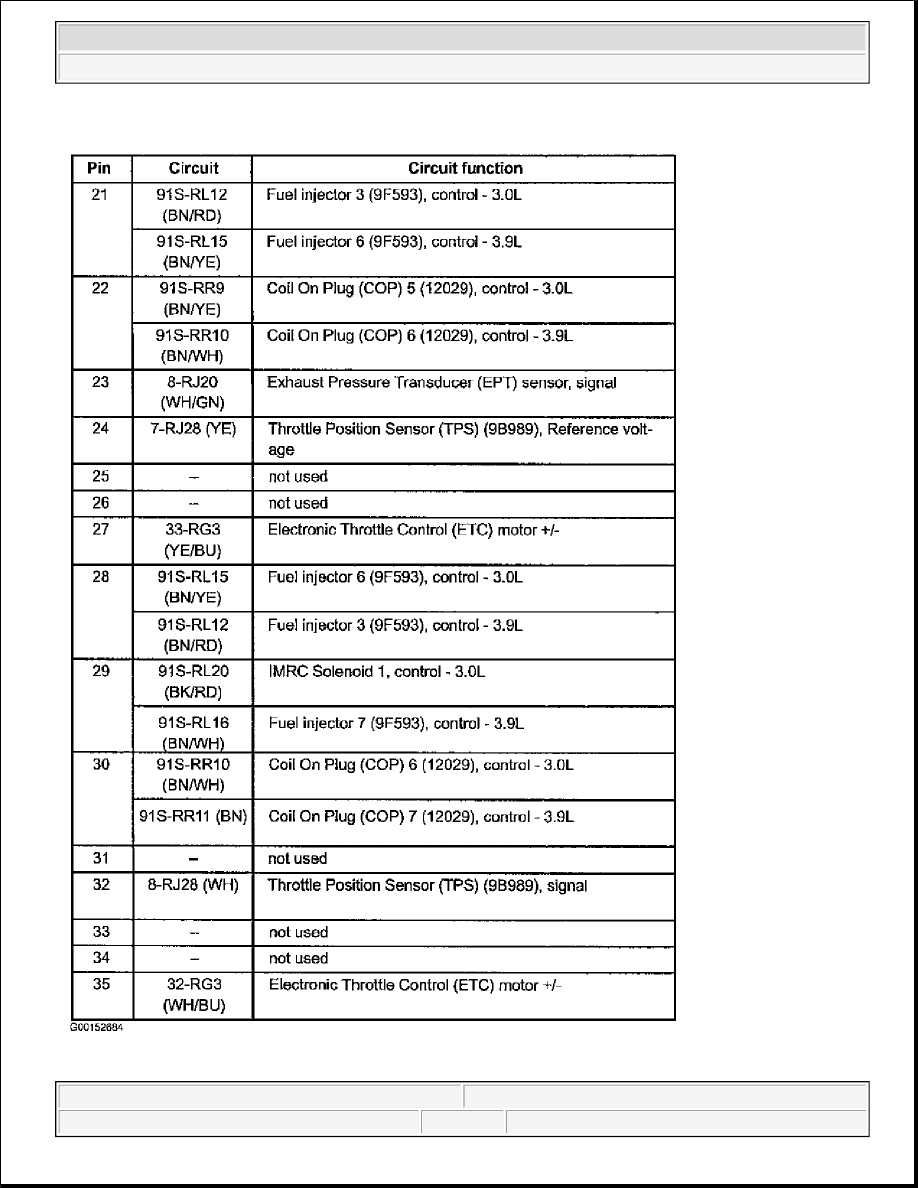

Fig. 132: Identifying PCM Connector C175C Circuit Functions (2 Of 3 - LS)



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



Courtesy of FORD MOTOR CO.

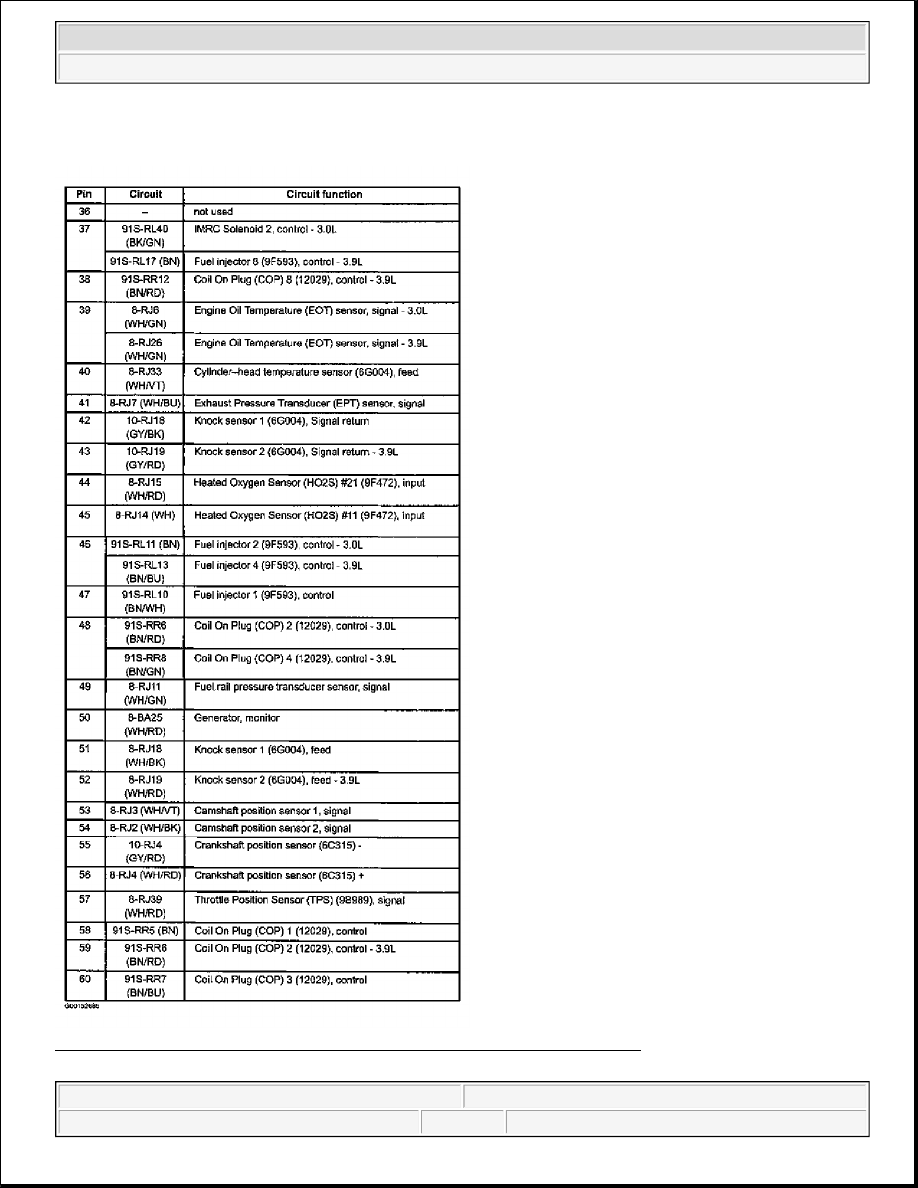

Fig. 133: Identifying PCM Connector C175C Circuit Functions (3 Of 3 - LS)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



MUSTANG

MUSTANG PCM CONNECTOR IDENTIFICATION

Application

Terminal Identification

Circuit Function

Mustang



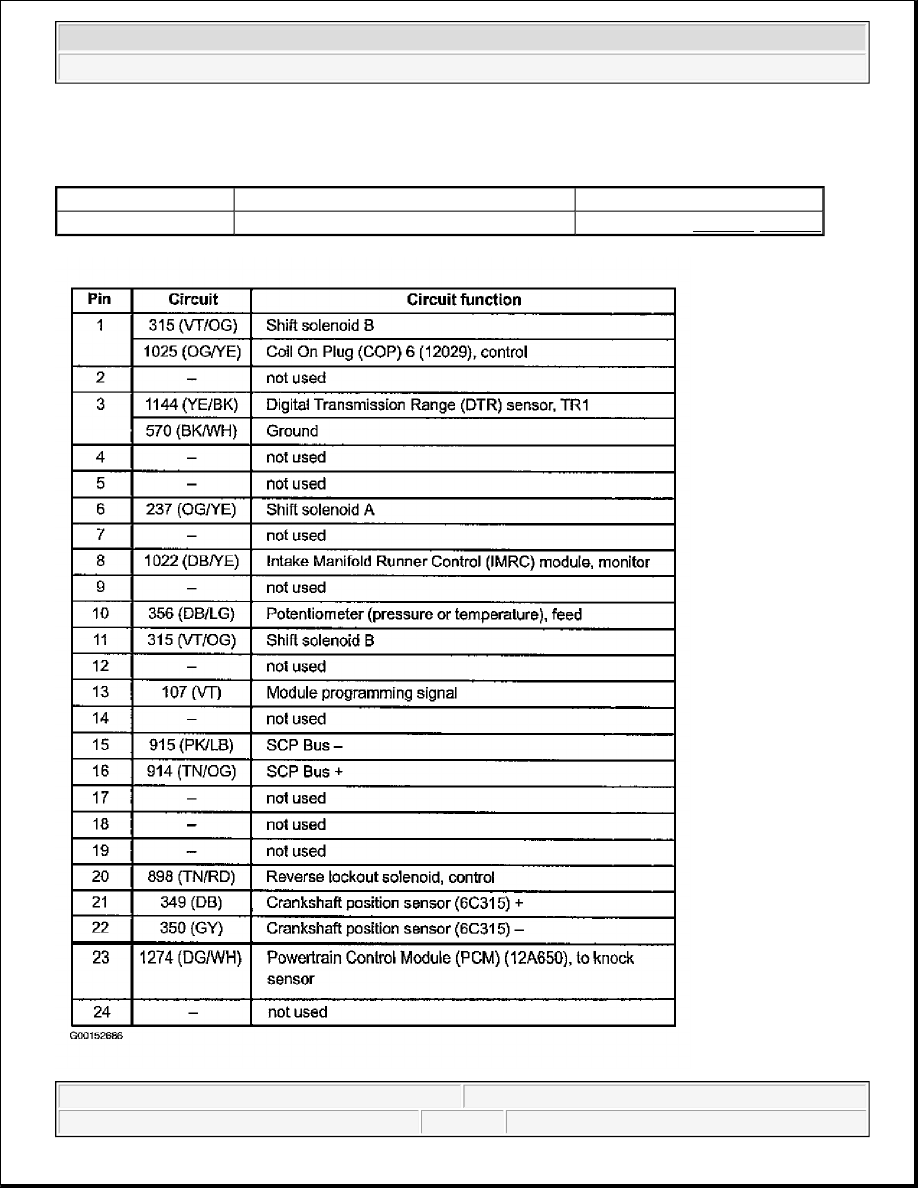

Fig. 134-Fig. 137
