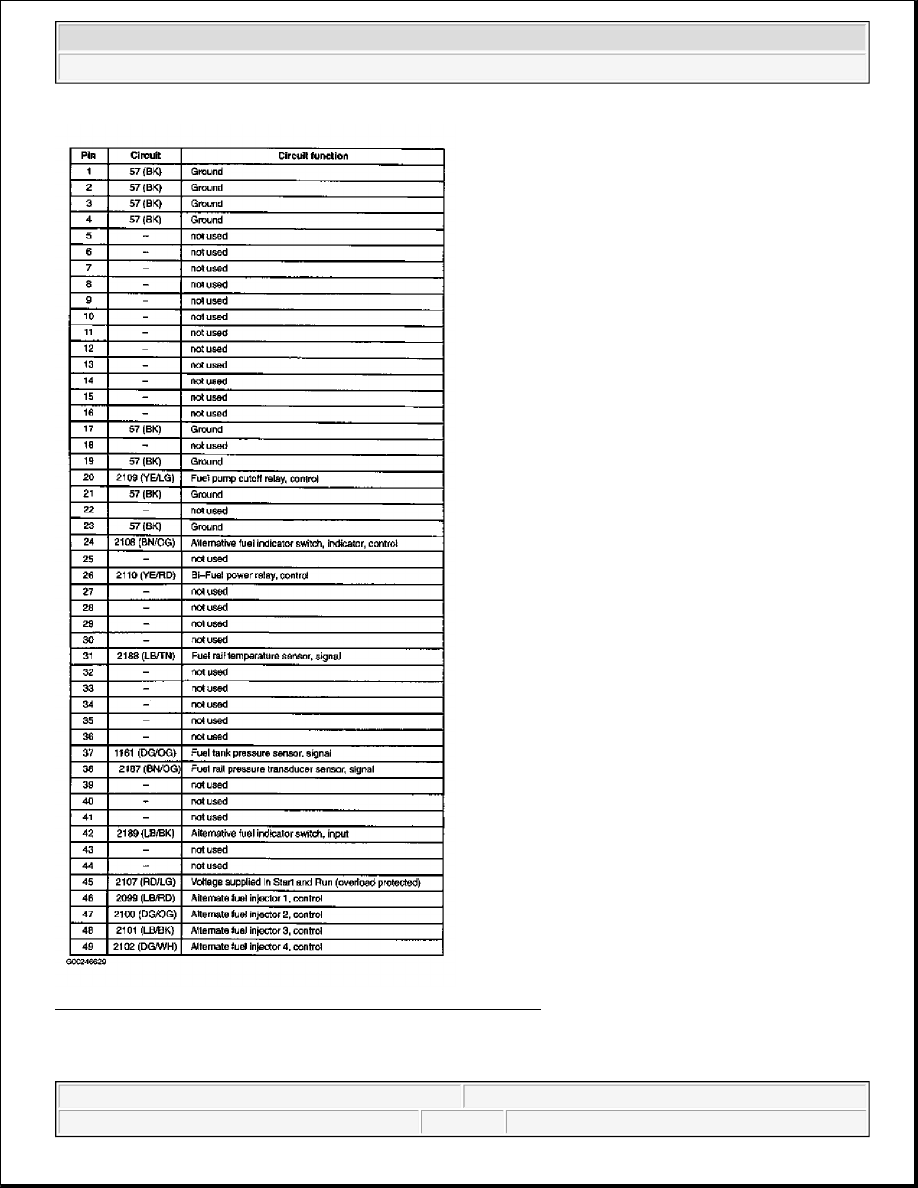

Fig. 3: Identifying AFCM Connector Circuit Functions (1 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - Bi-Fuel - Gasoline/CNG

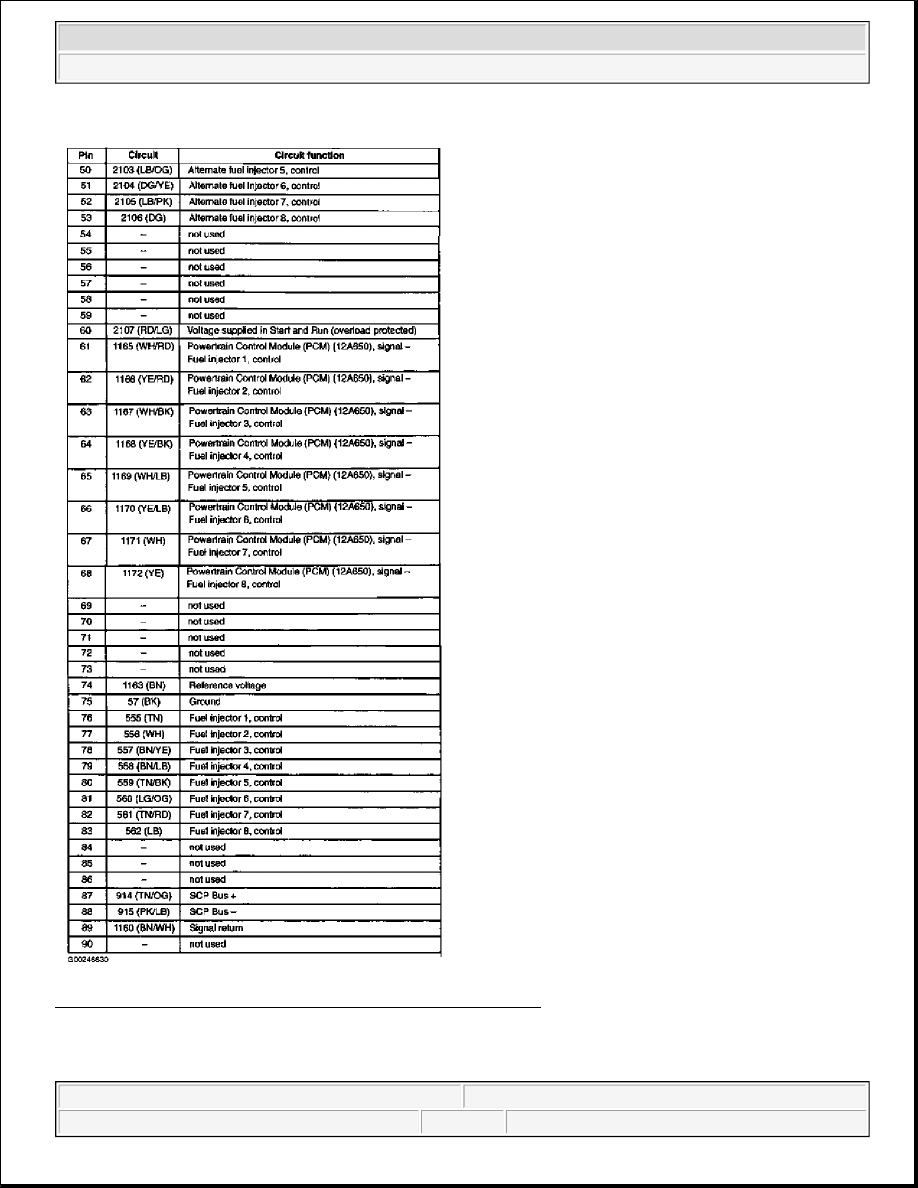

Fig. 4: Identifying AFCM Connector Circuit Functions (2 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - Bi-Fuel - Gasoline/CNG

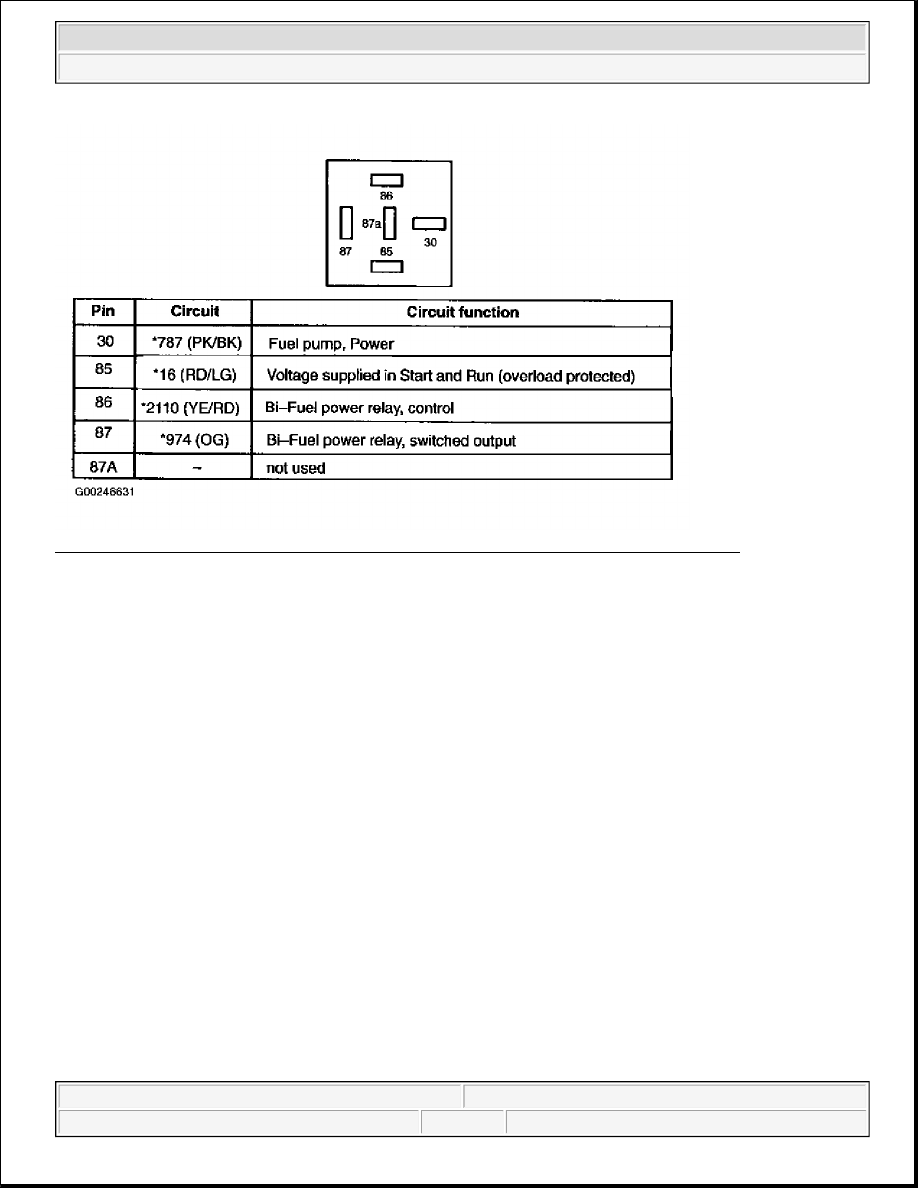

Fig. 5: Identifying Alternate Fuel Relay Connector C1293 Terminals & Circuit Functions
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - Bi-Fuel - Gasoline/CNG

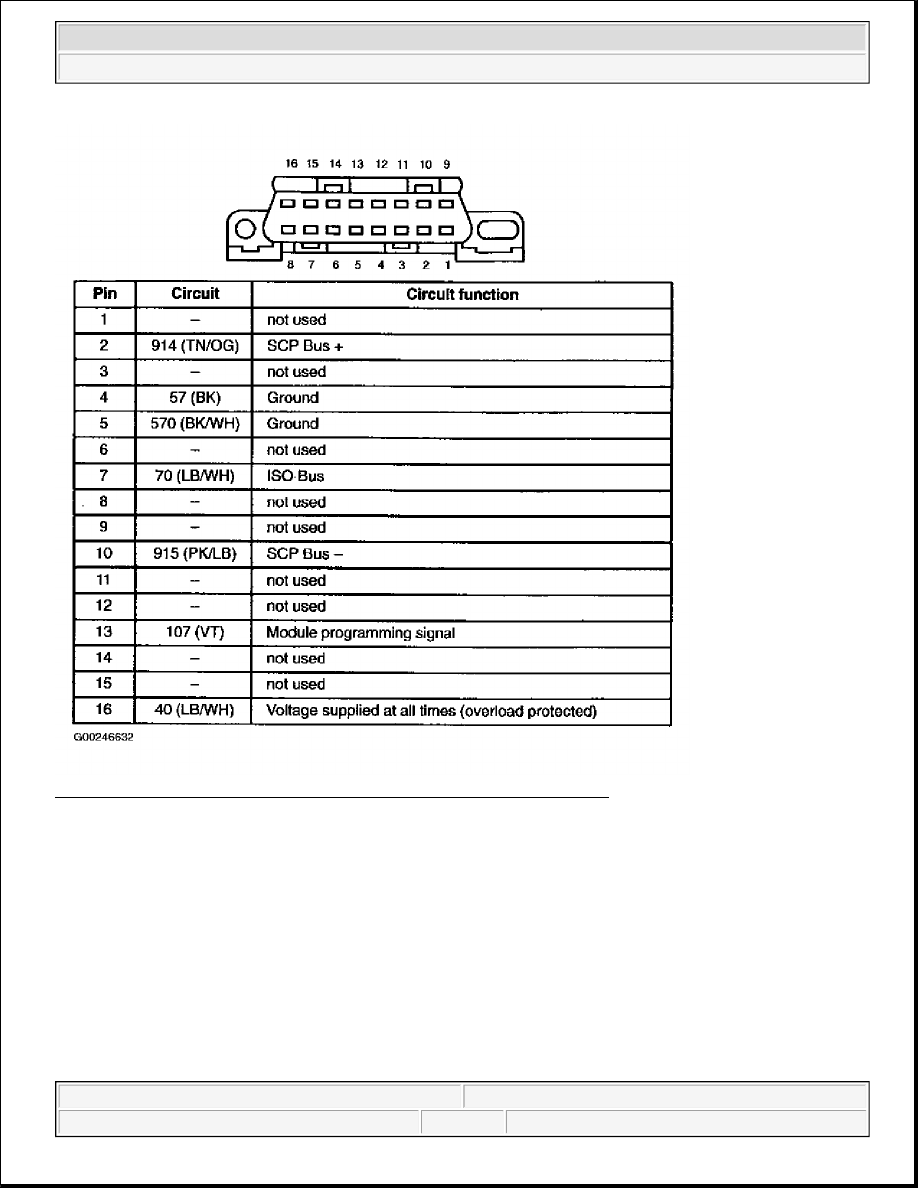

Fig. 6: Identifying DLC Connector C251 Terminals & Circuit Functions
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - Bi-Fuel - Gasoline/CNG
