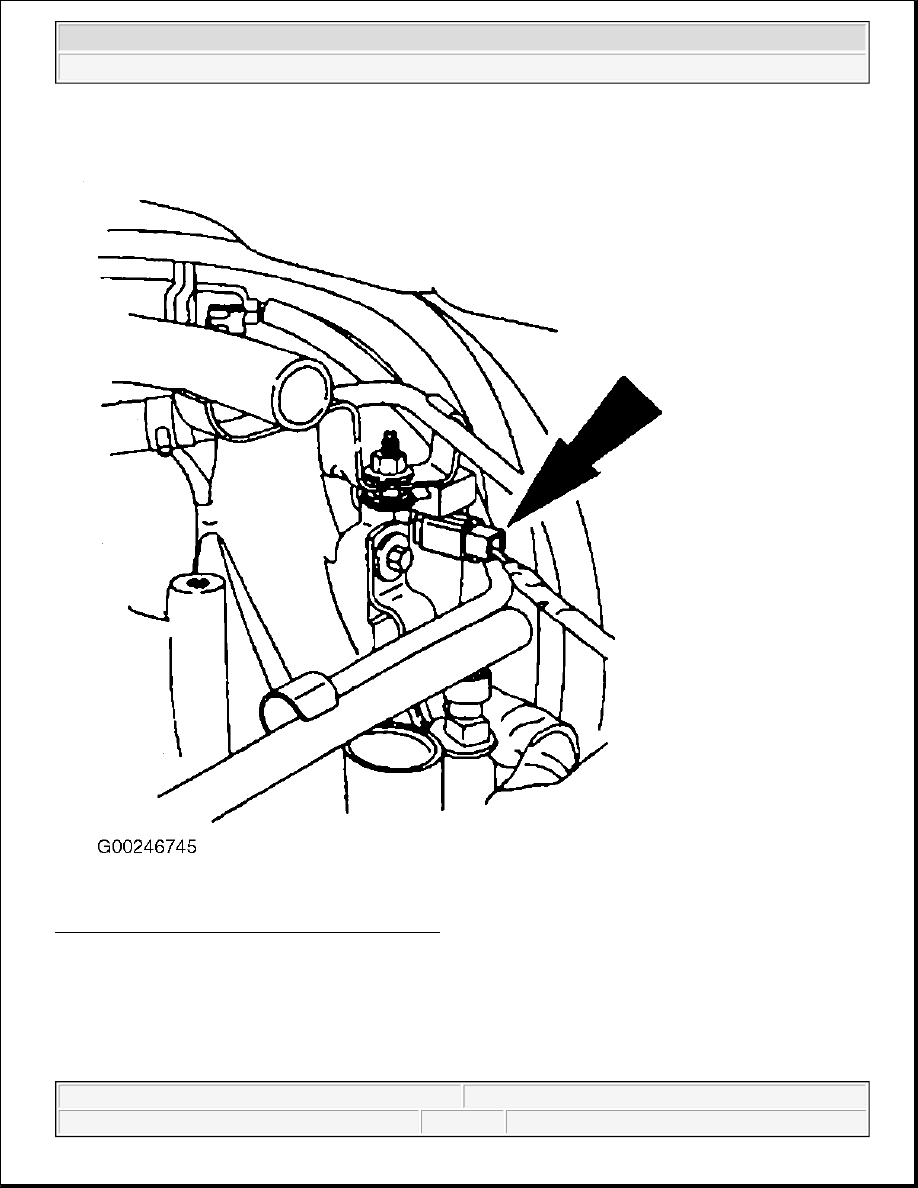

Fig. 32: Locating Left Radio Capacitor Connector
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - CNG



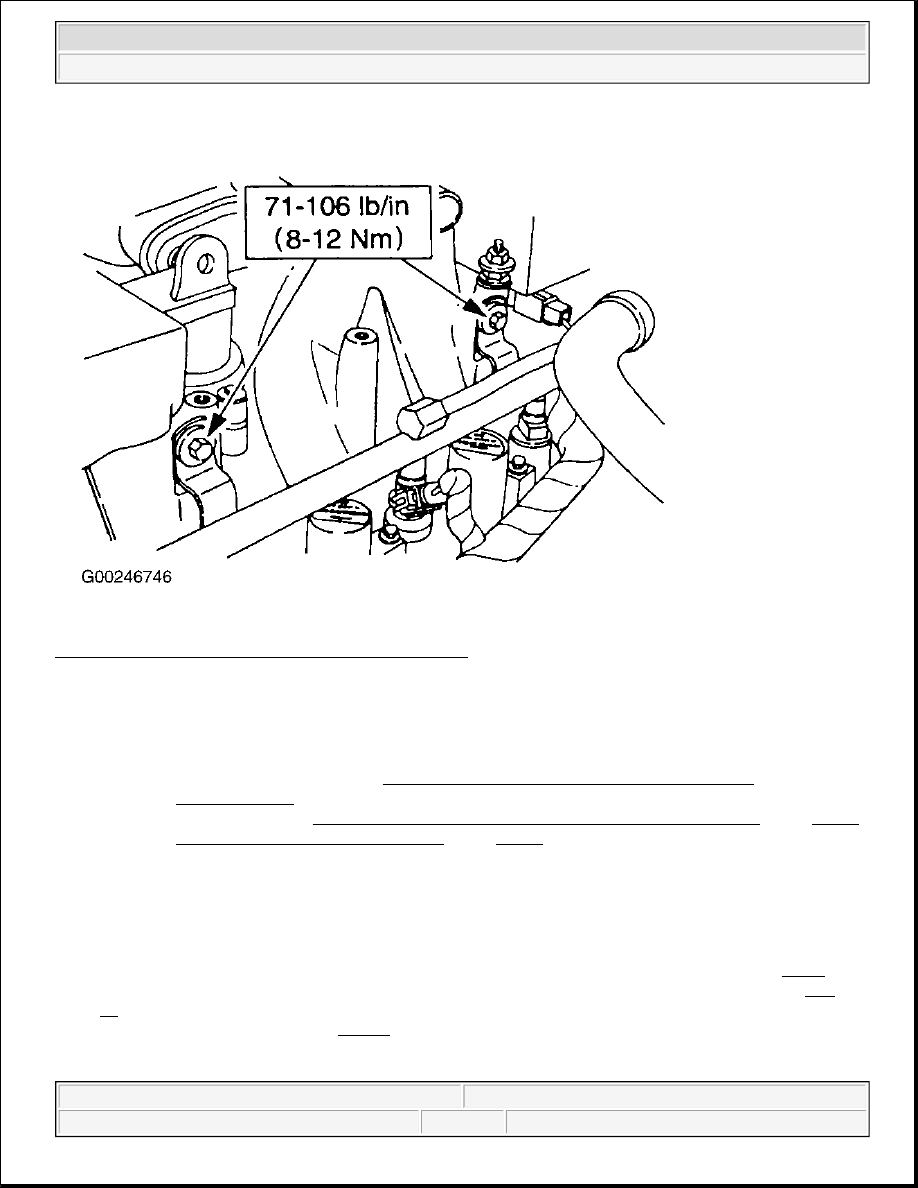

Fig. 33: Locating Left Fuel Injection Supply Manifold
Courtesy of FORD MOTOR CO.

FUEL TANKS

Removal & Installation (Front In-Bed Tank)

1. Turn in the manual lockdown valve jackscrew on the rear in-bed fuel tank solenoid valve. See Fig. 7 .

Disconnect the battery ground cable. Remove the in-bed tank assembly cover retaining bolts. See Fig.
34 . Remove the in-bed tank assembly cover. Disconnect the electrical connector from the forward in-bed
fuel tank solenoid valve (1). See Fig. 35 .

2. Disconnect the high-pressure fuel line from the forward in-bed fuel tank solenoid valve (2). Disconnect

the jumper fuel line from the forward in-bed fuel tank solenoid valve (3). Place identification marks on

NOTE:

If removing the fuel tank for replacement of the fuel tank or the fuel tank
solenoid valve, perform COMPRESSED NATURAL GAS FUEL TANK
EVACUATING . If removing the fuel tank for replacement of lines or support
straps, perform COMPRESSED NATURAL GAS FUEL LINE VENTING . See FUEL
SYSTEM PRESSURE RELEASE . See Fig. 7 .

NOTE:

Numbers in parenthesis refer to numbers in illustration.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - CNG



the upper in-bed fuel tank straps and tank. Remove the upper in-bed fuel tank strap retaining bolts. See
Fig. 36 . Remove the upper in-bed fuel tank straps. Position the heavy duty Floor Crane (014-00072),
Separator Lift Bar (303-F054) and endless Lifting Sling (100-D008). Carefully raise and remove the
forward in-bed fuel tank.

3. To install, reverse removal procedure. Lubricate NEW "O" rings with 5W-30 engine oil. Align the

identification marks on the upper in-bed fuel tank straps and tank. After installation is complete, natural
gas fuel lines must be leak tested. Perform COMPRESSED NATURAL GAS LEAK TEST under
FUEL SYSTEMS in SYSTEM & COMPONENT TESTING - CNG article.

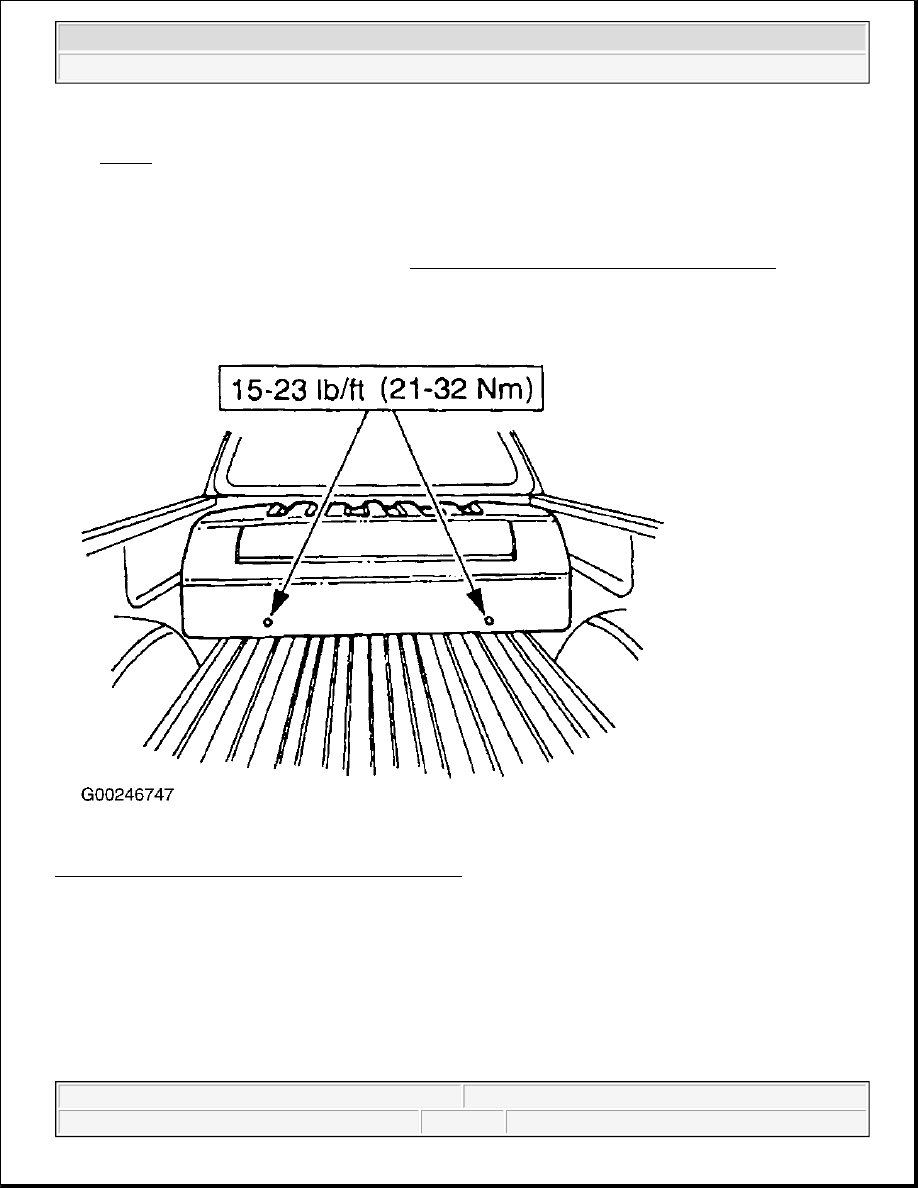

Fig. 34: Locating In-Bed Tank Assembly Cover Bolts
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - CNG



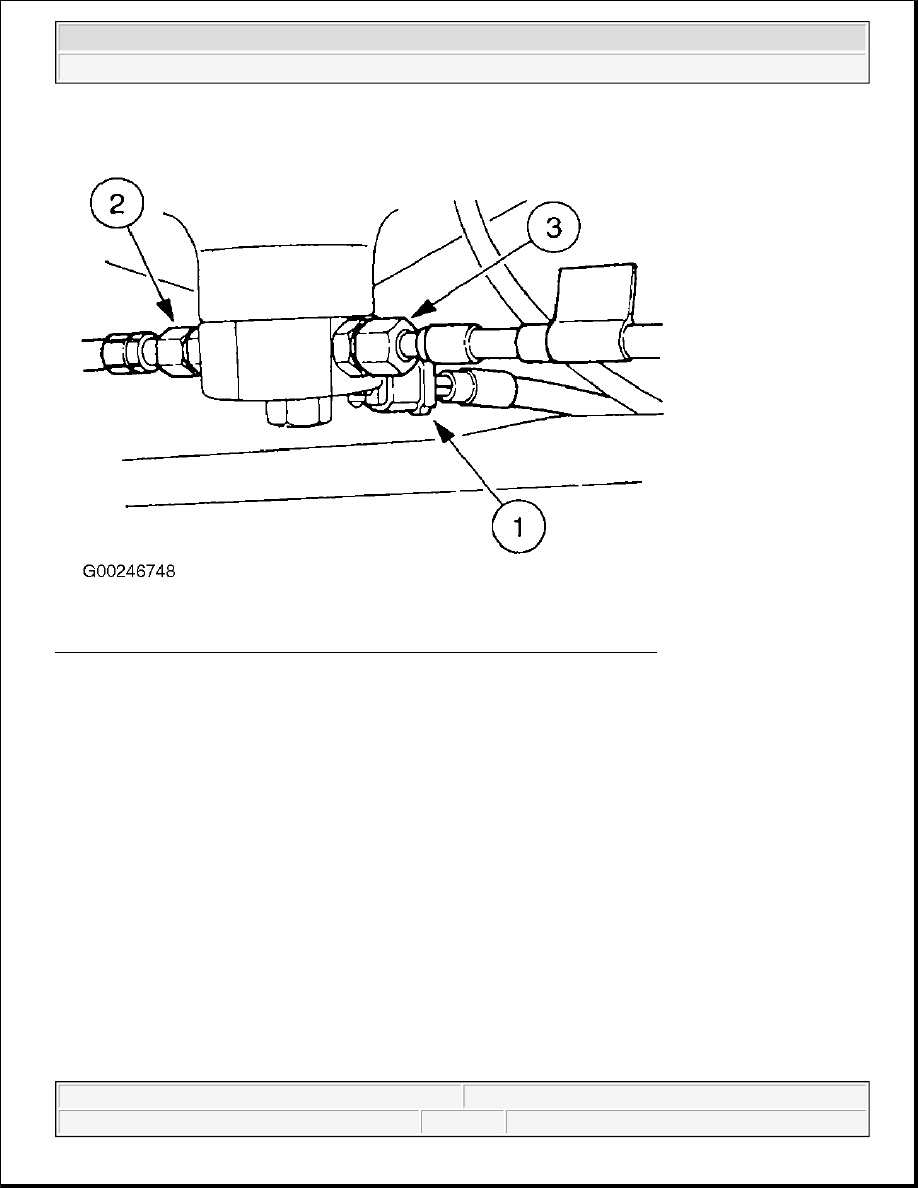

Fig. 35: Locating Fuel Tank Solenoid Valve Electrical Connector & Fuel Lines
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - CNG
