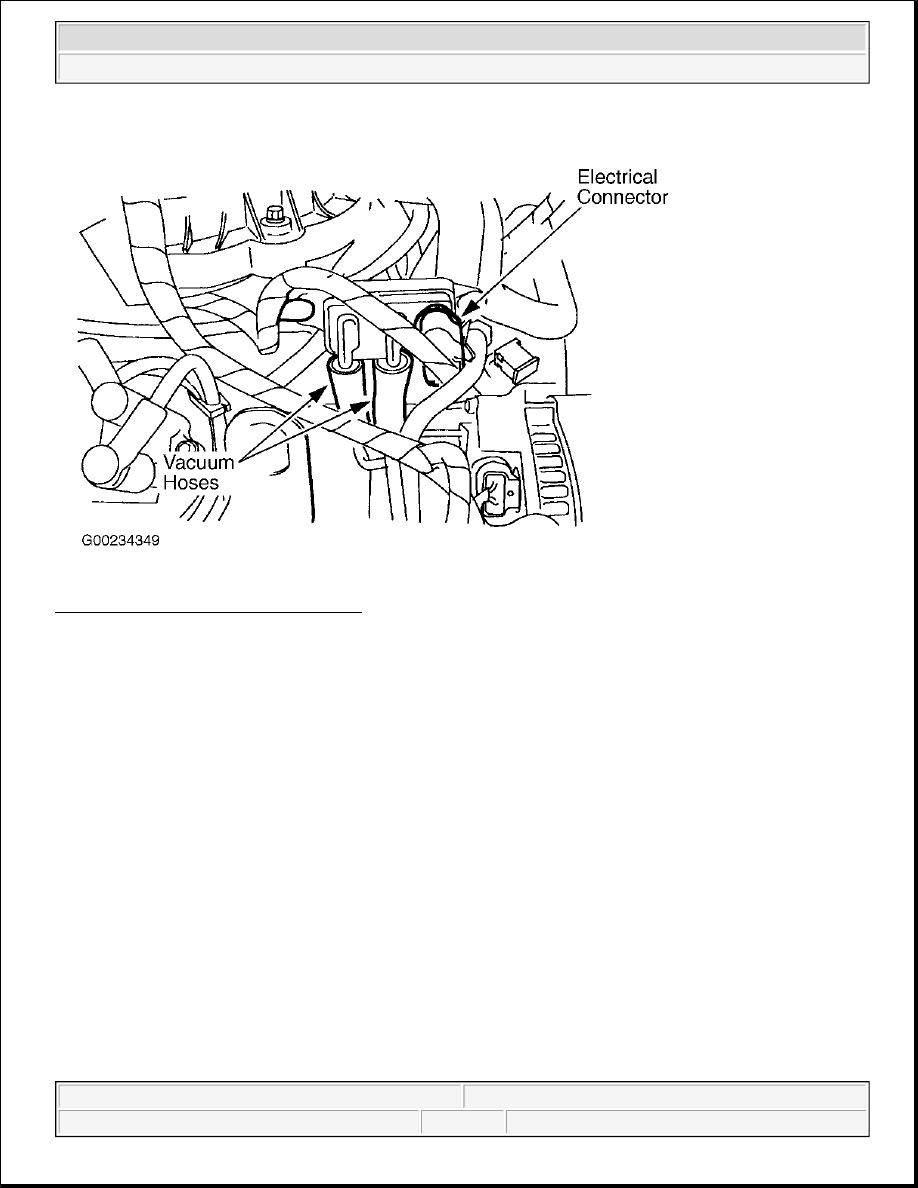

Fig. 69: Identifying DPFE Sensor (4.2L)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline

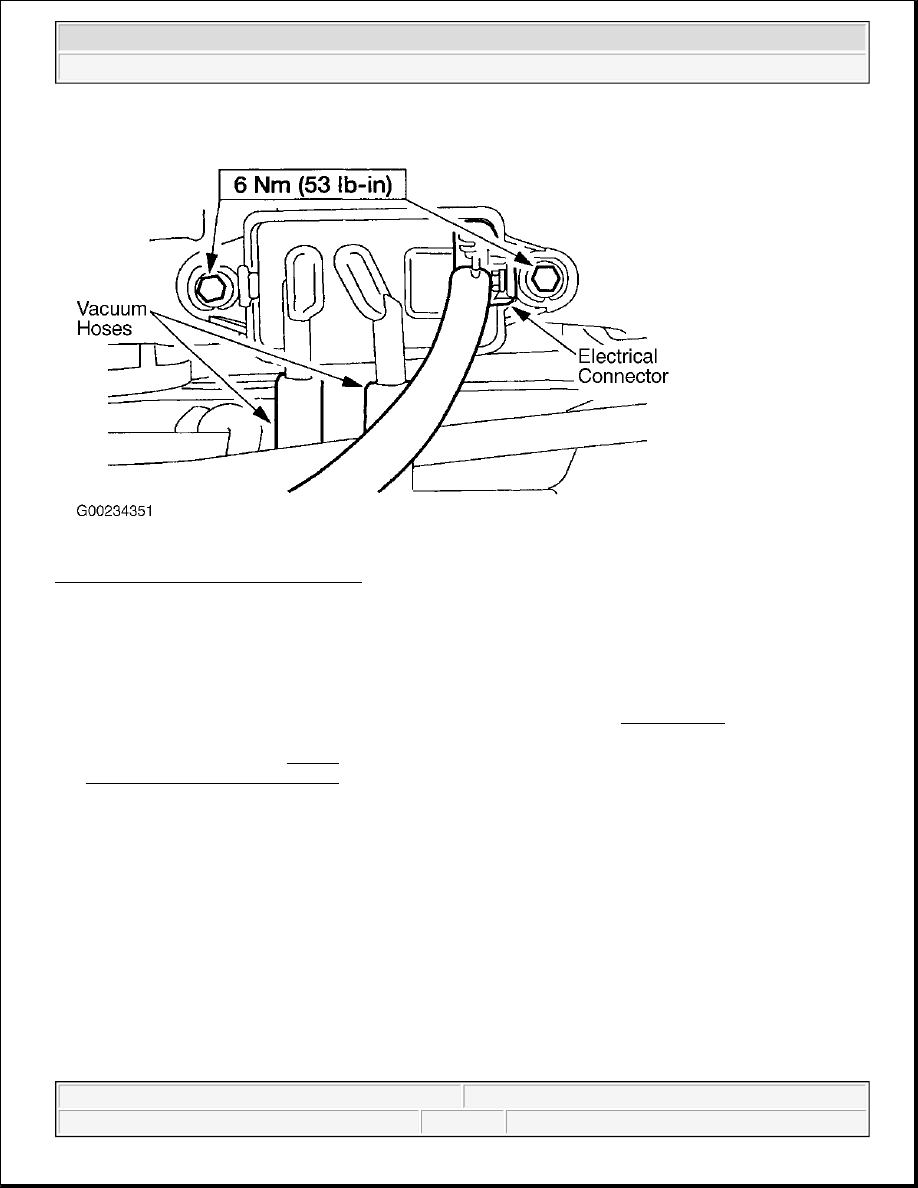

Fig. 70: Identifying DPFE Sensor (4.6L)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline

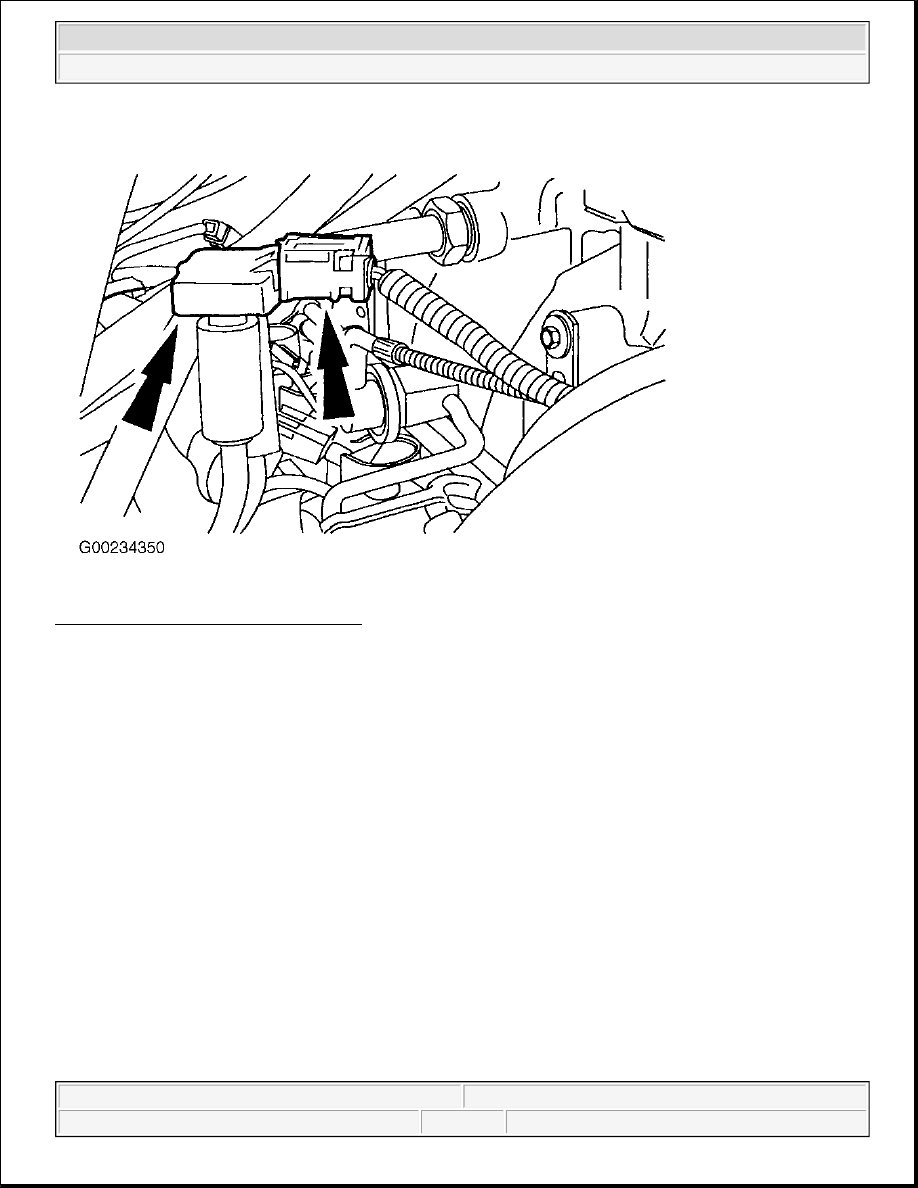

Fig. 71: Identifying DPFE Sensor (5.4L)
Courtesy of FORD MOTOR CO.

FUEL TANK PRESSURE SENSOR

Removal & Installation

Fuel tank pressure sensor is located in top of fuel tank. Remove fuel tank. See FUEL TANK under FUEL
SYSTEMS. Disconnect electrical connector. Press down and rotate fuel tank pressure sensor counterclockwise
and remove from fuel tank. See Fig. 72 . To install, reverse removal procedure. Perform after repair procedure.
See AFTER REPAIR PROCEDURE .



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline

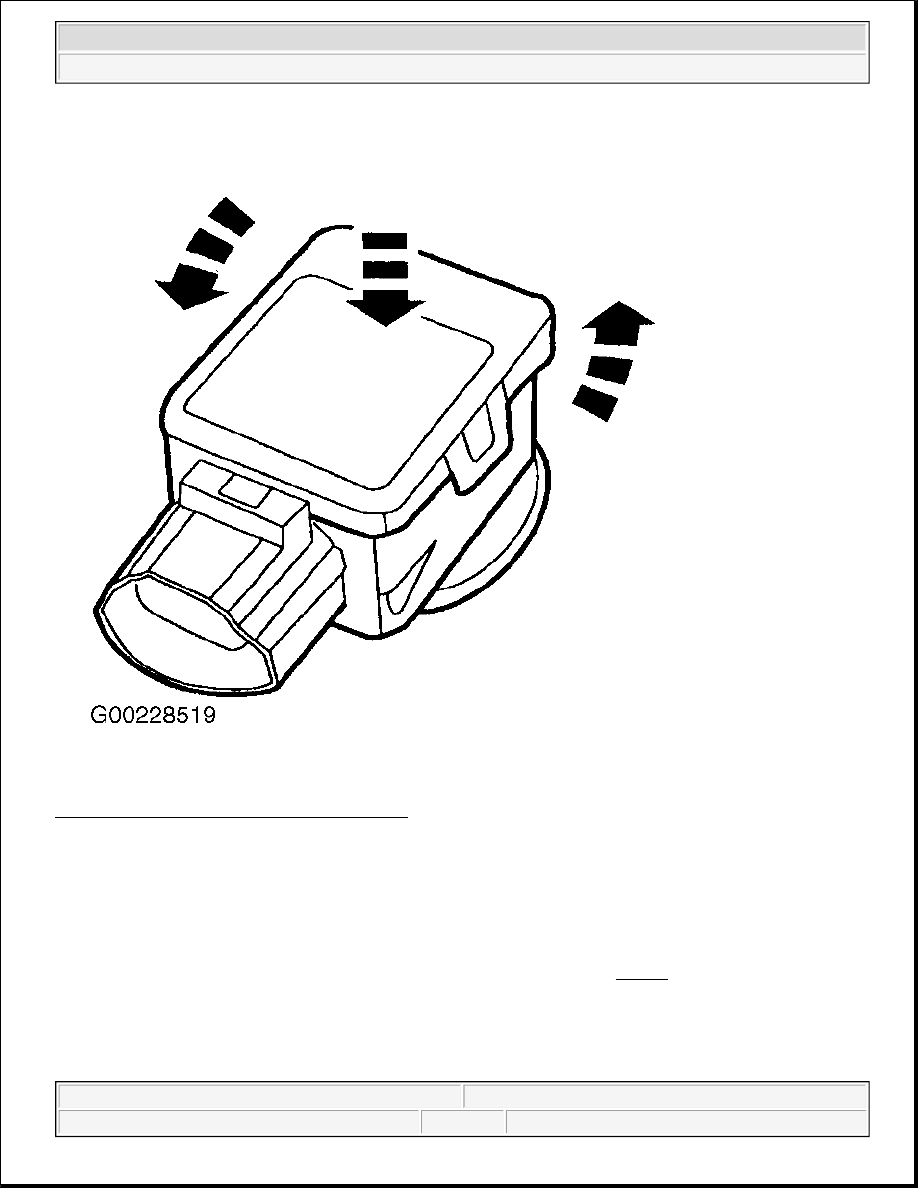

Fig. 72: Removing Fuel Tank Pressure Sensor
Courtesy of FORD MOTOR CO.

INERTIA FUEL SHUTOFF SWITCH

Blackwood

Disconnect the battery. Remove the right front door scuff plate and kick panel. Remove Inertia Fuel Shutoff
(IFS) switch connector and the 2 retaining bolts. Remove the IFS switch. See Fig. 73 . To install, reverse
removal procedure.
