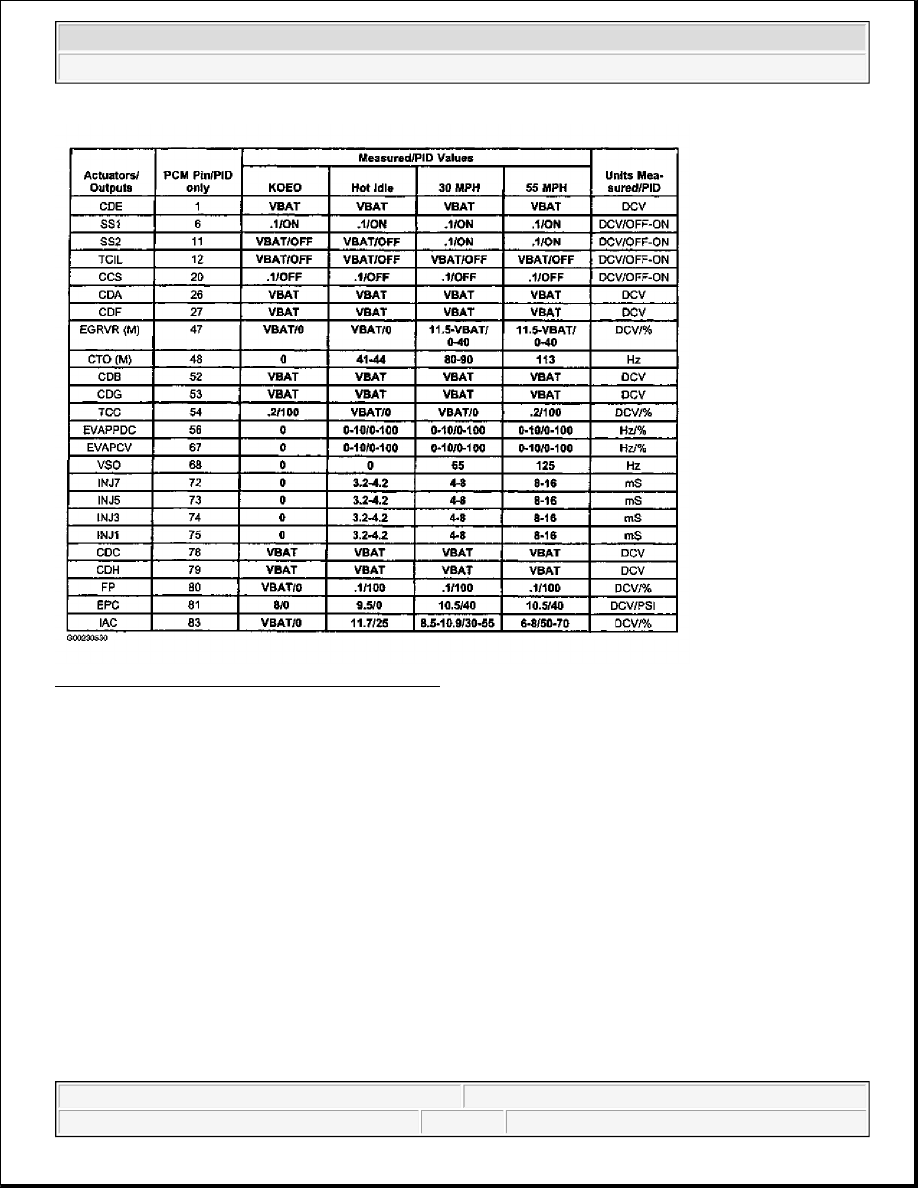

Fig. 48: 5.4L Econoline (4R100) - Outputs (1 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

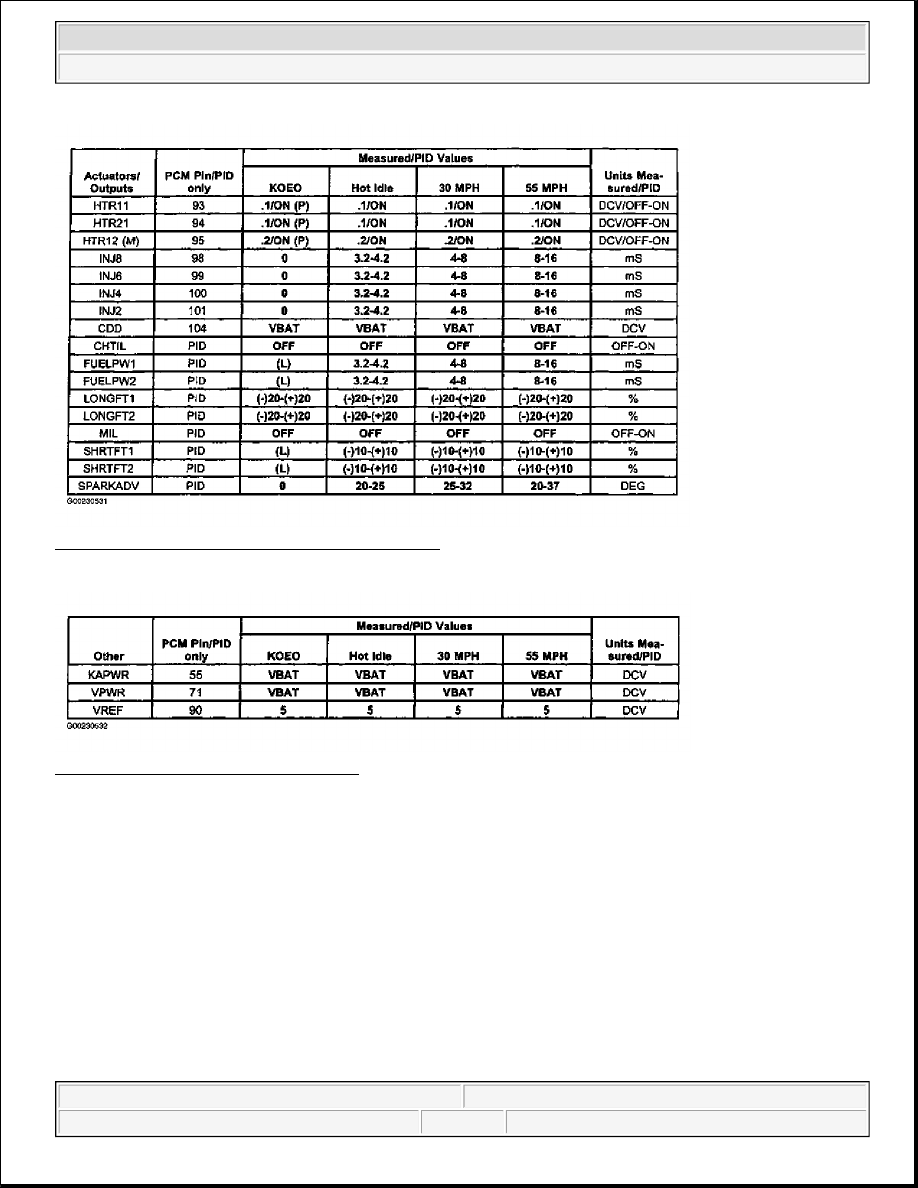

Fig. 49: 5.4L Econoline (4R100) - Outputs (2 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 50: 5.4L Econoline (4R100) - Other
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

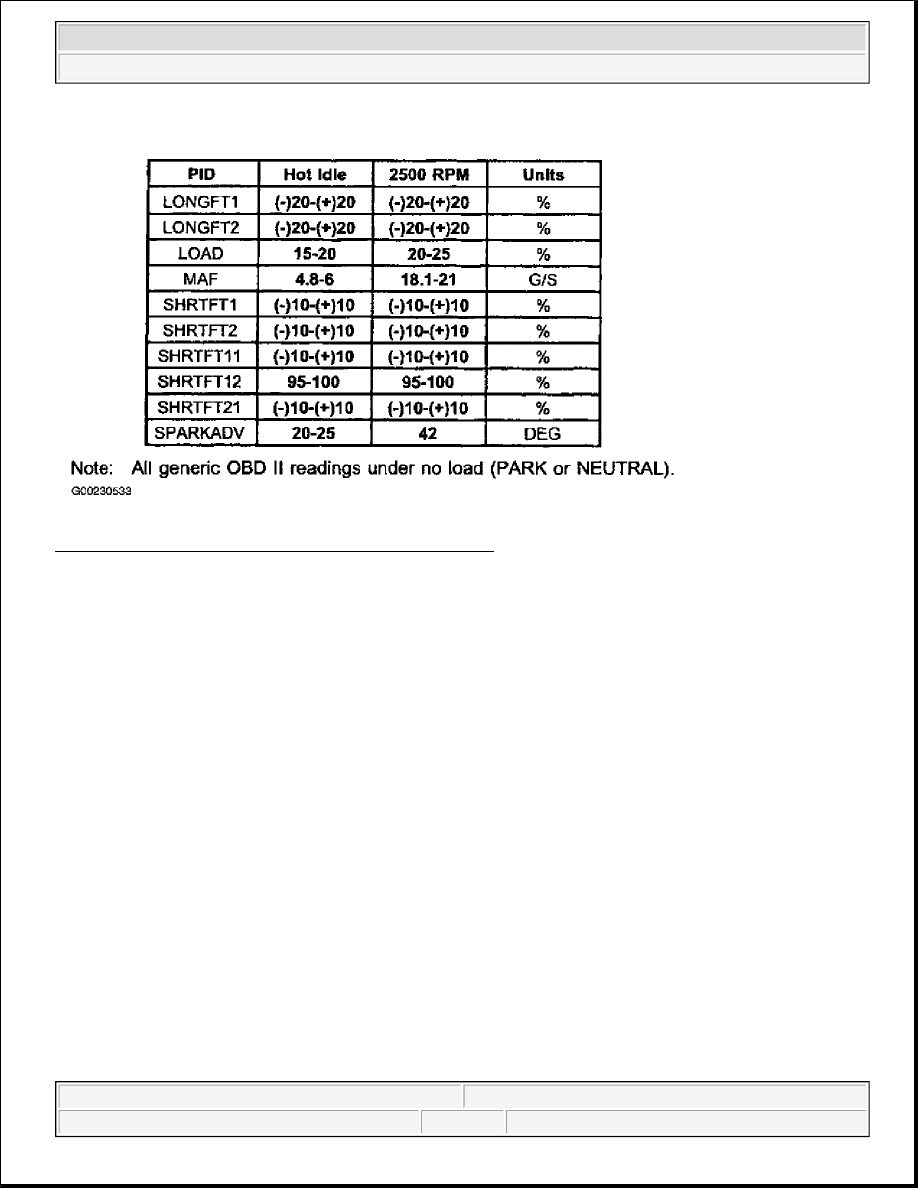

Fig. 51: 5.4L Econoline (4R100) - Generic OBD-II Values
Courtesy of FORD MOTOR CO.

Typical Diagnostic Reference Value Charts - 5.4L Pickup (With 4R100 Transmission)

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

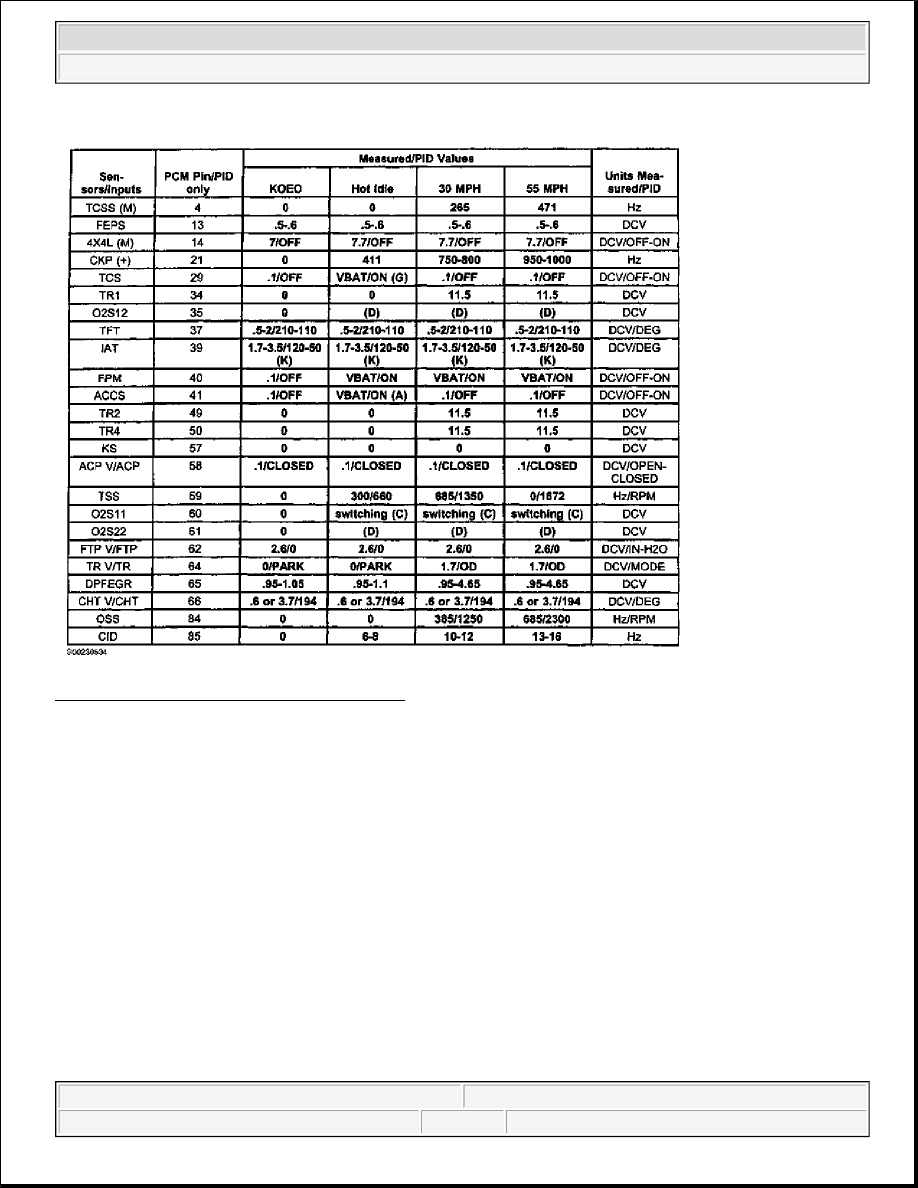

Fig. 52: 5.4L Pickup (4R100) - Inputs (1 Of 2)
Courtesy of FORD MOTOR CO.
