2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

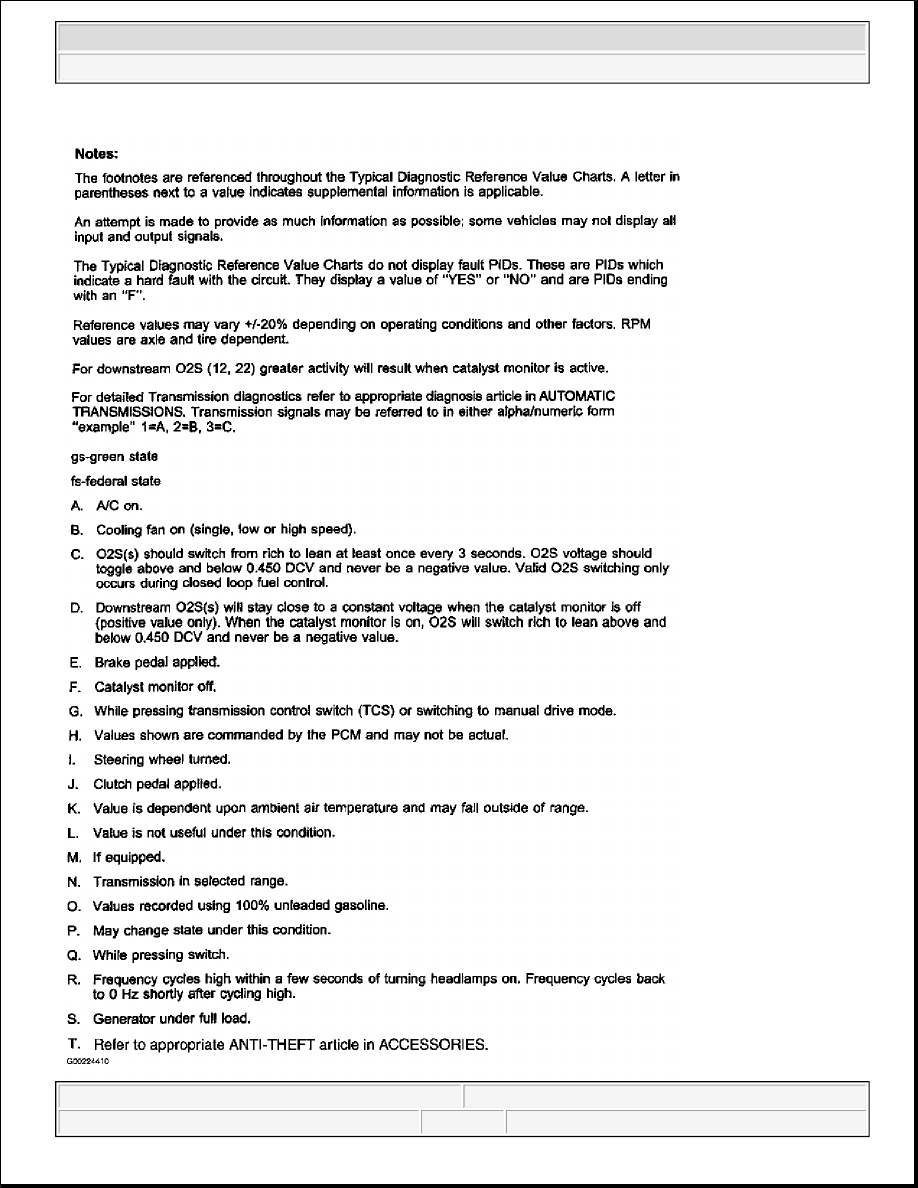

Fig. 12: Notes To Typical Reference Value Charts
Courtesy of FORD MOTOR CO.

Typical Diagnostic Reference Value Charts - 4.2L Econoline & Pickup (A/T)

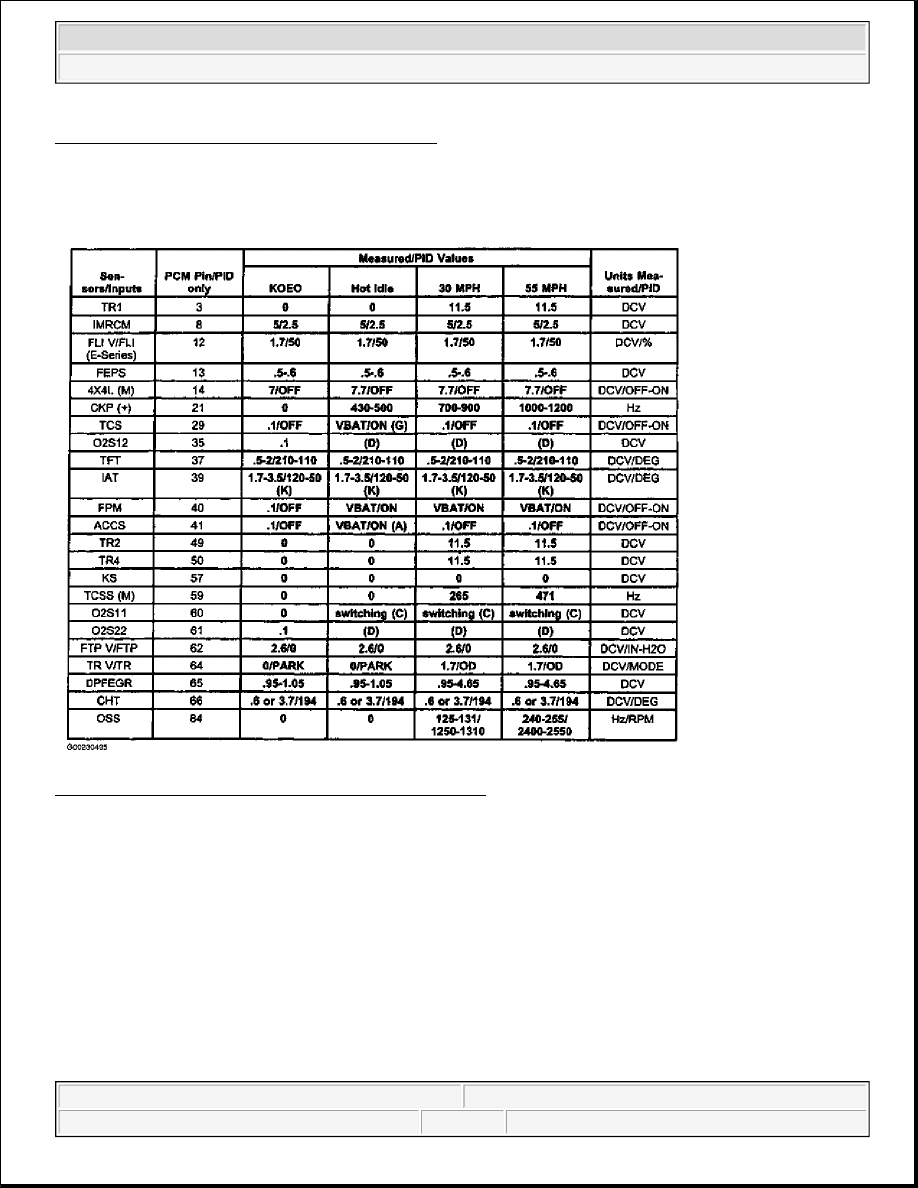

Fig. 13: 4.2L Econoline & Pickup (A/T) - Inputs (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

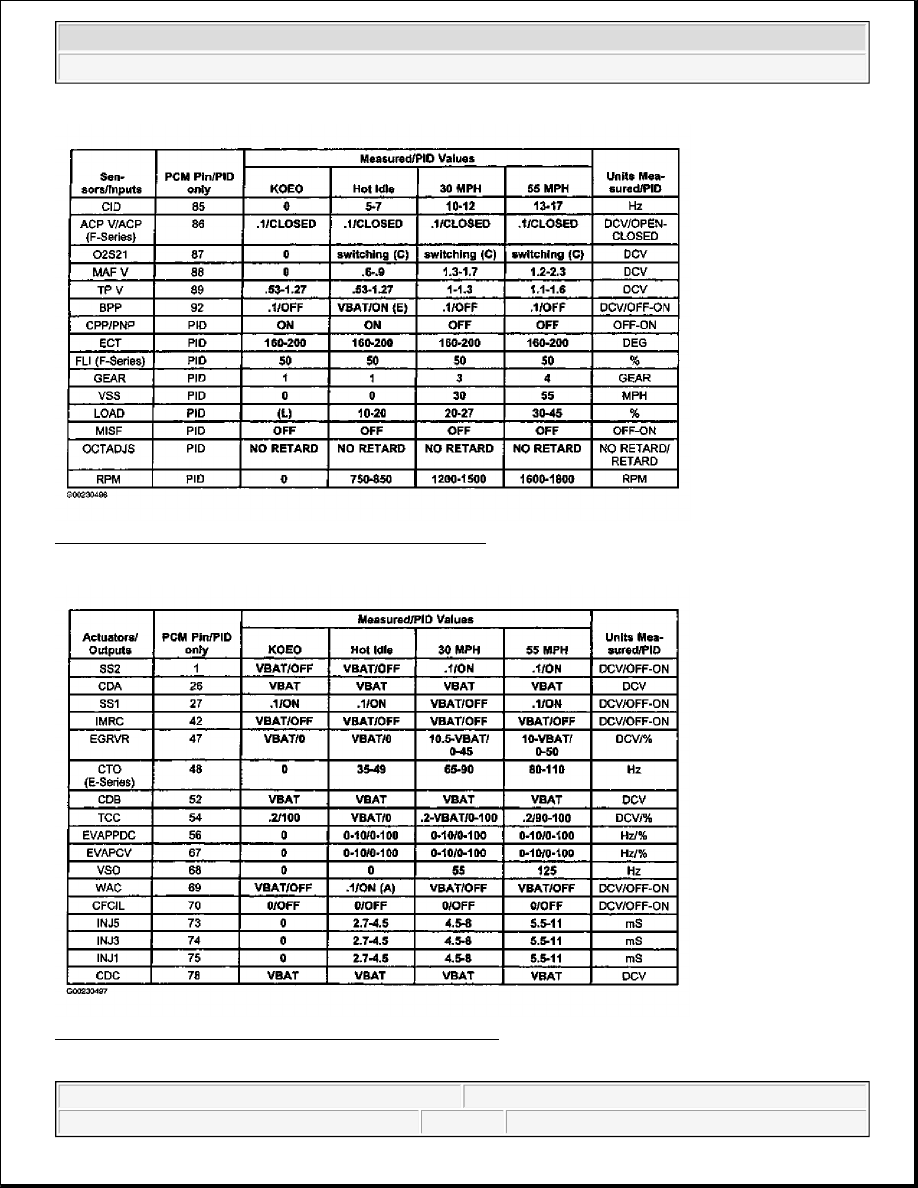

Fig. 14: 4.2L Econoline & Pickup (A/T) - Inputs (2 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 15: 4.2L Econoline & Pickup (A/T) - Outputs (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

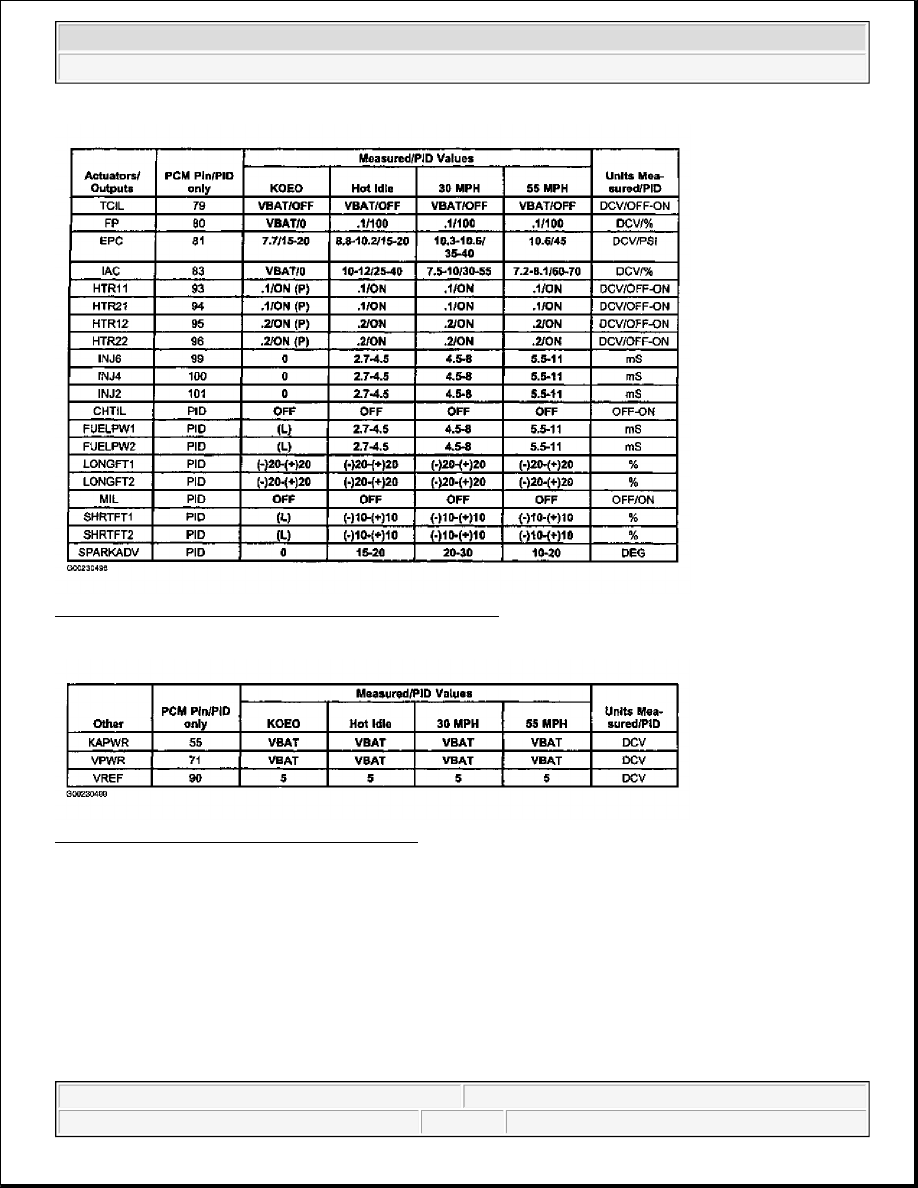

Fig. 16: 4.2L Econoline & Pickup (A/T) - Outputs (2 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 17: 4.2L Econoline & Pickup (A/T) - Other
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG
