Ford F150 Pickup. Manual - part 1165

Fig. 53: Tightening Override Tool Jackscrew
Courtesy of FORD MOTOR CO.

13. Slowly open the bleed valve on the venting kit and allow the contents of the fuel tank to vent to the

atmosphere. Venting can take in excess of one hour.

14. Vent the fuel tank until the fuel flow stops.

15. Remove the override tool from the fuel tank solenoid valve.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - Natural Gas - F150 Pickup

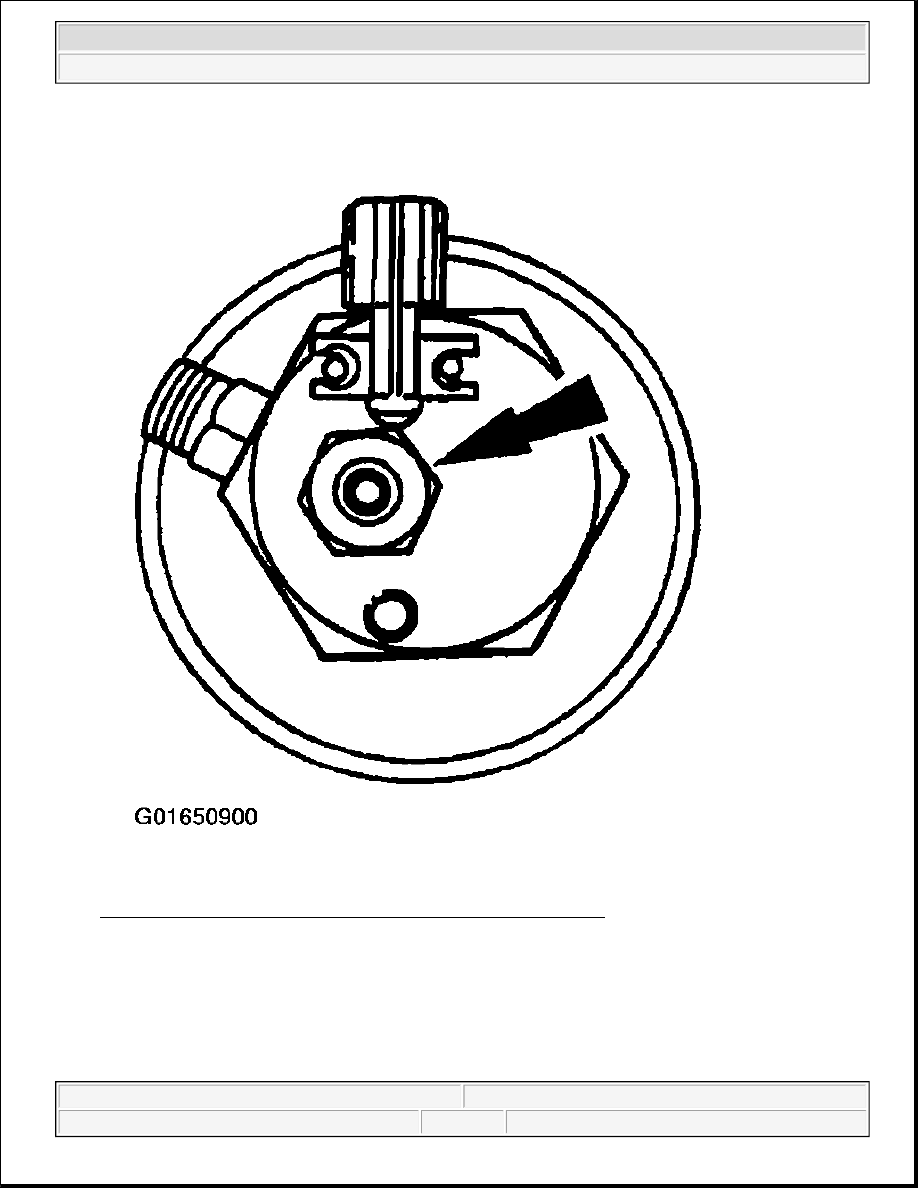

Fig. 54: Removing Override Tool From Fuel Tank Solenoid Valve
Courtesy of FORD MOTOR CO.

16. Install the fuel tank solenoid manual lockdown valve.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - Natural Gas - F150 Pickup

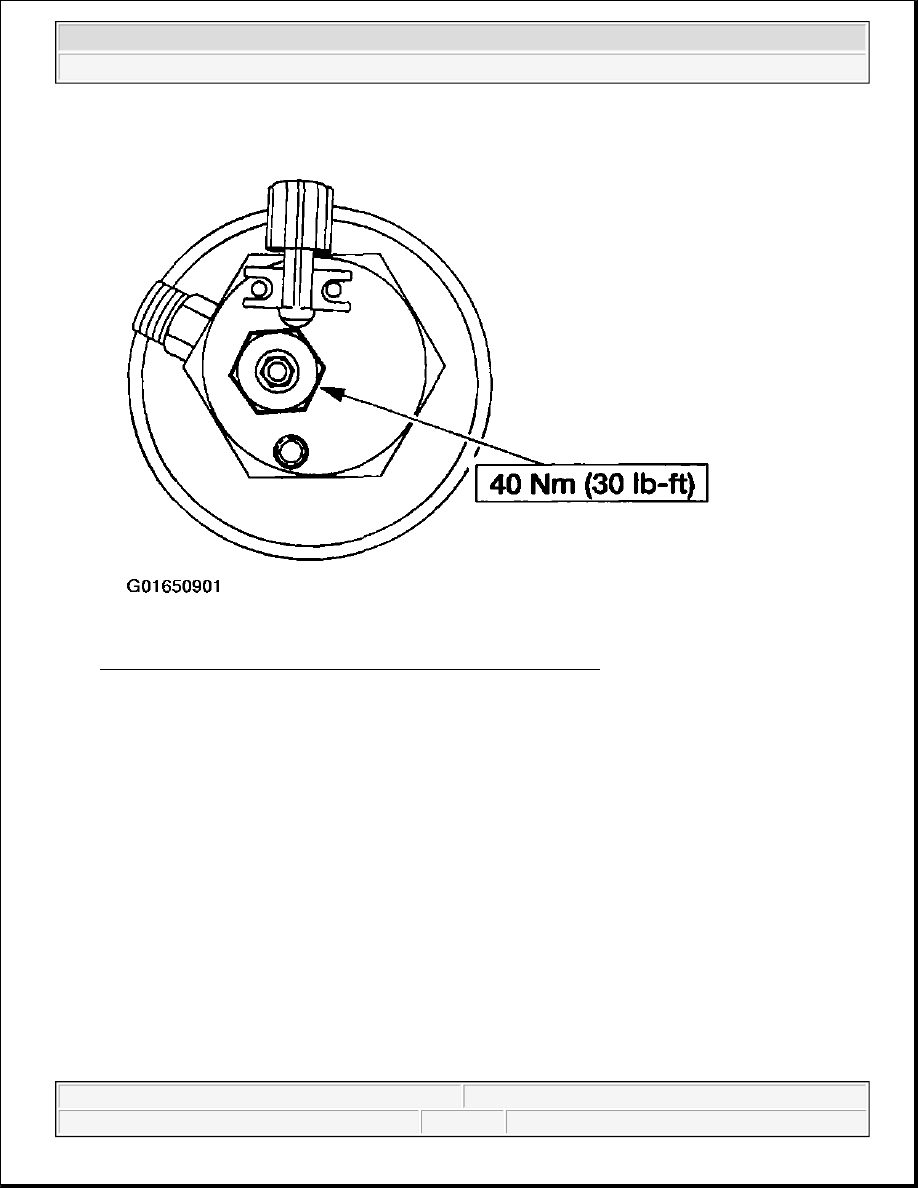

Fig. 55: Tightening Fuel Tank Solenoid Manual Lockdown Valve
Courtesy of FORD MOTOR CO.

17. Turn in the manual lockdown valve jackscrew on the fuel tank solenoid valve.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - Natural Gas - F150 Pickup



Fig. 56: Tightening Manual Lockdown Valve Jackscrew
Courtesy of FORD MOTOR CO.

18. Repeat the procedure until all affected tanks are vented.

19. Install the fuel fill line onto the fuel fill valve.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - Natural Gas - F150 Pickup
