Fig. 67: Connecting Adjustable Pedal Motor Electrical Connector
Courtesy of FORD MOTOR CO.

29. Connect the BPP switch electrical connector.

z

Insert the wiring harness locators.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

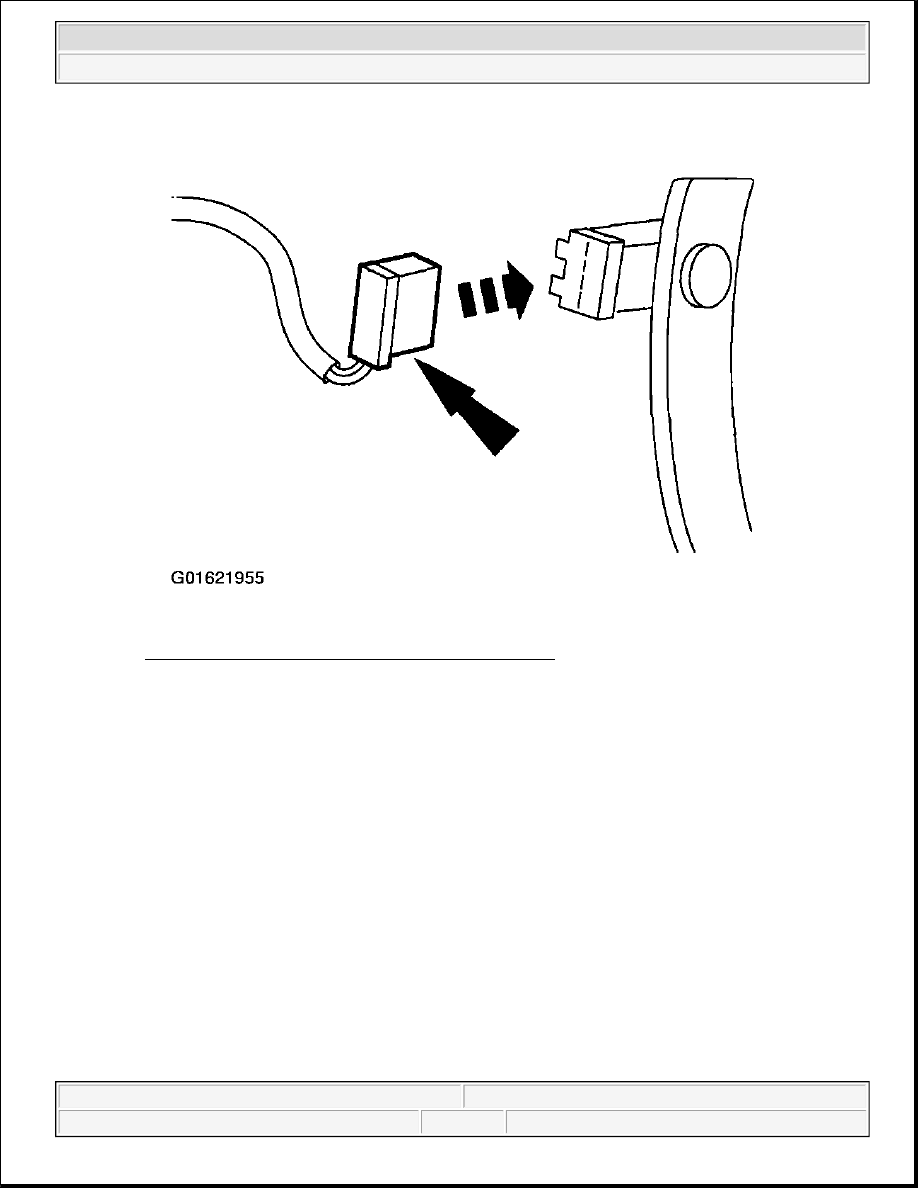

Fig. 68: Connecting BPP Switch Electrical Connector
Courtesy of FORD MOTOR CO.

CAUTION: Inspect the passenger assist handle brackets for damage. Replace

the brackets as required.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

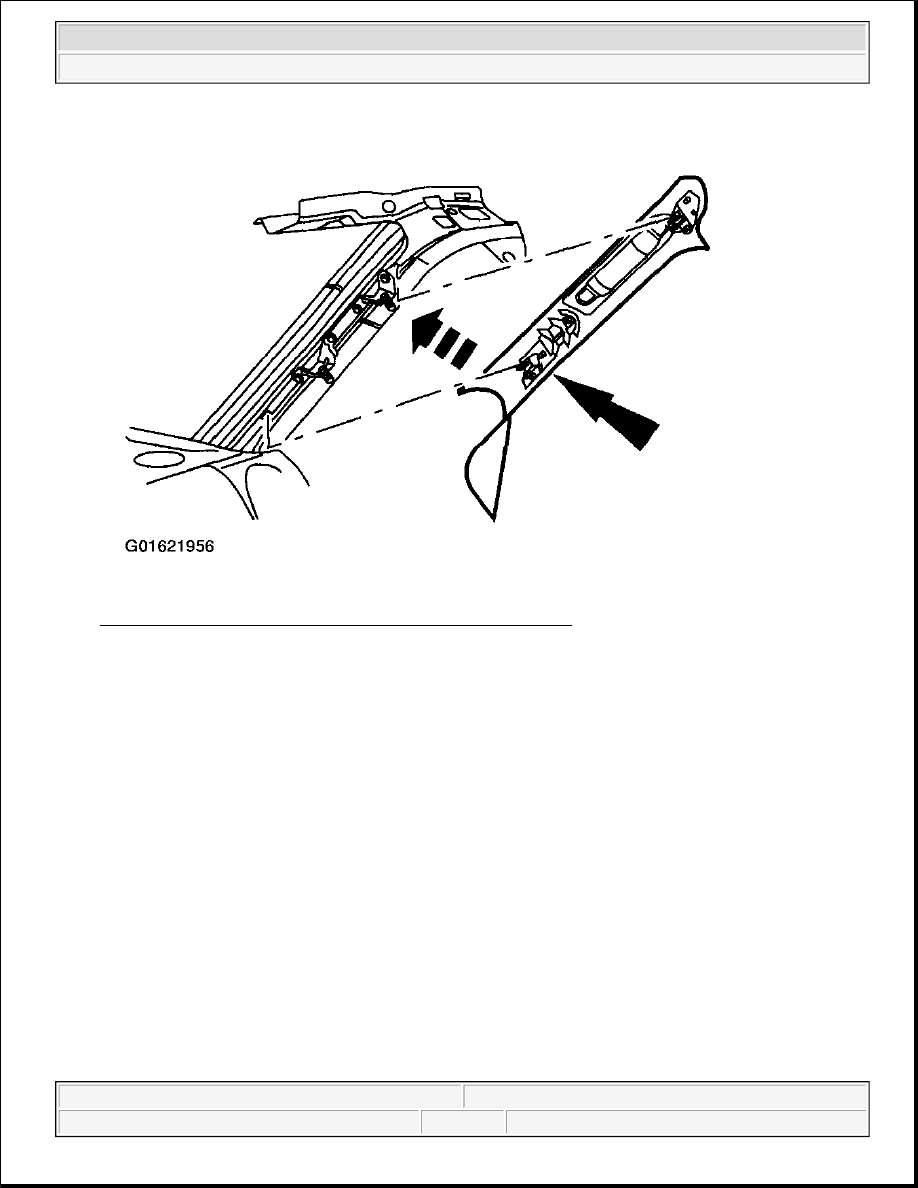

Fig. 69: Installing LH And RH Windshield Garnish Moldings
Courtesy of FORD MOTOR CO.

30. Install the LH and RH windshield garnish moldings.

31. Install the LH and RH A-pillar passenger assist handles.

1. Position the LH and RH A-pillar passenger assist handles.

2. Install the four nuts.

3. Install the four covers.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup

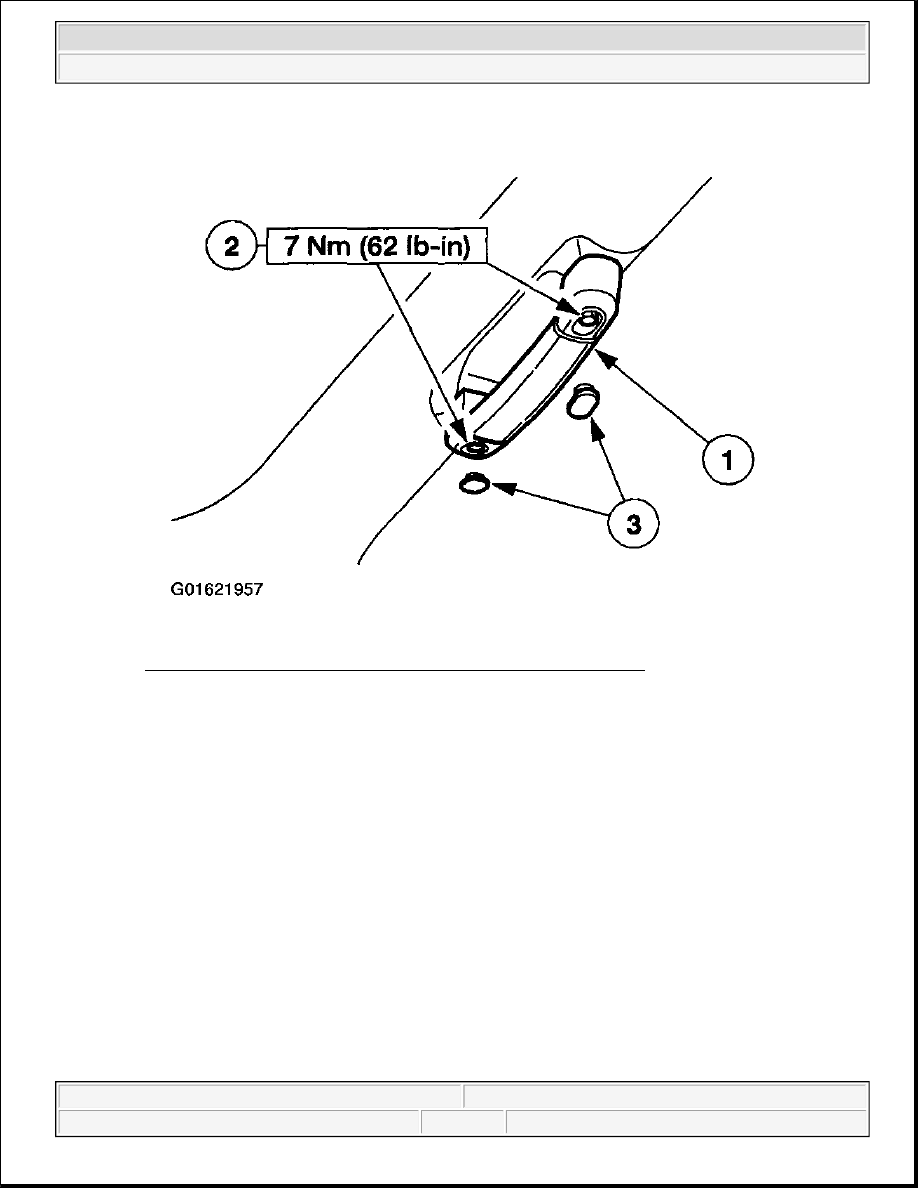

Fig. 70: Installing LH And RH A-Pillar Passenger Assist Handles
Courtesy of FORD MOTOR CO.

32. If equipped, install the alternative fuel control module (AFCM).

1. Attach the AFCM by pressing it into its original position.

2. Connect the electrical connector.

NOTE:

The AFCM is attached with Velcro(R).



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Instrument Panel and Console - F150 Pickup
