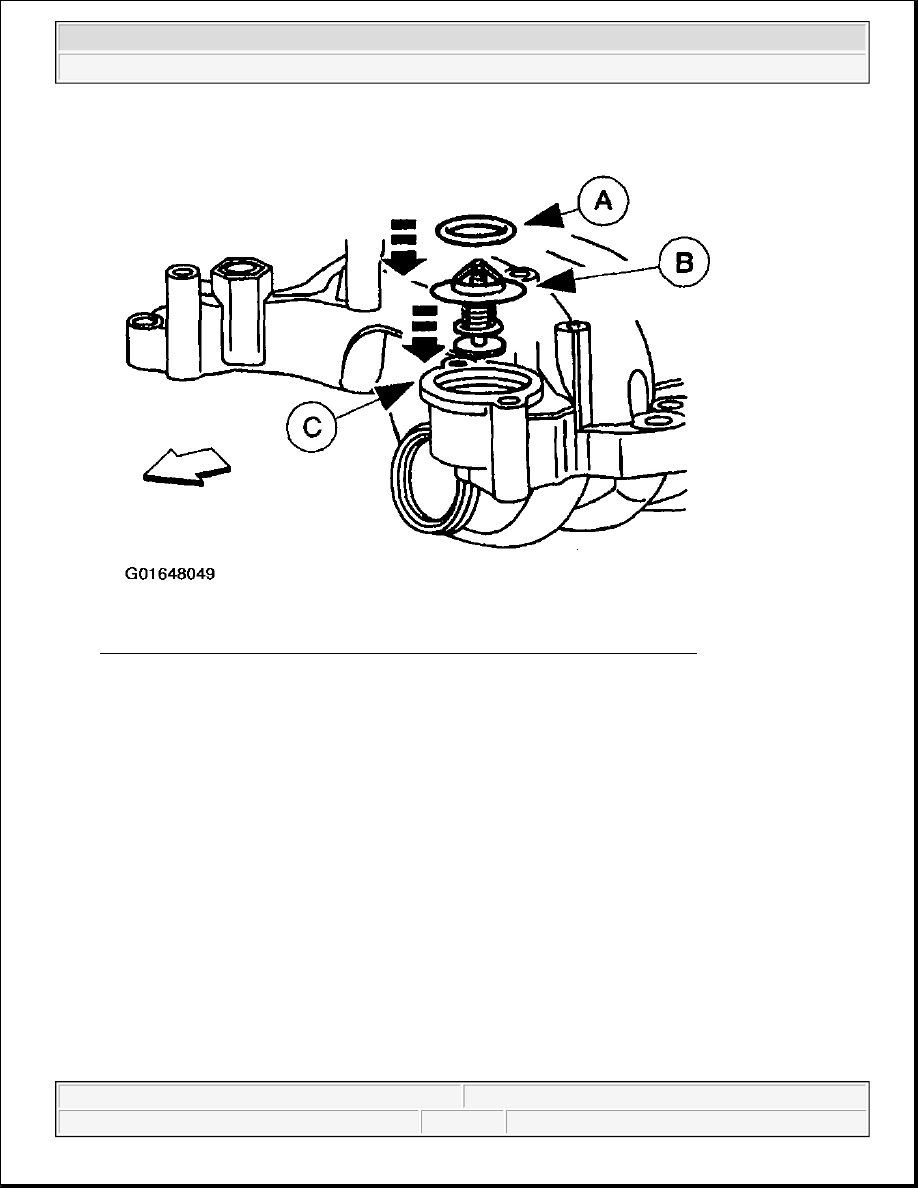

Fig. 27: Installing Water Thermostat In Upper Intake Manifold - 4.6L & 5.4L
Courtesy of FORD MOTOR CO.

2. Install the water outlet connection and the bolts.



2003 Ford Pickup F150

2003 ENGINE Engine Cooling - F150 Pickup

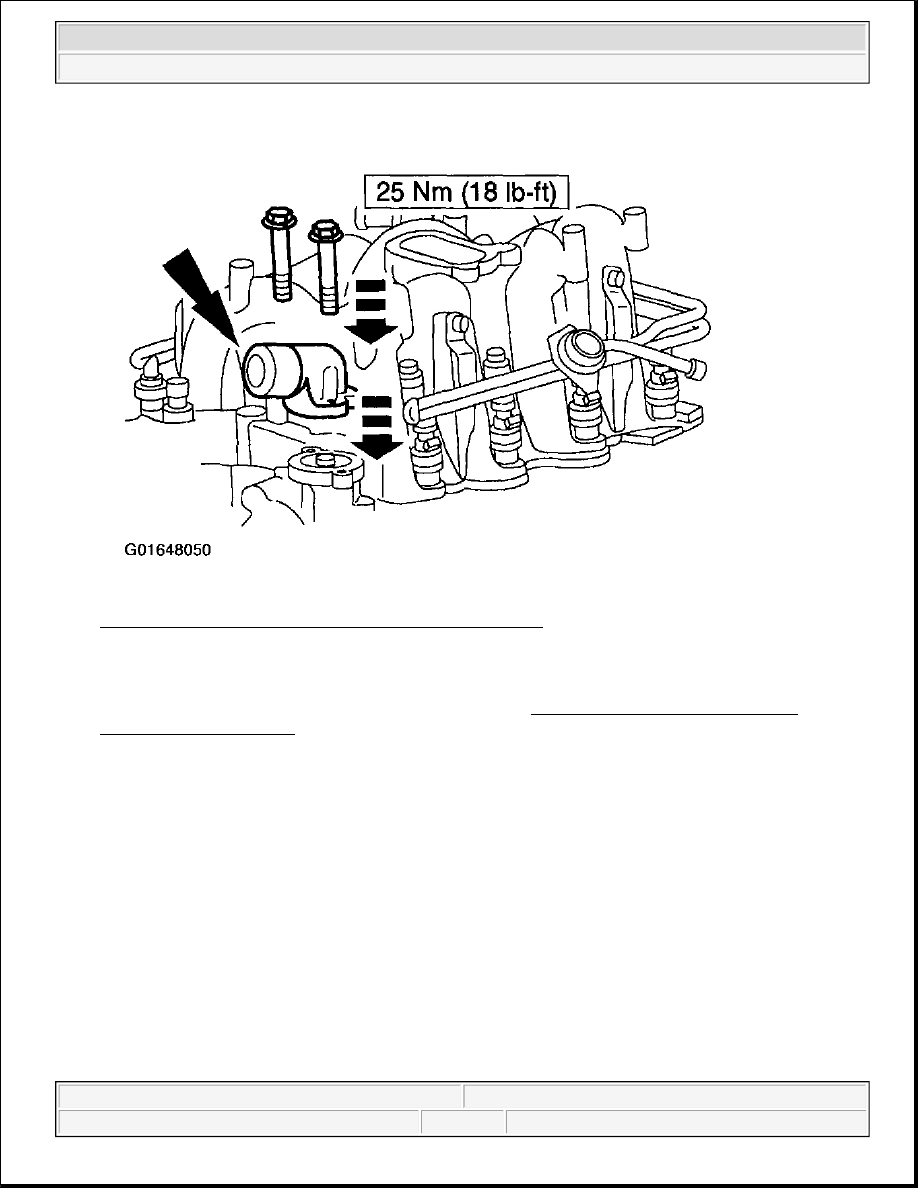

Fig. 28: Installing Water Outlet Connection - 4.6L & 5.4L
Courtesy of FORD MOTOR CO.

3. Connect the upper radiator hose.

4. Fill the cooling system. For additional information, refer to COOLING SYSTEM DRAINING,

FILLING & BLEEDING .

WATER PUMP

Material



2003 Ford Pickup F150

2003 ENGINE Engine Cooling - F150 Pickup

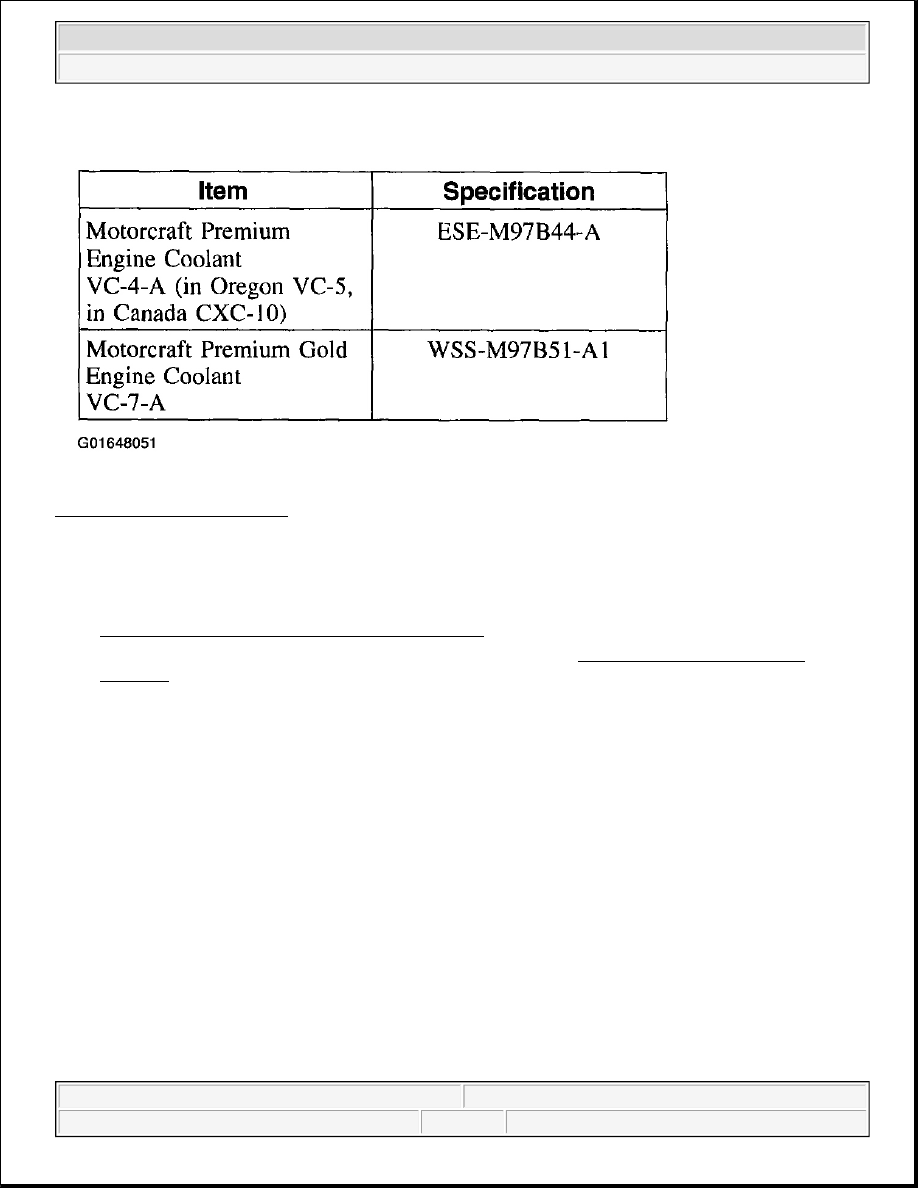

Fig. 29: Material Specification
Courtesy of FORD MOTOR CO.

Removal

1. Remove the engine cooling fan (8K620) and fan shroud (8146). For additional information, refer to

COOLING FAN-BLADE, CLUTCH & SHROUD .

2. Remove the drive belt (8620). For additional information, refer to ACCESSORY DRIVE - F150

PICKUP .

3. Remove the water pump pulley (8509).

1. Remove the bolts.

2. Remove the water pump pulley.



2003 Ford Pickup F150

2003 ENGINE Engine Cooling - F150 Pickup

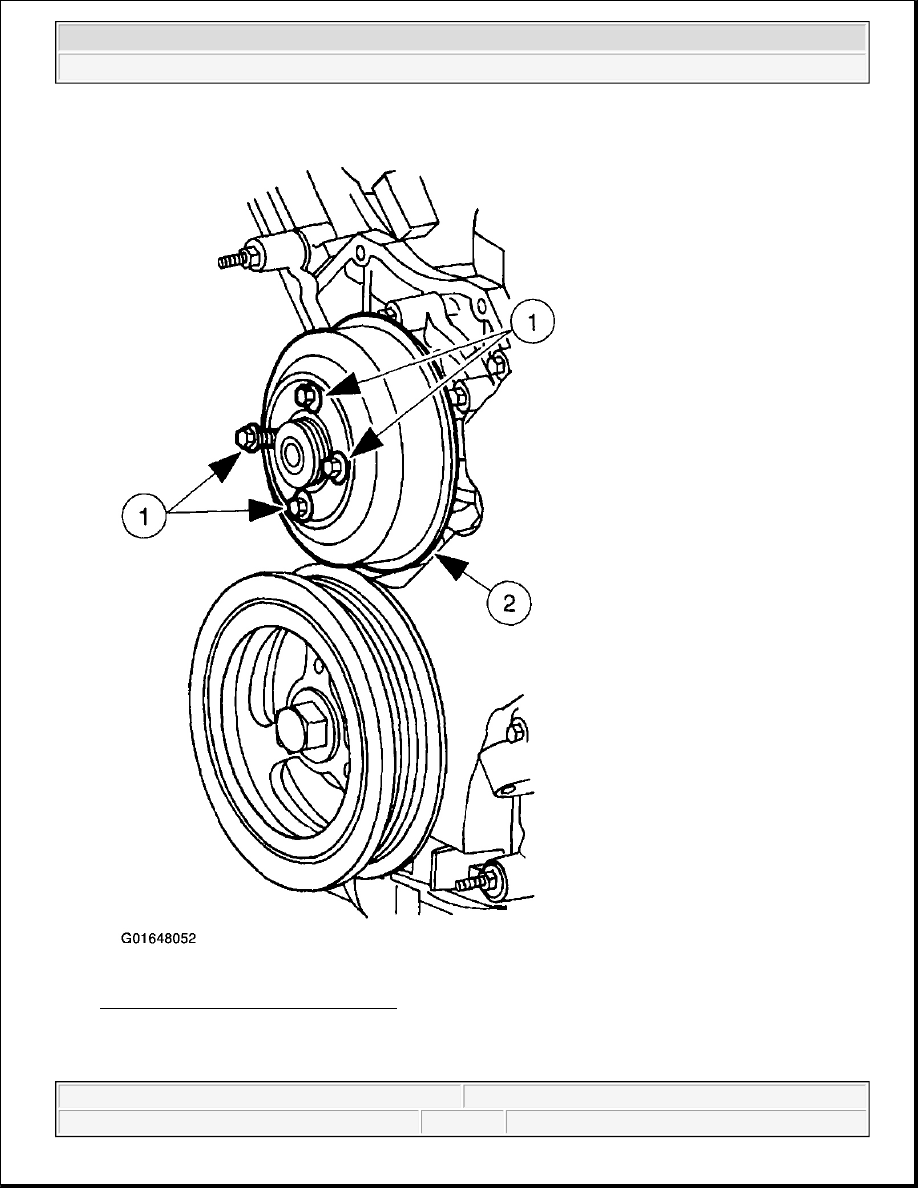

Fig. 30: Removing Water Pump Pulley
Courtesy of FORD MOTOR CO.

4. On the 4.2L engine only, remove the upper radiator hose (8260) from the water pump (8501).
