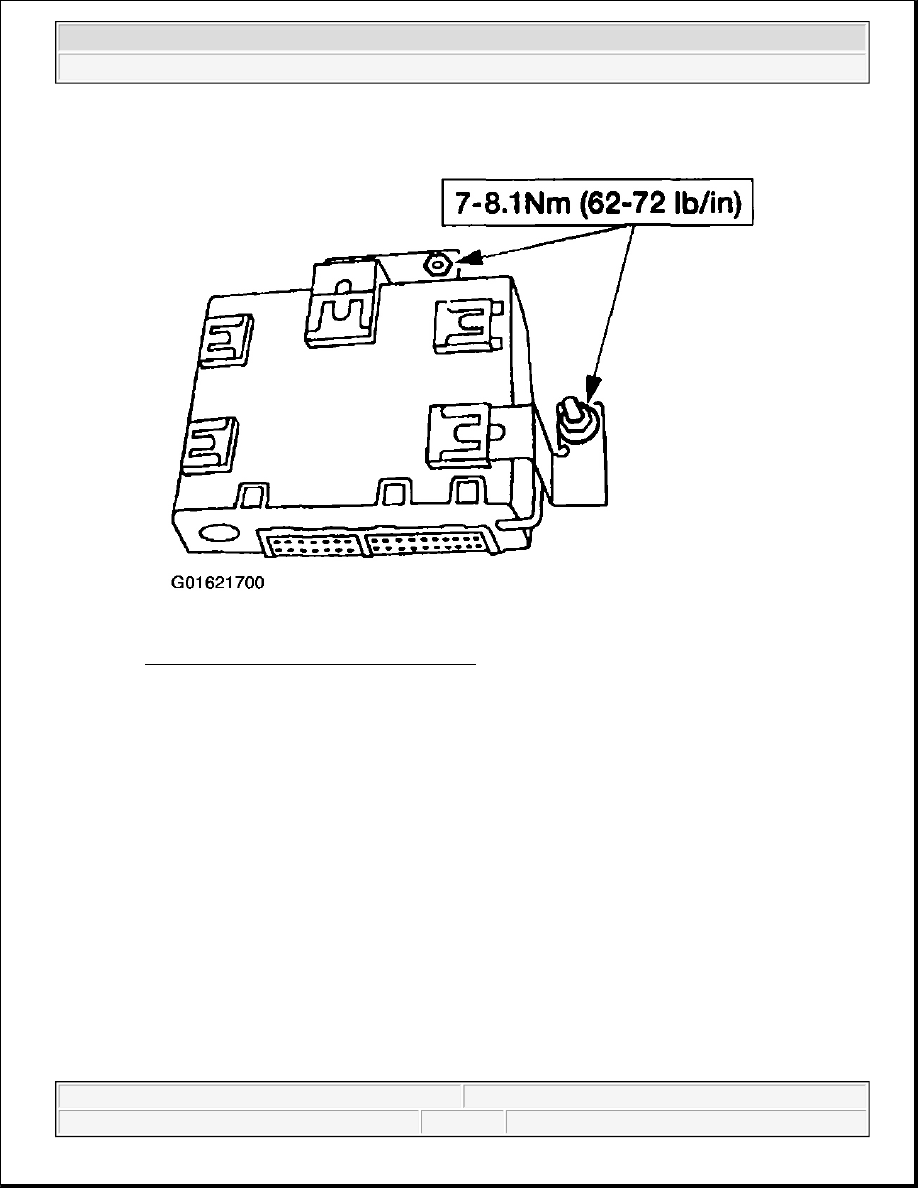

Fig. 18: Installing Central Security Module
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Multifunction Electronic Module - F150 Pickup



2003 ACCESSORIES AND BODY, CAB

Daytime Running Lamps - F150 Pickup

SPECIFICATIONS

TORQUE SPECIFICATIONS

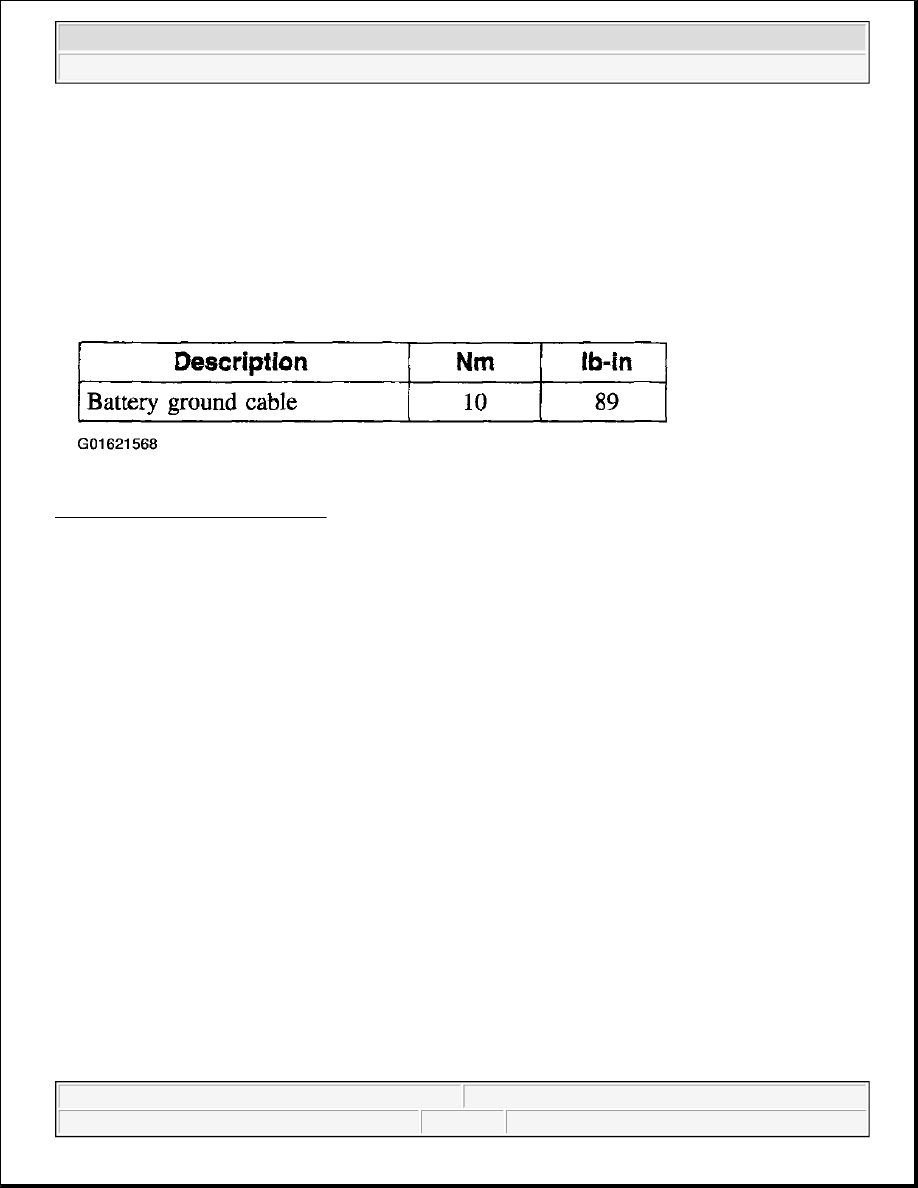

Fig. 1: Torque Specifications Chart
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION

DAYTIME RUNNING LAMPS (DRL)

Daytime Running Lamps System



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Daytime Running Lamps - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Daytime Running Lamps - F150 Pickup

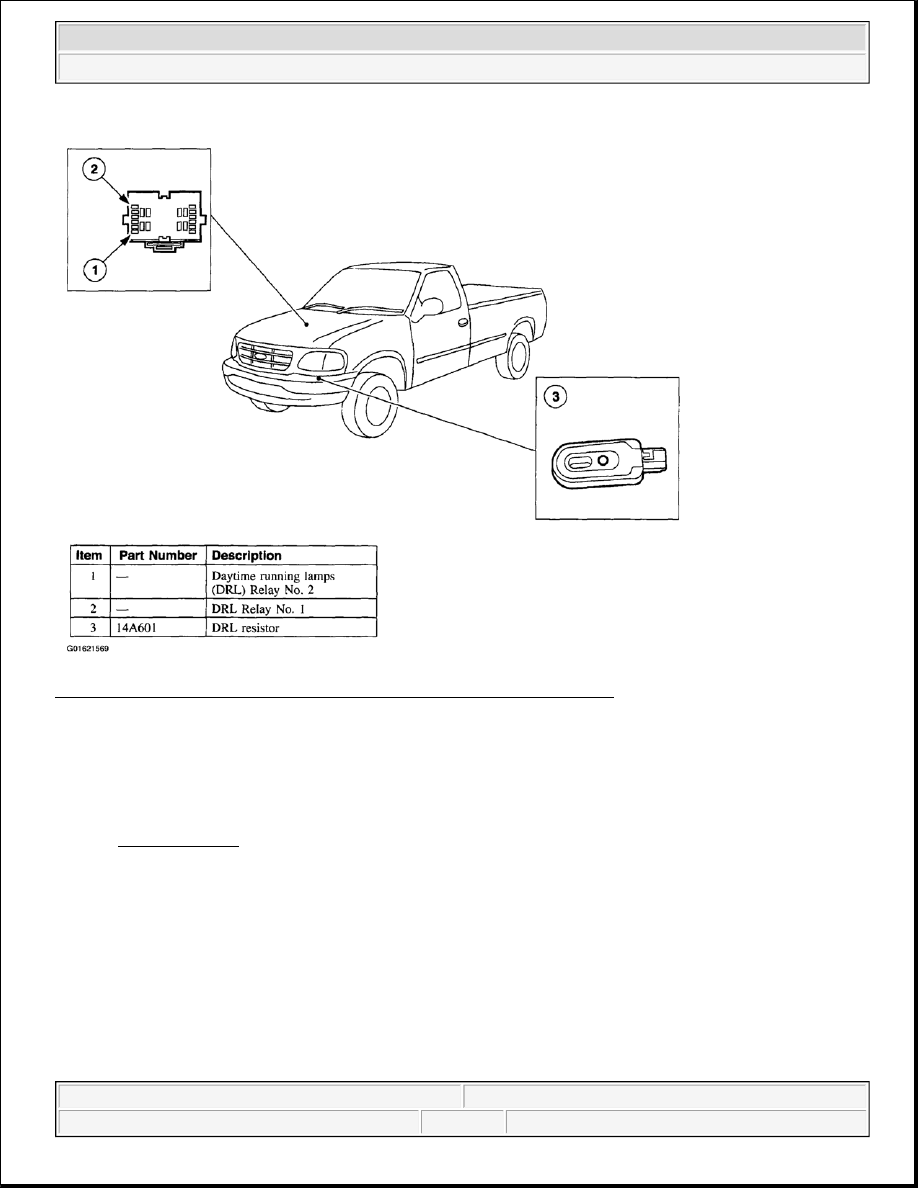

Fig. 2: Identifying Daytime Running Lamps System Connector Terminal
Courtesy of FORD MOTOR CO.

DIAGNOSIS AND TESTING

DAYTIME RUNNING LAMPS (DRL)

Refer to HEADLIGHTS for schematic and connector information.

Special Tool(s)



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Daytime Running Lamps - F150 Pickup

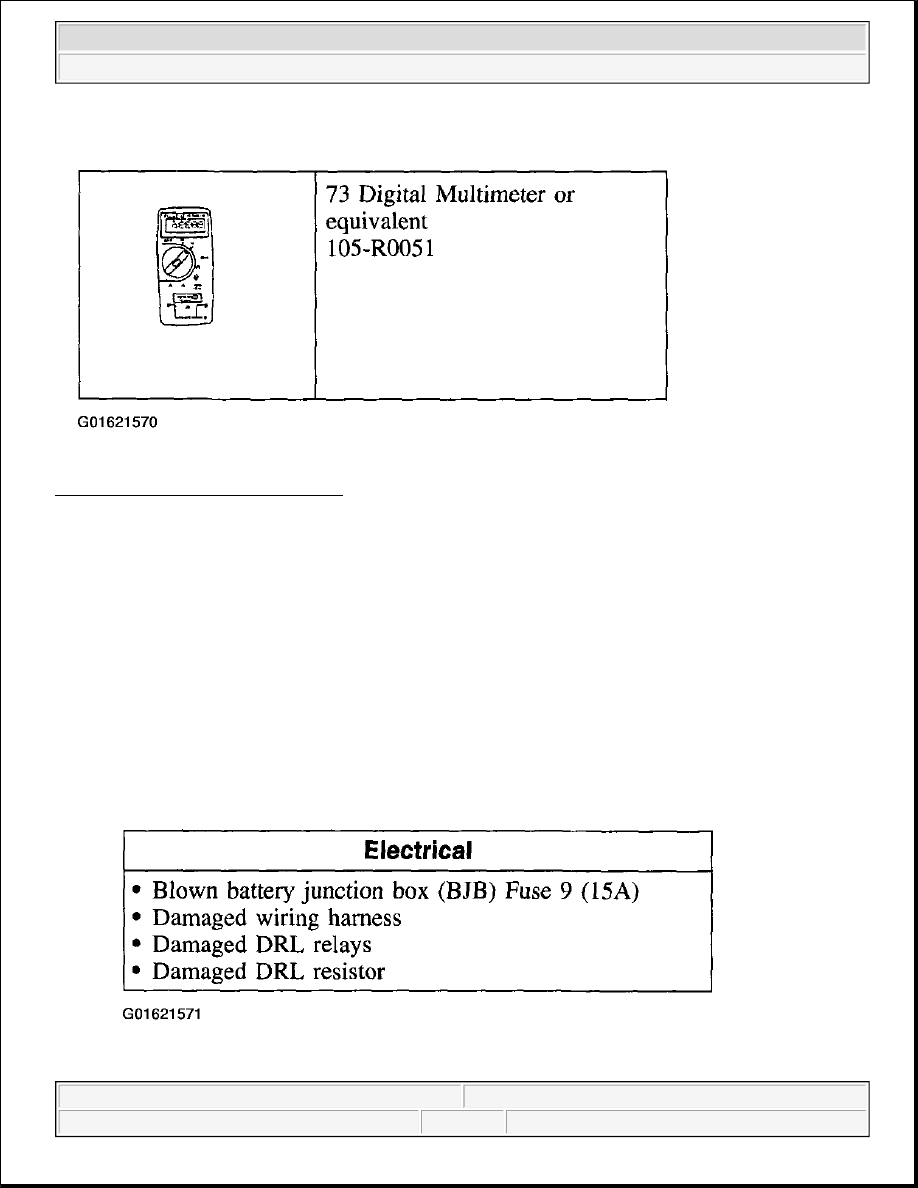

Fig. 3: Identifying Special Tool Chart
Courtesy of FORD MOTOR CO.

Principles of Operation

The daytime running lamps (DRL) are implemented by using the low beams at a reduced voltage of
approximately 80% system voltage. This is accomplished by inserting a DRL resistor (14A601) in series with
the low beam filaments. When the headlamp switch (11654) is engaged, the daytime running lamp function is
disabled and the low beam filaments receive 100% system voltage.

Inspection and Verification

1. Verify the customer concern by operating the system.

2. Visually inspect for obvious signs of electrical damage.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Daytime Running Lamps - F150 Pickup
