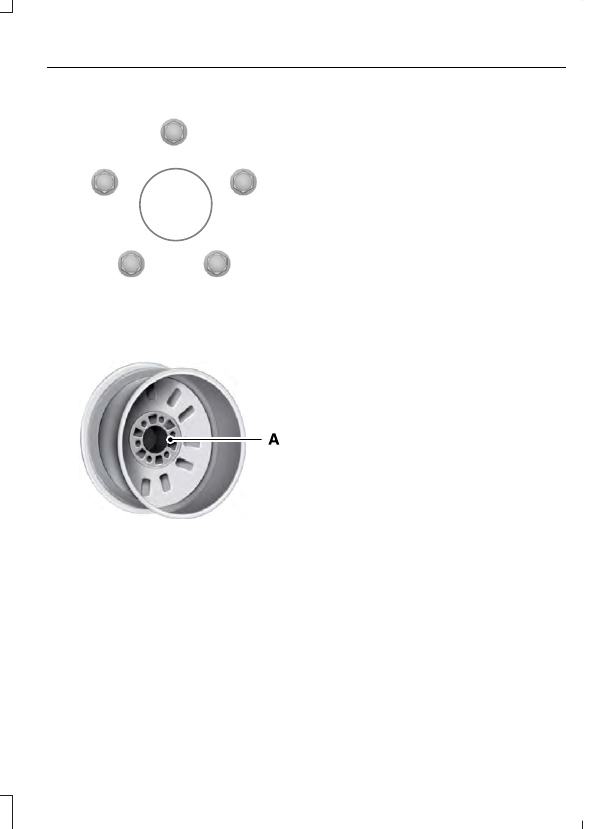

Tighten lug nuts in the order shown.

E145950

Wheel pilot bore

A

Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.

ENGINE SPECIFICATIONS

2.0L ATK iVCT Engine

Engine

122

Cubic inches

Minimum 87 octane

Required fuel

1-3-4-2

Firing order

Coil on plug (COP)

Ignition system

12.3:1

Compression ratio

0.051 in. ± 0.002 in. (1.3 mm ± 0.05 mm)

Spark plug gap

MOTORCRAFT PARTS

2.0L ATK iVCT engine

Component

FA-1911

Air filter element

FL-910-S

Oil filter

BXT-67R

Low-Voltage Battery

SP-530

Spark plugs

FP70

Cabin air filter

WW-29 (driver side)

Windshield wiper blade

WW-25 (passenger side)

WW-12

Rear wiper blade

We recommend Motorcraft replacement parts available at your Ford dealer or at
fordparts.com for scheduled maintenance. These parts meet or exceed Ford Motor
Company’s specifications and are engineered for your vehicle. Use of other parts may
impact vehicle performance, emissions and durability. Your warranty may be void for any
damage related to use of other parts.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.

For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the
appropriate intervals.

VEHICLE IDENTIFICATION
NUMBER

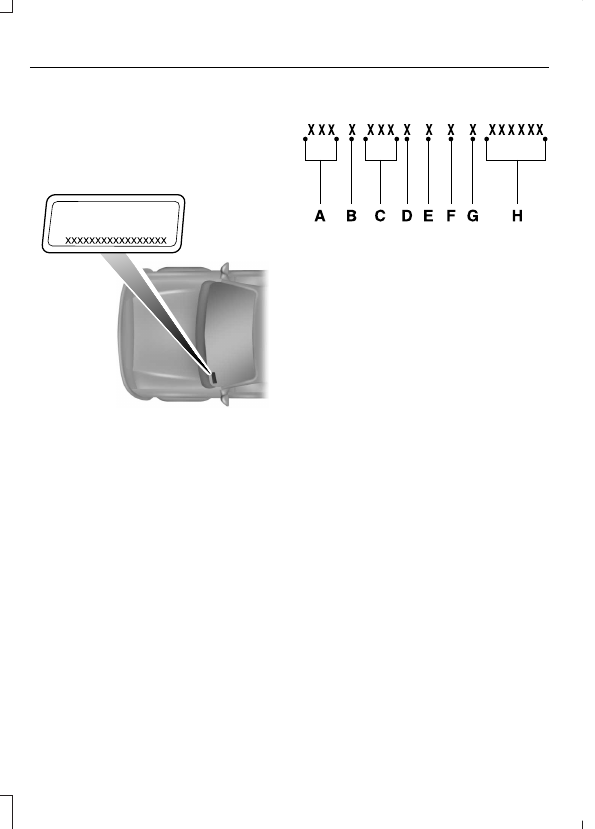

The vehicle identification number is
located on the left-hand side of the
instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H
