Rear Seat Outboard Head Restraints

E162605

The head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve unlock and remove
button.

C

Fold button.

D

Removing the Head Restraint

1.

Press and hold buttons C.

2. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

Folding the Head Restraint

1.

Press and hold button D.

2. Pull it back up to reset.

Tilting Head Restraints

The front head restraints tilt for extra
comfort. To tilt the head restraint, do the
following:

E144727

1.

Adjust the seatback to an upright
driving or riding position.

2. Pivot the head restraint forward toward

your head to the desired position.

After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, un-tilted
position.

MANUAL SEATS

WARNING

To reduce the risk of injury, do not
adjust the driver's seat or seatback
when your vehicle is moving.

Moving the Seat Backward and
Forward

E162375

WARNING

Rock the seat backward and forward
after releasing the lever to make sure
that it is fully engaged.

Adjusting the Height of the
Driver's Seat

E70730

Recline Adjustment

E163872

WARNING

Do not place cargo or any objects
behind the seatback before returning
it to the original position. Pull on the

seatback to make sure that it has fully
latched after returning the seatback to its
original position. An unlatched seat may
become dangerous if you stop suddenly or
have a crash.

Lumbar Adjustment (If Equipped)

E161564

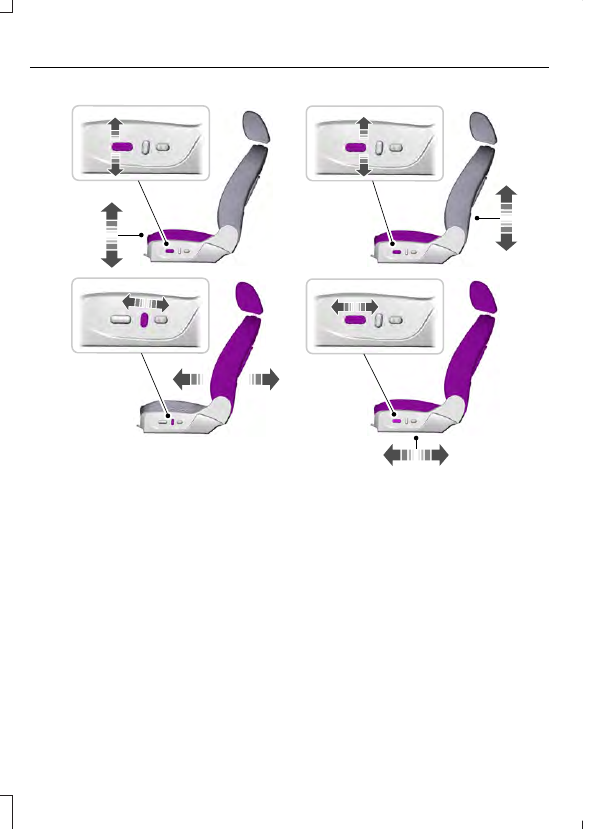

POWER SEATS

 (If Equipped)

WARNINGS

Do not adjust the driver's seat or
seatback when your vehicle is
moving. Adjusting your seatback

while your vehicle is in motion may cause
loss of control of your vehicle.

Do not place cargo or any objects
behind the seatback before returning
it to the original position.

E138647
