Citroen Nemo (2015 year). Manual

OVER

VIEW

Location

Stop & Start ................................

61-63

Hazard warning lamps ................... 111

Demisting/defrosting ........................71

Locking the load

space .......................................

43-44

Opening the bonnet .......................144

Front fittings ................................76-77

● glove box,

● smoker's kit,

● 12 V socket,

● writing table,

● spectacles storage,

● sun visorl.

Audio system, CD/MP3 ..............89-92

Gearboxes ............................

53, 54-57

Rear parking sensors ......................88

Heating, ventilation,

air conditioning ........................72-75

Location

Emission controls ....................

34, 151

Bulbs, lighting, changing

bulbs ....................................

161-165

Opening the bonnet .......................144
Under the bonnet ....................

145-146

Identification markings,

serial number, paint,
tyres ............................................

183

Changing a wiper blade .................166

Engine technical data .............180-181
dimensions ............................

174-175,

176-177, 178-179

Weights ..........................................182

TECHNICAL DATA - MAINTENANCE

Levels .....................................

147-148

● dipstick,

● power steering fluid,

● brake fluid,

● coolant,

● screenwash.

Checks....................................149-151

● battery,

● air/passenger compartment filter,

● oil filter,

● particle emissions filter (1.3 HDi 75),

● parking brake,

● brake pads.

Engine fuses ...................167, 170-17 1

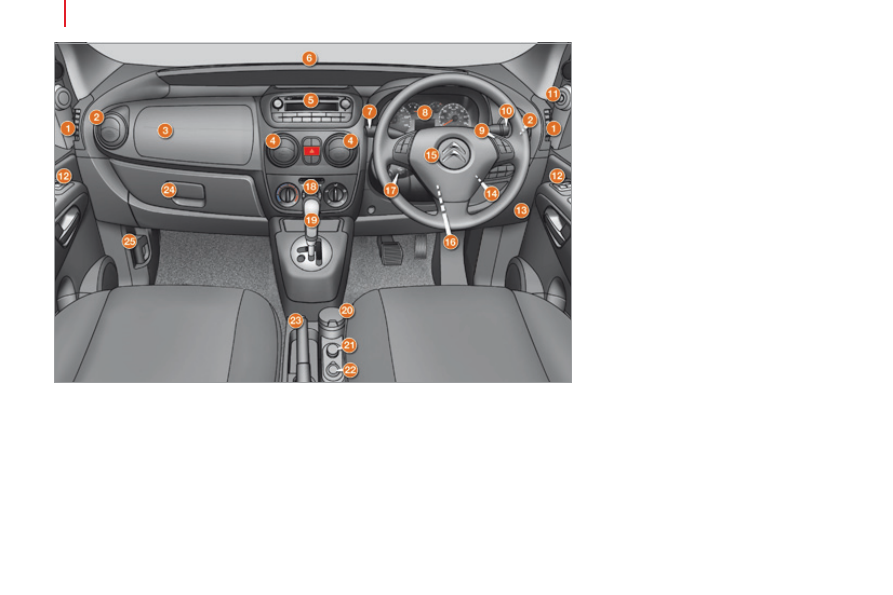

Presentation

Dashboard / Centre console

1. door mirror controls.
2.

Front door glass demisting vent.

Adjustable side vent.

Lighting and direction indicator control

stalk.

5. Instrument panel.
6.

Steering mounted audio system controls.

Bluetooth hands-free system.

Wash / Wipe / Trip computer control stalk.

Centre adjustable air vents.

9. audio system.
10.

Windscreen demisting vent.

11.

Passenger's front airbag.

12. Electric window controls.
13. Glove box.
14.

Heating / air conditioning controls.

15. Gear lever.
16. ashtray.
17.

Cigarette lighter.

18.

12V accessory socket.

19.

Parking brake.

20.

Ignition switch and steering lock.

21.

Driver's front airbag.

Horn.
22.

Steering wheel adjustment control.

23. bonnet release lever.
24. Fusebox.
25. Cruise control.

OVER

VIEW

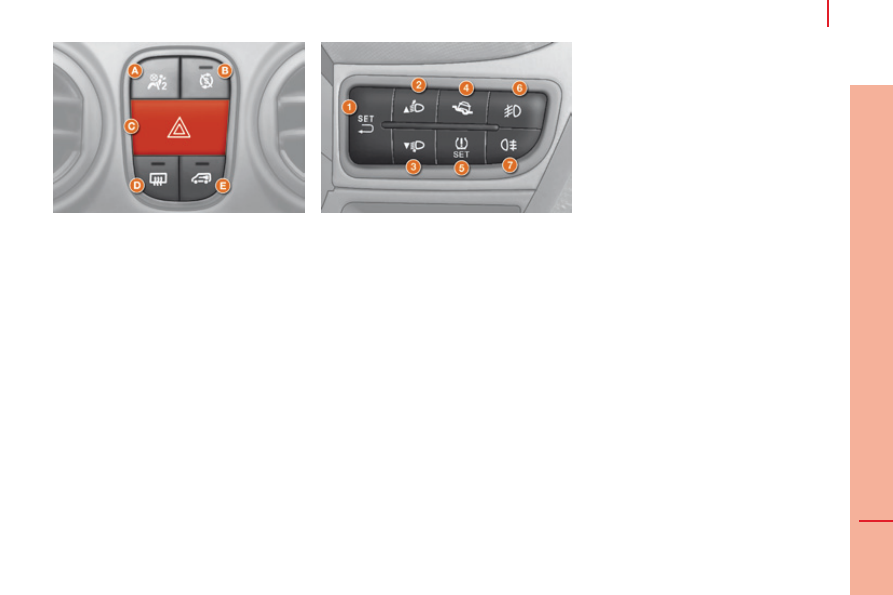

Presentation

Centre control panel
A.

Passenger's front airbag deactivated

warning lamp.

B. deactivation of Stop & Start.
C.

Hazard warning lamps.

D. Heated rear screen and door mirrors.
E.

Lock / Unlock load space (Van).

Side control panel
1.

Front foglamps.

Rear foglamps.

Intelligent traction control

Wheel anti-slip regulation (ASR).

Reinitialisation of tyre under-inflation

detection.

Adjust headlamps up / Vehicle

configuration (angle up, increase a value).

Adjust headlamps down / Vehicle

configuration (angle down, decrease a

value).

Vehicle configuration (access to menus,

confirmation, quit menus).

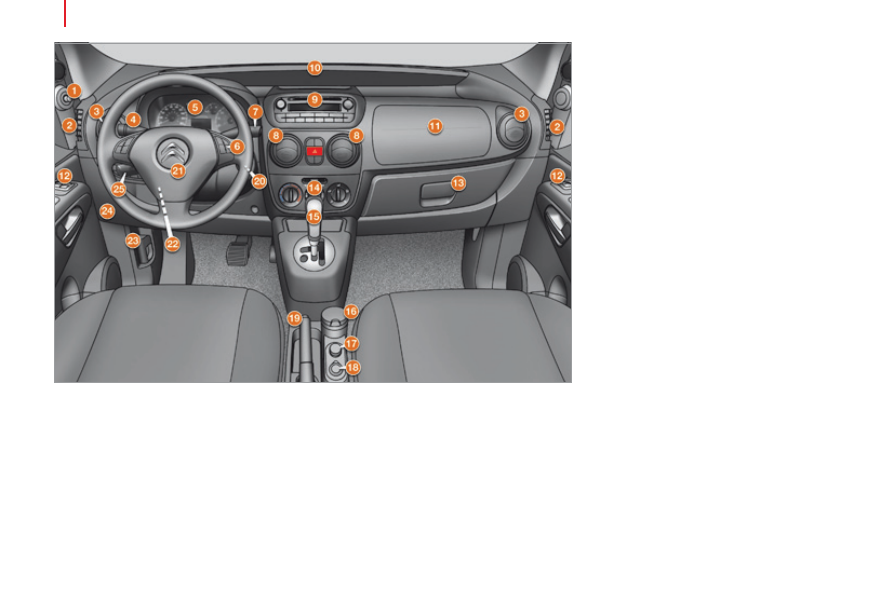

Presentation

Dashboard / Centre console

Front door glass demisting vent.

Adjustable side vent.

Passenger's front airbag.

Adjustable centre vents.

5. audio system.
6.

Windscreen demisting vent.

Lighting and direction indicator control

stalk.

8. Instrument panel.
9.

Steering mounted audio system controls.

Bluetooth hands-free system.

10.

Wash / wipe / trip computer control stalk.

11. door mirror controls.
12. Electric window controls.
13. Fusebox.
14.

Ignition switch and steering lock.

15.

Driver's front airbag.

Horn.
16.

Steering wheel adjustment control.

17. Cruise control.
18.

Heating / air conditioning controls.

19. Gear lever.
20. ashtray.
21.

Cigarette lighter.

22.

12V accessory socket.

23.

Parking brake.

24. Glove box.
25. bonnet release lever.

OVER

VIEW

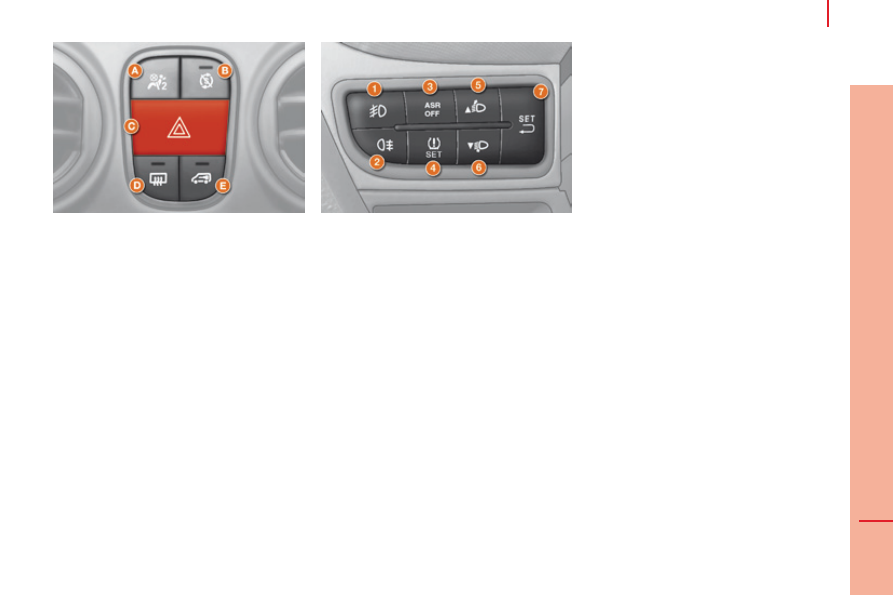

Presentation

Centre control panel
A.

Passenger's front airbag deactivated

warning lamp.

B. deactivation of Stop & Start.
C.

Hazard warning lamps.

D. Heated rear screen and door mirrors.
E.

Lock / Unlock load space (Van).

Side control panel
1.

Vehicle configuration (access to menus,

confirmation, quit menus).

Adjust headlamps up / Vehicle

configuration (angle up, increase a value).

Adjust headlamps down / Vehicle

configuration (angle down, decrease a

value).

Intelligent traction control

Wheel anti-slip regulation (ASR).

Reinitialisation of the tyre under-inflation

detection.

Front foglamps.

Rear foglamps.

Motoring & Environment

ENVIRONMENT

With you, CITRoËn acts to protect the
environment.
We invite you to visit the www.citroen.co.uk
website.

as the driver, you also can contribute to
protecting the environment by following certain

rules:

Refer to information on eco-driving at the
end of this section.

- adopt a preventive style of driving, without

frequent and harsh acceleration,

- observe the service intervals; we

recommend that services are carried
out by a CITRoËn dealer, authorised to

collect used batteries and fluids,

- in order to preserve the reliability of the

engine and emission control systems, do

not use engine oil additives.

ECO-DRIVING

Motoring & Environment

ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

Optimise the use of your gearbox

With a manual gearbox, move off gently and change up without

waiting. During acceleration change up early.

With an automatic or electronic gearbox, give preference to automatic

mode and avoid pressing the accelerator pedal heavily or suddenly.

The gear shift indicator invites you engage the most suitable gear: as
soon as the indication is displayed in the instrument panel, follow it
straight away.

For vehicles fitted with an electronic or automatic gearbox, this
indicator appears only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles, use engine braking rather

than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and Co

emissions and also helps reduce the background traffic noise.

If your vehicle has cruise control, make use of the system at speeds

above 25 mph (40 km/h) when the traffic is flowing well.

Control the use of your electrical equipment

Before moving off, if the passenger compartment is too warm, ventilate it

by opening the windows and air vents before using the air conditioning.

Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the

temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light
does not require their use.

Avoid running the engine before moving off, particularly in winter; your

vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia devices

(film, music, video game...), you will contribute towards limiting the

consumption of electrical energy, and so of fuel.

Disconnect your portable devices before leaving the vehicle.

Motoring & Environment

Limit the causes of excess consumption

Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.

Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit your summer tyres.

Observe the recommendations on maintenance

Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:

-  before a long journey,
-  at each change of season,
-  after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.

Have your vehicle serviced regularly (engine oil, oil filter, air filter,

passenger compartment filter...) and observe the schedule of

operations recommended in the maintenance and warranty guide.

When refuelling, do not continue after the third cut-off of the nozzle to

avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles

(3 000 kilometres) that you will see the fuel consumption settle down to

a consistent average.

READY

O GO

Instruments and controls

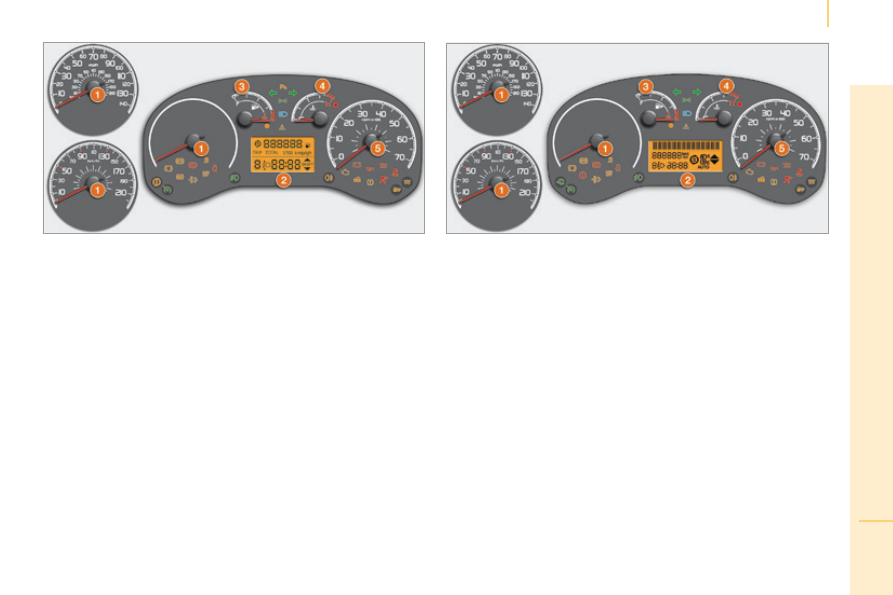

INSTRUMENT PANELS

Distance recorder in miles / kilometres.

2. Screen.

Fuel gauge.

4. Coolant temperature.

5. Rev counter.

Instrument panel with level 1 screen

Instrument panel with level 2 screen

Instrument panel level 1 screen

-  Time.
-  Miles / Kilometres travelled.
-  Trip computer (range, fuel consumption,

average speed).

-  Headlamp beam height.
-  Programmable overspeed warning.
-  Gear shift indicator.
-  Stop & Start.
-  Activation/ Deactivation of the

passenger's front airbag.

Instrument panel level 2 screen

-  Time.
-  Date.
-  Radio.

- Miles / Kilometres travelled.
- Modes and gear engaged on the

electronic gearbox.

- Trip computer (ambient temperature,

range, fuel consumption, average speed.

-  Headlamp beam height.
-  Programmable overspeed warning.
-  Selection of the display language.
-  Gear shift indicator.
-  Stop & Start.
-  Activation/ Deactivation of the

passenger's front airbag.

- State and alert messages for vehicle

functions.

Instruments and controls

WARNING LAMPS

Every time the engine is started: a series of warning lamps comes on applying a self-checking test.

They go off almost immediately. When the engine is running: the warning lamp becomes a warning sign if it remains on continuously or

flashes. This initial warning may be accompanied by an audible signal and a message in the screen. "Do not ignore these warnings."

Warning lamp

indicates

Solution - action

Service

on temporarily.

minor faults.

Contact a CITRoËn dealer or a qualified

workshop.

continuously on,
accompanied by a

message in the screen.

major faults.

Make a note of the warning message and
contact a CITRoËn dealer or qualified

workshop.

Parking brake

Brake fluid level

on.

that the parking brake is applied or
has not been released correctly.

Releasing the parking brake switches off the

warning lamp.

on.

that the fluid level is too
low.

Top up using a fluid recommended by CITROËN
dealers.

continuously on, even

though the level is
correct.

Stop as soon as it is safe to do so. Park,
switch off the ignition and contact a
CITROËN dealer or qualified workshop.

Low engine oil level

on.

that the level of oil in the

engine is too low.

Check the engine oil level and contact a

CITROËN dealer or a qualified workshop.

continuously on, even

though the level is
correct.

Stop as soon as it is safe to do so. Park,
switch off the ignition and contact a
CITROËN dealer or a qualified workshop.

Coolant temperature

on with the needle in
the red zone.

an abnormal increase.

Park and switch off the ignition, allow the system

to cool. Visually check the level.

on H in the red zone.

the coolant temperature is

too high.

"Checks - Levels" section.
Contact a CITRoËn dealer or a qualified

workshop.

READY

O GO

Instruments and controls

Warning lamp

indicates

Solution - action

Engine oil

on while driving, with

a message in the
screen.

that the engine oil
pressure is too low.

Park and switch off the ignition and contact a

CITROËN dealer or a qualified workshop.

flashing, with a

message in the

screen (1.3 HDi 75
only).

deteriorated engine oil.

Have the vehicle services as soon as possible to

avoid damage to the engine.

Battery charge

on.

a fault in the charging
circuit.

Check the battery terminals…

"Quick help - Battery" section.

continuously on, in

spite of the checks.

an ignition or injection
fault.

Contact a CITRoËn dealer or a qualified

workshop.

door open detection

on.

that a door is not closed
correctly.

Check that the front, rear and side doors are
closed.

accompanied by a

message in the screen.

Seat belt not fastened

on then flashes.

that the driver has not
fastened his seat belt.

Pull the strap then insert the tongue in the

buckle.

accompanied by an

audible signal then
remains on.

that the vehicle is moving
with the driver's seat belt
unfastened.

Check that the seat belt is fastened correctly by

pulling the strap.

"Safety - Seat belts" section.

flashing,
accompanied by an

audible signal

the front passenger has
not fastened their seat
belt.

Pull on the strap and insert the tongue in the

buckle.

Instruments and controls

Warning lamp

indicates

Solution - action

Front airbag

Lateral airbag

flashing or
continuously on.

the failure of an airbag.

Have the system checked by a CITROËN dealer

or a qualified workshop without delay.

"Safety - Airbags" section.

deactivation of the

passenger's front

airbag

on.

that this airbag has been
deactivated intentionally
in the presence of a rear

facing child seat.

"Technology on board - Vehicle configuration"
section.

abS

continuously on.

failure of the system.

The vehicle retains conventional braking without
assistance. However, we recommend that
you stop and contact a CITRoËn dealer or a

qualified workshop.

continuously on, coupled

with the parking brake

warning lamp.

a fault with the electronic

brake force distributor.

Stop as soon as it is safe to do so. Park,
switch off and contact a CITROËN dealer or a
qualified workshop.

Trajectory control
system

flashes for a few
seconds.

the dSC system has been

invoked.

Intervention by the system to correct the

trajectory of the vehicle.

on, accompanied by

a message in the
screen.

a fault with the dSC
system.

Contact a CITRoËn dealer or a qualified

workshop.

on, coupled with the
ASR OFF

warning

lamp, accompanied by a

message in the screen.

a fault with the ASR / MSR
system.

Contact a CITRoËn dealer or a qualified

workshop.

on.

a fault with the Intelligent
Traction Control.

Contact a CITRoËn dealer or a qualified

workshop.

Hill start assist

on.

a fault with the hill start
assist system.

Contact a CITRoËn dealer or a qualified

workshop.

READY

O GO

Instruments and controls

Warning lamp

indicates

Solution - action

Wheel anti-spin

regulation

on.

deactivation of anti-slip

regulation (ASR).

Manual selection.

"Safety - Driving safety" section.

Stop & Start

on.

a fault with the Stop &
Start.

Have the system checked by a CITROËN dealer

or a qualified workshop as soon as possible.

Brake pads

on.

front brake pads worn.

Have the brake pads replaced by a CITROËN

dealer or a qualified workshop.

Under-inflation
detection

on.

an under-inflated or
punctured tyre.

Stop and switch off the ignition. Change the
wheel or repair the tyre.

flashes for a few
seconds, then
stays on.

a fault with the system.

Have the system checked by a CITROËN dealer

or a qualified workshop.

Rear parking
sensors

on, accompanied by

a message in the
screen.

a fault with the system.

Audible assistance is no longer active.

Have the system checked by a CITROËN dealer

or a qualified workshop as soon as possible.

Electronic gearbox

on, accompanied by

a message in the
screen.

an incorrect operation by
the driver.

Repeat the desired operation.

flashing, accompanied

by an audible signal

and a message in the
screen.

a fault with the gearbox.

Have the system checked by a CITROËN dealer

or a qualified workshop as soon as possible.

Instruments and controls

Warning lamp

indicates

Solution - action

Electronic

anti-theft

on.

the ignition key introduced

is not recognised.

Starting impossible.

Use another key and have the faulty key

checked by a CITROËN dealer.

"Ready to go - Access" section.

Emissions control
system

flashing or on
continuously.

a fault with the system.

Have it checked as soon as possible by a

CITROËN dealer or a qualified workshop.

Low fuel level

on with the gauge
needle in zone E.

that the fuel reserve is

being used.

Refuel without delay. The assessment of the

fuel reserve is sensitive to the style of driving,
the profile of the road, the time elapsed and the

distance travelled since the warning lamp first
came on.

Particle filter

on, accompanied by

an audible signal and

a message in the
screen.

the start of saturation of
the particle filter.

Regenerate the filter as soon as possible.

"Checks" section.

Presence of water in
the diesel filter

on, accompanied by

a message in the
screen.

water in the diesel fuel
filter.

Have the filter bled by a CITRoËn dealer or a

qualified workshop.

"Checks" section.

Diesel pre-heating

on.

that the weather

conditions impose pre-

heating (up to around

30 seconds in extreme
climatic conditions).

Wait for the warning lamp to switch off before

operating the starter.

If the engine does not start, switch the ignition

off and on again, wait for the warning lamp to go

off, and start the engine.

Citroen Nemo (2015 year). Manual - part 2
