In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

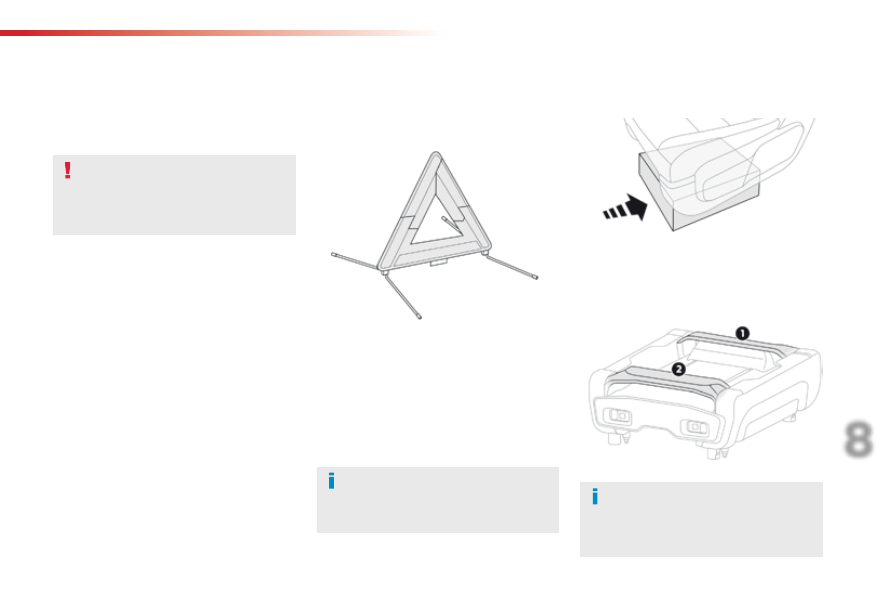

Warning triangle (stowing)

Before leaving your vehicle to set up
and install the triangle, switch on the
hazard warning lamps and put on your
high visibility vest.

This safety equipment should be used in
addition to the hazard warning lamps.
Its presence in the vehicle is mandatory.

Placing the triangle in the
road

Refer to the manufacturer's instructions on
unfolding and assembly supplied with the
triangle.

Place the triangle behind the vehicle, as

required by the legislation in force in your
country.

The triangle is available as an
accessory; contact a CITROËN dealer
or a qualified workshop.

Tool box

Access

The tool box is located under the left-hand front
seat.

As a safety measure, the bars 1 and 2
prevent the box escaping from its
housing, if it is not correctly secured.

288

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

Stowing

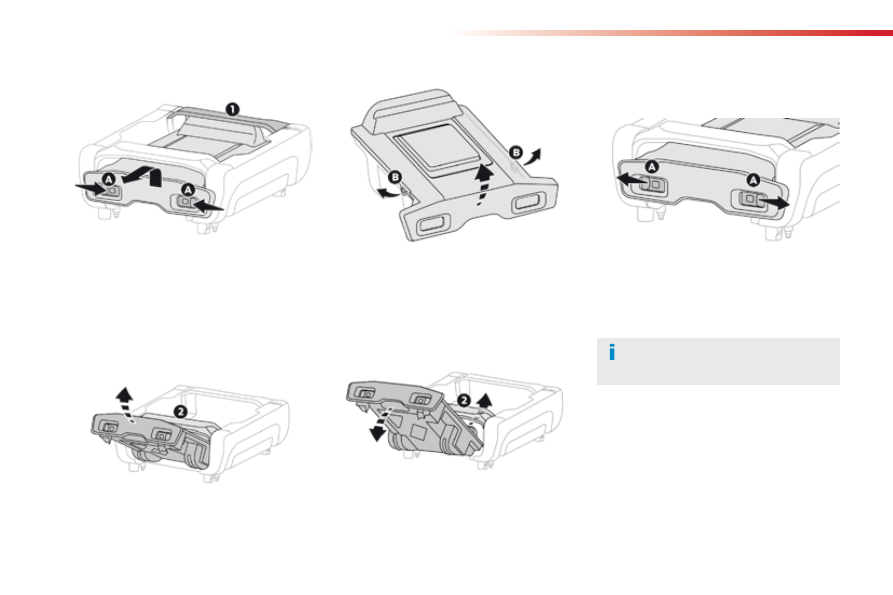

F Press the latches A and slide them inwards

to release the box.

Lift the box slightly then pull it as far as it

will go to take it past bar 1.

Then, lift the box upwards to take it past

bar 2

Unclip the fixings B on the cover, then

open it for access to the tools.

Opening

Removing

Pull on the box to check that it is secure
in its housing.

F Offer up the box with the front inclined

upwards.

To take it past bar 2, push the box in and

down.

To take it past bar 1, raise the box slightly

then push it fully in.

F Refit the cover on the box and clip the

fixings B.

F Once the box is fully home

in its housing,

push it against the floor carpet then slide
the latches A

outwards to secure it.

289

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

If your vehicle is equipped
with a temporary puncture
repair kit

12 V compressor.

To temporarily repair a tyre using an
integral sealant cartridge and adjust the
tyre pressure.

Towing eye.

If your vehicle is equipped
with a spare wheel

Wheelbrace.

For removing the wheel bolts and raising/
lowering the jack.

Jack.

For raising the vehicle.

Wheel bolt cap/wheel trim removal tools.

If your vehicle is so equipped, for removing
the wheel bolt head covers on alloy wheels
or the wheel trim on steel wheels.

Security bolt socket.

For adapting the wheelbrace to the special
"security" bolts.

Towing eye.

These tools are specific to your vehicle
and can vary according to equipment.
Do not use them for other purposes.

290

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

This kit is stowed in the tool box.

This kit consists of a compressor and a sealant
cartridge.
It allows the temporary repair

of a tyre.

You are then able to go to the nearest garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.
Its compressor can be used to check and
adjust the pressure of the tyre.

Temporary puncture repair kit

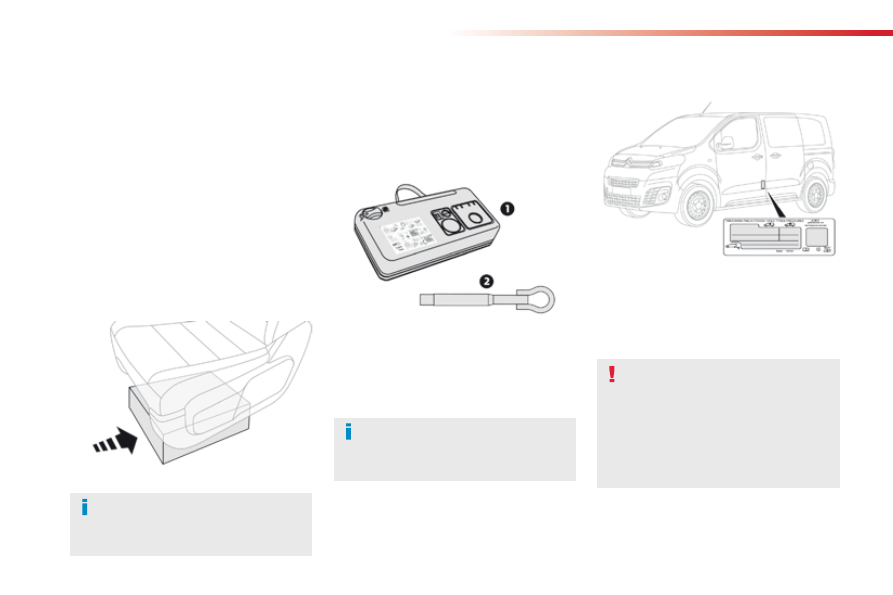

Access to the kit

12 V compressor.

To temporarily repair a tyre using an
integral sealant cartridge and adjust the
tyre pressure.

Towing eye.

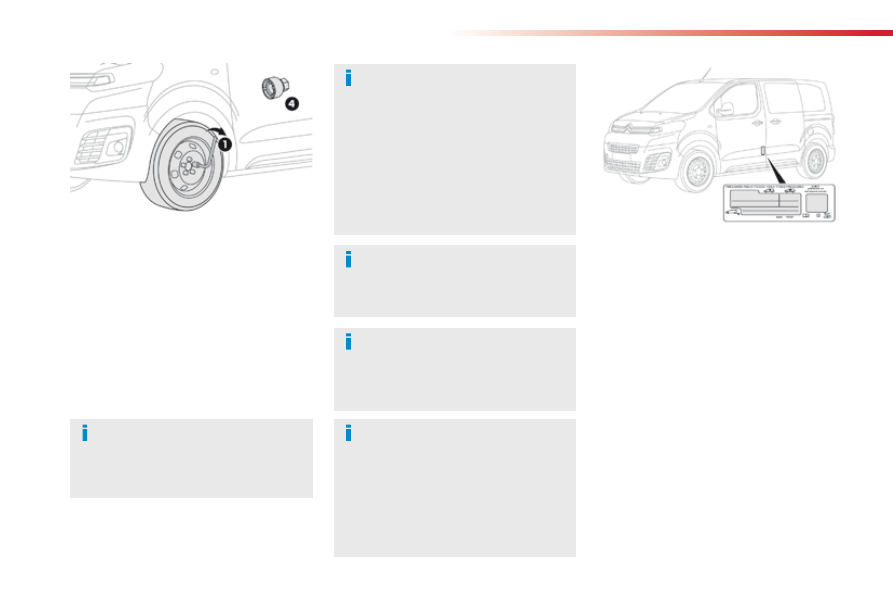

The tyre inflation pressures are given on this
label.

The vehicle's electric system allows the
connection of the compressor for long
enough to inflate a tyre after a puncture
repair.
Use only the two 12 V sockets
located at the front to connect your
compressor.

For more information on Towing, refer
to the corresponding section.

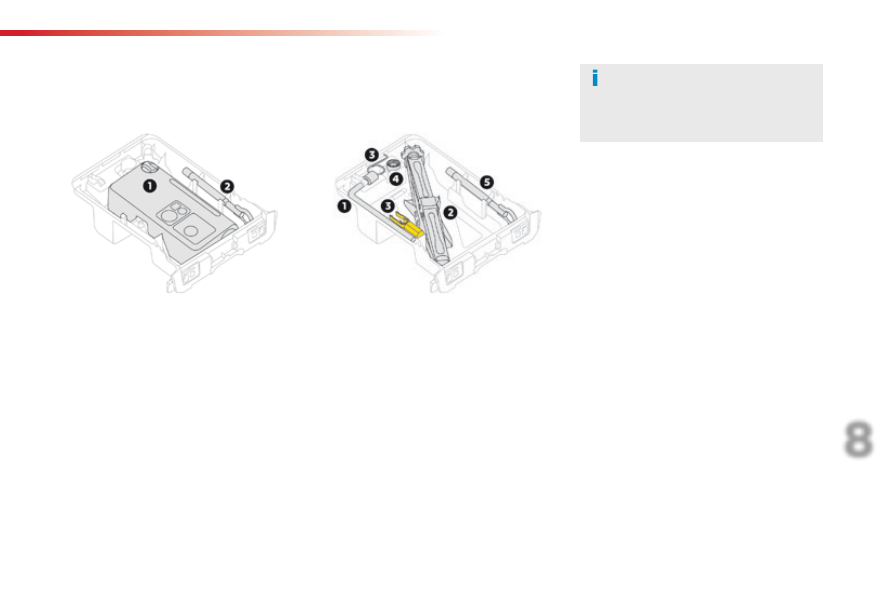

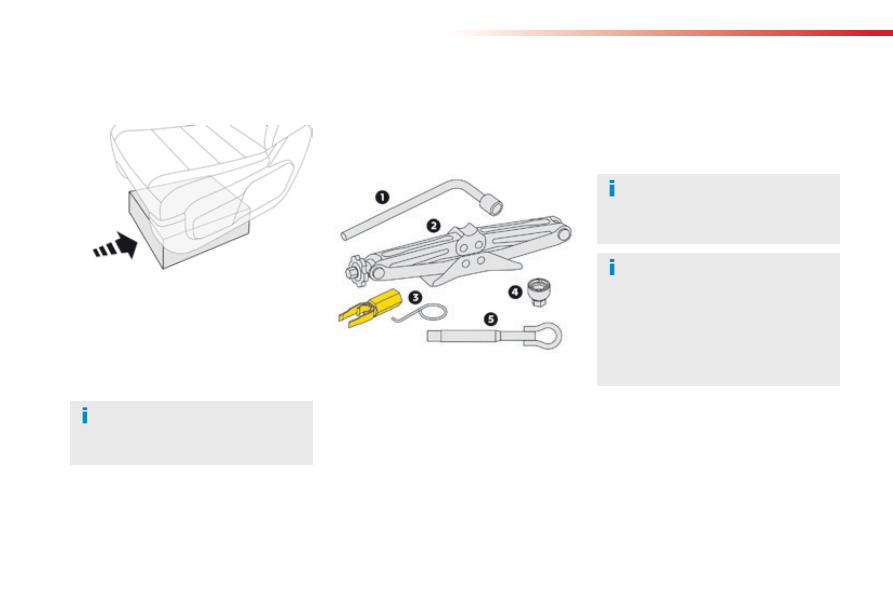

List of tools

These tools are specific to your vehicle and can
vary according to equipment. Do not use them
for other purposes.

For more information on the Tool box,
refer to the corresponding section.

291

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

"Sealant" or "Air" position selector.

B. On

"I"

/ off "O" switch.

Deflation button.

Pressure gauge (in bars and psi).

Compartment housing a cable with an

adaptor for a 12 V socket.

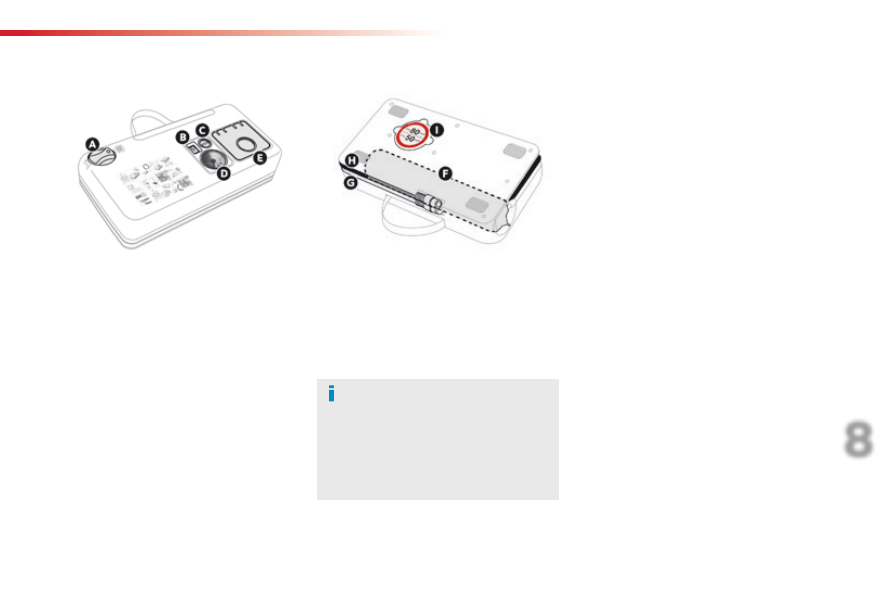

Description of the kit

Sealant cartridge.

White pipe with cap for repair.

Black pipe for inflation.

Speed limit sticker.

The speed limit sticker I must be affixed
to the vehicle's steering wheel to remind
you that a wheel is in temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.

292

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

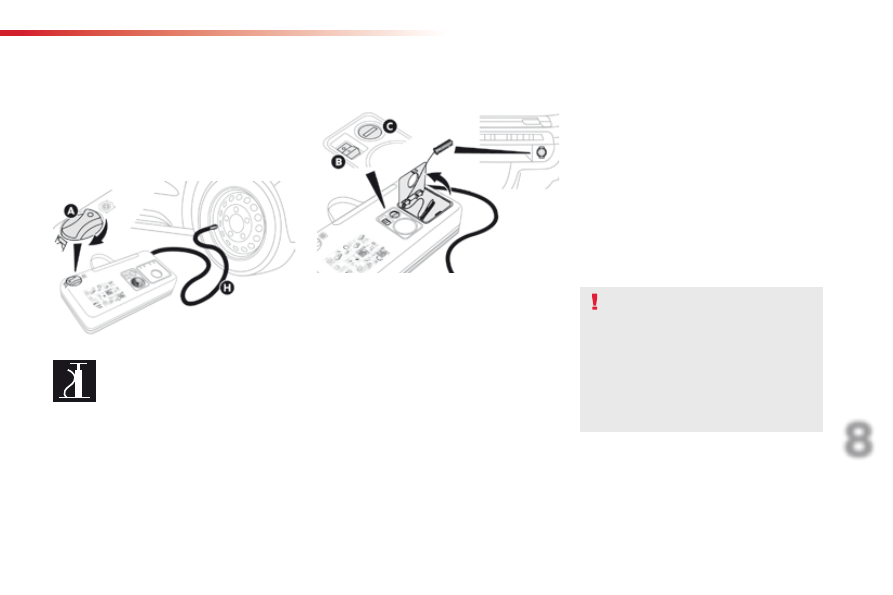

Repair procedure

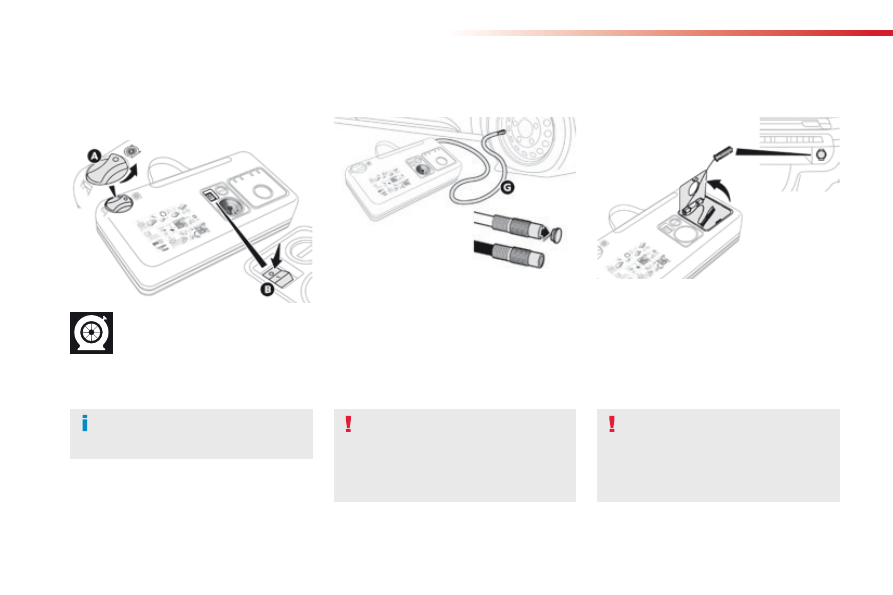

1. Sealing

F Uncoil the white pipe G

fully.

Unscrew the cap from the white pipe.

F Connect the white pipe to the valve of the

tyre to be repaired.

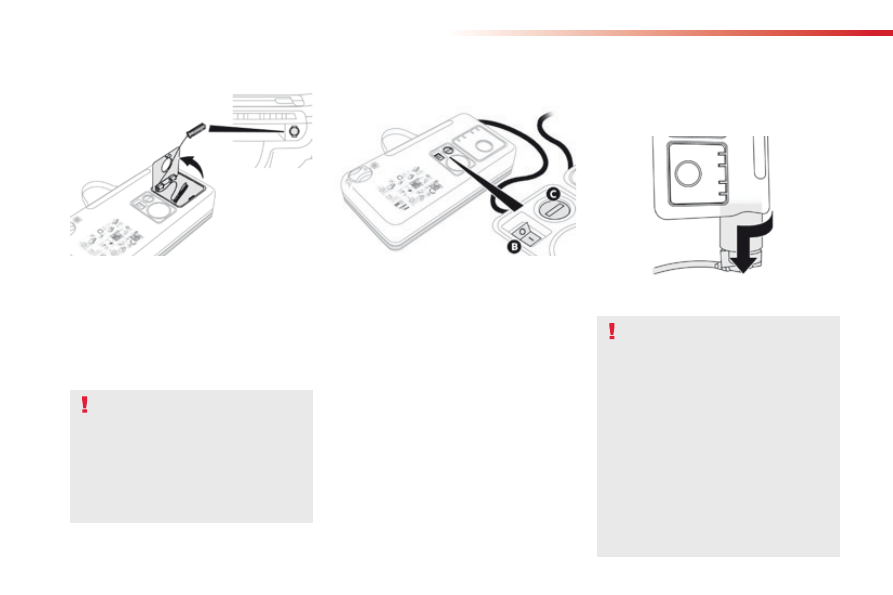

Connect the compressor's electric plug to

the vehicle's 12 V socket.

Start the vehicle and leave the engine

running.

Take care, this product is harmful if
swallowed and causes irritation to the
eyes.
Keep this product out of the reach of
children.

Avoid removing any foreign bodies
which have penetrated into the tyre.

Do not start the compressor before
connecting the white pipe to the tyre
valve: the sealant product would be
expelled through the pipe.

Switch off the ignition.

F Turn the selector A to the

"sealant" position.

Check that the switch B is in position "O".

293

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a CITROËN dealer or a qualified
workshop for assistance.

Switch on the compressor by moving

the switch B to position "I" until the tyre
pressure reaches 2.0 bars.

The sealant is injected into the tyre under
pressure; do not disconnect the pipe from
the valve during this operation (risk of
splashing).

Remove the kit and screw the cap back on

the white pipe.

Take care to avoid staining your vehicle
with traces of fluid. Keep the kit to hand.

2. Inflation

F Turn the selector A to the "Air"

position.

Uncoil the black pipe H fully.

Connect the black pipe to the valve of the

wheel.

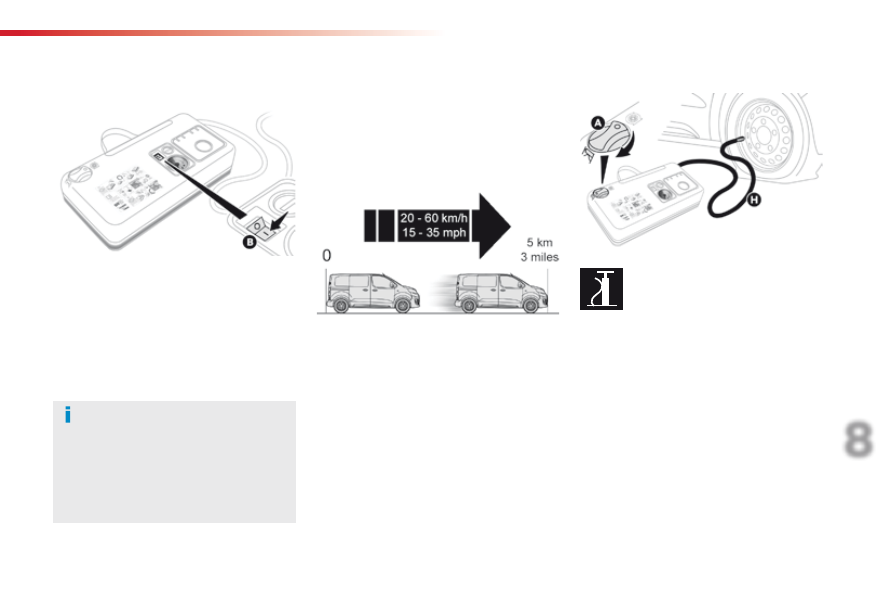

F Drive immediately for approximately

three miles (five kilometres), at
reduced speed (between 15 and 35 mph
(20 and 60 km/h)), to plug the puncture.

Stop to check the repair and the tyre

pressure using the kit.

294

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

Connect the compressor's electric plug to

the vehicle's 12 V socket.

Start the vehicle again and leave the

engine running.

Adjust the pressure using the compressor

(to inflate: switch B in position "I"; to
deflate: switch B in position "O" and press
button C

), in accordance with the vehicle's

tyre pressure label (located on the left
hand door aperture).

A loss of pressure indicates that the
puncture has not been fully plugged;
contact a CITROËN dealer or qualified
workshop for assistance.

Remove and stow the kit.

Drive at reduced speed (50 mph [80 km/h]

max) limiting the distance travelled to
approximately 120 miles (200 km).

As soon as possible, go to a CITROËN
dealer or a qualified workshop.
You must inform the technician that you
have used this kit. After inspection, the
technician will advise you on whether
the tyre can be repaired or if it must be
replaced.

Removing the cartridge

Stow the black pipe.

Detach the angled base from the white pipe.

Support the compressor vertically.

Beware of discharges of fluid.
The expiry date of the fluid is indicated
on the cartridge.
The sealant cartridge is designed for
single use; even if only partly used, it
must be replaced.
After use, do not discard the cartridge
into the environment, take it to an
authorised waste disposal site or a
CITROËN dealer.
Do not forget to obtain a new sealant
cartridge, available from CITROËN
dealers or from a qualified workshop.

Unscrew the cartridge from the bottom.

295

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

Checking / adjusting tyre
pressures

You can also use the compressor without
injecting any product, to check and if necessary
adjust your tyre pressures.

F Turn the selector A to the "Air"

position.

Connect the compressor's electrical

connector to the vehicle's 12 V socket.

Start the vehicle and let the engine run.

Adjust the pressure using the compressor

(to inflate: switch B in position "I"; to
deflate: switch B in position "O" and press
button C

), according to the vehicle's tyre

pressure label.

Remove the kit then stow it.

Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
For more information on Under-
inflation detection, refer to the
corresponding section.

Uncoil the black pipe H fully.

Connect the black pipe to the tyre valve.

296

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

Changing a wheel

The tools are stowed in the tool box.

Access to the tooling

Wheelbrace.

For removing the wheel bolts and raising/
lowering the jack.

Jack.

For raising the vehicle.

Wheel bolt cap/wheel trim removal tool.

If your vehicle is so equipped, for removing
the wheel bolt head covers on alloy wheels
or the central wheel trim on steel wheels.

Socket for the security bolts.

For adapting the wheelbrace to the special
"security" bolts.

Towing eye.

For more information on Towing, refer
to the corresponding section.

The jack must only be used to change a
wheel with a damaged tyre.
The jack does not require any
maintenance.

The jack conforms to European
legislation, such as defined in the
Machinery Directive 2006/42/CE.

List of tools

These tools are specific to your vehicle and can
vary according to the level of equipment. Do
not use them for other purposes.

For more information on the Tool box,
refer to the corresponding section.

297

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

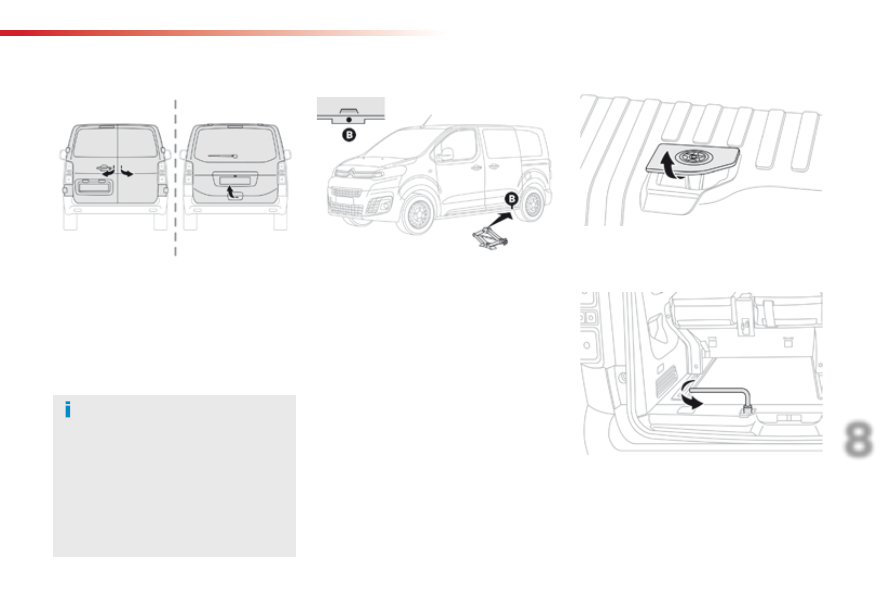

Access to the spare wheel is from the rear.

Open the side-hinged rear doors or the

tailgate, according to the configuration of
your vehicle.

F Access the carrier bolt, located on the rear

door sill.

Turn the bolt anti-clockwise using the

wheelbrace (about 14 turns) until the
carrier is low enough to allow the carrier
hook to be disengaged.

Access to the spare wheel

F If your vehicle is fitted with a towbar, raise

the rear of the vehicle using the jack (must
be at jacking point B) to allow sufficient
space to remove the spare wheel.

Removing

To avoid any unwanted opening of the
electric side door(s), deactivate the
"Hands-Free Access" function in the
vehicle configuration menu.
For more information on the Hands-
free sliding side door, refer to the
corresponding section.

298

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

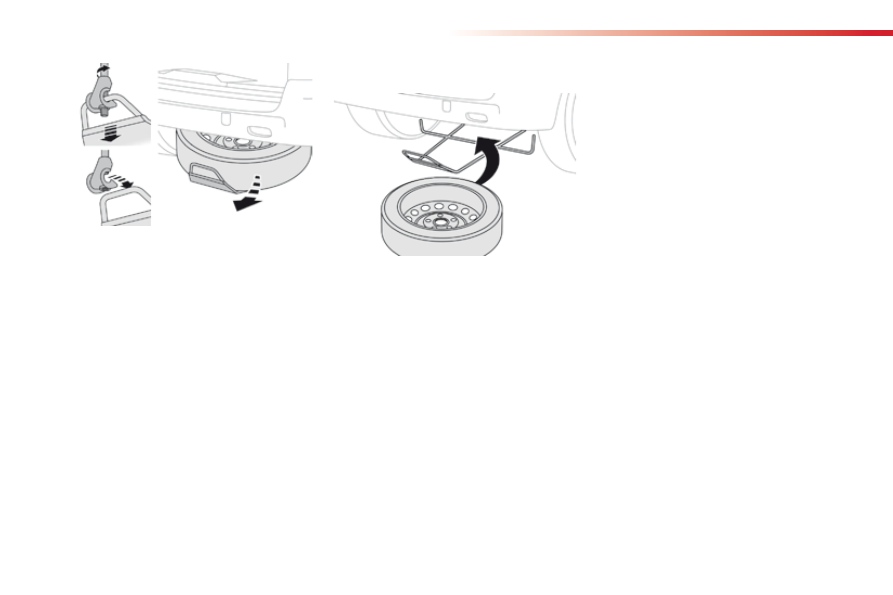

Release the carrier from the hook, take the

spare wheel and place it next to the wheel
to be changed.

Refitting

Position the wheel facing the carrier.

Progressively return the wheel to the

basket by pushing alternately at left and
right until it is clear of the hook fixing area.

Engage the carrier on the hook, then

tighten the bolt using the wheelbrace until
the basket is fully home.

299

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

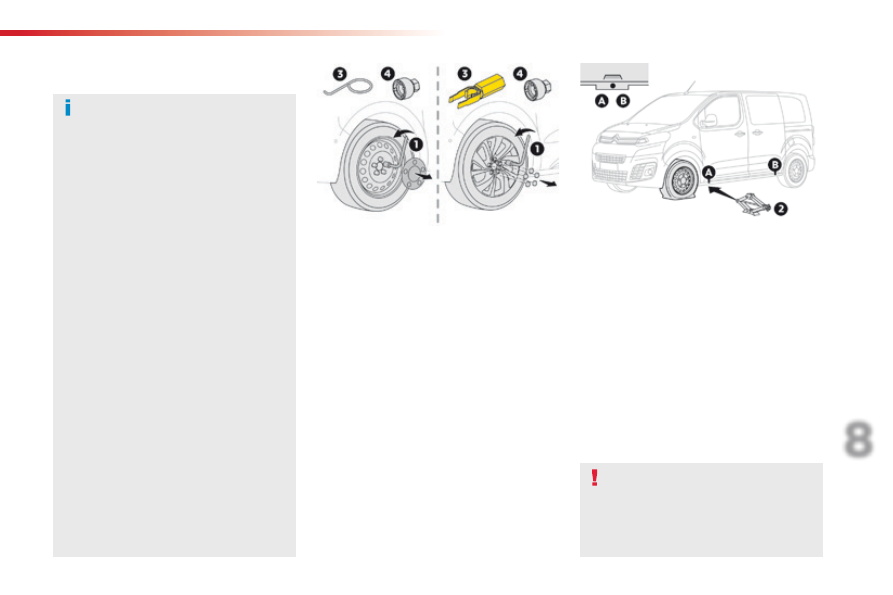

F If your vehicle has steel wheels, remove

the wheel trim using tool 3.

F If your vehicle has alloy wheels, remove

the cap from each wheel bolt using tool 3.

F If your vehicle has security wheel bolts,

fit the security bolt socket 4 to the
wheelbrace 1

to slacken the security bolt.

F Slacken

(without removing) the other

wheel bolts using just the wheelbrace 1.

Position the foot of the jack on the ground,

ensuring that it is directly below the
vehicle's jacking point A or B, the one
closest to the wheel to be changed.

Removing a wheel

Parking the vehicle

Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and not slippery.

Do not use:
- the jack for any other purpose than

lifting the vehicle,

- a jack other than the one supplied

by the manufacturer.

If your vehicle has a manual gearbox,
engage first gear then switch off the
ignition to block the wheels.

If your vehicle has an automatic
gearbox, place the gear selector at
position P

then switch off the ignition to

block the wheels.

If your vehicle has an electronic
gearbox, place the gear selector at
position A

then switch off the ignition to

block the wheels.

Apply the parking brake and check that
the warning lamp is on in the instrument
panel.
The occupants must get out of the
vehicle and wait where they are safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.

300

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

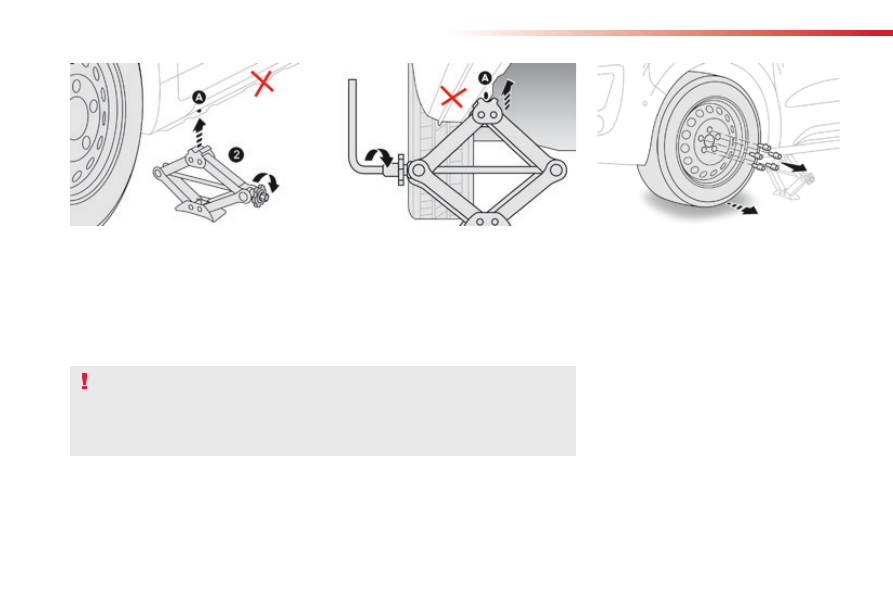

Ensure that the jack is stable. If the ground is slippery or loose, the jack may slip or drop -
Risk of injury!
Ensure that the jack is positioned only at one of the jacking points A or B under the vehicle,
making sure that the vehicle's contact surface is centred on the head of the jack. Otherwise
there is a risk of damage to the vehicle and/or of the jack dropping - Risk of injury!

F Remove the bolts and store them in a clean

place.

Remove the wheel.

Extend the jack 2, using the hand wheel, until its head comes into contact with the jacking

point A or B used, with the contact surface A or B

on the vehicle correctly engaged with the

central part of the head of the jack.

Raise the vehicle using the wheelbrace 1, until there is sufficient space between the wheel and

the ground to admit the spare (not punctured) wheel easily.

301

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

Fitting a wheel

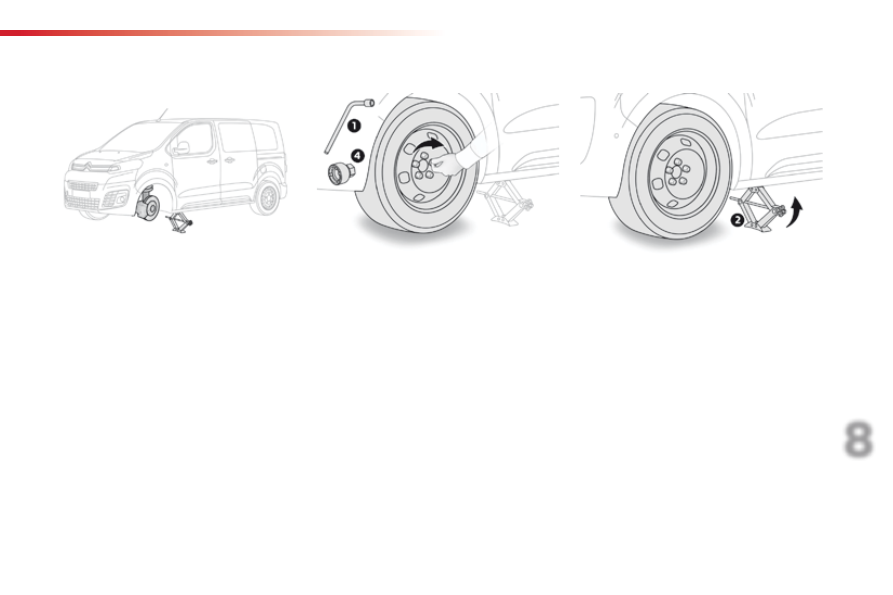

Put the wheel in place on the hub.

Screw in the bolts fully by hand.

F If your vehicle is so equipped, pre-tighten

the security bolt using the wheelbrace 1
fitted with the security socket 4.

F Pre-tighten

the other bolts using the

wheelbrace 1

only.

Lower the vehicle fully.

Fold the jack 2 and detach it.

302

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

If your vehicle is so equipped, tighten the

security bolt using the wheelbrace 1 fitted
with the security socket 4.

F Tighten

the other bolts using the

wheelbrace 1

only.

Stow the tools in the tool box.

The tyre inflation pressures are given on this
label.

After changing a wheel

Stow the punctured wheel in the carrier.
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a CITROËN dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.

If your vehicle has tyre under-inflation
detection, check the tyre pressures and
reinitialise the system.

Tyre under-inflation

detection

The steel spare wheel does not have a
sensor.

Wheel with wheel trim

When refitting the wheel, refit the
wheel trim by placing its cut-out at the
valve, and press round its edge with the
palm of your hand.

For more information on Under-
inflation detection, refer to the
corresponding section.

Content .. 17 18 19 20 ..
