Citroen Jumpy (2016 year). Manual

The gear shift indicator invites you to engage
the most suitable gear: as soon as the
indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an electronic or
automatic gearbox, this indicator appears only
in manual mode.

Drive smoothly

Maintain a safe distance between vehicles, use
engine braking rather than the brake pedal,
and press the accelerator progressively. These
practices contribute towards a reduction in fuel
consumption and CO

emissions and also help

to reduce the background traffic noise.

If your vehicle has cruise control, make use of
the system at speeds above 25 mph (40 km/h)
when the traffic is flowing well.

Control the use of your
electrical equipment

Switch off the demisting and defrosting controls,
if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps
when the level of light does not require
their use.

Avoid running the engine before moving off,
particularly in winter; your vehicle will warm up
much faster while driving.

As a passenger, if you avoid connecting
your multimedia devices (film, music, video
game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before
leaving the vehicle.

Before moving off, if the passenger compartment is
too warm, ventilate it by opening the windows and
air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and
leave the air vents open.
Remember to make use of equipment that can
help keep the temperature in the passenger
compartment down (sunroof and window blinds...).
Switch off the air conditioning, unless it has
automatic regulation, as soon as the desired
temperature is attained.

Eco-driving

Jumpy_en_Chap00c_eco-conduite_ed01-2016

Limit the causes of excess
consumption

Spread loads throughout the vehicle; place the
heaviest items in the bottom of the boot, as
close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce
wind resistance (roof bars, roof rack, bicycle
carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit
your summer tyres.

Observe the recommendations
on maintenance

Check the tyre pressures regularly, when cold,
referring to the label in the door aperture,
driver's side.
Carry out this check in particular:
-  before a long journey,
-  at each change of season,
-  after a long period out of use.
Don't forget the spare wheel and the tyres on
any trailer or caravan.

Have your vehicle serviced regularly (engine
oil, oil filter, air filter, passenger compartment
filter...) and observe the schedule of operations
recommended in the manufacturer's service
schedule.

With a BlueHDi Diesel engine, if the SCR
system is faulty your vehicle becomes polluting;
go to a CITROËN dealer or a qualified
workshop without delay to have the emissions
of nitrogen oxides brought back to the legal
level.

When refuelling, do not continue after the third
cut-off of the nozzle to avoid any overflow.

At the wheel of your new vehicle, it is only after
the first 1 800 miles (3 000 kilometres) that you
will see the fuel consumption settle down to a
consistent average.

Instruments

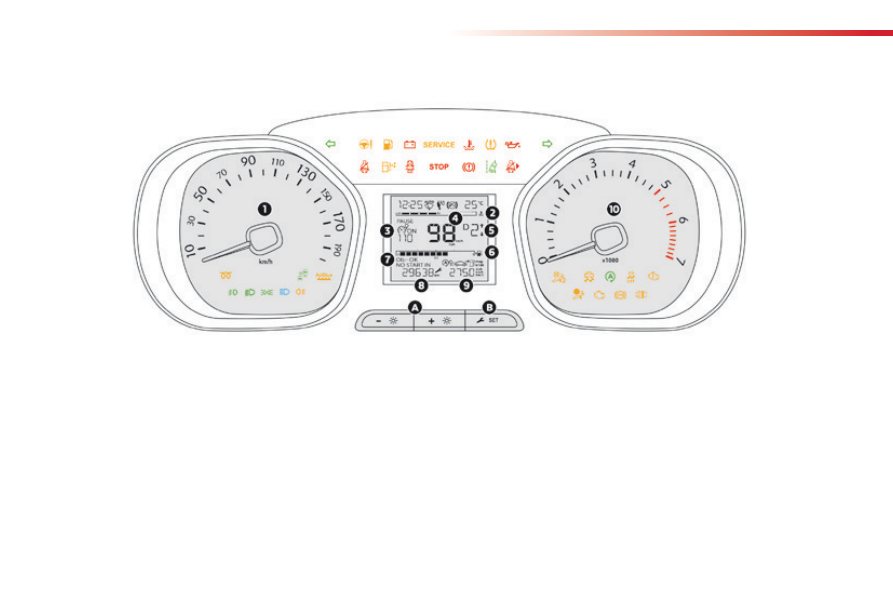

LCD instrument panel

Analogue speedometer (mph or km/h).

Engine coolant temperature gauge.

Cruise control or speed limiter settings.

Digital speedometer (mph or km/h).

Gear shift indicator.

Gear with an automatic or electronic
gearbox.

Main lighting dimmer.

Service indicator reset.

If fitted to your vehicle, trip recorder reset.

Date and time adjustment.

Instantaneous information on:
- servicing,
- remaining driving range with the

emissions control fluid (AdBlue

Fuel gauge.

Engine oil level indicator.

8. Service indicator, then total distance

recorder (miles or km).

These functions are displayed in turn when
the ignition is switched on.

Trip recorder (miles or km).

10.

Rev counter (x 1 000 rpm or tr/min).

Dials and screens

Control buttons
