Citroen Jumper (2016 year). Manual - part 12

175

TECHNICAL

Dimensions

jumper_en_Chap09_Caracteristiques-Techniques_ed01-2015

SIdE dOOr

Height of the sliding side door

1 485

1 755

1 485

1 755

Width of the sliding side door

1 075

1 250

176

Dimensions

jumper_en_Chap09_Caracteristiques-Techniques_ed01-2015

cOMBI

L1H1

L2H2

751

872

1 201

1 322

1 201

1 743

1 651

2 193

860

Diesel engines

177

TECHNICAL

jumper_en_Chap09_Caracteristiques-Techniques_ed01-2015

Quality of the fuel used for diesel engines

The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (Diesel fuel which
complies with standard En 590 mixed with a biofuel which complies with standard En 14214) available at the pumps (containing up
to 5% Fatty Acid Methyl Ester).

EnGInES And GEArBOxES

diesel engine

2.0 litre BlueHdi 110

S&S

2.0 litre BlueHdi 130

S&S

2.0 litre BlueHdi 160

S&S

2.0 litre Hdi 160

Gearbox

Manual

(6-speed)

Maximum power (hp)

110

130

160

EU standard maximum power (kW)

118

120

Cubic capacity (cc)

1 997

Bore x stroke (mm)

85 x 88

Maximum power engine speed (rpm)

3 500

3 750

EU standard maximum torque (nm)

300

340

350

340

Maximum torque engine speed (rpm)

1 500

1 750

2 000

Fuel

Diesel

Catalytic converter

Yes

Particle filter

Yes

Engine oil capacity (in litres)

after draining and replacing the filter

6.6

5.25

Diesel engines

178

jumper_en_Chap09_Caracteristiques-Techniques_ed01-2015

diesel engine

2.2 litre Hdi 110

2.2 litre Hdi 130

2.2 litre e-Hdi 130

2.2 litre Hdi 150

2.2 litre e-Hdi 150

3 litre Hdi 180

Gearbox

Manual

(6-speed)

Maximum power (hp)

110

120

130

150

180

EU standard maximum power (kW)

110

130

Cubic capacity (cc)

2 198

2198

2 999

Bore x stroke (mm)

86 x 94.6

95.8 x 104

Max power engine speed (rpm)

3 500

3 600

EU standard max torque (nm)

250

320

400

Max torque engine speed (rpm)

1 500

2 000

1 400

Fuel

Diesel

Catalytic converter

Yes

Particle filter

Yes

Engine oil capacity (in litres)

after draining and replacing the oil filter

6.2

6.4

6.2

The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing conditions
given in the maintenance and warranty guide. Contact a CiTroën dealer or a qualified workshop.

The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the
engine and fuel system).

Weights

179

TECHNICAL

jumper_en_Chap09_Caracteristiques-Techniques_ed01-2015

WEIGHtS And tOWEd LOAdS

refer to your registration certificate and the vehicle's chassis plate.

in each country, it is imperative that the towed loads permitted by local legislation are complied with. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a CiTroën dealer.
The maximum authorised speed is reduced when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle, to protect the engine. When the ambient
temperature is higher than 37 °C, limit the weight towed.
These tables present the type-approved weights (in kg) according to the vehicle model and dimensions.

Load transfer

it is possible, if the towing vehicle has not reached its maximum permitted weight (the Gross Vehicle Weight or GVW), it is possible to transfer this weight to the trailer.

in all cases, do not exceed the trailer weight or the maximum weight for the vehicle plus trailer (the Gross Train Weight or GTW) indicated.

observe the towing limits of your vehicle.

Minibus

dimensions

Model name

GVW

unbraked trailer

recommended nose weight

L3 H2

440

4 005

L4 H2

442

4 250

combi 5-6 seat

dimensions

Model name

GVW

unbraked trailer

recommended nose weight

L1 H1

3 000

750

100

3 300

750

100

L2 H2

3 300

750

100

435

3 500

750

120

combi 7-8-9 seat

dimensions

Model name

GVW

unbraked trailer

recommended nose weight

L1 H1

3 150

750

100

L2 H2

3 300

750

100

Weights

180

jumper_en_Chap09_Caracteristiques-Techniques_ed01-2015

Van

dimensions

Model name

GVW

unbraked trailer

recommended nose weight

L1 H1

2 800

750

100

3 000

750

100

3 300

750

100

3 500

750

100

435

3 500

750

120

440

4 005

750

120

L1 H2

3 000

750

100

3 300

750

100

3 500

750

100

L2 H1

3 000

750

100

3 300

750

100

3 500

750

100

435

3 500

750

120

L2 H2

3 000

750

100

3 300

750

100

3 500

750

100

435

3 500

750

120

440

4 005

750

120

Weights

181

TECHNICAL

jumper_en_Chap09_Caracteristiques-Techniques_ed01-2015

Van

dimensions

Model name

GVW

unbraked trailer

recommended nose weight

L3 H2

3 300

750

100

3 500

750

100

435

3 500

750

120

440

4 005

750

120

L3 H3

3 300

750

100

3 500

750

100

435

3 500

750

120

440

4 005

750

120

L4 H2

435

3 500

750

120

440

4 005

750

120

L4 H3

435

3 500

750

120

440

4 005

750

120

Vehicle identification

182

jumper_en_Chap09_Caracteristiques-Techniques_ed01-2015

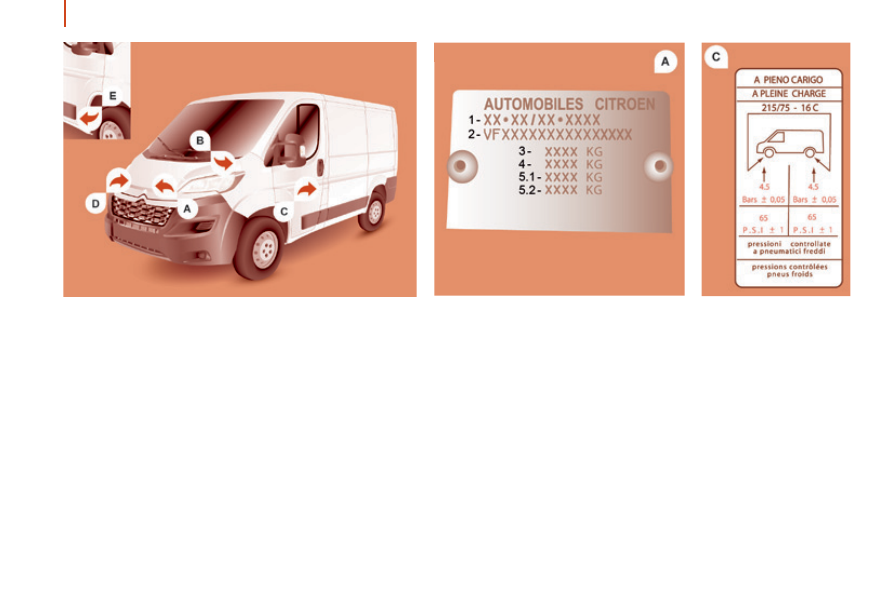

IdEntIFIcAtIOn MArKInGS

A. Manufacturer's plate

This plate is located on the front bumper
crossmember, under the bonnet.

1 - European whole vehicle type approval number.

2 - VF... Type and serial number.

3 - Gross vehicle weight (GVW).

4 - Gross train weight (GTW).

5.1 - Maximum weight on front axle.

5.2 - Maximum weight on rear axle.

B. Serial number on the

bodywork

d. Paint code

The paint code is located on the front
bumper crossmember, under the bonnet.

c. tyres

The label (image given as an indication only)
affixed to the vehicle's door pillar, on the
driver's side, indicates:
-

the tyre sizes,

the tyre pressures when laden.

E. Serial number on the

bodywork

This number is located under the plastic
cover, at the sill on the right-hand side.

the tyre pressures must be checked cold,
at least monthly.

Touch Screen Audio - Telematic System

183

AUDIO

and

TELEMA

TICS

jumper_en_Chap10a_Autoradio-Fiat-tactile-1_ed01-2015

Touch screen Audio-Telematic system

Multimedia audio system - Bluetooth

telephone - GPS navigation

Contents

First steps

184

Glossary 185
Steering mounted controls

186

Menus 187
radio 188
DAB (Digital Audio Broadcasting) radio

192

Media 194
navigation 202
Telephone 206
Vehicle information

210

Settings 212
Voice commands

222

The system is protected in such a way that it will only operate in
your vehicle.

As as safety measure, the driver must only carry out operations
which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of
the battery, the system switches off following the activation of
the energy economy mode.

Touch Screen Audio - Telematic System

184

jumper_en_Chap10a_Autoradio-Fiat-tactile-1_ed01-2015

First steps

Use the buttons arranged below the touch
screen for access to the main menus, then
press the virtual buttons in the touch screen.

in very hot conditions, the volume
may be limited to protect the system.
return to the initial situation take place
once the temperature in the passenger
compartment drops.
The system may also go into standby
(screen and sound completely off) for a
minimum period of 5 minutes.

Touch Screen Audio - Telematic System

185

AUDIO

and

TELEMA

TICS

jumper_en_Chap10a_Autoradio-Fiat-tactile-1_ed01-2015

Screen off / on.

Activate, deactivate, adjust certain
system and vehicle functions.

Eject CD.

Mute / restore volume (mute / pause).

Abandon the current operation.
Go up one level (menu or folder).

Press: on / off.
Rotate: adjust the volume
(each source is independent).

Radio, rotate: search for a radio
station.
Media, rotate: select the previous /
next track.
Press: confirm the option displayed in
the screen.

The screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple wipe
will not be enough. pressing with more
than one finger is not recognised.
The screen can be used when wearing
gloves. This technology allows use at
all temperatures.

To clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.

Glossary

Menu

item

Significance / corresponding

action

VoLUME

Adjust the volume by rotation.

rADio

Access the radio menu.

MEDiA

Access the media menu and the
different audio sources.

nAV

Access the navigation menu.

PHonE

Access the telephone menu.

Access vehicle information.

BroWSE
TUnE
SCroLL

Turn the button to:
-

move in a menu or a list.

select a radio station.

EnTEr

Confirm an option displayed in
the screen by pressing.

Touch Screen Audio - Telematic System

186

jumper_en_Chap10a_Autoradio-Fiat-tactile-1_ed01-2015

Steering mounted controls

Pause / restore the CD, USB/iPod,
Bluetooth

sources.

Mute / restore sound from the radio.
Switch the microphone off / on during
a telephone call.

Switch voice recognition on.
interrupt a voice message to start a
new voice command.
interrupt voice recognition.

Push up or down: increase or
decrease the volume for voice
announcements and music sources,
hands-free and speaking texts.

Accept an incoming call.
Accept a second incoming call and
put the current call on hold.
Switch on voice recognition for the
telephone function.
interrupt a voice message to issue
another voice command.
interrupt voice recognition.

Radio, push up or down: select the
next / previous station.
Radio, hold up or down: sweep
frequencies up / down until the button
is released.
Media, push up or down: select the
next / previous track.
Media, hold up or down: fast forward /
back until the button is released.

reject the incoming call.
End the call in progress.

Touch Screen Audio - Telematic System

187

AUDIO

and

TELEMA

TICS

jumper_en_Chap10a_Autoradio-Fiat-tactile-1_ed01-2015

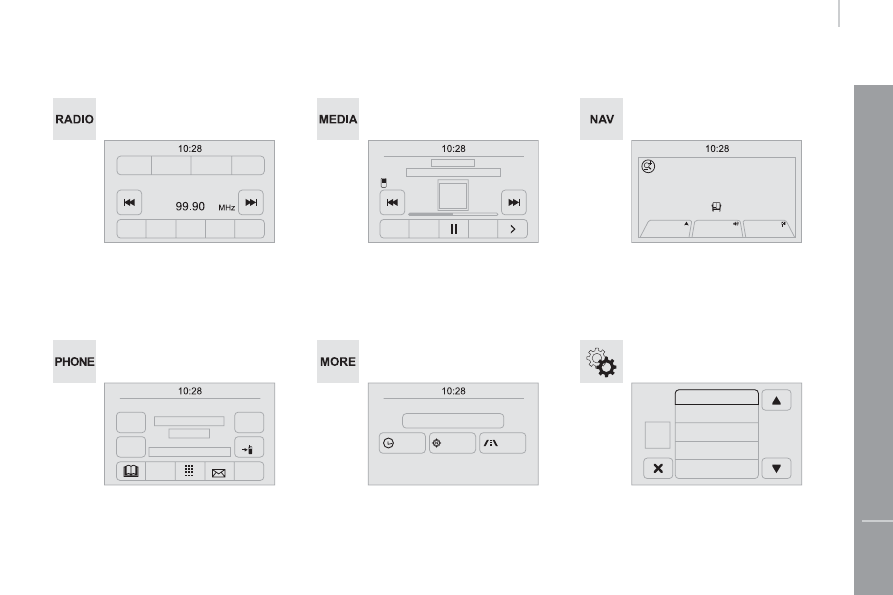

Menus

navigation

Media

radio

Settings

telephone

Vehicle information

Settings for the navigation system and select a
destination.

Select from the different music sources.
Activate, deactivate, and adjust certain
functions.

Select from the different radio sources.
Activate, deactivate, and adjust certain
functions.

Activate, deactivate, and adjust certain
functions.

Connect a mobile telephone via Bluetooth

Access to the ambient temperature, the clock,
the compass and the trip computer.

Touch Screen Audio - Telematic System

188

jumper_en_Chap10a_Autoradio-Fiat-tactile-1_ed01-2015

radio

Level 1

Level 2

Level 3

Touch Screen Audio - Telematic System

189

AUDIO

and

TELEMA

TICS

jumper_en_Chap10a_Autoradio-Fiat-tactile-1_ed01-2015

Level 1

Level 2

Level 3

comment

rAdIO

Briefly press the buttons for an automatic search.
Press and hold the buttons for a quick search.

rAdIO

Preset

Make a long press on the button to present the
current radio station.
The current station is highlighted.
Press the "All" button to display all of the preset
radio stations in the waveband selected.

rAdIO

navigate

List of stations

Selection a station with a press.

Update the list according to reception.

Press these buttons to scroll through the radio
stations received.

Go directly to the desired letter in the list.

rAdIO

AM/FM/dAB

choose the waveband

Choose the waveband

rAdIO

Adjustment

direct adjustment

The screen virtual keypad can used to enter a
single number corresponding to a station.

The symbols allow precise adjustment of the
frequency.

rAdIO

Info

Information

Display information on the current radio station.

Touch Screen Audio - Telematic System

190

jumper_en_Chap10a_Autoradio-Fiat-tactile-1_ed01-2015

Level 1

Level 2

Level 3

Content .. 10 11 12 13 ..
