Labels are applied at various points on your vehicle. They

carry safety warnings as well as vehicle identification

information. Do not remove them: they form an integral part

of your vehicle.

Automobiles CITROËN declares, by application of the

provisions of the European legislation (Directive 2000/53)

relating to End of Life Vehicles, that it achieves the

objectives set by this legislation and that recycled materials

are used in the manufacture of the products that it sells.

Printed in the EU

Anglais

For any work on your vehicle, use a qualified workshop

that has the technical information, skills and equipment

required, all of which a CITROËN dealer is able to provide.

Reproduction or translation of all or part of this document

is prohibited without written authorisation from Automobiles

CITROËN.

We draw your attention to the following points:
- The fitting of electrical equipment or accessories not

listed by CITROËN may cause faults and failures

with the electrical system of your vehicle. Contact

a CITROËN dealer for information on the range of

recommended accessories.

- As a safety measure, access to the diagnostic socket,

used for the vehicle's electronic systems, is reserved

strictly for CITROËN dealers or qualified workshops,

equipped with the special diagnostic tool required (risk

of malfunctions of the vehicle's electronic systems that

could cause breakdowns or serious accidents). The

manufacturer cannot be held responsible if this advice is

not followed.

- Any modification or adaptation not intended or

authorised by Automobiles CITROËN or carried out

without meeting the technical requirements defined by

the manufacturer would lead to the suspension of the

legal and contractual warranties.

On-line handbook

If the "MyCITROËN" function is not available on the CITROËN public website for your country, you

can fi nd your handbook at the following address:
http://service.citroen.com/ddb/

Find your handbook on the CITROËN website, under "MyCITROËN".

Select:

Select one of the following means of access to

view your handbook on-line...

This personal and customisable space allows you to establish direct and special contact with the

manufacturer.

the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of your vehicle.

Scan this code for direct access to your handbook.

Referring to the handbook on-line also gives you

access to the latest information available, easily

identifi ed by the bookmark, associated with this

symbol:

Audio and Telematics

7-inch touch screen tablet

GPS satellite navigation - Multimedia audio - Bluetooth

telephone

Contents

First steps

Steering mounted controls

Menus 5
Navigation 6
Navigation - Guidance

Traffi c

Radio Media

Radio 26
DAB (Digital Audio Broadcasting) radio

Media 30
Settings 34
Connected services

Internet browser

MirrorLink

CarPlay

Telephone 54
Frequently asked questions

The system is protected in such a way that it will only operate in
your vehicle.

As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
The display of the energy economy mode message signals
that the electrical equipment currently operating is going into
standby.
Refer to the energy economy mode section of your vehicle's
handbook.

Audio and Telematics

With the engine running, press to
mute the sound.
With the ignition off, press to switch
the system on.

Volume adjustment (each source
is independent, including traffic
announcements (TA) and navigation
instructions).

Select the audio source (depending on
version):
-

FM / DAB / AM * stations.

USB memory stick.

CD player (located in front panel).

Smartphone via MirrorLink

or CarPlay

Telephone connected by Bluetooth * and
using Bluetooth * audio streaming.

Media player connected to the auxiliary
socket (jack, cable not supplied).

- Jukebox

* , after first copying audio files to

the internal memory of the system.

AM and DAB are not available on
Hybrid4 vehicles.

* Depending on equipment.

Short-cuts: using the virtual buttons in the
upper band of the touch screen tablet, it is
possible to go directly to the selection of audio
source, the list of stations (or titles, depending
on the source).

The screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple wipe
will not be enough. Pressing with more
than one finger is not recognised.
The screen can be used when wearing
gloves. This technology allows use at
all temperatures.

In very hot conditions, the volume may
be limited to protect the system. The
return to normal takes place when
the temperature in the passenger
compartment drops.

To clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.

Steering mounted controls

Media: change the multimedia
source.
Telephone: call.
Call in progress: access to the
telephone menu (end call, secret
mode, hands-free mode).
Telephone, press and hold: reject an
incoming call, end a call; when there
is no call in progress, access to the
telephone menu.
CarPlay

or MirrorLink

, press and

hold: start voice recognition on your
smartphone via the system.

Decrease volume.

Radio, rotate: automatic search for
the previous / next station.
Media, rotate: previous / next track.
Press: confirm a selection.

Radio: display the list of stations.
Media: display the list of tracks.
Radio, press and hold: update the list
of stations received.

Increase volume.

Audio and Telematics

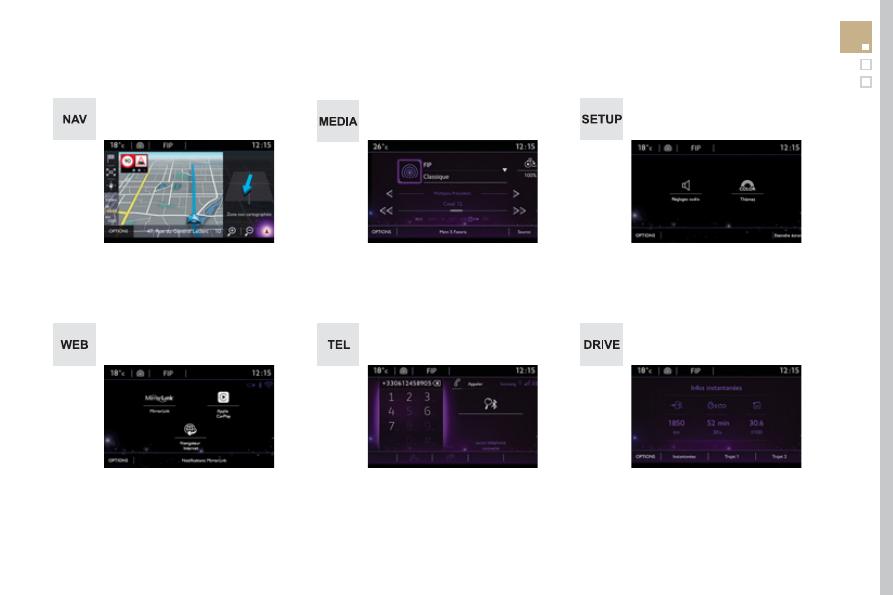

Menus

Settings

Radio Media

Navigation

Driving

Connected services

Telephone

Adjust the settings for sound (balance,
ambience, ...), colour schemes and the display
(language, units, date, time, ...).

Select an audio source, a radio station, display
photographs.

Enter navigation settings and choose a
destination.

Access to the trip computer.
Activate, deactivate or enter settings for certain
vehicle functions.

Connect using the "Internet browser".
Operate certain applications on your
smartphone via MirrorLink

or CarPlay

Connect a telephone by Bluetooth

Access to the CarPlay

function after

connection of your smartphone by USB cable.

(Depending on equipment)

Audio and Telematics

Level 1

Level 2

Level 3

Comments

Navigation

Settings

Navigation

Enter destination

Display recent destinations

Route settings

Fastest

Choose the navigation criteria.
The map displays the route chosen according to
these criteria.

Shortest

Time/distance

Ecological

Tolls

Ferries

Traffic

Close - Strict

Show route on map

Display the map and start navigation.

Confirm

Save the options.

Save current location

Save the current address.

Stop navigation

Delete the navigation information.

Voice synthesis

Choose the volume for voice and announcement
of street names.

Diversion

Detour from your initial route by a determined
distance.

Navigation

Display in text mode

Zoom in.

Zoom out.

Display in full screen mode.
Use the arrows to move the map.

Switch to 2D map.

Level 1

Level 2

Level 3

To use the telephone functions,
refer to the " Telephone " section.

For managing contacts and
their addresses, refer to the
" Telephone " section.

Navigation

Address

Enter destination

Contacts

Audio and Telematics

Level 1

Level 2

Level 3

Comments

Navigation

Secondary page

Enter destination

Address

Current loc.

Address settings

Point of interest

Town center

Save

Save the current address.

Add waypoint

Add a waypoint to the route.

Navigate to

Press to calculate the route.

Contacts

Addresses

Select a contact then calculate the route.

View

Navigate to

Search for contact

Call

On the map

Display the map and zoom to view the roads.

Itinerary

Create, add or delete a waypoint or view the
itinerary.

Stop

Delete navigation information.

Navigate to

Press to calculate the route.

Search for a point of interest

Navigation

Point of interest displayed on the map

Level 1

Level 2

Level 3
