Citroen DS4 (2017 year). Manual

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

With the engine running, the front seats can be
heated separately.

Heated seats control

Do not use the function if the seat is not
occupied.
Reduce the level of heating as soon as
possible.
Once the seat and passenger
compartment are at a comfortable
temperature, you can switch off the
function; reducing electric current
consumption also reduces fuel
consumption.

Prolonged use at the highest setting
is not recommended for those with
sensitive skin.
There is a risk of burns for those that
do not have normal perception of heat
(illness, taking medicines, ...).
There is a risk of overheating the
system if material with insulating
properties is used, such as cushions or
seat covers.
Do not use the system:
-  if wearing damp clothing,
-  if child seats are fitted.
To avoid breaking the heating element
in the seat:
-  do not place heavy objects on the

seat,

- do not kneel or stand on the seat,
- do not place sharp objects on the

seat,

- do not spill liquids onto the seat.
To avoid the risk of short-circuit:
- do not use liquid products for

cleaning the seat,

- never use the heating function

when the seat is damp.

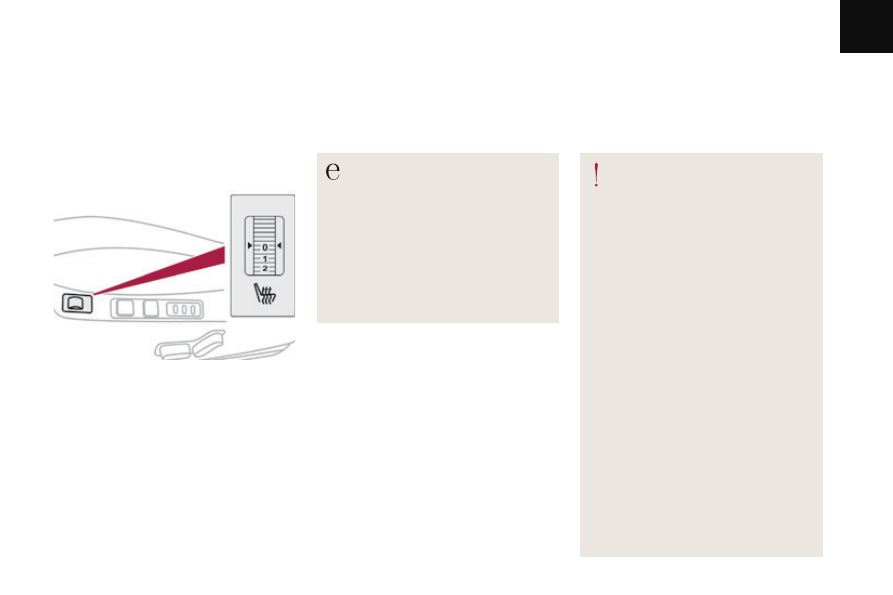

Use the adjustment dial, placed on the side

of each front seat, to switch on and select
the level of heating required:

: Off.

: Low.

: Medium.

: High.

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

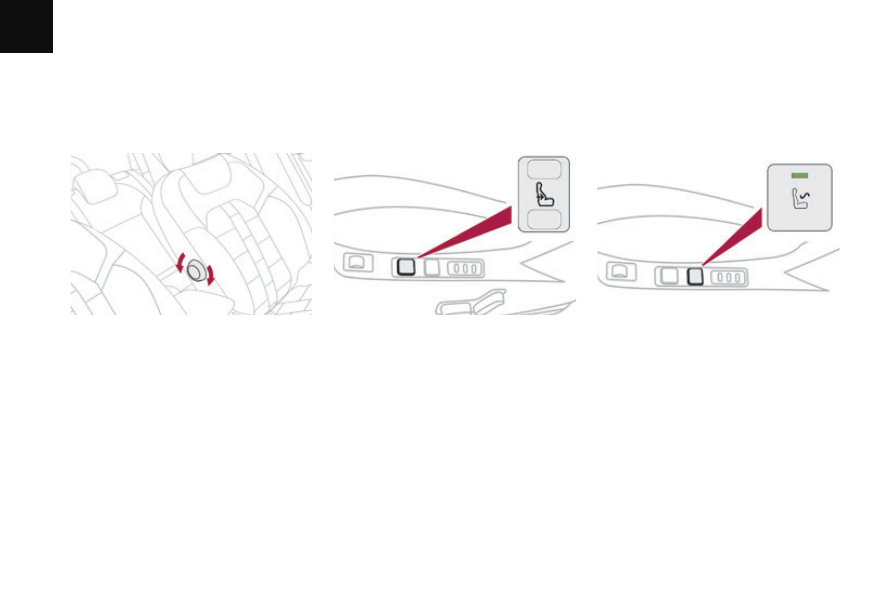

Turn the knob to obtain the desired level of

lumbar support.

F Press the front or rear of the control to

obtain the desired lumbar support.

Press the switch to activate the function.

The warning lamp on the switch comes on and

the massage function is activated for a period

of 60 minutes. During this time, massage is

performed in 6 cycles of 10 minutes each cycle

(6 minutes of massage followed by 4 minutes

break).

After an hour, the function is automatically

deactivated. The warning lamp in the switch

goes off.

Deactivation

You can deactivate the massage function at
any time by pressing the switch. The movement
in progress continues until the initial non-
massage position is reached.

Massage function

Manual lumbar adjustment

Electric lumbar adjustment

This function provides a back massage; it only

operates when the engine is running.

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

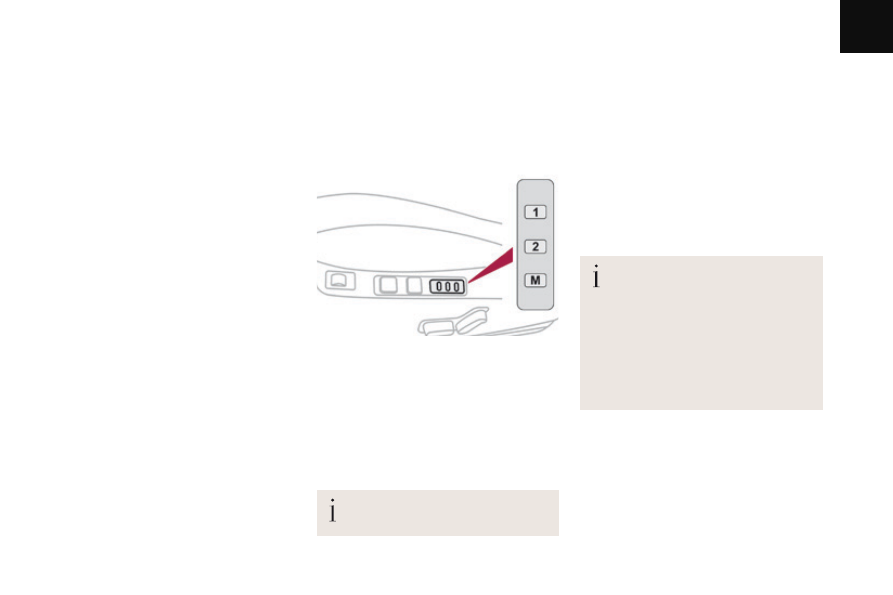

Storing driving positions

System which registers the electrical settings
of the driver's seat and door mirrors. It enables
you to store and recall two positions using the
buttons on the side of the driver's seat.

Storing a position

Switch on the ignition.

Adjust your seat and the door mirrors.

F Press button M, then press button 1 or 2

within four seconds.

An audible signal indicates that the position
has been stored.

Recalling a stored position
Ignition on or engine running

F Press button 1 or 2 to recall the

corresponding position.

An audible signal confirms that adjustment
is complete.

Storing a new position cancels the
previous position.

You can interrupt the current movement
by pressing button M, 1 or 2 or by using
one of the seat controls.
A stored position cannot be recalled
while driving.
Recalling stored positions is
deactivated 45 seconds after switching
off the ignition.

Using buttons M / 1 / 2

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

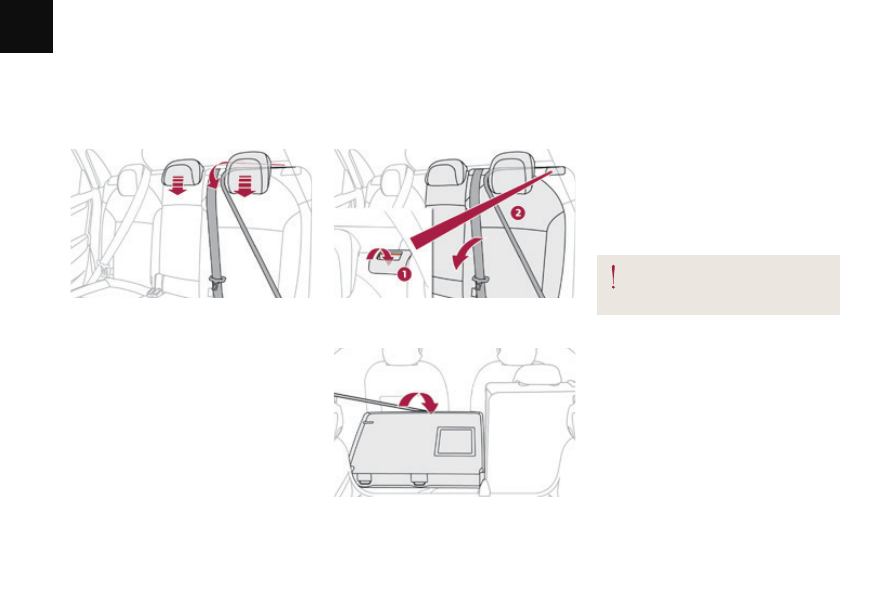

Rear seats

Bench seat with fixed one-piece cushion and split backrests (1/3 - 2/3) which can be folded individually to adapt the load space in the boot.

Move the corresponding front seat forward

if necessary.

F Position the seat belt between the outer

and centre head restraints to avoid
trapping the belt when repositioning the
seat backrest.

Place the head restraints in the low

position.

Folding the backrest

F Pull control 1

forwards to release the seat

back 2.

Straighten the seat back 2 and secure it.

Check that the red indicator, located next to

the control 1

, is no longer visible.

Put the seat belt back in place on the side

of the seat backrest.

Repositioning the seat backrest

When repositioning the seat backrest,
take care not to trap the seat belts.

Fold the seat back 2 on to the cushion.

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

These have one position for use (up) and a
stowed position (down).
They can also be removed.
To remove a head restraint:
F

release the backrest using control 1,

tilt the backrest 2 slightly forwards,

pull the head restraint upwards to the stop,

Rear head restraints

Never drive with the head restraints
removed; they must be in place and
correctly adjusted.

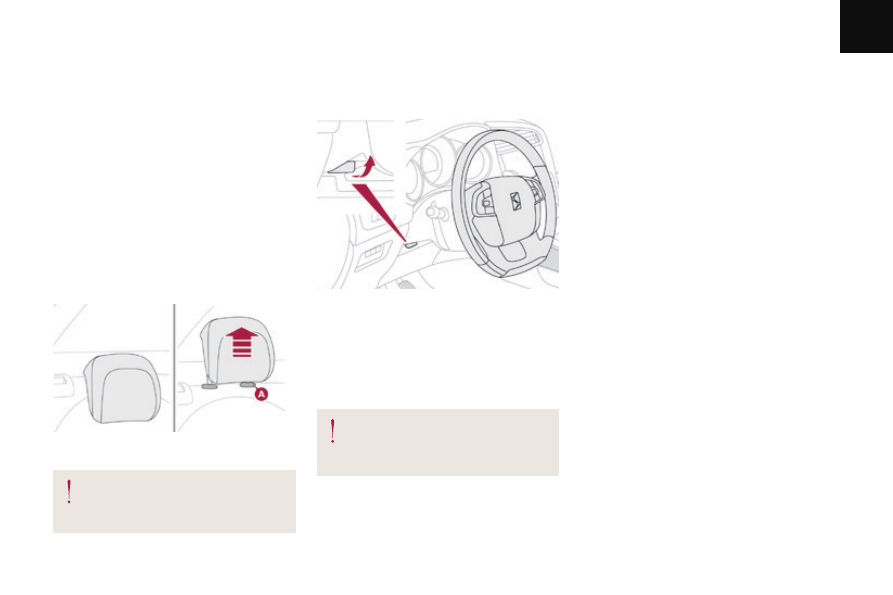

Steering wheel adjustment

F When stationary, pull the control lever to

release the adjustment mechanism.

Adjust the height and reach to suit your

driving position.

Push the control lever to lock the

adjustment mechanism.

As a safety measure, these
adjustments should only be carried out
with the vehicle stationary.

then, press the lug A.

100

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

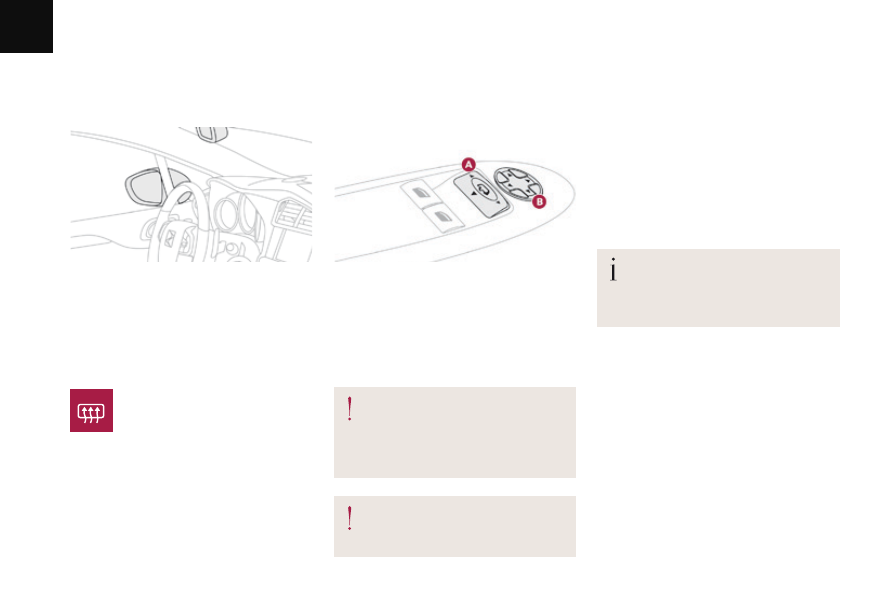

Mirrors

Each fitted with an adjustable mirror glass
permitting the lateral rearward vision necessary
for overtaking or parking.
They can also be folded for parking in confined
spaces.

Demisting / Defrosting

F Move control A

to the right or to the left to

select the corresponding mirror.

F Move control B

in all four directions to

adjust.

F Return control A

to the central position.

Door mirrors

As a safety measure, the mirrors
should be adjusted to reduce the blind
spots.

Folding

From outside: lock the vehicle using the

remote control or the key.

From inside: with the ignition on, pull the

control A

in the central position rearwards.

If the mirrors are folded using control A,
they will not unfold when the vehicle is
unlocked. Pull again on control A.

If your vehicle is fitted with heated
mirrors, the demisting-defrosting
operates by switching on the heated
rear screen.

The rear screen demist - defrost can only
operate when the engine is running.

The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.

Adjustment

For more information on Demisting and
defrosting the rear screen, refer to the
corresponding section.

101

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

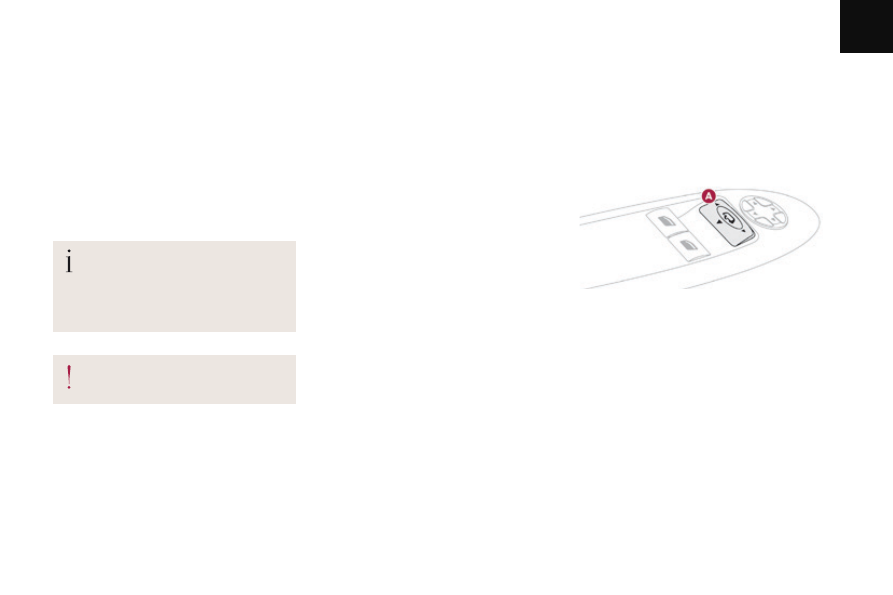

Unfolding

From outside: unlock the vehicle using the

remote control or the key.

From inside: with the ignition on, pull the

control A

in the central position rearwards.

The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.

If necessary the mirrors can be folded
manually.

Programming

With the engine running, engage reverse

gear.

Select and adjust the left-hand and right-

hand mirrors in succession.

The adjustment is stored immediately.

Switching on

With the engine running, engage reverse

gear.

Switching off

Exit reverse gear and wait ten seconds.

or
F Return control A

to the central position.

The mirror glass returns to its initial position.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.

Automatic tilting in reverse gear

System which provides a view of the ground
during parking manoeuvres in reverse gear.

F Move control A

to the right or to the left to

select the corresponding mirror.

The glass of the mirror selected tilts
downwards, in accordance with its
programming.

102

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

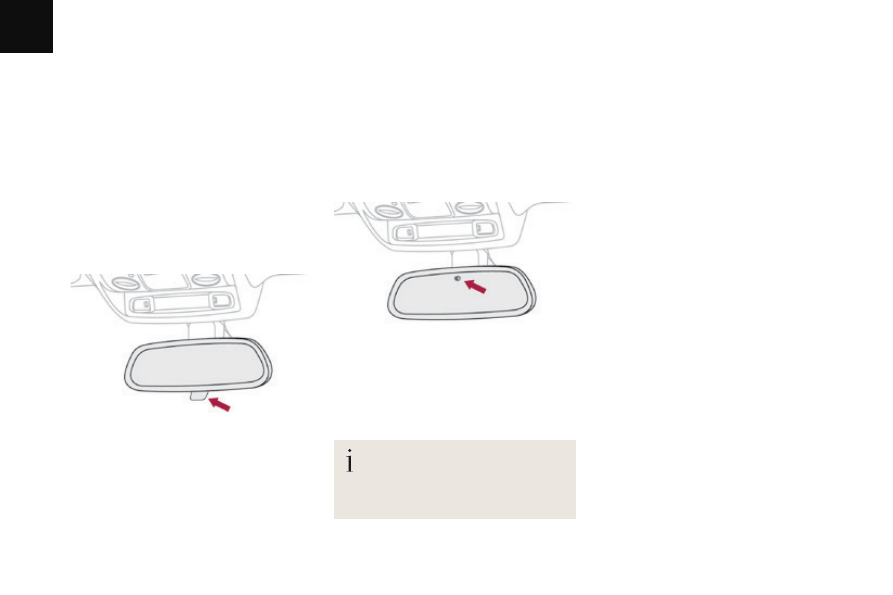

Rear view mirror

Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...

Manual model

Adjustment
F

Adjust the mirror so that the glass is

directed correctly in the "day" position.

Day / night position

This system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.

Automatic "electrochrome" model

In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.

Pull the lever to change to the "night" anti-

dazzle position.

Push the lever to change to the normal

"day" position.

103

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

Recommendations for ventilation and air conditioning

If after an extended stop in sunshine,
the interior temperature is very
high, first ventilate the passenger
compartment for a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.

In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F

To obtain an even air distribution, take care not to obstruct the exterior air intake grilles

located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.

Do not cover the sunshine sensor, located on the dashboard; this is used for regulation

of the air conditioning system.

Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month

to keep it in perfect working order.

Ensure that the passenger compartment filter is in good condition and have the filter

elements replaced regularly.

We recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).

To ensure correct operation of the air conditioning system, you are also advised to have

it checked regularly as recommended in the maintenance and warranty guide.

If the system does not produce cold air, switch it off and contact a CITROËN dealer or

a qualified workshop.

When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.

The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.

Stop & Start

The heating and air conditioning systems only work when the engine is running.
To maintain a comfortable temperature in the passenger compartment, you can temporarily
deactivate the Stop & Start system.
For more information on Stop & Start, refer to the corresponding section.

104

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

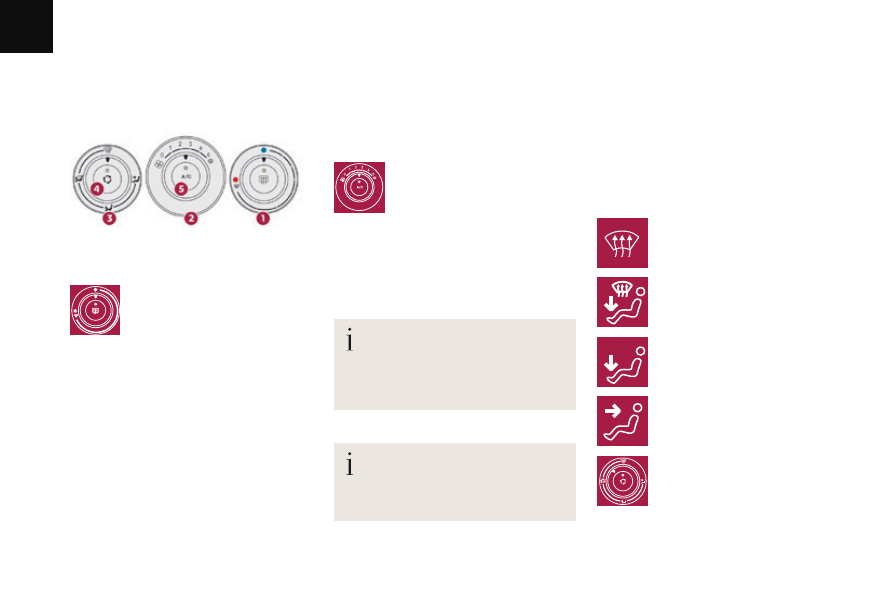

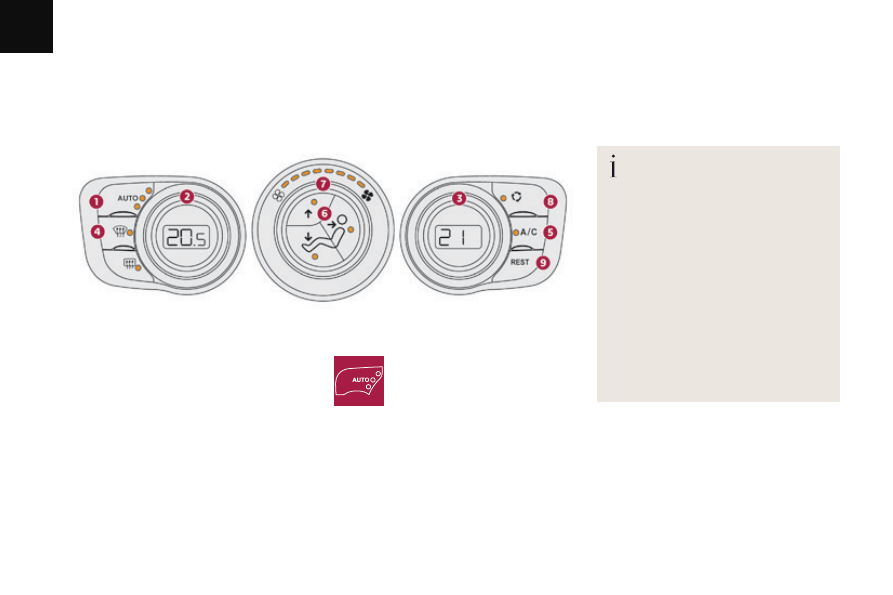

Manual air conditioning

The air conditioning system operates only with the engine running.

1. Temperature adjustment

Turn the dial to select a

position between blue (cold)
and red (hot) so as to adjust
the temperature to your
requirements.

2. Air flow adjustment

This dial is used to increase or
decrease the speed of the air
booster fan.

3. Air distribution adjustment

This dial is used to arrange the distribution of
air in the passenger compartment by combining
several air outlets.

F If you place the air flow control

in position 0

, the system is

deactivated. However, a slight flow
of air, due to the movement of the
vehicle, can still be felt.

Turn the dial from position 1 to position 5 to

obtain a comfortable air flow.

Windscreen and side windows.

Windscreen, side windows and
footwells.

Footwells.

Central and side vents.

The air distribution can be
adapted by placing the dial in an
intermediate position.

Avoid driving too long with the
ventilation off (risk of misting and
deterioration of air quality).

105

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

4. Air intake / Air recirculation

The intake of exterior air prevents the formation
of mist on the windscreen and side windows.

F Press the button to recirculate

the interior air. The indicator
lamp comes on to confirm this.

This function allows hot or cold air to be
delivered selectively and more quickly.

5. Air conditioning On/Off

The air conditioning is designed to operate
effectively in all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting

in winter, above 3 °C.

Switching on

The air conditioning does not operate
when the air flow adjustment control 2
is in position "0

To obtain cooled air more quickly, you
can use recirculation of interior air for
a few moments. Then return to fresh
air intake.

The recirculation of interior air isolates the
passenger compartment from exterior odours
and smoke.

Return to exterior air intake as soon as possible
to prevent deterioration of the the air quality
and the formation of mist.

Press the button again to

permit the intake of exterior air.
The indicator lamp goes off to
confirm this.

Switching off

F Press the "A/C" button, the

button's indicator lamp comes on.

F Press the "A/C"

button again,

the button's indicator lamp
goes off.

Switching off may affect comfort levels
(humidity, condensation).

106

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

Dual-zone digital air conditioning

The air conditioning system operates when the engine is running.

Automatic operation

1. Automatic comfort programme

F Press the "AUTO" button

repeatedly:
- a first indicator lamp comes

on; the "light" setting mode is
selected,

- a second indicator lamp

comes on; the "medium"
setting mode is selected,

- a third indicator lamp comes

on; the "intense" mode
setting is selected.

When the engine is cold, the air
flow will reach its optimum level
progressively, taking account of the
weather and the desired comfort level
so as to avoid too great a distribution
of cold air.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value, there is no
need to change the value displayed in
order to obtain the comfort required.
The system corrects the difference
in temperature automatically and as
quickly as possible.

This system is designed to operate effectively
in all seasons, with the windows closed.

We recommend the use of one of the three
AUTO modes available: they provide optimised
regulation of the temperature in the passenger
compartment according to the comfort value
that you have chosen.
These three modes automatically adjust the
air flow, according to the desired setting, while
also maintaining the desired comfort value.

107

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

2. Driver's side adjustment

4. Automatic visibility programme

For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the minimum value 14 or the
maximum value 28.
F

Turn control 2 or 3 to the left until

"LO"

is displayed or to the right

until "HI"

is displayed.

For more information on the
automatic visibility programme,
refer to the "Front demisting -
defrosting"

section.

3. Passenger's side adjustment

Turn control 2 or 3 to the left

or to the right respectively
to decrease or increase this
value.

A setting around the value 21 provides
optimum comfort. However, depending on your
requirements, a setting between 18 and 24 is
normal.
You are advised to avoid a left / right setting
difference of more than 3.

Manual operation

If you wish, you can make a different choice
from that offered by the system by changing
a setting. The the "AUTO" indicator lamps go
off; the other functions will still be controlled
automatically.

With Stop & Start, when demisting has
been activated, the STOP mode is not
available.

The driver and front passenger can each adjust
the temperature to their requirements.
The value indicated on the display corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.

Pressing the "AUTO"

button returns the system
to completely automatic
operation.

108

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

5. Air conditioning On / Off

F Press this button to switch off

the air conditioning.

Switching the system off could result in
discomfort (humidity, condensation).

6. Air distribution adjustment

Press one or more buttons to

direct the air flow towards:
- the windscreen and side

windows (demisting or
defrosting),

- the outer and centre air

vents,

- the footwells.

You can combine the three orientations to
obtain the desired air distribution.

7. Air flow adjustment

Turn this control to the left to

decrease the air flow or to the
right to increase the air flow.

8. Air intake / Air recirculation

F Press this button for recirculation

of the interior air. The indicator
lamp in the button comes on.

The air flow indicator lamps, between the two
fans, come on progressively in relation to the
value requested.

9. "REST" function: ventilation with

the engine off

Even with the engine is off, you can
operate the ventilation for a few
minutes.

Air recirculation enables the passenger compartment
to be isolated from exterior odours and smoke.

For example, while you are away from the
vehicle, the passengers can still enjoy some air
circulation without having the engine running.
This function is available after switching on the
ignition, as well as after stopping the engine.
The period that the function is available
depends on the state of charge of the battery.
You can activate the "REST" function while the
air conditioning control screens are on.

Avoid prolonged operation in interior air
recirculation mode (risk of misting and
deterioration of air quality).

Press this button again to

return to automatic operation
of the air conditioning. The
indicator lamp on the "A/C"
button comes on.

As soon as possible, press

this button again to permit
the intake of outside air and
prevent the formation of
condensation. The indicator
lamp in the button goes off.

109

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

Switching the system off

Turn the air flow control to the

left until all of the indicator
lamps go off.

This switch does not operate the air conditioning, only the air fan.
When the "REST" function is activated, you cannot modify the temperature, air flow
and distribution settings: these are controlled automatically according to the ambient
temperature.
This function is not available in the STOP mode of Stop & Start.

Avoid prolonged operation in interior
air recirculation mode or driving for
long periods with the system off (risk of
misting and deterioration of air quality).

On switching on the engine
- The control screens come on: the function

is available.

- Pressing the REST button activates the

ventilation for a few minutes. Activation of
the function is confirmed by the display of
two dashes in the control screens and four
air flow level indicator lamps.

- The function can be deactivated and

reactivated if the control screens are on.

- The screens go off at the end of this

period.

On stopping the engine
- While the control screens remain on: the

function is available.

- Pressing the REST button activates the

ventilation for a few minutes. Activation of
the function is confirmed by the display of
two dashes in the control screens and four
air flow level indicator lamps.

Locking the vehicle has no effect on this
function.

- The control screens go off at the end of this

period.

Pressing again before the end of the period
interrupts off the ventilation definitively: the
control screens go off and the function is
no longer available.

This action switches off the air conditioning and
the ventilation.
Temperature related comfort is no longer
assured but a slight flow of air, due to the
movement of the vehicle, can still be felt.

Modify the settings

(temperature, air flow or air
distribution) or press the
"AUTO" button to reactivate
the system with the values set
before it was switched off.

110

Ease of use and comfort

DS4_en_Chap03_ergonomie-et-confort_ed01-2016

Front demist - defrost

These markings on the control panel indicate the control positions for rapid demisting or
defrosting of the windscreen and side windows.

With manual air conditioning

Put the temperature, air flow and

distribution controls to the dedicated
marked position.

Put the air intake control to the "Exterior air

intake" position

(indicator lamp on the control off).

Switch on the air conditioning by pressing

the "A/C"

button; the warning lamp in the

button comes on.

With digital dual-zone air

conditioning

With Stop & Start, when the demisting,
air conditioning and air flow functions
are activated, STOP mode is not
available.

Automatic visibility programme

Select this programme to demist or defrost

the windscreen and side windows as
quickly as possible.

The system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
F

To stop the programme, press either the

"visibility"

button again or "AUTO", the

warning lamp on the button goes off and
the warning lamp on the "AUTO" button
comes on.

The system starts again with the values in
use before it was overridden by the visibility
programme.

With Stop & Start, when demisting has
been activated, the STOP mode is not
available.

Citroen DS4 (2017 year). Manual - part 7
