Citroen DS4 (2017 year). Manual

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Electric parking brake

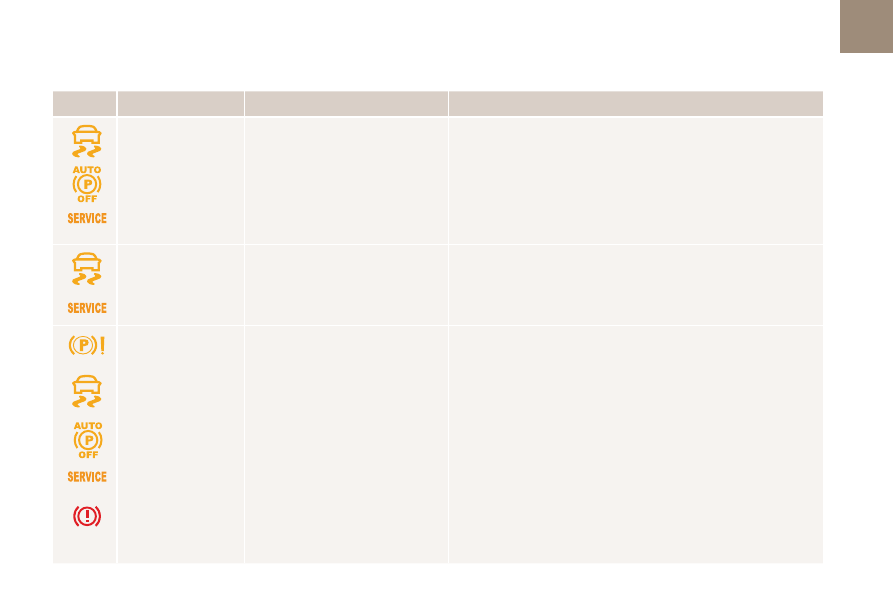

Warning lamps

Status

Causes

Actions / Observations

They are on and

accompanied by

the displaying of the

message "Parking
brake fault"

Manual release of the electric parking

brake is only available by pressing

the accelerator pedal and releasing

the electric parking brake lever.

The hill start assistance is not

available.

The automatic functions and manual application are still available.

Contact a CITROËN dealer or a qualified workshop.

They are on and

accompanied by

the displaying of the

message "Parking
brake fault"

The automatic functions are

deactivated.

The hill start assistance is not

available.

The electric parking brake can only be used manually.

Contact a CITROËN dealer or aqualified workshop.

They are on and

accompanied by

the displaying of the

message "Parking
brake fault"

The automatic functions are

deactivated.

The hill start assistance is not

available.

To apply the electric parking brake:

- immobilise the vehicle and switch off the ignition.

- pull the control for at least 5 seconds or until application is

complete.

- switch on the ignition and check the switching on of the electric

parking brake warning lamps.

The application is slower than during normal operation.

To release the electric parking brake:

- switch on the ignition.

- pull the control and hold it for approximately 3 seconds then

release it.

If the braking warning lamp is flashing or if the warning lamps do not

come on with the ignition on, these procedures will not work.

Place the vehicle in a safe condition (on level ground, gear engaged)

and have it checked by a CITROËN dealer or a qualified workshop.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Warning lamps

Status

Causes

Actions / Observations

They are on and
accompanied by
the displaying of the
message "Parking
brake fault"

Only the automatic application
when the engine is switched off and
automatic release on acceleration
functions are available.
Manual application / release of
the electric parking brake and the
emergency braking are not available.

Contact a CITROËN dealer or a qualified workshop.

It is on.

A discharged battery no longer
permits use of the electric parking
brake.

Stop as soon as the traffic conditions permit.
Place the vehicle in a safe condition (on level ground, gear engaged,
chocks under the wheels).
Apply the electric parking brake before switching off your engine.
Contact a CITROËN dealer or a qualified workshop.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, at the same time as the servicing
information.

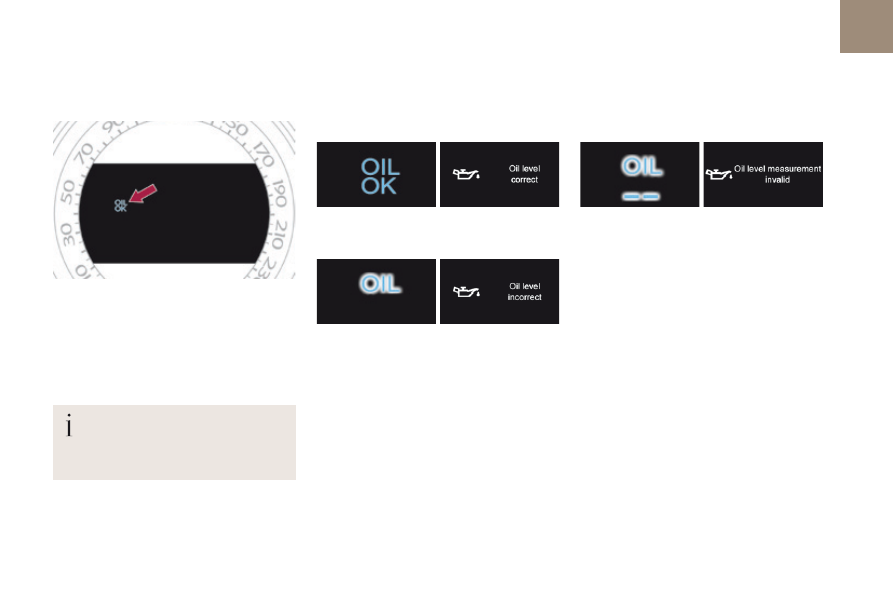

Engine oil level indicator*

The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than 30
minutes.

Oil level correct

This is indicated by the flashing of "OIL" or the
display of a message, accompanied by the
service warning lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking the levels
and in particular the oil level, refer to the
corresponding section.

This is signalled by the flashing of "OIL--" or
the display of a message.
Contact a CITROËN dealer or a qualified
workshop.

In the event of a fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking the levels
and in particular the oil level, refer to the
corresponding section.

* Depending on version.

Oil level incorrect

Oil level indicator fault

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

System that informs the driver when the
next service is due, in accordance with the
manufacturer's service schedule.
The point at which the service is due is
calculated from the last service indicator zero
reset, according to the distance covered and
the time elapsed since the last service.
For BlueHDi Diesel versions, the level of
deterioration of the engine oil may also be
taken into account, depending on the country
of sale.

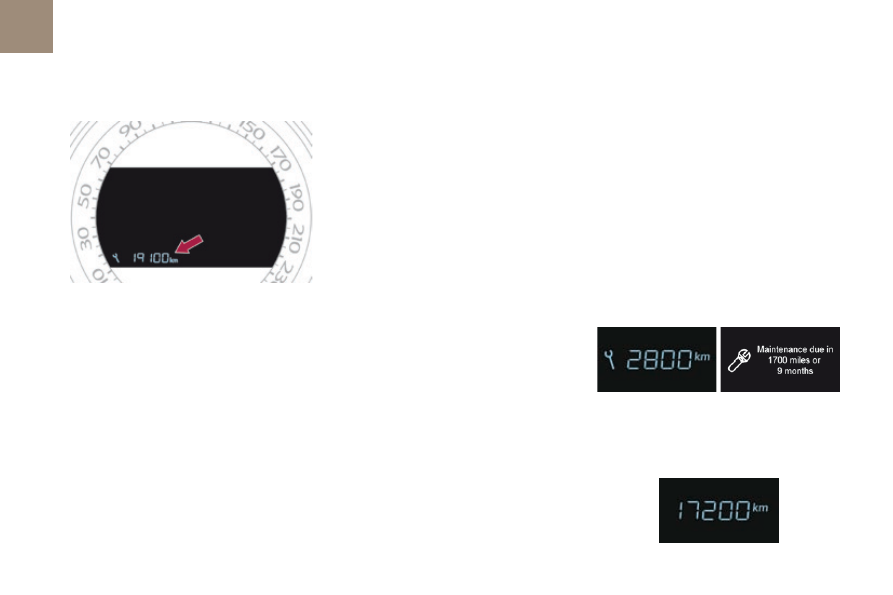

Service indicator

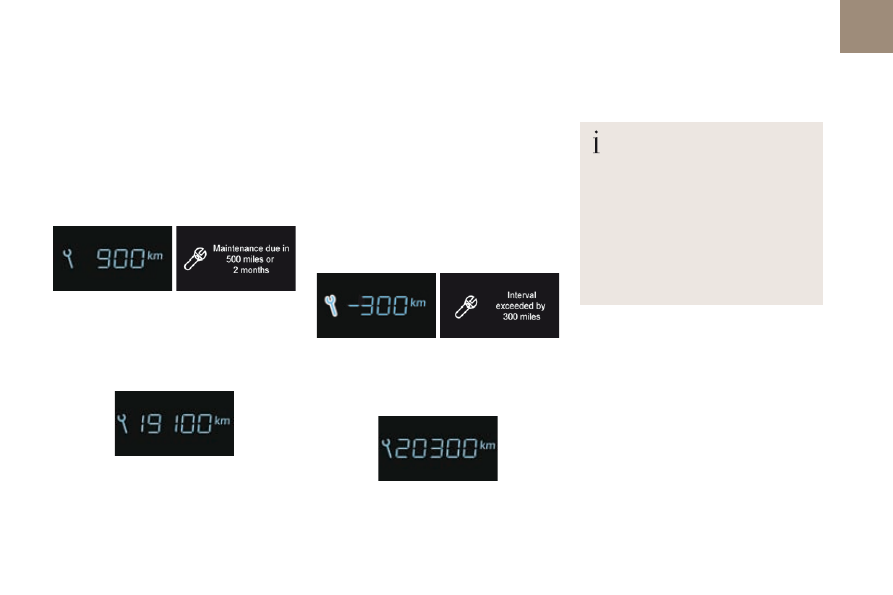

Between 600 miles (1 000 km)

and 1800 miles (3 000 km) remain

before the next service is due

For a few seconds after the ignition is switched
on, the spanner symbolising the service
operations comes on. The distance recorder
display line or a specific message in the
instrument panel central screen indicates the
distance remaining before the next service is due.
For example:

1 700 miles (2 800 km) remain

before the next service is due.
For a few seconds after the ignition is switched
on, the screen indicates:

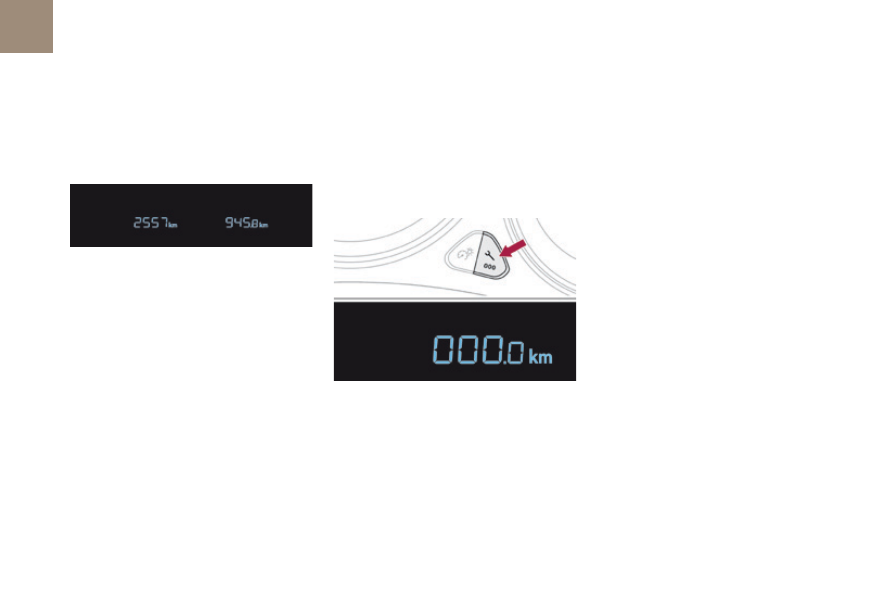

A few seconds after the ignition is switched on,
the spanner goes off

; the distance recorder

resumes its normal operation. The screen then
indicates the total and trip distances.

More than 1800 miles (3000 km) remain

before the next service is due

When the ignition is switched on, no service
information appears in the instrument panel
central screen.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on.

The spanner comes on if you have
exceeded the specified time interval
since the last service, as indicated in
the manufacturer's service schedule.
For BlueHDi Diesel versions,
the spanner may also come on before
the normal service point, according to
the level of deterioration of the engine
oil, which depends on the driving
conditions in which the vehicle is used.

Service overdue

For a few seconds after the ignition is switched on,
the spanner flashes

to indicate that the service

must be carried out as soon as possible.
Example:

the service is overdue by 180 miles

(300 km).
For a few seconds after the ignition is switched
on, the screen indicates:

Less than 600 miles (1 000 km) remain

before the next service is due

Example:

560 miles (900 km) remain before

the next service is due.
For a few seconds after the ignition is switched
on, the screen indicates:

A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.

For BlueHDi Diesel versions, this alert is also
accompanied by the fixed illumination of the
Service warning lamp when the ignition is
switched on.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

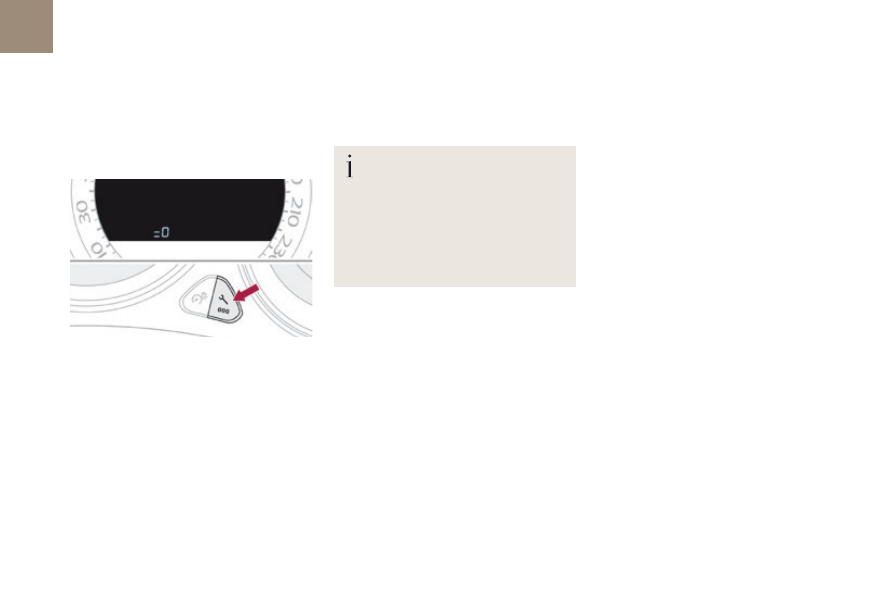

If you have carried out the service on your
vehicle yourself:
F

switch off the ignition,

press and hold the ".../000" trip distance

recorder zero reset button,

switch on the ignition; the distance recorder

display begins a countdown,

when the screen indicates "=/0" and the

spanner disappears, release the button.

This operation cannot be carried
out while a reminder of the servicing
information is being displayed.
Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be registered.

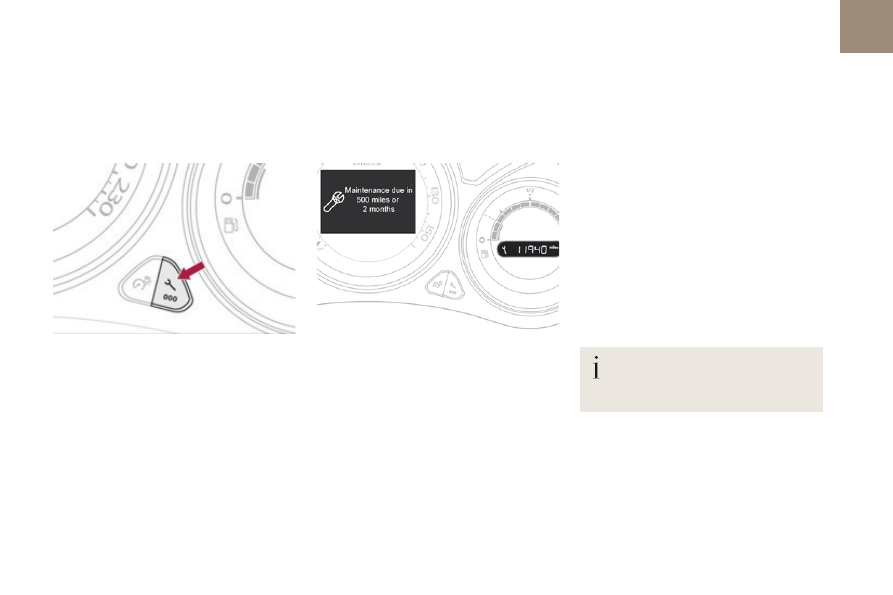

Recalling the service information

(type 2 instrument panel)

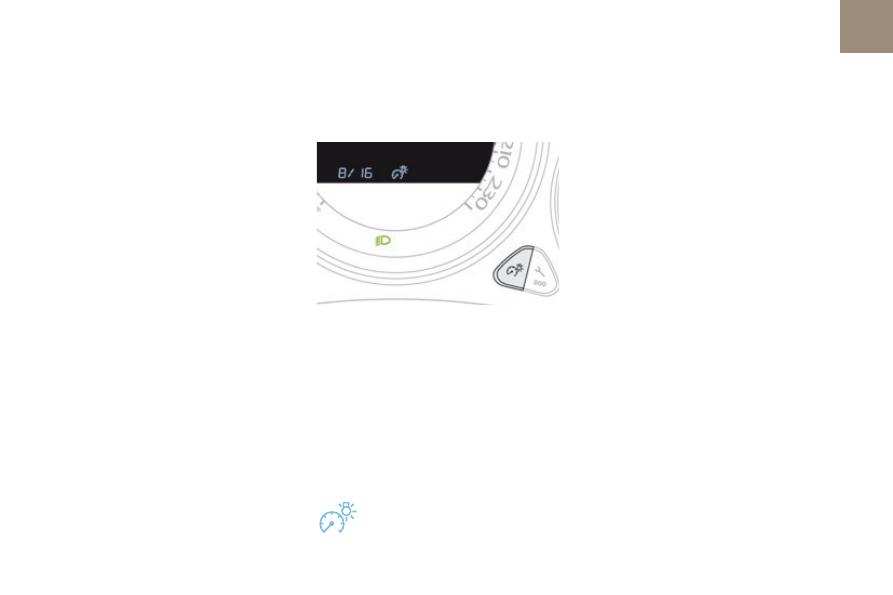

You can recall the service information at any
time.
F

Briefly press the ".../000" trip distance

recorder zero reset button.

The service information is displayed for a
few seconds in the central screen of the
type 2 instrument panel.

Service indicator zero reset

After each service, the service indicator must
be reset to zero.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

The engine start prevention system
required by regulations is activated
automatically once the AdBlue

tank

is empty.

AdBlue

fluid range indicators

Once the AdBlue

tank is on reserve or after

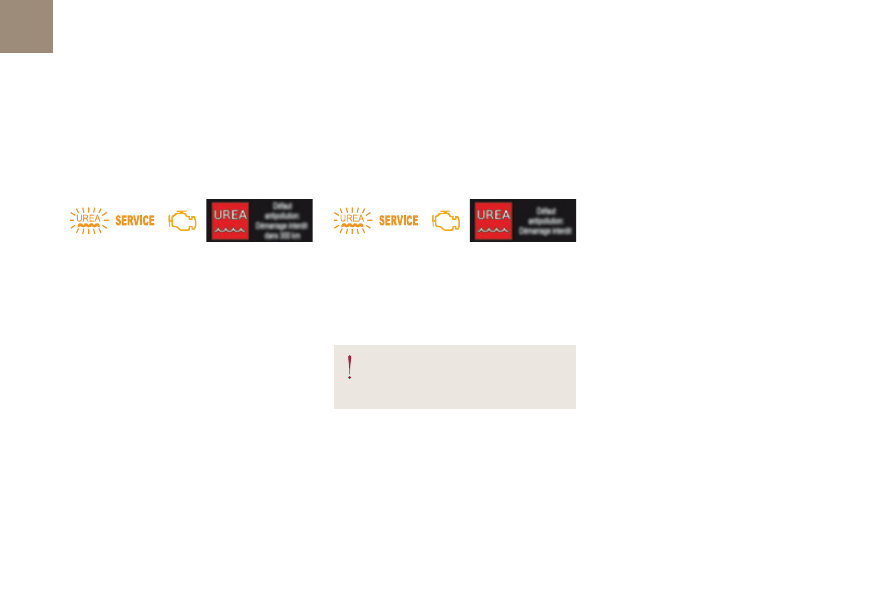

detection of a fault with the SCR emissions
control system, when the ignition is switched
on an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of simultaneous system fault and
low AdBlue

level, the shortest range figure is

the one displayed.

In the event of the risk of non-starting related to a lack of AdBlue

Range greater than 1 500 miles (2 400 km)
When the ignition is switched on, no
information on range is displayed automatically
in the instrument panel.

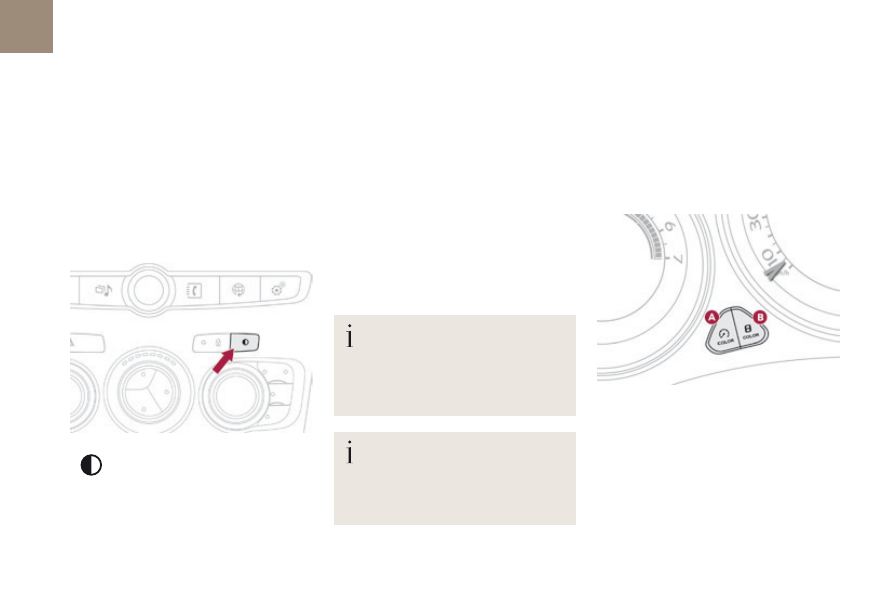

With the type 2 instrument panel,
pressing this button temporarily
displays the driving range.

Above 3 000 miles (5 000 km), the value is not
specified.

Type 1 instrument panel

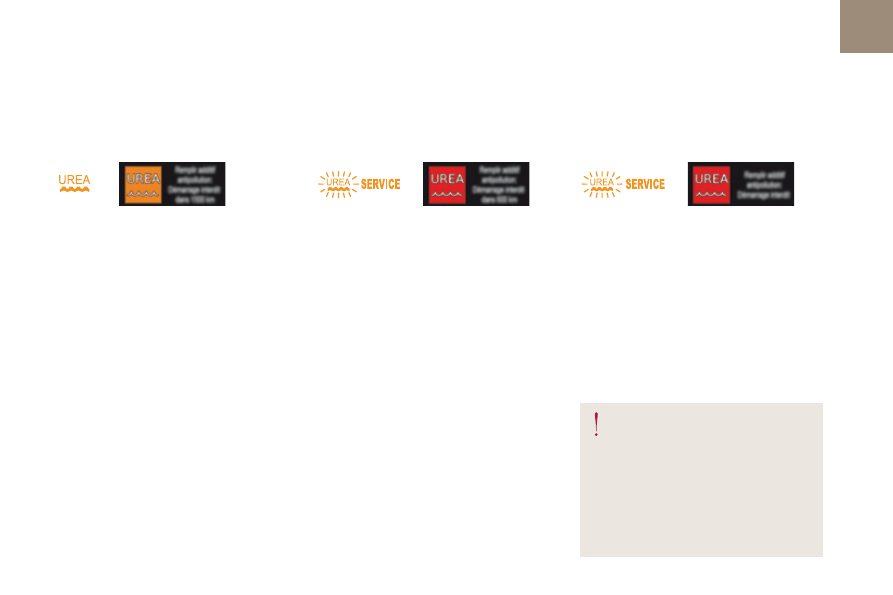

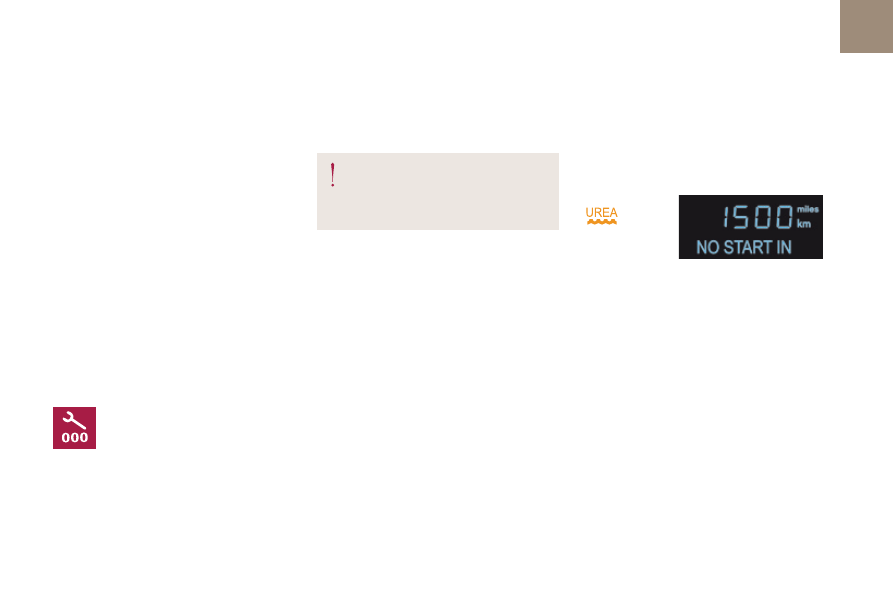

Remaining range between 350 and 1 500 miles (600 and 2 400 km)

When switching on the ignition, the UREA
warning lamp comes on, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
a distance, indicating the remaining range
expressed in miles or kilometres before
engine starting is prevented (e.g. "NO START
IN 900 miles" means that starting will be
prevented in 900 miles).
When driving, the message is displayed every
190 miles (300 km) until the AdBlue tank has
been topped up.
The reserve level has been reached; it is
recommended that the tank be topped up as
soon as possible.
It is recommended that no more than 10 litres
of AdBlue

are added.

For more information on AdBlue

and the SCR

system

, and in particular on topping up, refer

to the corresponding section.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

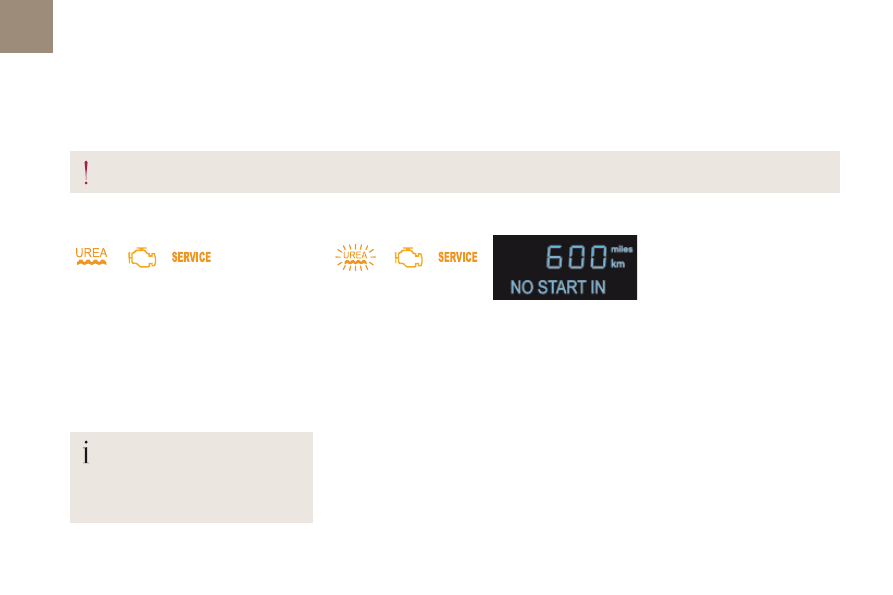

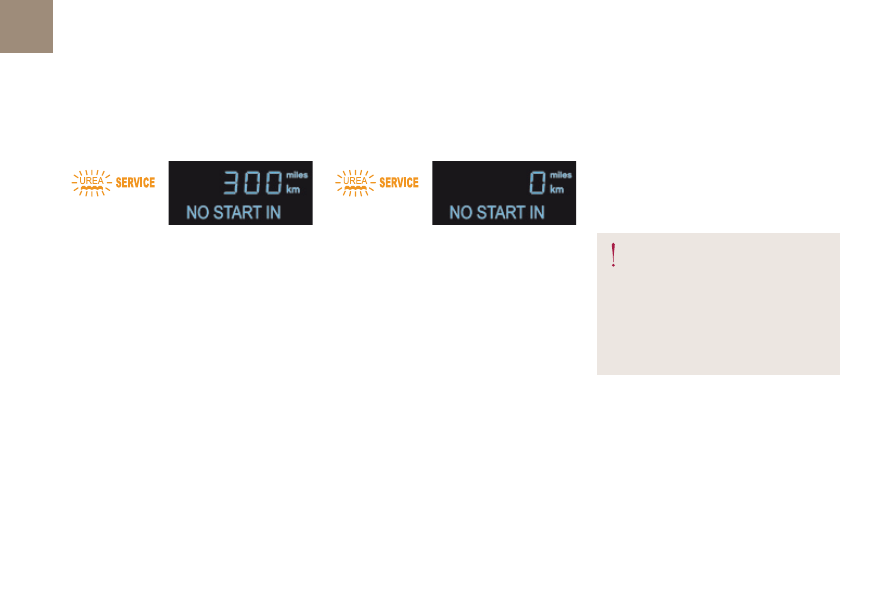

When switching on the ignition, the SERVICE
warning lamp comes on and the UREA warning
lamp flashes, accompanied by an audible signal
and the temporary display in the instrument
panel of "NO START IN" and a distance,
indicating the remaining range expressed in
miles or kilometres before engine starting is
prevented (e.g. "NO START IN 180 miles"
means that starting will be prevented
in 180 miles).
When driving, the message is displayed every
30 seconds until the AdBlue tank has been
topped up.
It is essential to top up the tank as soon
as possible before it is completely empty;
otherwise, the engine may no longer start.
For more information on AdBlue

and the SCR

system

, and in particular on topping up, refer

to the corresponding section.

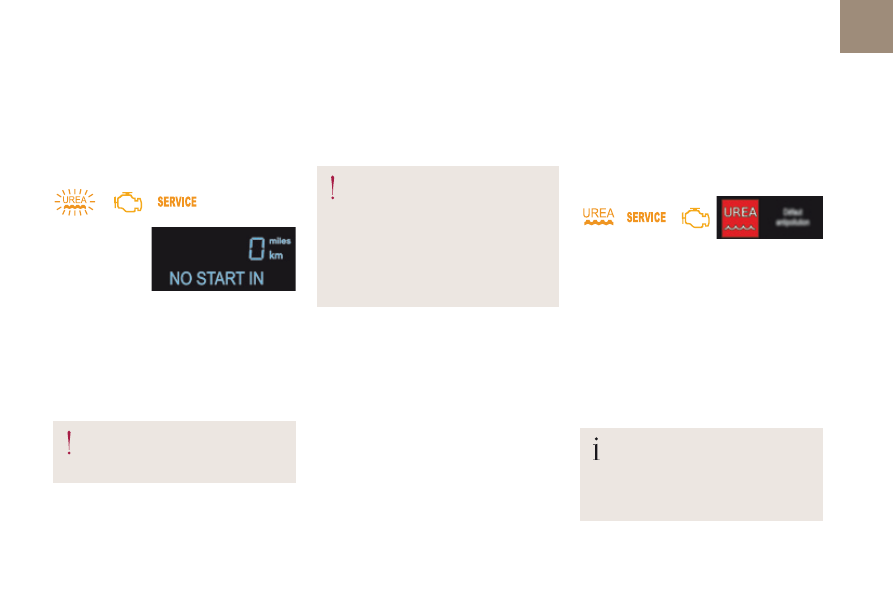

Remaining range between 0 and 350 miles (0 and 600 km)

When switching on the ignition, the SERVICE
warning lamp comes on and the UREA
warning lamp flashes, accompanied by an
audible signal and the temporary display in the
instrument panel of "NO START IN" and 0 km
or miles ("NO START IN 0 miles" means that
starting is prevented).
The AdBlue tank is empty: the system required
by regulations prevents engine starting.

Breakdown related to a lack of AdBlue

To be able to start the engine, it is
essential to add at least 3.8 litres of
AdBlue

to the tank.

For more information on AdBlue

and

the SCR system

, and in particular on

topping up, refer to the corresponding
section.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Type 2 instrument panel

When switching on the ignition, the
UREA warning lamp comes on, accompanied
by an audible signal and the display of a
message (e.g. "Top-up emissions additive:
Starting prevented in 900 miles") indicating
the remaining range expressed in miles or
kilometres.
When driving, the message is displayed every
200 miles (300 km) until the fluid has been
topped-up.
Go to a CITROËN dealer or a qualified
workshop to have the AdBlue

topped-up.

You can also top-up the tank yourself.
For more information on AdBlue

and the SCR

system

, and in particular on topping-up the

AdBlue

, refer to the corresponding section.

Remaining range between 350 and 1500 miles (600 and 2 400 km)

When switching on the ignition, the SERVICE
warning lamp comes on and the UREA warning
lamp flashes, accompanied by an audible
signal and the display of a message (e.g.
"Top-up emissions additive: Starting prevented
in 350 miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
30 seconds until the fluid has been topped-up.
Go to a CITROËN dealer or a qualified
workshop to have the AdBlue

topped-up.

You can also top-up the tank yourself.
Otherwise you will not be able to restart your
engine.

When switching on the ignition, the SERVICE
warning lamp comes on and the UREA warning
lamp flashes, accompanied by an audible
signal and the display of the message "Top-up
emissions additive: Starting prevented".
The AdBlue

tank is empty: the system required

by regulations prevents engine starting.

To be able to start the engine,
we recommend that you call on
a CITROËN dealer or a qualified
workshop for the top-up required.
If you carry out the top-up yourself, it
is essential to add at least 3.8 litres of
AdBlue

to the tank.

Remaining range between 0 and 350 miles (0 and 600 km)

Breakdown related to a lack of AdBlue

For more information on AdBlue

and the SCR

system

, and in particular on topping-up the

AdBlue

, refer to the corresponding section.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

In the event of a fault with the the SCR emissions control system

A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions
control system. Have the system checked by a CITROËN dealer or a qualified workshop as soon as possible.

The UREA, SERVICE and diagnostic warning
lamps comes on, accompanied by an audible
signal and the display of the message
"Emissions fault".
The alert is triggered when driving, when
the fault is detected for the first time, then
when switching on the ignition for subsequent
journeys, while the fault persists.

In the event of the detection of a fault

If it is a temporary fault, the alert
disappears during the next journey,
after a self diagnosis test of the SCR
emissions control system.

If a fault with the SCR system is confirmed
(after 30 miles (50 km) covered with the
permanent display of the message signalling
a fault), the SERVICE and engine diagnostic
warning lamps come on and the UREA
warning lamp flashes, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
a distance, indicating the remaining range
express in miles or kilometres before engine
starting is prevented - (e.g.: "NO START IN
350 miles" means "Starting will be prevented in
350 miles").

During an authorised driving phase
(between 650 miles and 0 miles) (1 100 km and 0 km)

While driving, this display appears every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the
ignition.
You should go to a CITROËN dealer or a
qualified workshop as soon as possible.
Otherwise, you will not be able to restart your
engine.

Type 1 instrument panel

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Starting prevented

You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.

Every time the ignition is switched on, the
SERVICE and engine diagnostic warning
lamps come on and the UREA warning lamp
flashes, accompanied by the temporary display
of "NO START IN" and 0 miles or kilometres -
("NO START IN 0 miles" means "Starting
prevented").

To be able to start the engine, you must call on
a CITROËN dealer or a qualified workshop.

Type 2 instrument panel

A system that prevents engine
starting is activated automatically
from 650 miles (1 100 km) after
confirmation of a fault with the SCR
emissions control system. Have the
system checked by a CITROËN dealer
or a qualified workshop as soon as
possible.

In the event of a fault with the SCR emissions control system

The UREA, SERVICE and diagnostic warning
lamps comes on, accompanied by an audible
signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.

In the event of the detection of a fault

If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the SCR system.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

If a fault with the SCR system is confirmed
(after 30 miles (50 km) covered with the
permanent display of the message signalling
a fault), the SERVICE and engine diagnostic
warning lamps come on and the UREA
warning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g.: "Emissions fault: Starting prevented in
150 miles") indicating the remaining range
express in miles or kilometres.
While driving, the message is displayed every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the
ignition.
You should go to a CITROËN dealer or a
qualified workshop as soon as possible.
Otherwise, you will not be able to restart your
engine.

During an authorised driving phase (between
650 miles and 0 miles) (1 100 km and 0 km)

Every time the ignition is switched on, the
SERVICE and engine diagnostic warning
lamps come on and the UREA warning lamp
flashes, accompanied by an audible signal and
the display of the message "Emissions fault:
Starting prevented".

Starting prevented

You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.

To be able to start the engine, you must call on
a CITROËN dealer or a qualified workshop.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Manual test in the type 2 instrument panel central screen

This function allows you to check the status of the vehicle systems (reminder of the "activated" / "deactivated" status of the configurable functions) and
to display the alerts log.

With the engine running, to start a manual

test, briefly press the ".../000" button on
the instrument panel.

The following information appears successively
in the instrument panel central screen:
-  engine oil level indicator,
-  service indicator,
-  current warnings and alert messages, if

any,

- the range for the AdBlue additive and the

SCR system for BlueHDi Diesel versions,

- status of configurable functions.

This information also appears every
time the ignition is switched on
(automatic test).

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

The total and trip distances are displayed for thirty seconds when the ignition is switched off, when
the driver's door is opened and when the vehicle is locked or unlocked.

Distance recorders

Total distance recorder

Trip distance recorder

With the ignition on, press and hold this

button until zeros appear.

Measures the total distance travelled by the
vehicle since its first registration.

Measures the distance travelled since it was
last reset to zero by the driver.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Lighting dimmer

Permits manual adjustment of the brightness of
the instruments and controls to suit the ambient
light level. Only operates when the vehicle
lighting is on in night mode.

Press this button to change the brightness

of the instruments and controls.

When the lighting reaches the minimum

setting, release this button, then press
again to increase it.

or
F

When the lighting reaches the maximum

setting, release this button, then press
again to reduce it.

When the lighting reaches the level of

brightness required, release this button.

This indicator and the lighting
value appear in the middle of the
instrument panel during adjustment
to show the setting from the 16 levels

available.

Deactivation

When the vehicle lighting is off, or in day mode
(daytime running lamps on), pressing the button
does not have any effect.

Activation

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

When driving at night, it allows certain
instrument panel displays to be switched off so
as to reduce visual fatigue for the the driver.
The essential driving information, such as
the vehicle speed, warning lamps, automatic
gearbox gear selected, cruise control or speed
limiter information, remains on in the instrument
panel.

Black panel (comfortable night

driving display)

With the vehicle lighting on,

press this button again to
activate the function.

Press this button again to

deactivate the function.

In the instrument panel, you can change the
colour of its dials independently from that of the
display screens.
There are five colour variants, from white to
blue.

Customising the instrument

panel colours

Touch screen tablet

You can returns to the current display
at any time by pressing the black
screen or one of the menu buttons.

In automatic illumination of headlamps
mode, the "Black panel" function is
automatically deactivated once the
ambient light level attains an adequate
level.

Press the appropriate button as many

times as needed to obtain the desired
colour.
A.

For the dials.

For the display screens.

Citroen DS4 (2017 year). Manual - part 3
