Citroen C4 Picasso (2017 year). Manual - part 30

112

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Press

Radio Media to display the

menu.

Press

Radio Media to display the

primary page.

Press the frequency.

Enter the FM and AM waveband
values using the virtual keypad.

Press one of the buttons for an
automatic search for radio stations.

Radio

Selecting a station

Radio reception may be affected by
the use of electrical equipment not
approved by the Brand, such as a USB
charger connected to the 12V socket.
The exterior environment (hills,
buildings, tunnel, car park, below
ground...) may prevent reception,
even in RDS station tracking mode.
This phenomenon is normal in the
propagation of radio waves and is in no
way indicative of a fault with the audio
system.

Move the cursor for a manual search
for frequencies up or down.

Select a radio station or frequency.

Press "

Preset ".

Press the "

OPTIONS " button to go to

the secondary page.

Make a short press on the star
outline. If the star is solid, the radio
station is already preset.

Make a long press on one of the
buttons to preset the station.

Press "

Band " to change waveband.

Press in the grey zone to confirm.

Preset a station

Changing waveband

Press "

OK " to confirm.

113

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Press in the grey zone to confirm.

Press

Radio Media to display the

primary page.

Press

Radio Media to display the

primary page.

Press

Radio Media to display the

primary page.

Press the "

OPTIONS " button to go to

the secondary page.

Press the "

OPTIONS " button to go to

the secondary page.

Press the "

OPTIONS " button to go to

the secondary page.

Activate/deactivate "

RDS ".

Activate / Deactivate "

NEWS ".

Activate / Deactivate "

TA ".

Activate/ Deactivate RDS

RDS, if activated, allows you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the entire country as radio
stations do not cover 100 % of the
territory. This explains the loss of
reception of the station during a journey.

The "Radio Text" function allows
information transmitted by the radio
station and related to the station or the
song playing to be displayed.

Display text information

Play TA messages

The TA (Traffic Announcement)
function gives priority to TAalert
messages. To operate, this function
needs good reception of a radio station
that carries this type of message. While
traffic information is being broadcast,
the current media is automatically
interrupted so that the TA message can
be heard. Normal play of the media
previously playing is resumed at the
end of the message.

114

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Audio settings

Press

Radio Media to display the

primary page.

Press "

Audio settings ".

On-board audio: Arkamys

Sound

Staging optimises the distribution of
sound in the passenger compartment.

The sound distribution (or spatialisation
with the Arkamys

system) is audio

processing that allows the quality of the
sound to be adapted according to the
number of passengers in the vehicle.

On the "

Tone " tab, the Ambience audio

settings and

Bass , Medium and Treble

are different and independent for each
audio source.

On the "

Balance " tab, the All

passengers , Driver and

Driver

Front only

settings are common to all sources.

On the "

Sound " tab, activate or

deactivate "

Volume linked to speed ",

Auxiliary input " and " Touch tones ".

Press the "

OPTIONS " button to go to

the secondary page.

Select the "

Tone" or "Balance " or

Sound" or "

or Ringtones " tab to

configure the audio settings.

Press the back arrow to confirm.

115

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

DAB radio (Digital Audio Broadcasting)

Press

Radio Media to display the

primary page.

Press the "

OPTIONS " button to go to

the secondary page.

FM-DAB Follow-up

Terrestrial Digital Radio

"DAB" does not cover 100% of the
territory.
When the digital radio signal is poor,
the "FM-DAB Follow-up" allows you to
continue listening to the same station,
by automatically switching to the
corresponding "FM" analogue station
(if there is one).

If the "FM-DAB Follow-up" is activated,
there is a difference of a few seconds
when the system switches to "FM"
analogue radio with sometimes a
variation in volume.
Once the digital signal is restored, the
system automatically changes back to
"DAB".

Digital radio provides higher quality
reception.
The different multiplexes offer a
choice of radio stations arranged in
alphabetical order.

If the "DAB" station being listened
to is not available on "FM", or if the
"FM-DAB Follow-up" is not activated,
the sound will cut out while the digital
signal is too weak.

Activate / Deactivate "

FM-DAB

Follow-up ".

Press

Radio Media to display the

primary page.

Press the "

OPTIONS " button to go to

the secondary page.

Press "

Band " to select " DAB band ".

Press in the grey zone to confirm.

116

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Media

USB port

Selecting the source

Press the "

SOURCES " button.

Press

Radio Media to display the

primary page.

The system builds playlists (in temporary
memory), an operation which can take from
a few seconds to several minutes at the first
connection.
Reduce the number of non-music files and the
number of folders to reduce the waiting time.
The playlists are updated every time the
ignition is switched off or connection of a USB
memory stick. The lists are memorised: if they
are not modified, the subsequent loading time
will be shorter.

Insert the USB memory stick in the USB port or
connect the USB device to the USB port using
a suitable cable (not supplied).

Auxiliary socket (AUX)

First adjust the volume of your portable device
(to a high level). Then adjust the volume of your
audio system.
Display and management of the controls are
via the portable device.

This source is only available if "Auxiliary input"
has been checked in the audio settings.

Connect the portable device (MP3 player…) to
the auxiliary Jack socket using an audio cable
(not supplied).

Choose the source.

Bluetooth Streaming

  Streaming allows you to listen to music from
your  telephone.
  The Bluetooth profile must be activated. First
adjust the volume on your portable device (to a
high level).
Then adjust the volume of your system.

If play does not start automatically, it may be
necessary to start the audio playback from the
smartphone.
Control is from the portable device or by using
the system's touch buttons.

Once connected in Streaming mode,
the smartphone is considered to be a
media source.

To protect the system, do not use a
USB hub.

117

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Connecting Apple

Connecting Apple players

Connect the Apple

player to the USB port

using a suitable cable (not supplied).
Play starts automatically.

Control is via the audio system.

The classifications available are those
of the portable device connected
(artists / albums / genres / playlists /
audiobooks / podcasts), you can also
use a classification structured in the
form of a library.
The default classification used is by
artist. To modify the classification used,
return to the first level of the menu
then select the desired classification
(playlists for example) and confirm
to go down through the menu to the
desired track.

The version of software in the audio system
may not be compatible with the generation of
your Apple

player.

The audio equipment will only play audio
files with ".wav, .wma, .aac, .ogg and .mp3"
file extensions and with a bit rate of between
32 Kbps and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of file (.mp4, ...) can be played.
".wma" files must be of the
standard wma 9 type.
The sampling rates supported are 11, 22, 44
and 48 KHz.

It is advisable to restrict file names to
20 characters, without using of special
characters (e.g.: " " ? ; ù) to avoid any playing
and displaying problems.

In order to be able to play a burned CDR or
CDRW, select standards ISO 9660 level 1, 2 or
Joliet if possible when burning the CD.
If the disc is burned in another format, it may
not be played correctly.
It is recommended that the same burning
standard is always used on an individual disc,
with the lowest speed possible (4x maximum)
for the best acoustic quality.
In the particular case of a multi-session CD, the
Joliet standard is recommended.

Information and advice

Use only USB memory sticks formatted FAT 32
(file allocation table).

The system supports USB Mass
Storage devices, BlackBerry

devices

or Apple

players via USB ports. The

adaptor cable is not supplied.
Control of the peripheral device is with
the audio system controls.
Other peripherals, not recognised on
connection, must be connected to the
auxiliary socket using a Jack cable (not
supplied) or via Bluetooth streaming,
depending on compatibility.

It is recommended that the original USB
cable for the portable device is used.

To protect the system, do not use a
USB hub.

118

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Telephone

According to version

Level 1

Level 2

Level 3

119

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Level 2

Level 3

Comments

Telephone

Bluetooth

search

PHONE

Bluetooth connection

Search

Start the search for a device to be connected.

Delete

Delete one or more devices.

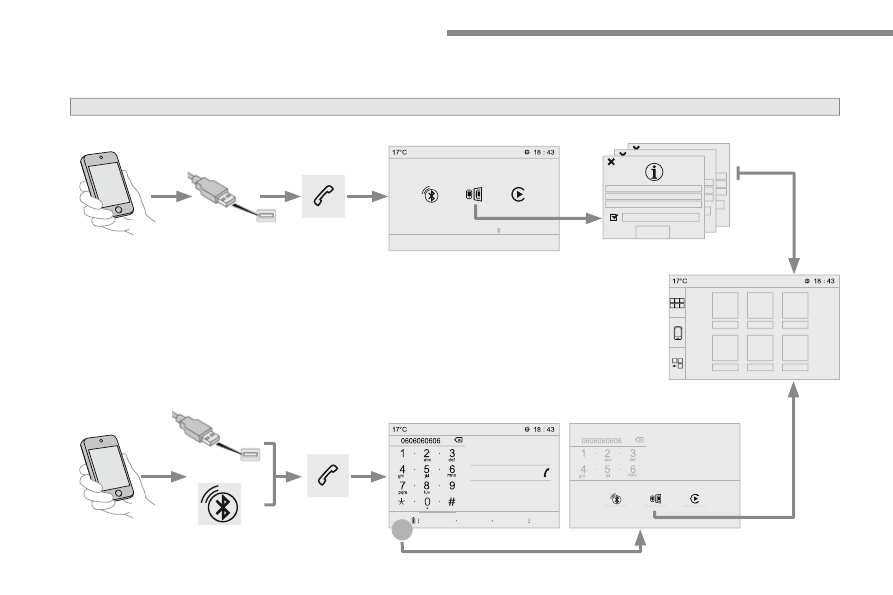

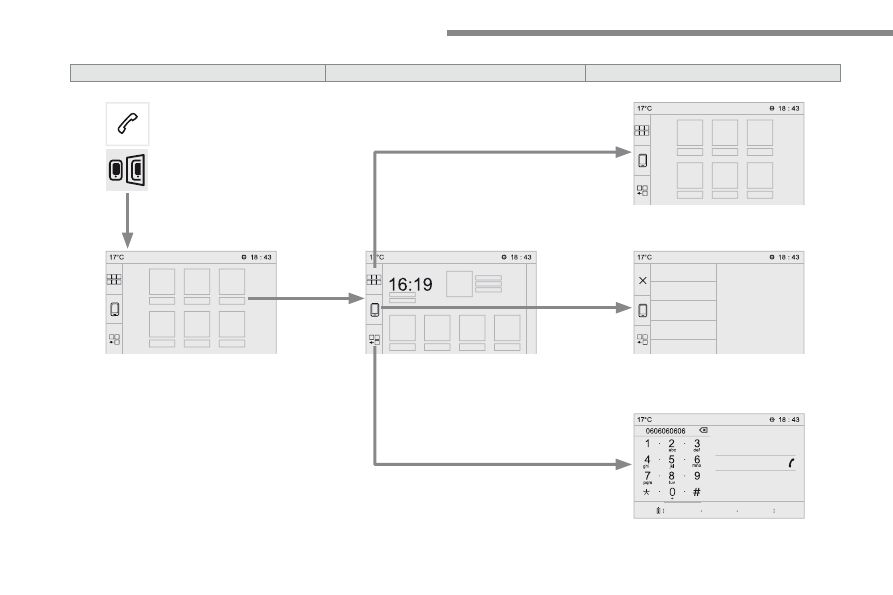

MirrorLink

Open the MirrorLink function.

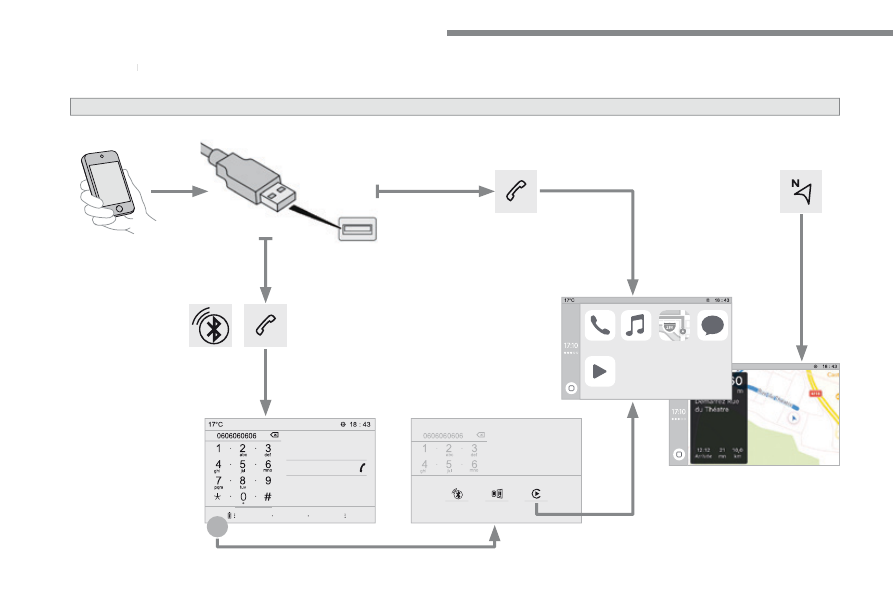

CarPlay

Open the CarPlay function.

Telephone

Bluetooth

search

Keypad

Enter a telephone number.

Telephone

Bluetooth

search

Recent calls

All

View the calls according to the presentation
selected.
Select a contact to make the call.

Outgoing

Missed

Incoming

Telephone

Bluetooth

search

Contacts

Search

Confirm

Search for a contact in the contacts directory.

Telephone

Go to the details of the contact sheet.

120

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Level 1

Level 2

121

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Level 1

Level 2

Comments

Telephone

OPTIONS

On hold (auto)

ON - OFF

Activate or deactivate the automatic placing on
hold of the current conversation.

Telephone

OPTIONS

Sort contacts by name

Sort contacts by

first name

Sort the contacts by Surname-first name or First
name-surname.

Telephone

OPTIONS

Ring volume

Adjust the volume of the ringtone.

122

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

MirrorLink

smartphone connection

123

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
Operation must be with the

vehicle

stationary .

stationary

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink

technology to be displayed

in the vehicle's screen.
The principles and standards
are constantly evolving. For the
communication process between
the smartphone and the system to
work correctly, the smartphone must
be unlocked;

update the operating

system of your smartphone as

well as the date and time in the

smartphone and the system.

For the list of eligible smartphones,
connect to the Brand's internet website
in your country.

The "MirrorLink

" function requires

a compatible smartphone and
applications.

There may be a wait for the availability
of applications, depending on the
quality of your network.

When connecting a smartphone to the
system, it is recommended that "Bluetooth"

be started on the smartphone

Depending on the smartphone, it may be necessary
to activate the "

MirrorLink

" function.

During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.

Connect the USB cable. The
smartphone charges when
connected by a USB cable.

Press "

MirrorLink

" to start the

application in the system.

Once connection is established, a page
is displayed with the applications already
downloaded to your smartphone and adapted
to the MirrorLink

technology.

Access to the different audio sources remains
accessible in the margin of the MirrorLink

display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons

Telephone not connected by

Bluetooth

Telephone connected by Bluetooth

From the system, press "

Telephone "

to display the primary page.

From the system, press "

Telephone "

to display the primary page.

As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.

Press the "

PHONE " button to display

the secondary page.

Press "

MirrorLink

" to start the

application in the system.

124

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Level 1

Level 2

Level 3

125

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

Level 1

Level 2

Level 3

Comments

Telephone

MirrorLink

Go to or return to the applications already
downloaded to your smartphone and adapted to
the MirrorLink

technology.

Go to a menu list depending on the application
chosen.
"Back": abandon the current operation, go up one
level.
"Home": go to or return to the "Car mode" page on
your smartphone.

Go to the primary page of the "Telephone" menu.

126

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

CarPlay

CarPlay smartphone connection

127

Audio and Telematics

Transversal-Citroen_en_Chap02_RCC-2-2-0_ed01-2016

As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
Operation must be with the

vehicle

stationary .

stationary

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
CarPlay

technology to be displayed

in the vehicle's screen, having first
activated the CarPlay

function in the

smartphone.
As the principles and standards are
constantly changing,

it is recommended

that you keep your smartphone's

operating system updated .

For the list of eligible smartphones, go
to the Brand's internet website in your
country.

Connect the USB cable. The
smartphone charges when
connected by a USB cable.

From the system, press

Telephone

to display the Carplay

interface.

Press "

CarPlay " to display the

CarPlay

interface.

On connecting the USB cable, the
CarPlay

function deactivates the

system's Bluetooth

mode.

From the system, press

Telephone

to display the primary page.

Press the "

PHONE " button to go to

the secondary page.

If the smartphone is already
connected by Bluetooth

You can go to the CarPlay

navigation at any time by pressing
the system's

Navigation button.

Content .. 28 29 30 31 ..
