Citroen C4 Picasso (2017 year). Manual - part 14

207

Driving

C4-Picasso-II_en_Chap04_conduite_ed02-2016

Reinitialisation of the system is done in the
touch screen, with the ignition on and the
vehicle stationary.
F In the Driving

menu, select the "Driving

functions" tab then "Under-inflation
initialisation

Confirm the instruction by pressing "Yes",

an audible signal and a message confirm
the reinitialisation.

The new pressure settings registered are
considered to be reference values by the
system.

Operating fault

The flashing and then fixed illumination of the
under-inflation warning lamp accompanied
by illumination of the Service warning lamp
indicates a fault with the system.
A message appears, accompanied by an
audible signal.

Before doing anything to the system,
the pressures of the four tyres must be
checked and the system reinitialised.

The under-inflation alert can only be
relied on if reinitialisation of the system
is done with the four tyre pressures
correctly set.

In this case, under-inflation monitoring of the
tyres is no longer assured.
Have the system checked by a CITROËN
dealer or a qualified workshop.

208

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

Mirrors

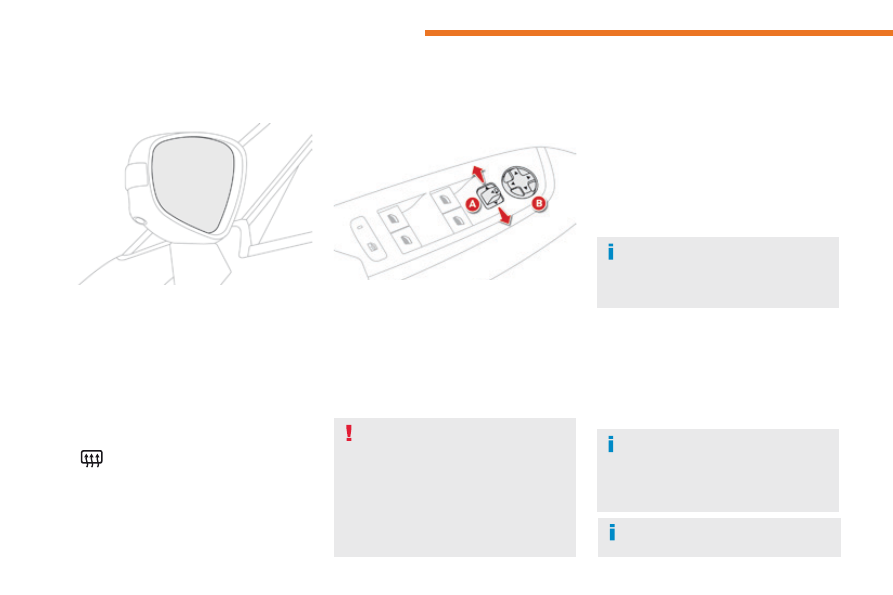

F Move control A

to the right or to the left to

select the corresponding mirror.

F Move control B

in all four directions to

adjust.

F Return control A

to the central position.

Each fitted with an adjustable mirror glass
providing the lateral rearward vision necessary
for overtaking or parking.
They can also be folded for parking in confined
spaces.

Demisting - Defrosting

Door mirrors

Demisting-defrosting of the door
mirrors operates with the engine
running, by switching on the heated
rear screen.

As a safety measure, the mirrors should
be adjusted to reduce the "blind spots".
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.

Folding

From outside: lock the vehicle using the

electronic key or the Keyless Entry and
Starting system.

From inside: with the ignition on, pull the

control A

in the central position rearwards.

If the mirrors are folded using control A,
they will not unfold when the vehicle is
unlocked. Pull again on control A.

The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.

From outside: unlock the vehicle using the

electronic key or the Keyless Entry and
Starting system.

From inside: with the ignition on, pull the

control A

in the central position rearwards.

Unfolding

If necessary, it is possible to fold the
mirrors manually.

For more information on Demisting -
Defrosting the rear screen, refer to the
corresponding section.

Adjustment

209

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

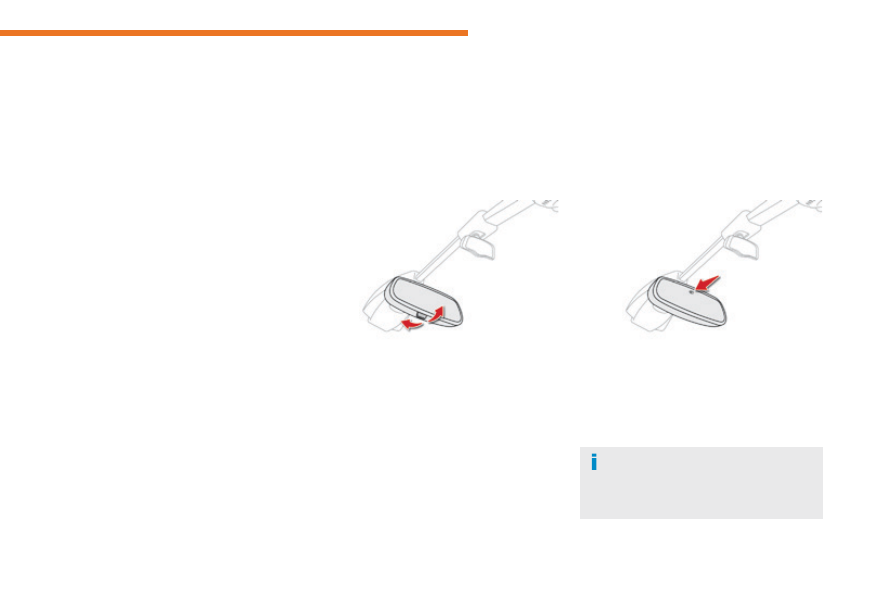

Rear view mirror

Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...

Manual model

Adjustment
F

Adjust the mirror so that the glass is

directed correctly in the "day" position.

In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.

Day / night position
F

Pull the lever to change to the "night" anti-

dazzle position.

Push the lever to change to the normal

"day" position.

Automatic "electrochrome"
model

This system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.

Automatic tilting in reverse
gear

With the engine running, on engaging reverse

gear, the mirror glasses tilt downwards.

They return to their initial position:

- a few seconds after coming out of reverse

gear,

- once the speed of the vehicle exceeds

6 mph (10 km/h),

- on switching off the engine.

System which provides a view of the ground
during parking manoeuvres in reverse gear.

This function can be activated or deactivated in
the Driving

menu of the touch screen.

F Select the "Vehicle settings" tab then

"Comfort

" and "Mirror adaptation in

reverse

210

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

Child surveillance
mirror

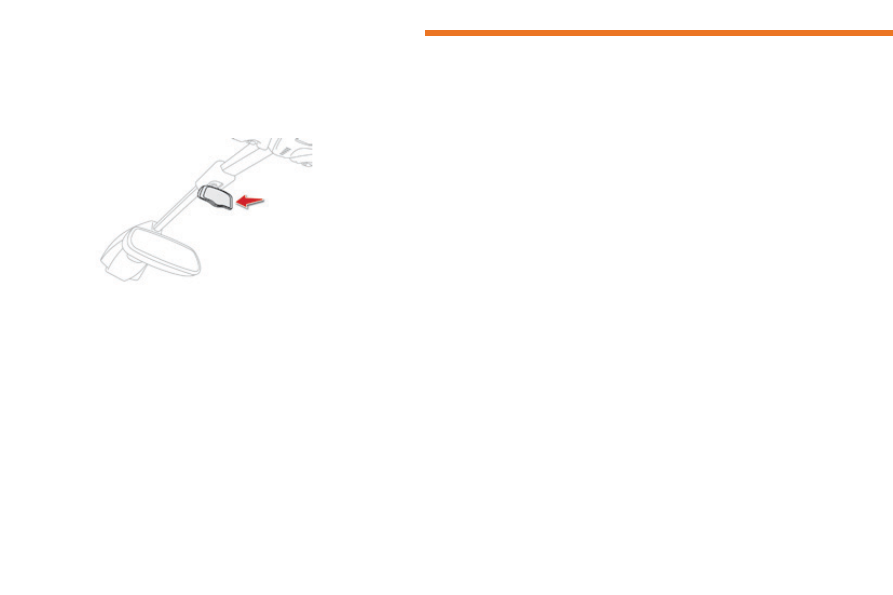

A child surveillance mirror is fitted above the
rear view mirror. This allows you to monitor the
vehicle’s rear passengers, or it can facilitate
conversation between the front and rear
passengers without the need to move the rear
view mirror.
It can be folded away to eliminate dazzle.

211

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

Lighting control stalk

Main lighting

The various front and rear lamps of the vehicle
are designed to adapt the driver's visibility
progressively according to the climatic
conditions:
- sidelamps, to be seen,
- daytime running lamps to be more visible

during the day,

- dipped beam headlamps to see without

dazzling other drivers,

- main beam headlamps to see clearly when

the road is clear.

Additional lighting

Other lamps are provided to meet the
requirements of particular driving conditions:
-  rear foglamps,

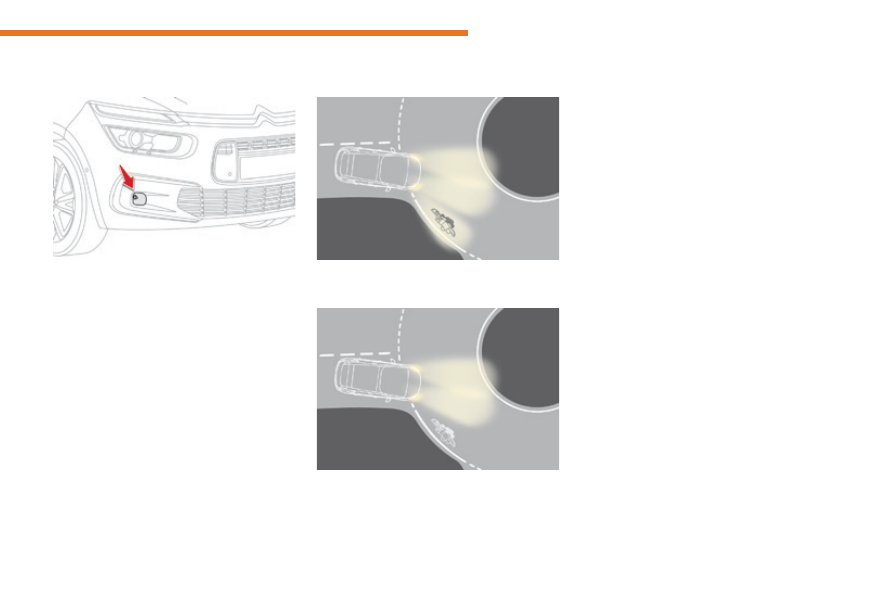

-  front foglamps with cornering lighting,

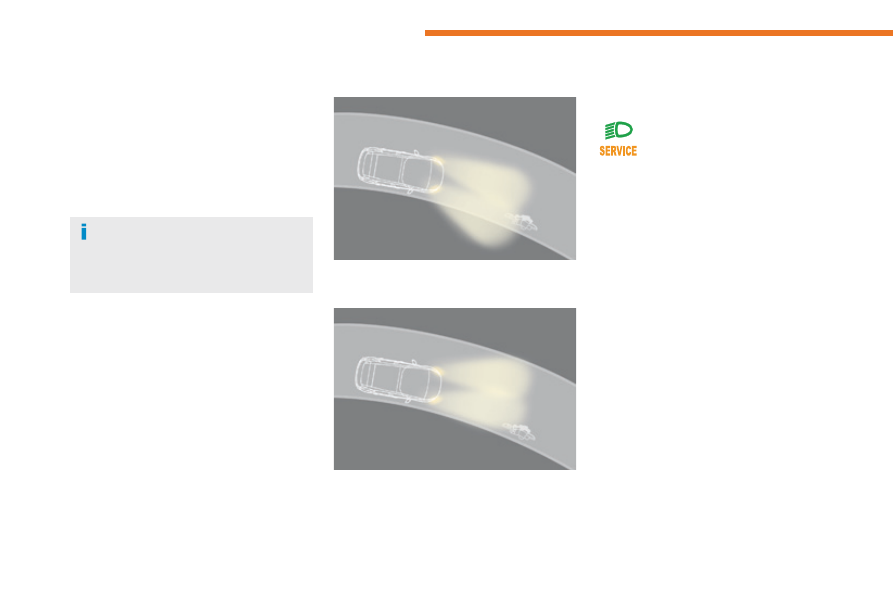

-  directional headlamps for improved

visibility when cornering,

- guide-me-home and welcome lighting to

facilitate access to the vehicle,

- parking lamps as vehicle position markers.

Programming

The setting of some functions can be adjusted:
-  automatic illumination of headlamps,
-  automatic headlamp dipping,
-  guide-me-home lighting,
-  welcome lighting,
-  cornering lighting,
-  directional lighting.

In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.

Travelling abroad

Halogen headlamps
For motoring in countries that drive
on the other side of the road, it is
necessary to adapt the adjustment of
the dipped beams so as to not dazzle
the drivers of approaching vehicles.
Contact a CITROËN dealer or qualified
workshop.
Xenon headlamps
The design of the dipped beam
headlamps allows you to drive in a
country that drives on the other side
of the road, without the need for any
modification.

In the event of the failure of one or more
bulbs, a message advises you to check
the lamp(s) in question.

Selection and control of the various front and rear lamps providing the vehicle's lighting.

212

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

Displays

Illumination of the corresponding indicator
lamp in the instrument panel confirms that the
lighting selected is on.

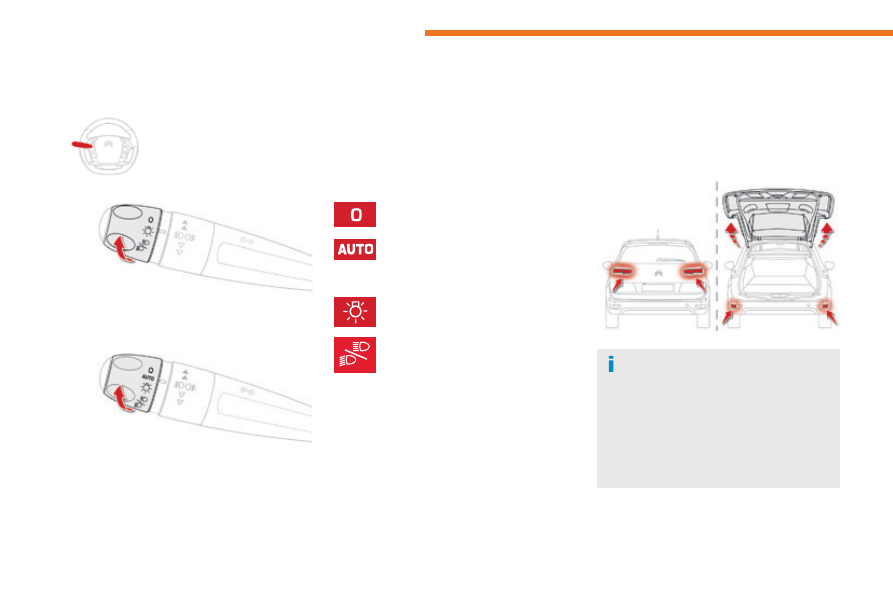

The rear sidelamps and direction
indicators are located on the tailgate.
When they are on, opening the tailgate
automatically transfers illumination to
the lamps located in the rear bumper, to
maintain the safety of the vehicle.

Main lighting

Lighting off (ignition off) /
Daytime running lamps (engine running).
Automatic illumination of headlamps.
Daytime running lamps / Dipped
beam / Main beam.

Sidelamps.

Dipped or main beam headlamps.

Turn the ring to place the desired symbol
against the mark.

Selection of main lighting
mode

Without AUTO lighting

With AUTO lighting

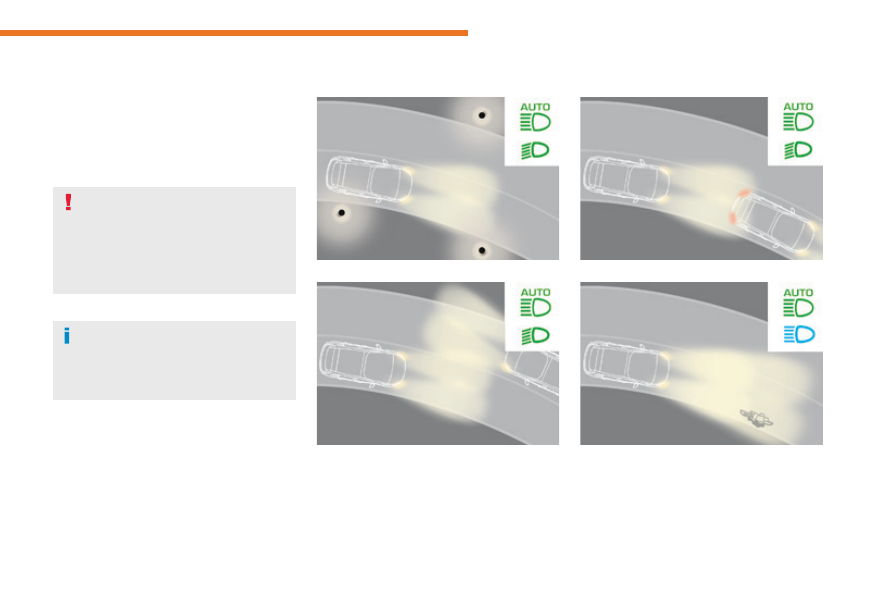

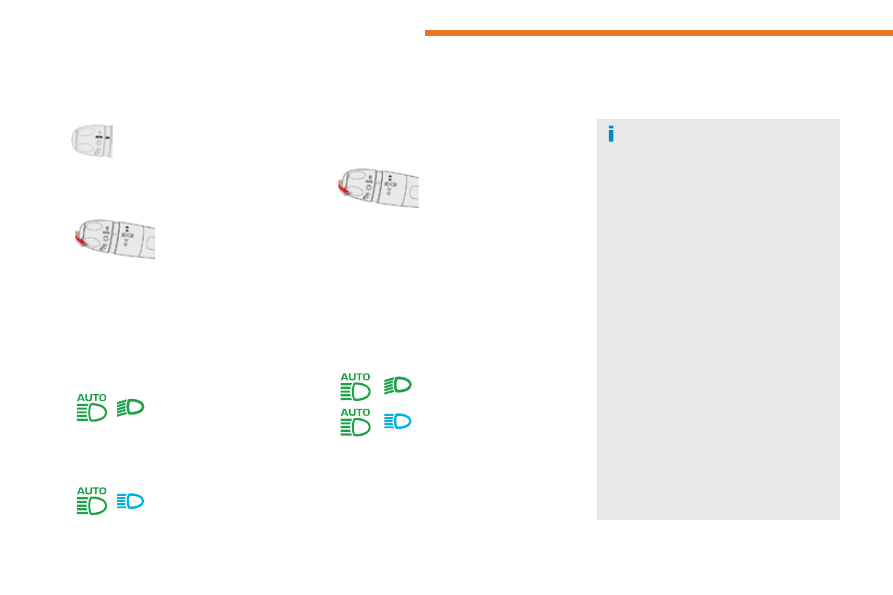

Headlamp dipping

Pull the stalk towards you to switch the lighting
between dipped and main beam headlamps or
to activate automatic headlamp dipping.

In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.

213

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

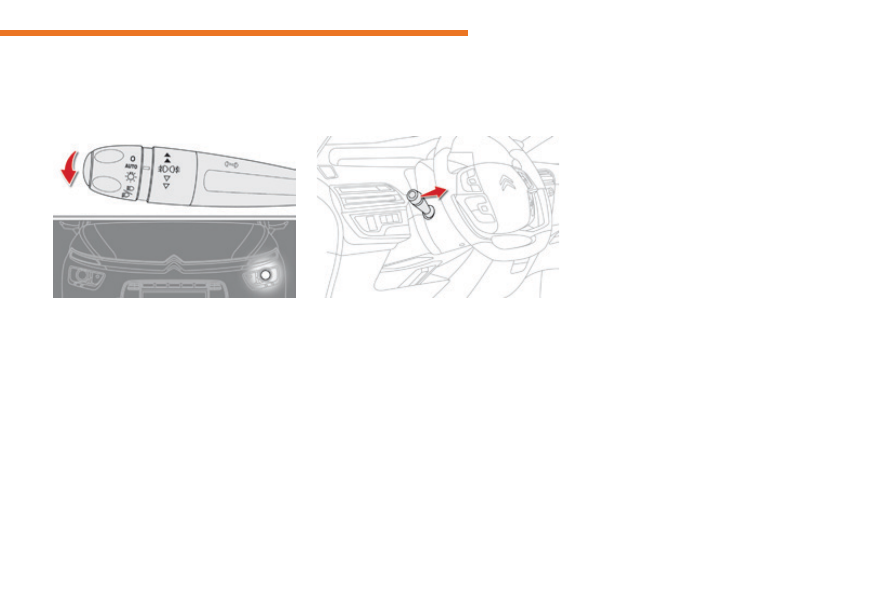

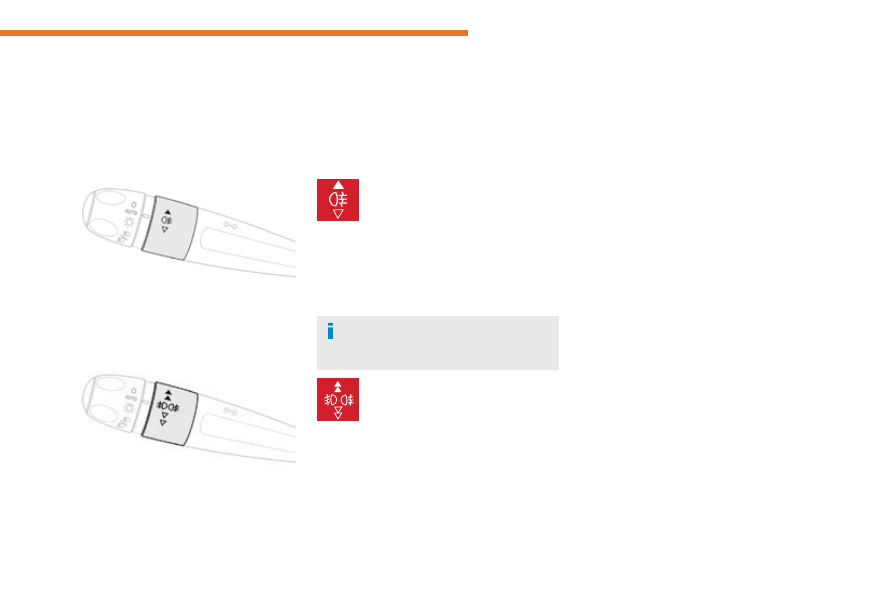

With rear foglamps only

Rear foglamps

Rotate and release the ring:
F

forwards a first time to switch on the front

foglamps,

forwards a second time to switch on the

rear foglamps,

rearwards a first time to switch off the rear

foglamps,

rearwards a second time to switch off the

front fog lamps.

With front and rear foglamps

Foglamps

To switch on the foglamps, turn the ring

forwards.

Front and rear foglamps

To switch off the foglamps, turn the ring

rearwards.

When the headlamps switch off with automatic
illumination of headlamps or when the dipped
beam headlamps are switched off manually,
the foglamps and sidelamps remain on.
F

Turn the ring rearwards to switch off

the foglamps, the sidelamps will then
switch off.

When switching off dipped beam
manually, the rear foglamps also go off.

The foglamps operate with the dipped and main
beam headlamps.

214

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

Operation of the rear foglamps is
inhibited with the tailgate open.
Opening the tailgate when these lamps
are on causes them and their indicator
lamp in the instrument panel to go off.
They do not come back on
automatically when the tailgate is
closed: they must be switched on again
using the control stalk.

In good or rainy weather, by both day
and night, the front foglamps and the
rear foglamps are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or falling snow.
In these weather conditions, you
should switch on the foglamps and
dipped beam headlamps manually,
as the sunshine sensor may detect
sufficient light.
Do not forget to switch off the front and
rear foglamps when they are no longer
necessary.

Switching off the lighting
when switching off the ignition

When the ignition is switched off, all of the
lamps switch off immediately, except for
the dipped beam headlamps if automatic
guide-me-home lighting is activated.

Switching on the lighting when
switching on the ignition

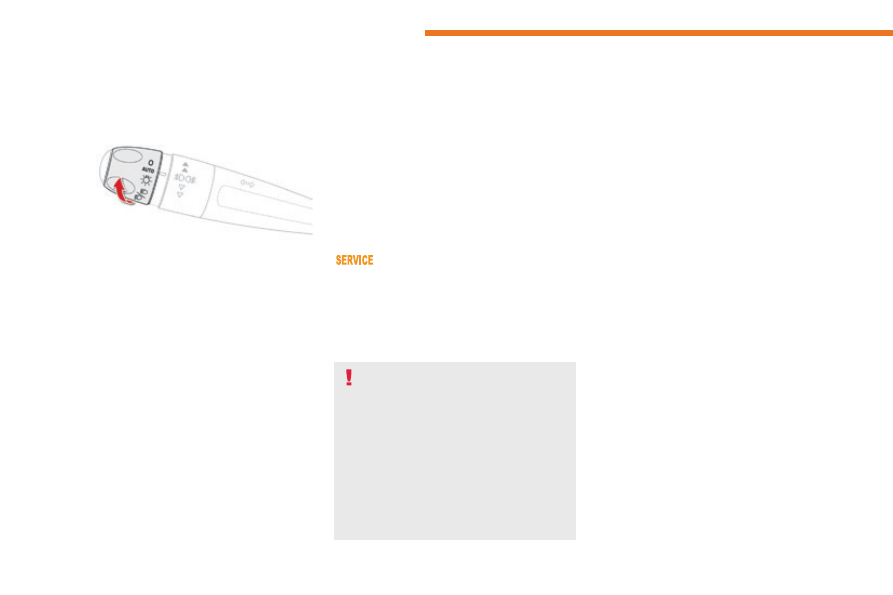

To reactivate the lighting control stalk,
turn the ring A to position "0" - lighting
off, then to the position of your choice.
When the driver's door is opened,
a temporary audible signal warns you
that the vehicle's lighting is on.
They switch off automatically after a
period which depends on the state of
charge of the battery (entry to energy
economy mode).

215

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

Automatic

When the automatic illumination of headlamps
is activated (lighting control stalk at the
AUTO position), if the ambient light level is
low, the dipped beam headlamps come on
automatically when switching off the ignition.

Activation or deactivation of the system, as well
as the period of operation of the guide-me-
home lighting is set via the Driving menu in the
touch screen.
Select "Guide-me-home lighting" to activate
or deactivate the function.
To adjust the period of operation, select the
symbol for the "Guide-me-home lighting"
function.

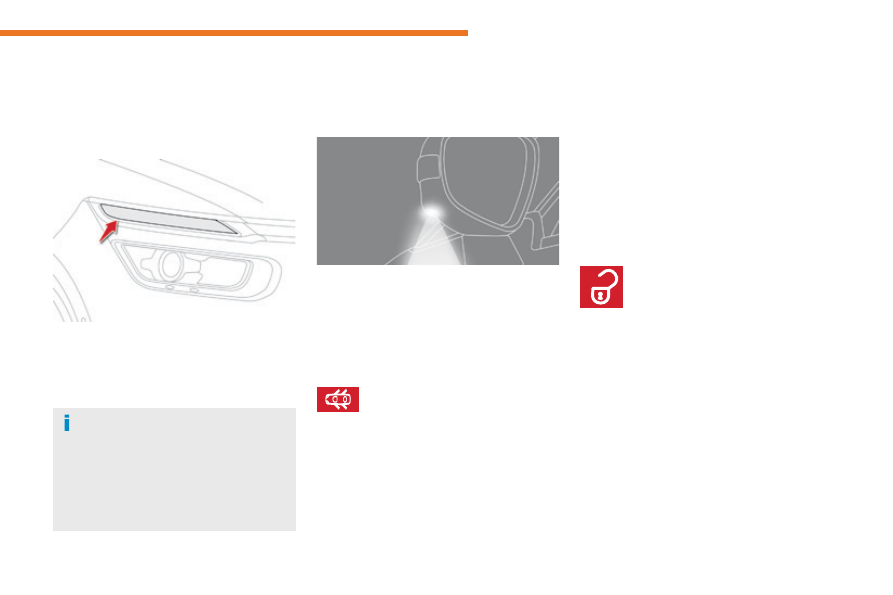

Parking lamps

Guide-me-home
lighting

Manual

Deactivation
The manual guide-me-home lighting switches
off automatically after a set time.

The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.

Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
F

Depending on version, within one minute

of switching off the ignition, operate the
lighting control stalk up or down depending
on the traffic side (for example: when
parking on the left; lighting control stalk
upwards; the right hand sidelamps are on).

This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the central position.

Activation
F

With the ignition off, "flash" the headlamps

using the lighting stalk.

A further "headlamp flash" switches the

function off.

216

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

Automatic illumination of
headlamps

Activation

Turn the ring to the "AUTO" position. The

activation of the function is accompanied
by the display of a message.

When a low level of ambient light is detected
by a sunshine sensor, the number plate lamps,
sidelamps and dipped beam headlamps are
switched on automatically, without any action
on the part of the driver. They can also come
on if rain is detected, at the same time as
automatic operation of the windscreen wipers.
As soon as the brightness returns to a
sufficient level or after the windscreen wipers
are switched off, the lamps are switched off
automatically.

Deactivation

Turn the ring to another position.

Deactivation of the function is
accompanied by the display of a message.

Operating fault

In the event of a malfunction of the
sunshine sensor, the lighting comes
on; this warning lamp is displayed

In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the top of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.

Contact a CITROËN dealer or a qualified
workshop.

in the instrument panel accompanied by an
audible signal and/or a message.

217

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

System which automatically changes between
dipped and main beam according to the
ambient light level and the driving conditions,
using a camera located at the top of the
windscreen.

This system is a driving aid.
The driver remains responsible for the
vehicle's lighting, its correct use for the
prevailing conditions of light, visibility
and traffic and observation of driving
and vehicle regulations.

The system will be operational as soon as
you have exceeded 16 mph (25 km/h).
If the speed drops below 9 mph (15 km/h),
the system no longer operates.

Automatic headlamp dipping

218

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

The system may suffer interference or
not work correctly:
- under conditions of poor visibility

(falling snow, heavy rain or thick
fog, etc.),

- if the windscreen is dirty, misted or

obscured (by a sticker, etc.) in front
of the camera,

- if the vehicle is facing highly

reflective signs.

The system is not able to detect:
- road users that do not have their

own lighting, such as pedestrians,

- road users whose lighting is

obscured, such as vehicles running
behind a safety barrier (on a
motorway, for example),

- road users at the top or bottom of a

steep slope, on winding roads, on
crossroads.

Deactivation

F In the Driving

menu, select the "Driving

functions" tab, then "Automatic
headlamp dipping

"; the system changes

to "automatic illumination of headlamps"
mode.

To reactivate the system, flash the headlamps
again.

Depending on the situation,
these indicator lamps
come on.

Activation

Put the lighting control stalk ring

in the "AUTO

" position.

F In the Driving

menu, select the "Driving

functions" tab, then "Automatic
headlamp dipping

Operation

- dipped beam is

maintained, these
indicator lamps come on in
the instrument panel.

Flash the headlamps

(going beyond the point
of resistance) to activate
the function.

Once the function is activated, the system
operates as follows:
If the ambient light level is sufficient and/or if
the traffic conditions do not allow illumination of
the main beam headlamps:

If the ambient light level is very low and the
traffic conditions permit:

- main beam comes on

automatically: these
indicator lamps come on in
the instrument panel.

Pause

If the situation requires a change of headlamp
beam, the driver can take over at any time.

Flashing the headlamps

again pauses the
function and the system

changes to "automatic illumination of
headlamps" mode:
- if the "AUTO" and "Dipped beam"

indicator lamps are on, the system
changes to main beam,

- if the "AUTO" and "Main beam" indicator

lamps are on, the system changes to
dipped beam.

219

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

To make your approach to the vehicle easier,
these illuminate:
- the zones facing the driver’s and

passenger’s doors,

- the zones forward of the door mirrors and

rearward of the front doors.

Door mirror spotlamps

Switching on

Switching off

They go off automatically after 30 seconds.

Exterior welcome
lighting

Switching on

Press the open padlock on the

remote control or one of the front
door handles with Keyless Entry
and Starting.

Front daytime running
lamps
(light-emitting diodes)

They come on automatically when the engine
is started, when the lighting control stalk is in
position "0" or "AUTO

The remote switching on of the lighting makes
your approach to the vehicle easier in poor
light. It is activated when the lighting control
is in the "AUTO

" position and the level of light

detected by the sunshine sensor is low.

Switching off

The exterior welcome lighting switches off
automatically after a set time, when the ignition
is switched on or on locking the vehicle.

When the courtesy lamp is in this
position, the spotlamps come on
automatically:

- when you unlock the vehicle,

- when you remove the electronic key from

the reader,

- when you open a door,
-

when you use the remote control to locate the vehicle.

The dipped beam headlamps and sidelamps
come on; your vehicle is also unlocked.

220

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

To avoid causing a nuisance to other road
users, the headlamps should be adjusted
according to the load in the vehicle.
0.

1 or 2 people in the front seats.

Intermediate setting.

5 people + maximum authorised load.

Intermediate setting.

Driver + maximum authorised load.

Intermediate setting.

5 people + maximum load in the boot.

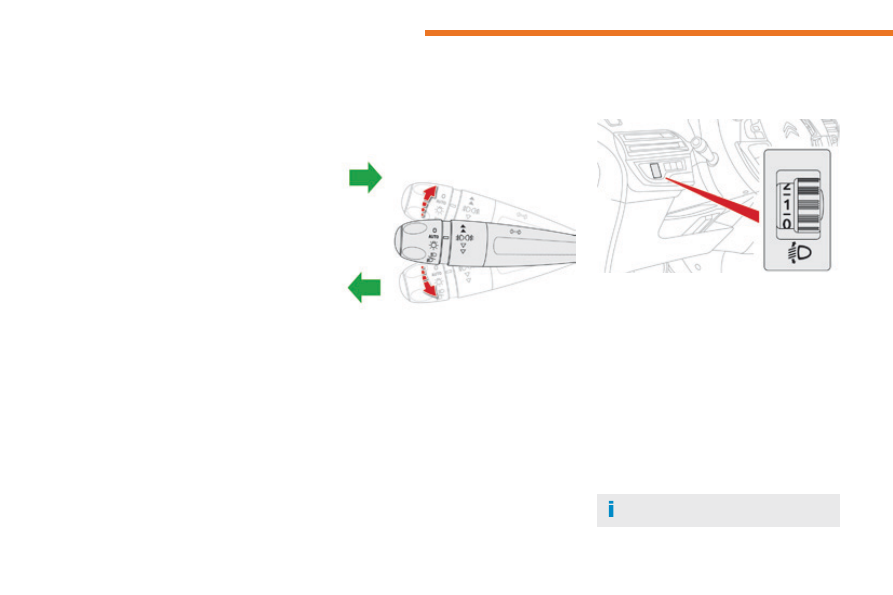

Adjusting the headlamp

beam height

The initial setting is position "0".

Programming

The activation, deactivation and choice of
welcome lighting duration are done via the
Driving

menu of the touch screen.

On the "Vehicle settings" tab, select
"Welcome lighting

Use the arrows or the cursor to adjust the
duration of the lighting.

Direction indicators

Left: lower the lighting stalk passing the

point of resistance.

Right: raise the lighting stalk passing the

point of resistance.

Three flashes of the direction

indicators

Press briefly upwards or downwards,

without going beyond the point of
resistance; the direction indicators will
flash 3 times.

221

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

Cornering lighting

This system, if fitted to your vehicle, makes use
of the beam from a front foglamp to illuminate
the inside of a bend, when the main or dipped
beam headlamps are on and the vehicle speed
is below 25 mph (40 km/h) (urban driving,
winding road, junctions, parking manoeuvres,
etc.).

with cornering lighting

without cornering lighting

Switching on

This system starts:
- when the corresponding direction indicator

is switched on,

or
- from a certain angle of rotation of the

steering wheel.

Switching off

The system does not operate:
- below a certain angle of rotation of the

steering wheel,

- above 25 mph (40 km/h),
- when reverse gear is engaged.

The cornering lighting can be activated or
deactivated in the Driving menu.
F Select the "Vehicle settings" tab, then

"Driving lighting

" and "Directional

headlamps

222

Lighting and visibility

C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

Directional lighting

When the dipped or main beam headlamps are
on, this system allows the light beams to better
follow the road.
Associated with xenon headlamps, this system
improves the quality of lighting when cornering.

with directional lighting

without directional lighting

Operating fault

This system is inactive:
- when stationary or at low speeds,
- when reverse is engaged.

If a fault occurs, these warning lamps
come on in the instrument panel,
accompanied by an audible signal
and a message.

Contact a CITROËN dealer or a qualified
workshop.

The directional lighting can be activated or
deactivated in the touch screen.
In the Driving

menu, select the "Vehicle

settings" tab, then "Driving lighting

" and

select "Directional headlamps

Content .. 12 13 14 15 ..
