Citroen C4 Aircross (2017 year). Manual

C4-AIRCROSS_EN_CHAP00_COUV-IMPRIMEUR_ED01-2016

On-line handbook

If the "MyCITROËN" function is not available on the CITROËN public website for your country, you

can find your handbook at the following address:
http://service.citroen.com/ddb/

Find your handbook on the CITROËN website, under "MyCITROËN".

Select:

Select one of the following means of access to

view your handbook on-line...

This personal and customisable space allows you to establish direct and special contact with the

manufacturer.

the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of your vehicle.

Scan this code for direct access to your handbook.

Referring to the handbook on-line also gives

you access to the latest information available,

easily identified by the bookmark, associated

with this symbol:

Key

safety warning

additional information

contributes to the protection of the environment

CITROËN has a presence on every continent,

a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.

Happy motoring!

At the wheel of your new vehicle,

getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.

This handbook has been designed to help you
make the most of your C4 AIRCROSS in all
circumstances and in complete safety.
Take the time to read through it so as to
familiarise yourself with your vehicle.

This handbook covers all of the variations
in equipment available across the whole
C4 AIRCROSS range.
Your vehicle will be fitted with only some of
the equipment described in this document,
depending on its trim level, version and the
specification for the country in which it was
sold.
The descriptions and illustrations are given as
indications only.
Automobiles CITROËN reserves the right to
modify the technical characteristics, equipment
and accessories without having to update this
edition of the handbook.

This document forms an integral part of your
vehicle. Remember to pass it on to the new
owner in the event of the sale of the vehicle.

Contents

C4-Aircross_en_Chap00a_sommaire_ed01-2016

Instrument panel

Warning and indicator lamps

Instrument panel screen

Trip computer

Distance recorder

Trip distance recorder

Service indicator

Adjusting vehicle settings

Audio-CD system screen

Audio-CD system touch screen

Audio-Telematic system

"Keyless Entry and Starting"

Steering wheel adjustment

Ventilation

Manual heating / air conditioning

Automatic air conditioning

Front demist - defrost

Ease of use and comfort

Driving recommendations

Starting - switching off the engine

with the key

Starting - switching off the engine with the

Keyless Entry and Starting system

Stop & Start (Auto Stop & Go) system

111

Under-inflation detection

114

Four wheel drive system

Daytime running lamps

130

Automatic illumination of headlamps

130

Manual guide-me-home lighting

Automatic rain sensitive wipers

Panoramic roof lighting

140

Lighting and visibility

Eco-driving

Overview

C4-Aircross_en_Chap00b_vue-ensemble_ed01-2016

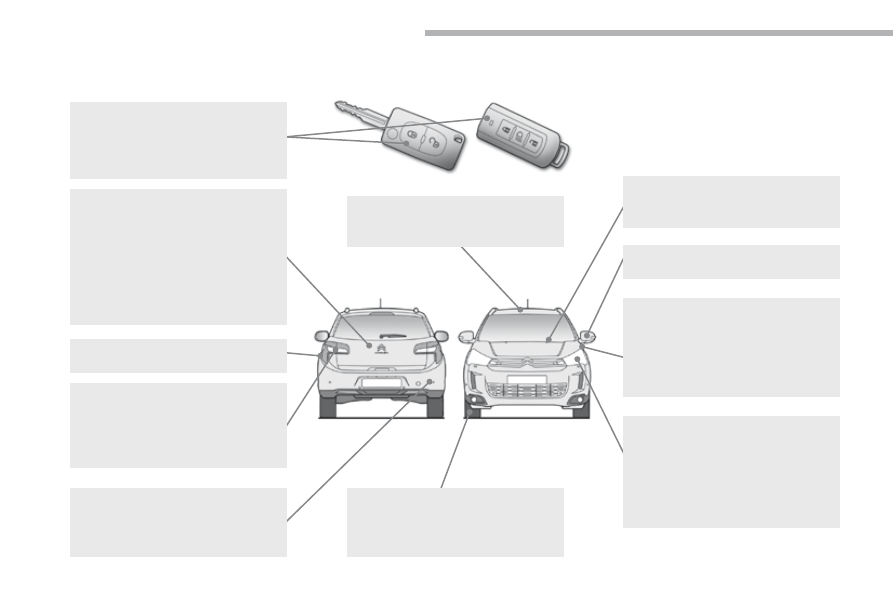

Exterior

Lighting controls

127-131

Headlamp beam adjustment

133

Welcome lighting

132

Changing bulbs

199-202

-  front lamps
-  front foglamps
-  direction indicator repeaters

Wiper controls

134-137

Changing a wiper blade

176

Door mirrors

76-77

Doors

62, 6 4

- opening / closing
- central locking

Child lock

171

Electric windows

68-69

Alarm

65-67

Panoramic sunroof

Roof bars

Braking assistance

Trajectory control

Tyre pressures

Under-inflation detection

114-117

Boot

- opening / closing
- emergency release

Temporary puncture repair kit 189-192

Changing a wheel

193-198

- tools
- removing / refitting

Snow chains

175

Changing bulbs

203-204

- rear lamps
- 3

brake lamp

- number plate lamps
- foglamp

Parking sensors

Reversing camera

Towbar

Towing

Fuel tank

Remote control key / electronic

key

52-61

- opening / closing
-

anti-theft protection

- battery

Overview

C4-Aircross_en_Chap00b_vue-ensemble_ed01-2016

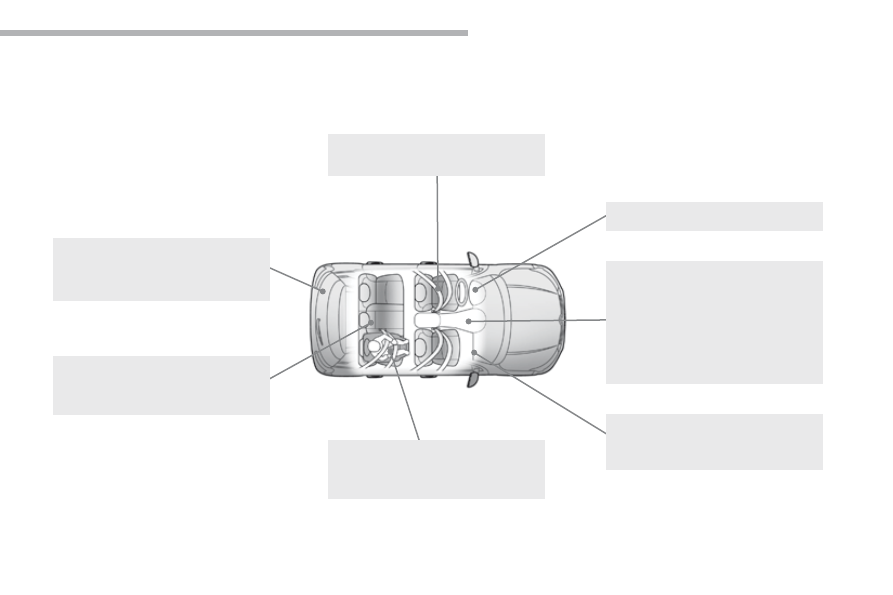

Interior

Boot fittings

95-96

rear parcel shelf

- stowing rings
- storage

Child seats

ISOFIX mountings

Child lock

Front seats

Seat belts

Glove box

Deactivating the passenger's

airbag

152, 1 58

Airbags

151-155

Front fittings

89-93

- AUX socket / USB port
- cigarette lighter / 12 V socket
-

portable ashtray

- front armrest
-

sun visor

- mat

Rear seats

74-75

Rear fittings

Rear armrest / Ski flap

Overview

C4-Aircross_en_Chap00b_vue-ensemble_ed01-2016

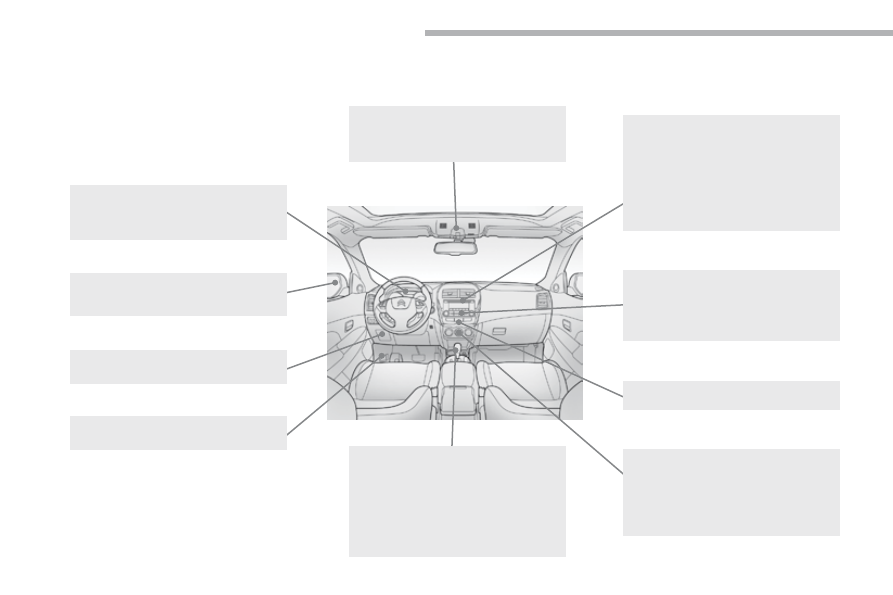

Instruments and controls

Opening the bonnet

180

Door mirrors

76-77

Electric windows

68-69

Rear view mirror

Courtesy lamps

138-139

Panoramic sunroof

Dashboard fuses

205-207, 2 10

Instrument panel

Warning and indicator lamps

13-18

Indicators

33-35

Audio-CD system screen

Setting the time

44-45

Audio-CD system touch screen

Setting the time

46-47

Audio-Telematic system

touch screen

Setting the time

49-50

Parking brake

102

5/6-speed manual gearbox

Gear shift indicator

CVT gearbox

Hill start assist

4 wheel drive system

Audio-CD system

Audio-CD touch screen system 289-312

Audio-Telematic touch screen

system

247-288

Ventilation

79-80

Manual air conditioning

81-82, 87

Automatic air conditioning

83-87

Front demist - defrost

Rear screen demist - defrost

Hazard warning lamps

142

Overview

C4-Aircross_en_Chap00b_vue-ensemble_ed01-2016

Headlamp beam adjustment

133

Stop & Start (Auto Stop & Go)

function

111-113

Steering wheel adjustment

Horn 142

Cruise control

120-122

Ignition switch, starting/switching off

START/STOP button

99-101

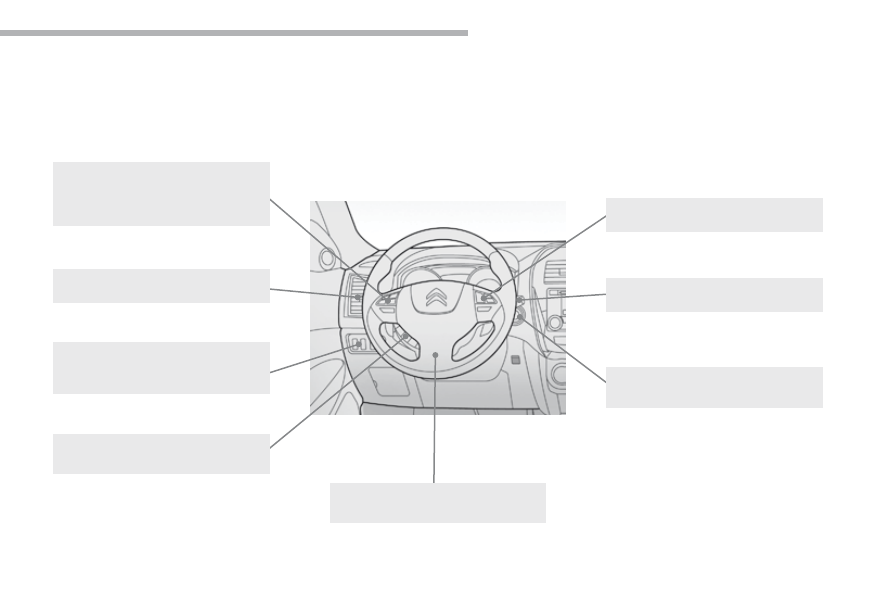

Instruments and controls (continued)

Lighting controls

127-131

Bluetooth

telephone with voice

recognition

235-246

Wiper controls

134-137

Steering mounted controls for Audio-

CD, Audio-CD touch screen,

Audio-Telematic touch screen

systems

249 , 29 1, 316

Overview

C4-Aircross_en_Chap00b_vue-ensemble_ed01-2016

Passenger's airbag deactivation warning

lamp

152

Hazard warning lamps

142

Front passenger's seat belt not fastened

or unfastened warning lamp

148

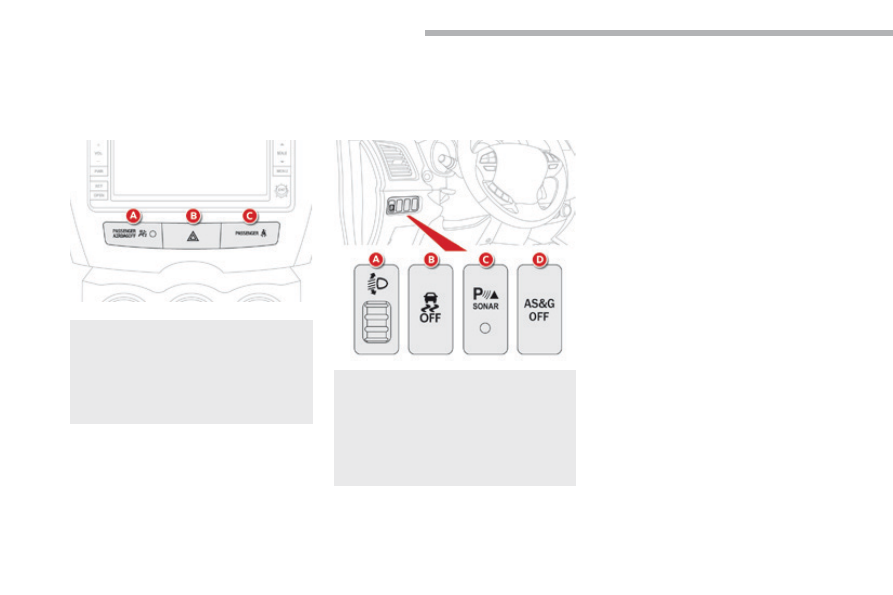

Central switch panel

Instruments and controls (continued)

Manual headlamp adjustment

133

Deactivation of the ASC/TCL system 145

Deactivation of the parking sensors 125

D. Deactivation of the Stop & Start

(Auto Stop & Go) system

112

Side switch panel

Overview

C4-Aircross_en_Chap00b_vue-ensemble_ed01-2016

Maintenance - Technical data

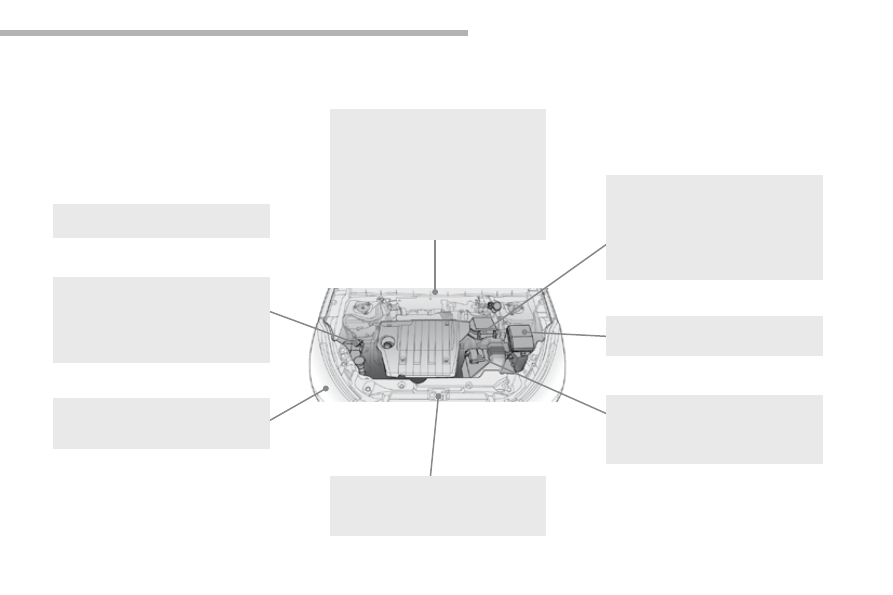

Engine compartment

fuses

205, 2 08-210

Running out of fuel, Diesel

218

Checking levels

183-185

- oil
- brake fluid
- coolant
- screenwash/headlamp wash fluid

Changing bulbs

199-204

- front
- rear

Petrol engines

Petrol weights

Diesel engines

Diesel weights

Dimensions

Off-road performance

Identification markings

233

Bonnet 180

Petrol engine compartment

181

Diesel engine compartment

182

Battery 211-214

Automatic power cut-off to

accessories

176

Checking components

186-188

battery electrolyte

air filter

oil filter

particle filter (Diesel)

- brake pads / discs

Eco-driving

C4-Aircross_en_Chap00c_eco-conduite_ed01-2016

Eco-driving

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

Optimise the use of your gearbox

With a manual gearbox, move off gently and change up without waiting.
During acceleration, change up early.

With an automatic gearbox, give preference to automatic mode and
avoid pressing the accelerator pedal heavily or suddenly.

The gear shift indicator invites you to engage the most suitable gear:
as soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an automatic gearbox, this indicator appears
only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and
CO

emissions and also help to reduce the background traffic noise.

Control the use of your electrical
equipment

Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof, window
blinds, etc.).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light
does not require their use.

Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia devices
(film, music, video game, etc.), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.

If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.

Eco-driving

C4-Aircross_en_Chap00c_eco-conduite_ed01-2016

Limit the causes of excess consumption

Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance
(roof bars, roof rack, bicycle carrier, trailer, etc.). Use a roof box in
preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit your summer tyres.

Observe the recommendations on
maintenance

Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, on the driver's side.
Carry out this check in particular:
-  before a long journey,
-  at each change of season,
-  after a long period out of use.
Do not forget the spare wheel and the tyres on any trailer or caravan.

Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter, etc.) and observe the schedule of
operations recommended in the manufacturer's service schedule.

When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.

Instruments

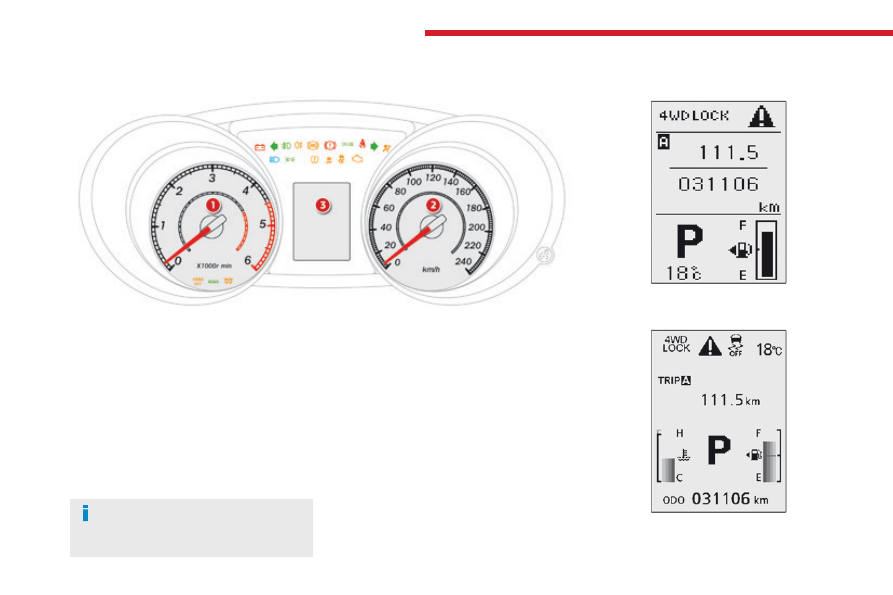

Instrument panel

Rev counter.

Speedometer.

Screen type 2

Instrument panel display screen:

-  Warning and status displays.
-  Total and trip distance recorders.
-  Service indicator.
-  Coolant temperature.
-  Trip computer information.
-  Cruise control setting.
-  Gear shift indicator recommendations.
-  Settings menu (display, sound...).
-  Fuel level.
-  Ambient temperature.
-  Transmission mode.

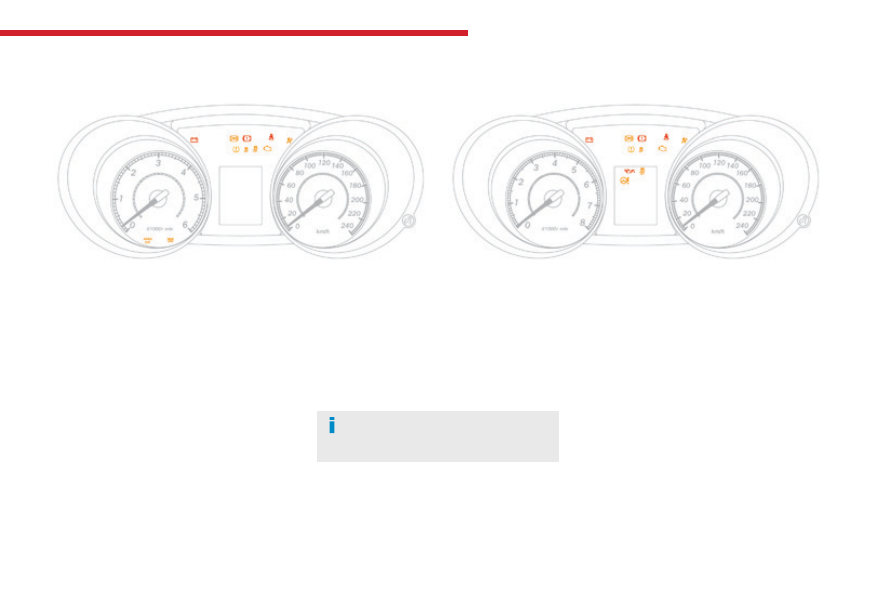

Panel grouping together the dials and warning/
indicator lamps. These inform the driver of the
activation/deactivation of a system or of the
occurrence of a fault.

Screen type 1

Management of the display is done using
the INFO

button located on the dashboard

to the left of the instrument panel.

Instruments

C4-Aircross_en_Chap01_Instruments-de-bord_ed01-2016

Visual indicators which inform the driver of the
occurrence of a malfunction (warning lamp)
or of the operation of a system (operation or
deactivation indicator lamp).

When the ignition is switched on

Certain warning lamps come on for a few
seconds when the ignition is switched on.
When the engine is started, these warning
lamps should go off.

Associated warnings

The illumination, fixed or flashing, of certain
warning lamps may be accompanied by an
audible signal and a message.

Warning and indicator lamps

If they remain on, before moving off,

refer to the information on the warning

lamp in question.

Instruments

Warning lamps

When the engine is running or the vehicle is being driven, the

illumination of one of the following warning lamps indicates a

malfunction which requires action on the part of the driver.

The warning comes on in the instrument panel or appears in the

instrument panel screen.

Warning/indicator lamp

is on

Cause

Action / Observations

Parking brake /
Brake fluid
level / Electronic
brake force
distribution

fixed.

It comes on for a few seconds, then
goes off when the ignition is switched
to "ON".
The parking brake is on or not fully
released.

It is accompanied by a message. Release the parking brake
to make the warning lamp go off.

The brake fluid level is too low.

It is accompanied by a message. Top up with brake fluid and
contact a CITROËN dealer or a qualified workshop.

The electronic brake force distribution
(EBFD) is faulty.

You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.

Engine self-
diagnosis
system

flashing.

The engine management system has
a fault.

Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a qualified
workshop.

fixed.

The emission control system has a
fault.

The warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or qualified
workshop without delay.

Battery charge*

fixed.

The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...).

The warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified
workshop.

The illumination of a warning lamp may be accompanied by the display
of an additional message, to assist you in identifying the problem.
If you encounter any problems, you should contact a CITROËN
dealer or a qualified workshop.

* Depending on the country of sale.
