Multifunction screens

C3Picasso_en_Chap02_ecran-multifonction_ed01-2015

Language

Once the "Language" menu has been
selected, you can change the language used
by the display, by choosing a new language
from the list offered.

As a safety measure, configuration of
the multifunction screen by the driver
must only be done when stationary.

Once the fuel consumption unit has
been changed to mpg, the information
relating to speed and distance also
changes to miles.

Units

Once the "Units" menu has been selected,
you can change the units of the following
parameters:
-

temperature (°C or °F),

fuel consumption (l/100 km, mpg or km/l).

Multifunction screens

C3Picasso_en_Chap02_ecran-multifonction_ed01-2015

Monochrome screen A associated with the eMyWay colour

screen

This displays the following information:
-

ambient temperature (this flashes if there is
a risk of ice),

trip computer (refer to the end of the
section).

Warning messages or information messages
may appear temporarily. These can be cleared
by pressing the "Back" button.

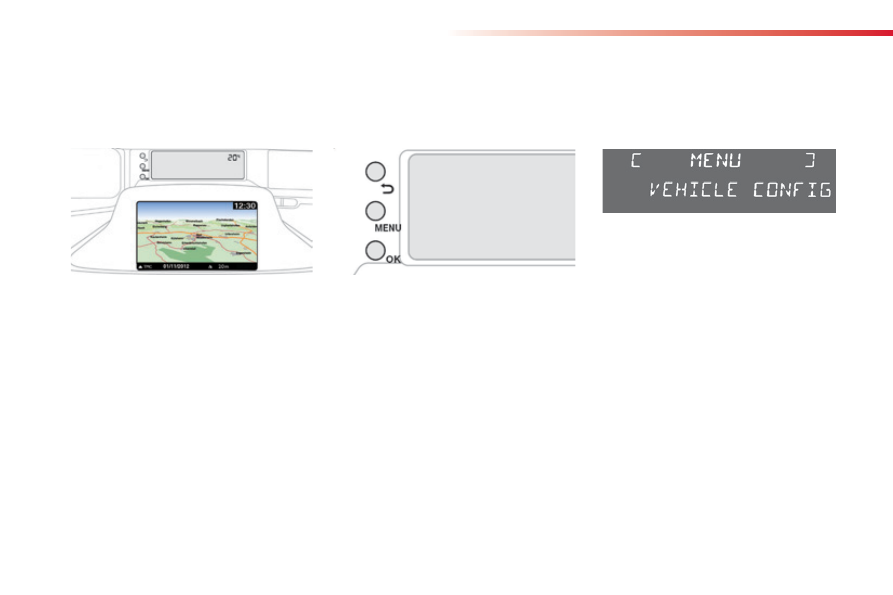

Controls

There are three display control buttons:
-

"Back" to abandon the operation in
progress,

"MENU" to scroll through the menus or
sub-menus,

"OK" to select the menu or sub-menu
required.

Main menu

F Press the "MENU" button to scroll through

the various menus of the main menu:
- vehicle configuration,
- options,
- language,
- units.

F Press the "OK" button to select the menu

required.

Displays in screen A

Multifunction screens

C3Picasso_en_Chap02_ecran-multifonction_ed01-2015

Options

Once the "Options" menu has been selected,
you can start diagnostics of the status of the
equipment (active, not active, faulty).

Language

Once the "Languages" menu has been
selected, you can change the language used
by the display by selecting a new language
from the list offered.

Units

Once the "Units" menu has been selected,
you can change the units of the following
parameters:
-

temperature (°C or °F),

fuel consumption (l/100 km, mpg or km/l).

The chosen language will also be used
by the eMyWay system colour screen.

For safety reasons, configuration of the
multifunction screen by the driver must
only be done when stationary.

Once the fuel consumption unit has
been changed to mpg, the information
relating to speed and distance also
changes to miles.

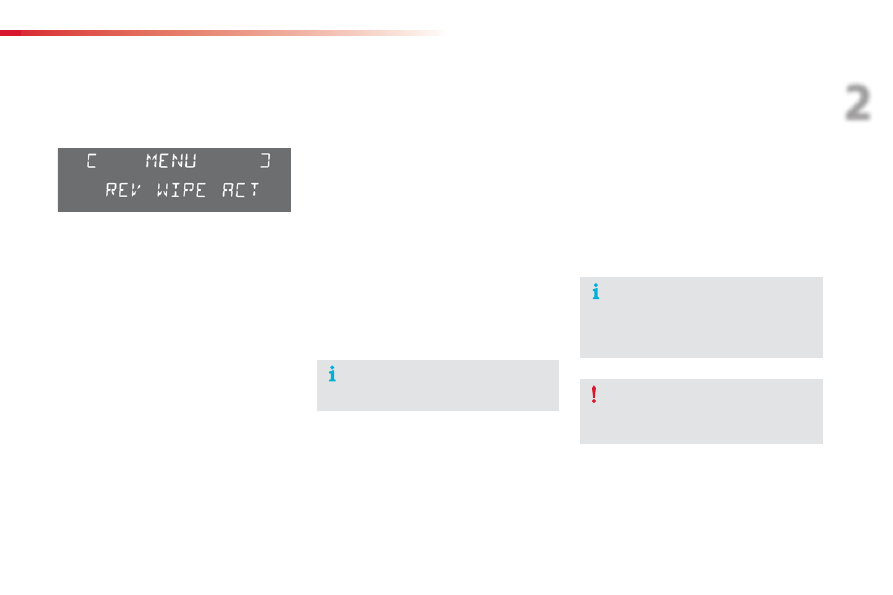

Vehicle configuration

Once the "Veh config" menu has been
selected, you can activate or deactivate the
following equipment:
- wiper linked with reverse gear (see the

"Visibility" section),

guide-me-home lighting (see the "Visibility"
section),

daytime running lamps (see the "Visibility"
section).

Using this menu, you can also reinitialise the
tyre under-inflation detection system (see the
"Safety" section).

Multifunction screens

C3Picasso_en_Chap02_ecran-multifonction_ed01-2015

Displays in the eMyWay
system colour screen

Display configuration

This menu allows you to choose a colour
scheme for the display screen, adjust the
brightness, the date and time, and choose
the units for distance (km or miles), fuel
consumption (l/100 km, mpg or km/l) and
temperature (°Celsius or °Fahrenheit).

This displays the following information:
- time,
- date,
-

audio functions,

parking sensor information (depending on
version),

navigation system information.

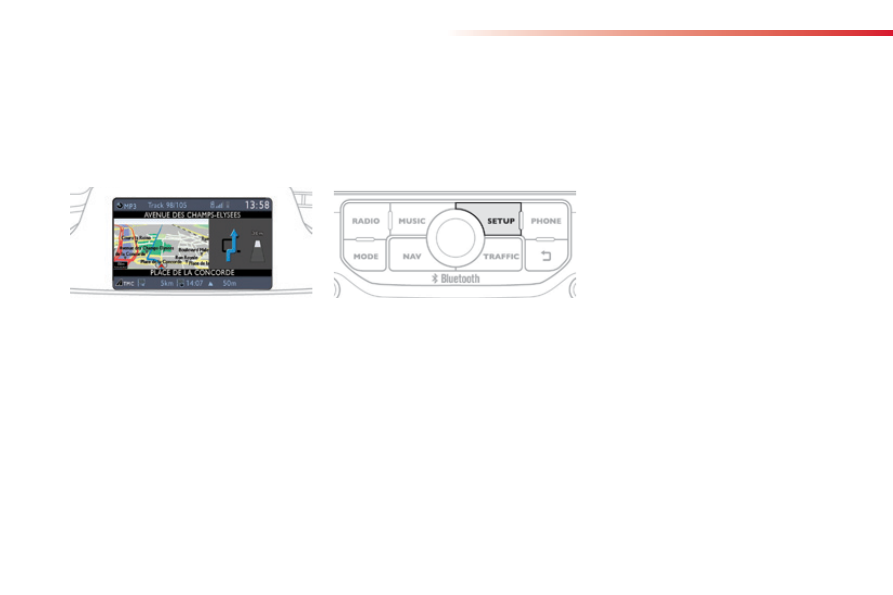

"SETUP" menu

Press the SETUP button to access the
"SETUP" menu. It gives you access to the
following functions:
- "Display configuration",
- "Voice synthesis",
- "Trip computer".

Setting the date and time
F Press the SETUP button.
F Select "Display configuration" and press

the knob to confirm.

F Select the "Adjust date and time" and

press the knob to confirm.

F Adjust the settings in turn using the

directional arrows, then confirm by
pressing the knob.

Select "Synchronise minutes with GPS" so
that the minutes are adjusted automatically by
satellite reception.

Multifunction screens

C3Picasso_en_Chap02_ecran-multifonction_ed01-2015

Adjusting the voice synthesis

This menu allows you to adjust the volume for
the navigation instructions and choose the type
of voice (male or female).
For more information, refer to the "Audio and
telematics" section.

Trip computer

This menu allows you vies information on the
state of the vehicle. You can choose between
the following functions:
-

"Alert log"

List of active alerts.

"State of functions"

List of the state of functions (activated,
deactivated or faulty)

As a safety measure, configuration of
the multifunction screen by the driver
must only be done when stationary.

Multifunction screens

C3Picasso_en_Chap02_ecran-multifonction_ed01-2015

This displays the following information:
- time,
- date,
-

ambient temperature (this flashes if there is
a risk of ice),

state of the openings (doors, boot, etc.),

audio sources (radio, CD, USB port, etc.),

trip computer (refer to the end of the
section).

Warning messages or information messages
may appear temporarily. These can be cleared
by pressing the "Back" button.

From the audio equipment control panel, you
can:
F press the "MENU" button for access to the

main menu,

F press the "5" or "6" buttons to scroll

through the items on the screen,

F press the "MODE" button to change the

permanent application (trip computer,
audio source...),

F press the "7" or "8" buttons to change a

setting value,

F press the "OK" button to confirm,
or
F press the "Back" button to abandon the

operation in progress.

Main menu

F Press the "MENU" button for access to the

main menu:
- audio functions,
- trip computer (refer to the end of the

section),

- personalisation-configuration,
- telephone (hands-free kit).

F Press the "5" or "6" buttons to select the

menu required, then confirm by pressing
the "OK" button.

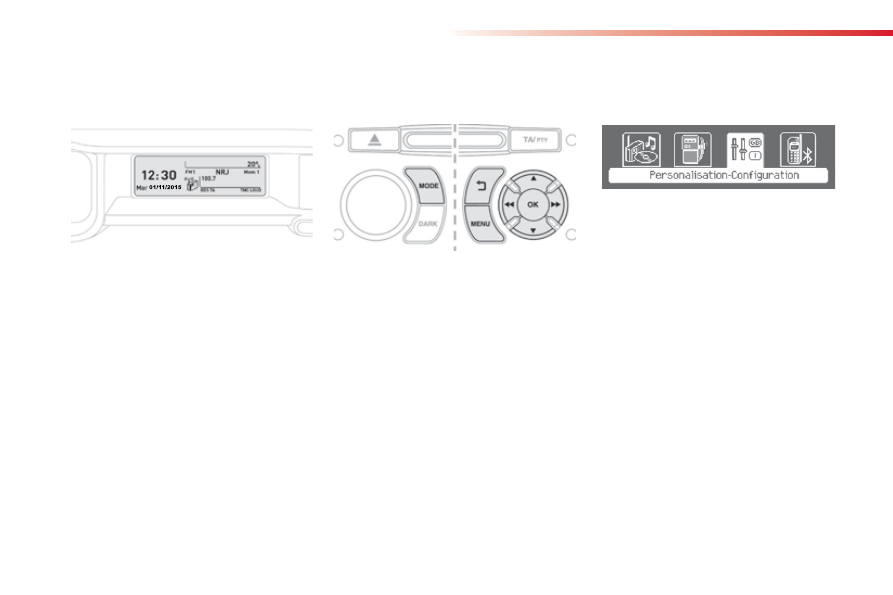

Monochrome screen C

Controls

Displays in the screen

Multifunction screens

C3Picasso_en_Chap02_ecran-multifonction_ed01-2015

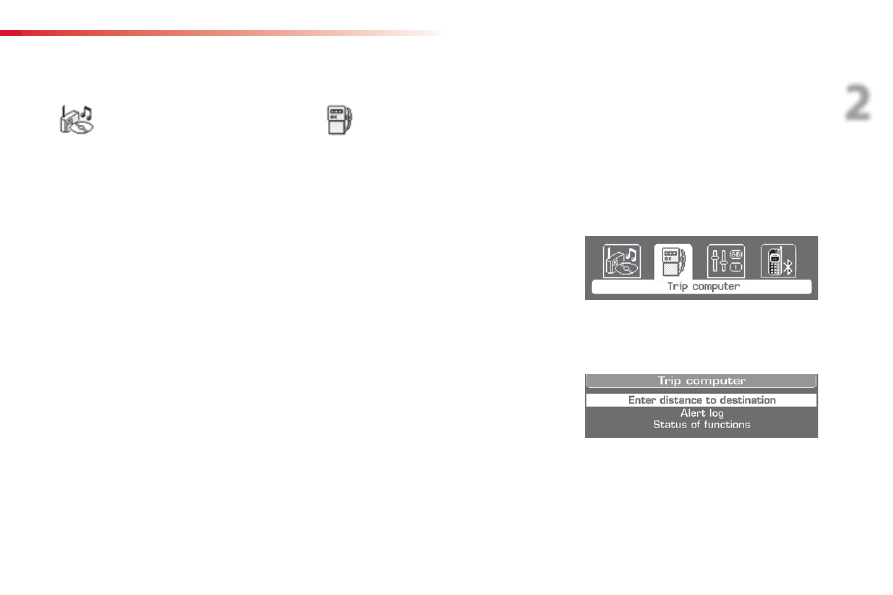

"Trip computer"
menu

Alert log

This summarises the active warning messages,
displaying them in succession in the
multifunction screen.

Once this menu has been selected, you can
consult information concerning the status of the
vehicle (alert log, status of functions, etc.)

Status of functions

This summarises the status (active or inactive)
of the vehicle's functions.

Enter distance to
destination

This allows you to enter an approximate
distance until your final destination.

F Press the "MENU" button for access to the

main menu.

Press the arrows, then the "OK" button to

select the "Trip computer" menu.

F In the "Trip computer" menu, select one of

the following applications:

"Audio functions"
menu

With the audio equipment switched on, once
this menu has been selected you can activate
or deactivate the functions linked with use
of the radio (RDS, REG, RadioText), the CD
(introscan, shuffle, CD repeat) or the MP3
player (USB port).
For more information on the "Audio functions"
application, refer to the Audio system part of
the "Audio and telematics" section.

Multifunction screens

C3Picasso_en_Chap02_ecran-multifonction_ed01-2015

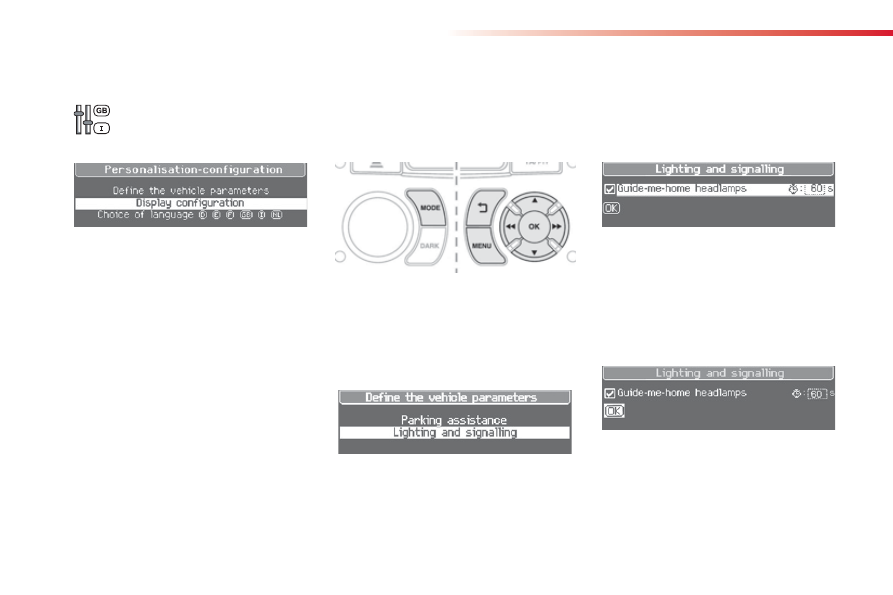

Example: setting of the duration of the guide-
me-home lighting

F Press the "5" or "6" buttons, then

the "OK" button to select the menu
required.

F Press the "5" or "6" buttons, then

the "OK" button to select the "Guide-me-
home headlamps" line.

F Press the "7" or "8" buttons to set the

value required (15, 30 or 60 seconds), then
press the "OK" button to confirm.

F Press the "5" or "6" buttons, then

the "OK" button to select the "OK"

box

and confirm or press the "Back" button to
cancel.

Define the vehicle parameters

Once this menu has been selected, you can
activate or deactivate the following equipment:
- wiper linked with reverse gear (refer to the

"Visibility" section),

daytime running lamps, (refer to the
"Visibility" section),

guide-me-home lighting

Using this menu, you can also reinitialise the
tyre under-inflation detection system (see the
"Safety" section).

"Personalisation-
Configuration" menu

Once this menu has been selected, you can
gain access to the following functions:
-

define the vehicle parameters,

display configuration,

choice of language.

Multifunction screens

C3Picasso_en_Chap02_ecran-multifonction_ed01-2015

Choice of language

Once this menu has been selected, you can
change the language used by the display, by
choosing a new language from the list offered.

Telephone menu

With the Audio system on and this menu
selected, you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (calls log, services...) and
manage your calls (call, hang up, double call,
secret mode...).
For more information on the "Telephone"
application, refer to the Audio system part in
the "Audio and telematics" section.

As a safety measure, configuration of
the multifunction screen by the driver
must only be done when stationary.

Display configuration

Once this menu has been selected, you can
gain access to the following settings:
-

brightness-video setting,

date and time setting,

selection of the units.

Once the fuel consumption unit has
been changed to mpg, the information
relating to speed and distance also
changes to miles.

Adjust the date and time
F Select the "Date and time adjustment"

function using the "5" or "6" button.

F Press the "OK" button to confirm the

selection.

F Adjust the settings one by one using

the "7" or "8

" button then confirm with

the "OK" button.

F Then select the "OK"

box in the screen

and then confirm.

Multifunction screens

C3Picasso_en_Chap02_ecran-multifonction_ed01-2015

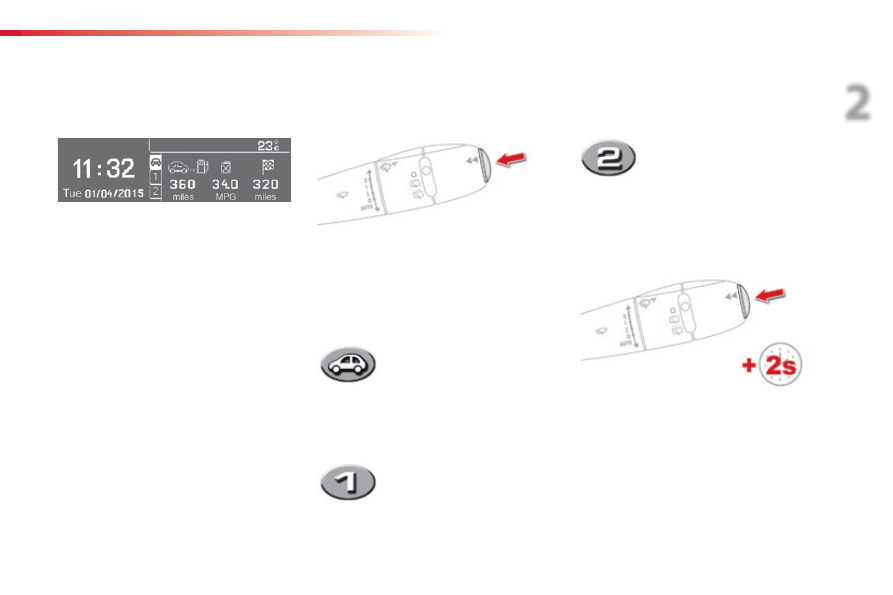

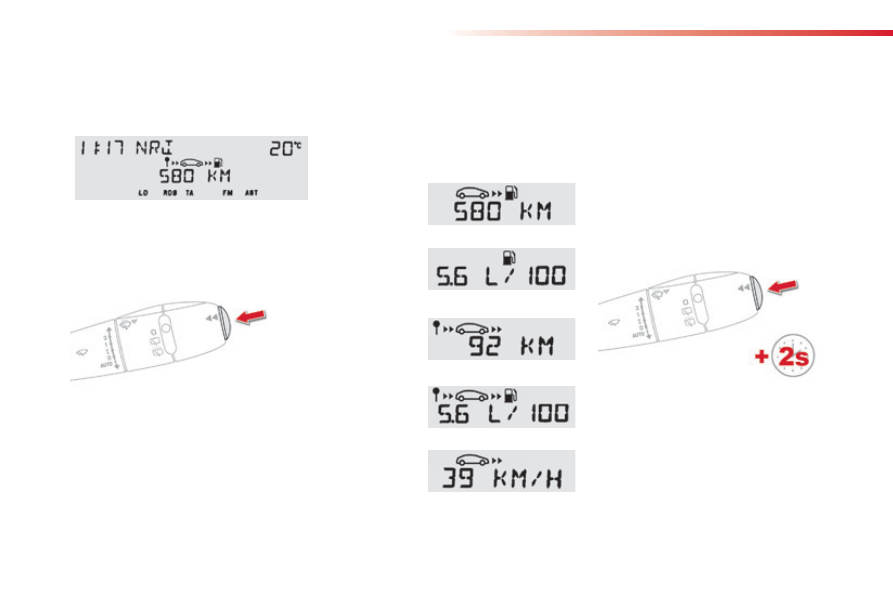

Trip computer

F Press the button, located at the end of the

wiper stalk, to display the various items of
trip computer data in succession.

The trip computer provides the following
information:

System that gives you information on the current journey (range, fuel consumption…).

Monochrome screen A

Information displays

- range,

- current fuel consumption,

- distance travelled,

- average fuel consumption,

- average speed.

The next press returns you to the current

display.

Zero reset

F Press the control for more than

two seconds to reset to zero the distance
travelled, the average fuel consumption
and the average speed.

Multifunction screens

C3Picasso_en_Chap02_ecran-multifonction_ed01-2015

the current information tab
with:
● the range,
● the current fuel

consumption,

● the distance remaining to

be travelled.

Monochrome screen C

Information displays

F Press the button, located at the end of

the wiper stalk, to display the various trip
computer tabs in succession:

the trip "1"

tab with:

● the distance travelled,
● the average fuel

consumption,

● the average speed,
for the first trip.

the trip "2"

tab with:

● the distance travelled,
● the average fuel

consumption,

● the average speed,
for the second trip.

F Pressing the button again returns you to

the normal display.

Trip zero reset

F When the trip required is displayed, press

the button on the end of the wiper stalk for
more than two seconds.

Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

Multifunction screens

C3Picasso_en_Chap02_ecran-multifonction_ed01-2015

Trip computer, a few definitions

When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).

Range

(miles or km)
The distance which can still be
travelled with the fuel remaining
in the tank (related to the
average fuel consumption over
the last few miles (kilometres)
travelled).

Current fuel
consumption

(mpg or l/100 km or km/l)
Calculated over the last few seconds.

Average fuel
consumption

(mpg or l/100 km or km/l)
Calculated since the last trip
computer reset.

Distance travelled

(miles or km)
Calculated since the last trip
computer reset.

Average speed

(mph or km/h)
Calculated since the last trip
computer reset.

Distance remaining to
destination

(miles or km)
This is the distance remaining to be
travelled to the final destination. It
is either calculated instantly by the
navigation system, if guidance is
activated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop.

This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.

This function is only displayed from
20 mph (30 km/h).

Comfort

C3Picasso_en_Chap03_confort_ed01-2015

Ventilation

Air flow paths

The incoming air follows various routes
depending on the controls selected by the
driver:
-

direct arrival in the passenger
compartment (air intake),

passage through a heating circuit (heating),

passage through a cooling circuit (air
conditioning).

The temperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
The air distribution control enables you to
diffuse the air in the passenger compartment
combining several air vents.
The air flow control enables you to increase or
reduce the speed of the ventilation fan.

Air intake

The air circulating in the passenger compartment
is filtered and originates either from the outside
via the grille located at the base of the windscreen
or from the inside in air recirculation mode.

Control panel

The controls of this system are grouped
together on control panel A on the centre
console. Depending on the model, the
functions offered are:
-

the level of comfort required,

- air flow,
-

air distribution,

demisting and defrosting,

manual or digital air conditioning controls.

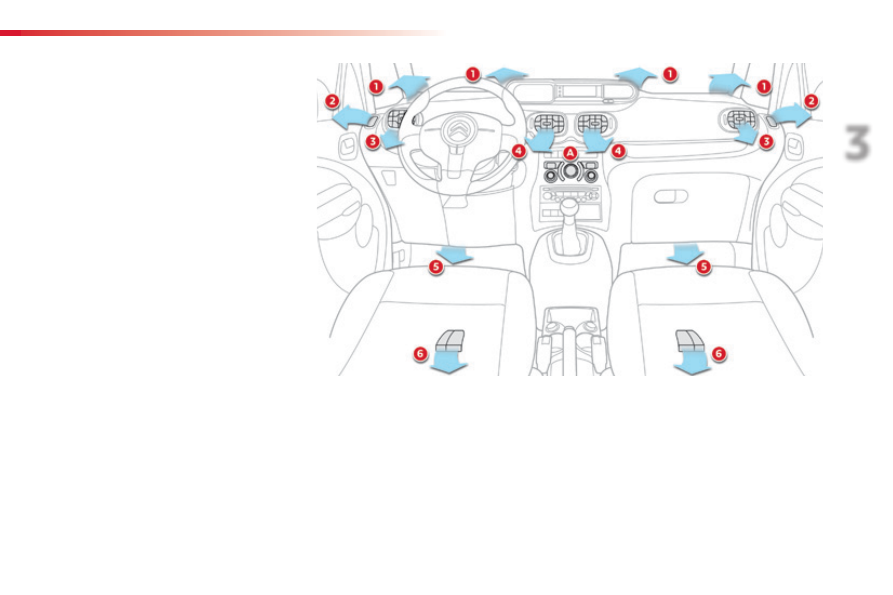

Air distribution

1. Windscreen demisting or defrosting vents.
2.

Front side window demisting or defrosting

vents.

3. Side adjustable air vents.
4. Central adjustable air vents.
5.

Air outlets to the front footwells.

Air outlets to the rear footwells.

System which creates and maintains
comfortable conditions in the vehicle's
passenger compartment.

Comfort

C3Picasso_en_Chap03_confort_ed01-2015

In order for these systems to be fully effective, follow the guidelines on operation and
maintenance below:
F If the interior temperature remains very high after the vehicle has been parked in the

sun for a considerable time, first ventilate the passenger compartment for a
few minutes.

Place the air flow control at a sufficient level to provide an adequate renewal of air in
the passenger compartment.

To obtain an even air distribution, take care not to obstruct the exterior air intake grilles

located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the passenger compartment on both sides of the rear shelf.

F Do not cover the sunshine sensor, located on the dashboard (behind the instrument

panel); this is used for regulation of the air conditioning system.

Operate the air conditioning system for 5 to 10 minutes, once or twice a month to keep it

in good working order.

F Ensure that the passenger compartment filter is in good condition and have the filter

elements replaced regularly (see the "Checks" section).

We recommend the use of a combined passenger compartment filter. Thanks to its
second special active filter, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).

F To ensure correct operation of the air conditioning system, you are also advised to have

it checked regularly.

F If the system does not produce cold air, do not use it and contact a CITROËN dealer or

a qualified workshop.

The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.

When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning saves engine power and so improves towing capacity.

Recommendations for ventilation and air conditioning

The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.

Comfort

C3Picasso_en_Chap03_confort_ed01-2015

The control button is
located on the heating
or air conditioning
system control panel.

Rear screen demist/defrost

Switching on

The rear screen demist/defrost can only
operate when the engine is running.
F Press this button to demist/defrost the rear

screen and the door mirrors. The indicator
lamp associated with the button comes on.

Switching off

The demist/defrost switches off automatically to
prevent an excessive consumption of current.
F It is possible to stop the demist/defrost

operation before it is switched off
automatically by pressing the button again.
The indicator lamp associated with the
button switches off.

Switch off the demist/defrost

of the rear screen and door
mirrors as soon as you consider
this possible as lower current
consumption results in reduced fuel
consumption.

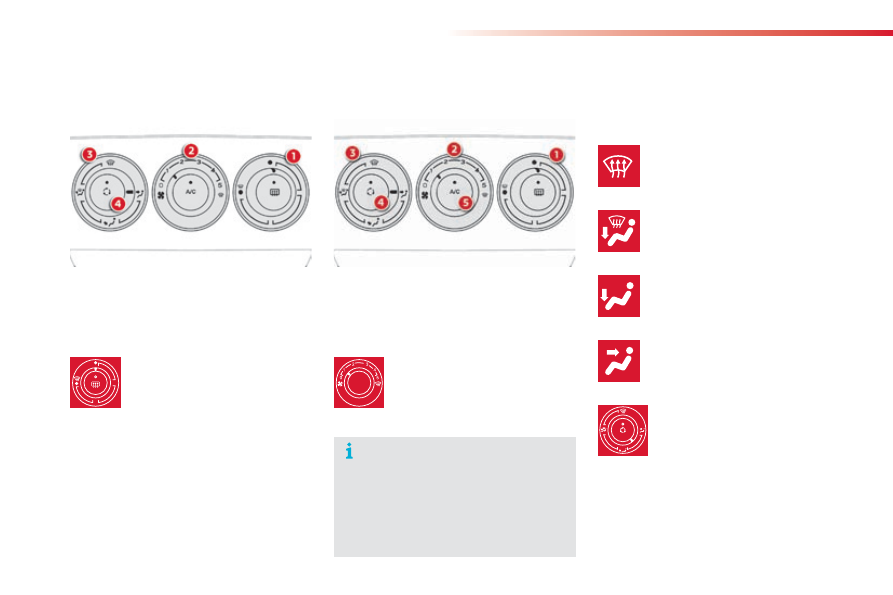

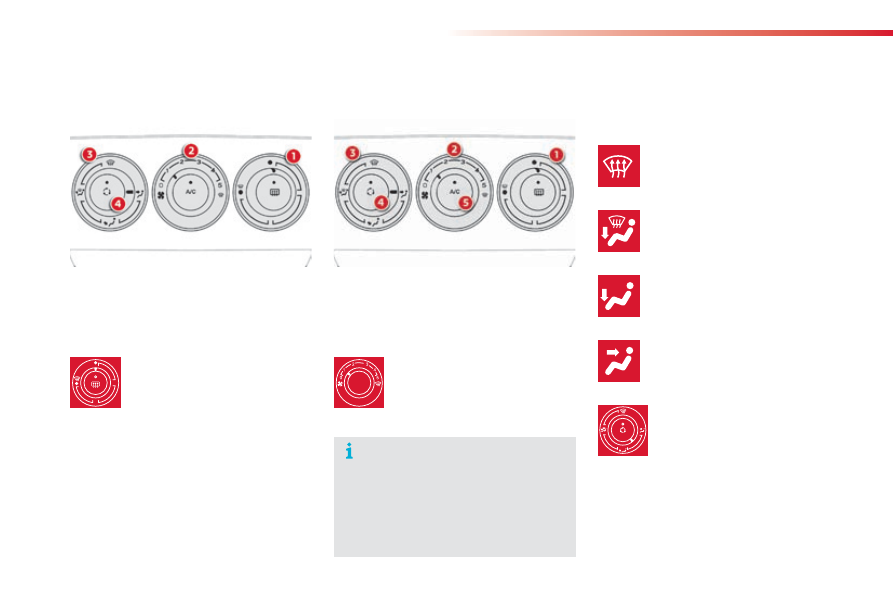

Comfort

C3Picasso_en_Chap03_confort_ed01-2015

Footwells.

Central and side vents.

The air distribution can be
adapted by placing the dial in an
intermediate position.

2. Air flow adjustment

F Turn the dial from position 1

to position 5 to obtain a
comfortable air flow.

Windscreen, side windows and
footwells.

F Turn the dial from blue

(cold) to red (hot) to adjust
the temperature to your
requirements.

Windscreen and side windows.

1. Temperature adjustment

The heating / ventilation or air conditioning systems can only operate with the engine running.

3. Air distribution adjustment

Heating / Ventilation

Manual air
conditioning

If you place the air flow control

in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfortable
level. However, a slight flow of air,
due to the movement of the vehicle,
can still be felt.

Content .. 1 2 3 4 ..
