Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

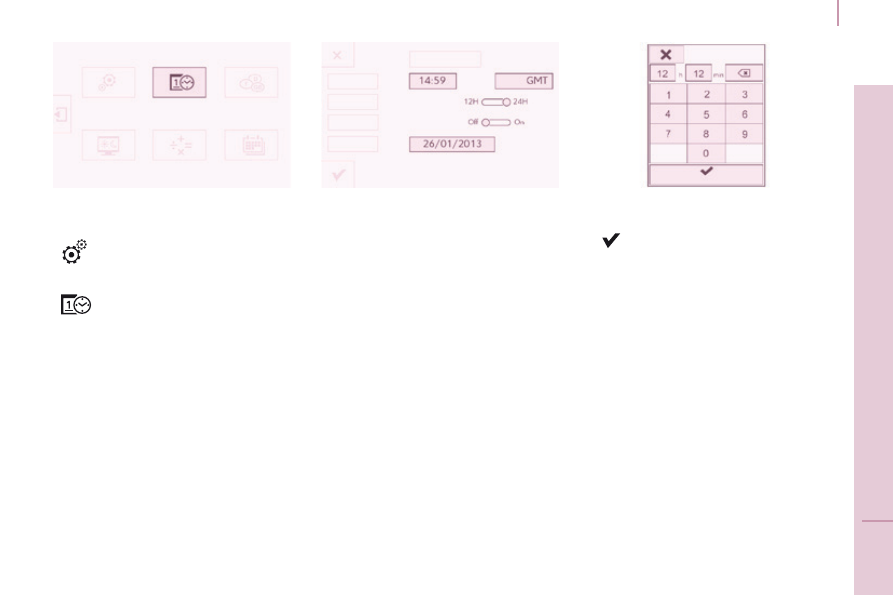

Touch screen tablet

F Select the "

Configuration"

menu.

F In the secondary page,

press on "Time/Date

F Select "Adjust time" or "Adjust

date" and modify the settings using

the number keypad, then confirm.

F Press "

Confirm" to quit.

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

WARNING LAMPS

Warning lamp

indicates

Solution - action

STOP

on, associated
with another
warning
lamp and
accompanied
by a message

in the screen.

major faults linked with

the "Brake fluid level",

"Engine oil pressure and
temperature", "Coolant
temperature", "Electronic

brake force distribution" and

"Power steering" warning

lamps.

You must stop as soon as it is safe to do
so. Park and switch off the ignition. Have it
checked by a CITROËN

dealer or a qualified

workshop.

Parking
brake /

Brake fluid

level / EBFD

on.

that the parking brake is applied

or has not been released fully.

Releasing the parking brake switches off the

warning lamp.

on.

low brake fluid level.

Top up using a fluid recommended by CITROËN.

remaining on even
though the level
is correct and
associated with the
ABS

warning lamp.

a fault with the electronic

brake force distribution.

You must stop as soon as it is safe to do so.
Park and switch off the ignition.
Have it checked by a CITROËN dealer or a

qualified workshop.

Engine oil
pressure and
temperature

on while

driving.

low pressure or a high

temperature.

Park and switch off the ignition then allow to cool.

Visually check the level.

Chapter 7, "Levels" section.

remaining on,
even though the

level is correct.

a major fault.

Have it checked by a CITROËN dealer or a

qualified workshop.

Each time the vehicle is started: a series of warning lamps comes on applying a self-test check. They go off almost

immediately.

Engine running: the lamp becomes a warning if it remains on continuously or flashes.

This initial warning may be accompanied by an audible signal and a message in the screen.

Do not ignore these warnings.

READY

O GO

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Warning lamp

indicates

Solution - action

Coolant
temperature
and level

on with needle
in the red

zone.

an abnormal increase in

temperature.

Park and switch off the ignition then allow to cool.

Visually check the level.

flashing.

a drop in the coolant level.

Chapter 7, "Levels" section.

Contact a CITROËN dealer or a qualified

workshop.

Service

on temporarily. minor faults or warnings.

Consult the alert log in the display or screen.
If your vehicle is equipped with a trip computer or

a screen: refer to the "Steering mounted controls"

section in Chapter 4.

Contact a CITROËN dealer or a qualified

workshop.

remaining on.

major faults.

Seat belt not
fastened

on then

flashing.

the driver and/or front

passenger has not fastened

their seat belt.

Pull the strap then insert the tongue in the buckle.

accompanied
by an audible
signal then

remains on.

the vehicle is moving with

the driver's and/or front

passenger's seat belt not

fastened.

Check that the seat belt is fastened by pulling the

strap.

Chapter 5, "Seat belts" section.

ECO

on.

The Stop & Start system
has put the engine in STOP
mode following a vehicle

stop (red light, traffic jam,

etc...).

As soon as you want to move off, the warning
lamp goes off and the engine restarts

automatically in START mode.

flashes for a

few seconds,

then goes off.

STOP mode is temporarily

unavailable.
or
START mode has been

invoked automatically.

Chapter 3, "Stop & Start" section.

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Warning lamp

indicates

Solution - action

Front / lateral
airbag

flashing or

remaining on.

a failure of an airbag.

Have the system checked by a CITROËN dealer

or a qualified workshop without delay.

Chapter 5, "Airbags" section.

Front
passenger's
airbag
deactivated

on.

the intentional deactivation
of this airbag in the
presence of a rearward

facing child seat.

Chapter 5, "Airbags" or "child safety" section.

Low fuel
level

on with gauge
needle in the

red zone.

When it first comes on,

there remains around

8 litres of fuel in the tank.

The distance you can drive
on this fuel depends on
your style of driving and the

engine type.

You must fill up with fuel to avoid running out.
This warning lamp comes on each time you

switch on the ignition until you have filled up.

Capacity of the tank: approximately 60 litres (or

55 litres according to version).

Never risk driving until the tank is empty, this

could damage the emissions and injection

systems.

flashing.

cutting off of the fuel supply

following a serious impact.

Restore the supply.

Chapter 7, "Fuel" section.

EOBD
emission
control
system

flashing or

remaining on.

a failure of the system.

There is a risk of damage to the catalytic

converter. Have it checked by a CITROËN

dealer or a qualified workshop.

Battery
charge

on.

a fault in the charging

circuit.

Check the battery terminals, …

Chapter 8, "Battery" section.

flashing.

placing of the active
functions on standby

(economy mode).

Chapter 8, "Battery" section.

remaining on,
in spite of the

checks.

an ignition or injection

malfunction.

Have it checked by a CITROËN dealer or a

qualified workshop.

ABS

READY

O GO

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Warning lamp

indicates

Solution - action

Power
steering

on.

a fault with the

system.

The vehicle retains conventional steering without assistance.

Have it checked by a CITROËN dealer or a qualified

workshop.

Door open
detection

on and accompanied
by a message in the

screen.

that a door is not

closed correctly.

Check that all of the doors are closed.

ABS

remaining on.

a fault with the anti-

lock braking system.

The vehicle retains conventional braking.

Have it checked by a CITROËN dealer or a

qualified workshop.

ESC

flashing.

triggering of the ASR

or DSC regulation.

The system optimises traction and improves the

directional stability of the vehicle.

Chapter 5, "Driving safety" section.

remaining on.

a fault with the

system.

E.g.: under-inflation

of the tyres.

E.g.: check the pressure of the tyres.

Have it checked by a CITROËN dealer or a

qualified workshop. (Wheel speed sensor,

hydraulic valve block, ...).

Under-

inflation

on.

the tyre pressure is
too low in or more

wheels.

Check the tyre pressure as soon as possible.

This check must be done with the tyres cold.

flashing then

remaining on,
accompanied by the
Service warning
lamp, and depending
on equipment, the

display of a message.

the tyre pressure
monitoring system
has a fault or one of
the wheels does not

have a sensor.

Detection of under-inflation is no longer assured.

Have it checked by a CITROËN dealer or a

qualified workshop.

Particle filter

on.

a problem with the

particle filter (fuel

additive level, risk of

blockage, ...).

Have the filter checked by a CITROËN dealer or

a qualified workshop.

Chapter 7, "Levels" section.

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Warning lamp

indicates

Solution - action

Dipped beam
headlamps /
Daytime
running
lamps

on.

a manual selection or
automatic illumination of

headlamps.

Turn the ring on the lighting control stalk to the

second position.

illumination of the dipped beam headlamps

from the time the ignition is switched on:

daytime running lamps (depending on the

country in which the vehicle is sold).

Chapter 4, "Steering mounted controls" section.

Main beam
headlamps

pulling of the stalk towards

you.

Pull the stalk to return to dipped beam

headlamps.

Direction
indicators

flashing with

audible signal.

a change of direction via

the lighting stalk.

Flashing right: push stalk downwards.

Flashing left: push stalk upwards.

Front
foglamps

on.

a manual selection.

The foglamps only operate if the sidelamps or

dipped beam headlamps are on.

Rear
foglamps

on.

a manual selection.

The foglamps only operate if the sidelamps or

dipped beam headlamps are on.
In conditions of normal visibility, switch them off

to avoid breaking the law.

"This lamp is a dazzling red".

READY

O GO

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Warning lamp
in the screen

indicates

Solution - action

Cruise
control

on.

cruise control selected.

Manual selection.

Chapter 4, "Steering mounted controls" section.

Speed limiter

on.

speed limiter selected.

Manual selection.

Chapter 4, "Steering mounted controls" section.

Gear shift
indicator

on.

a recommendation
independent of the type and

density of traffic.

To reduce fuel consumption, change to an

appropriate gear with a manual gearbox.
The driver retains responsibility to follow this

indication or not.

Diesel
pre-heating

on.

climatic conditions requiring

pre-heating.

Wait until the warning lamp goes off before

operating the starter.

Presence of
water in the

Diesel filter

on and
accompanied by
a message in

the screen.

water in the Diesel filter.

Have the filter bled by a CITROËN dealer or a

qualified workshop without delay.

Chapter 7, "Checks" section.

According to country.

Service
spanner

on.

that a service will be due

shortly.

Refer to the list of checks in the maintenance and

warranty guide.
Have the service carried out by a CITROËN

dealer or a qualified workshop.

Time

flashing.

adjustment of the time.

Use the left-hand button on the instrument panel.

Chapter 3, "Instruments and controls" section.

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

AdBlue

For more information on filling, refer to the chapter 7, AdBlue

section.

Alert

Information

Solution - action

level of alert

There is an audible signal when the ignition is switched on.
The warnings are intermittent and then become

permanent when switching on the ignition or when driving.
The remaining driving range is counted down from

1 500 miles (2 400 km) to 375 miles (600 km).

The range figure reduces in steps of 200 miles (300 km).

The contents of the AdBlue

tank has dropped to a

level sufficient for a range of less than 1 500 miles

(2 400 km).

Have the fluid topped-up using an AdBlue

container or bottles.

level of alert

There is an audible signal when the ignition is

switched on.
The warnings are intermittent (every 30 seconds)
and then become permanent every time the ignition

is switched on or when driving.
The remaining driving range is counted down from 350 miles

(600 km) to zero, reducing in steps of 30 miles (50 km).

You must have the AdBlue

topped-up and not wait

for a breakdown.

In the display

screen.

Temporary display: "NO START IN".

In the touch

screen tablet.

Select:

- "Driving assistance".

- "Diagnostic".

The driving range is displayed.

level of alert

The AdBlue

tank is empty.

Starting is impossible

It is essential to add at least 3.8 litres of AdBlue

additive to the additive tank.

READY

O GO

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

SCR emissions control system

Alerts

Information

Solution - action

The UREA, Service and diagnostic warning lamps
come on, an SCR emissions control system fault

has been detected.

This is is temporary fault, the alert disappears as
soon as the exhaust emissions return to normal

levels.

After 30 miles (50 km) without AdBlue

Confirmation of the fault which is not related to a

lack of fluid.

The remaining driving range 700 miles

(1 100 km).

Go to a CITROËN dealer or a qualified workshop

as soon as possible to avoid a breakdown.

The fault is confirmed.
The next time the ignition is switched on, the
authorised driving range will be displayed in miles

(kilometres) and the alert will be repeated every

30 seconds.
The limit of the driving range has been reached,

exhaust emissions levels are above the limits.

Starting is impossible.

To restart the engine, you must contact a

CITROËN dealer or a qualified workshop.

- BlueHDi Diesel

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

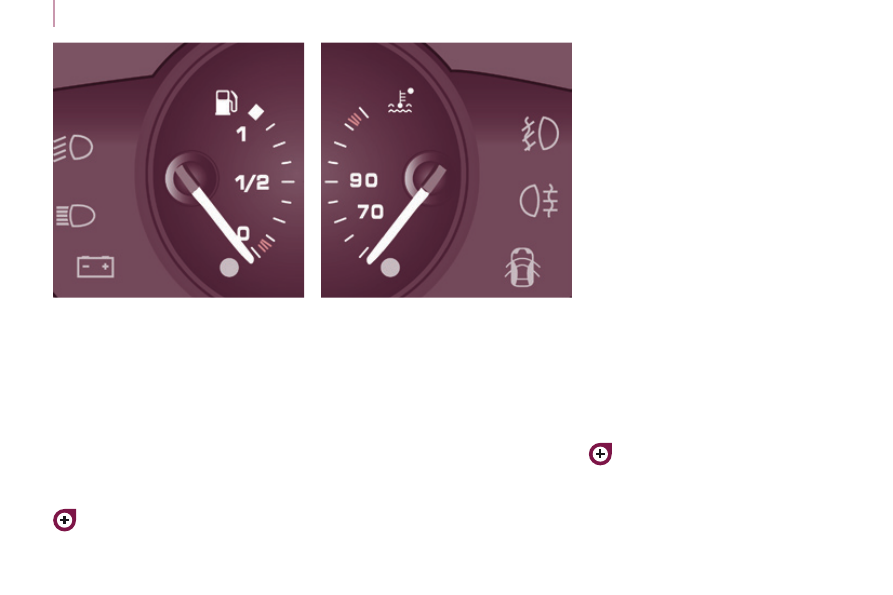

FUEL GAUGE

COOLANT TEMPERATURE

The needle is positioned before the
red zone:

normal operation.

In arduous conditions of use or hot
climatic conditions, the needle may

move close to the red graduations.

What you should do if the needle
enters the red zone:
Reduce your speed or let the engine

run at idle.
What you should do if the warning
lamp comes on:
-

stop immediately, switch off the

ignition. The fan may continue to

operate for a certain time, up to
approximately 10 minutes,

wait for the engine to cool down in

order to check the coolant level and

top it up if necessary.

As the cooling system is pressurised,
follow the procedure below to avoid the

risk of scalding:
-

wait at least one hour after
switching off the engine before

carrying out any work,

- unscrew the cap by 1/4 turn to

allow the pressure to drop,

when the pressure has dropped,

check the level in the header tank,

if necessary, remove the cap to

top up.

If the needle remains in the red

zone, have the system checked by

a CITROËN dealer or a qualified

workshop.

Refer to chapter 7, "Levels"

section.

Refer to chapter 7, "Fuel" section.

The fuel level is tested each time the

key is turned to the "running" position.

The gauge is positioned on:
-

the fuel tank is full,

approximately 60 litres.

0: the reserve is now being used,
the warning lamp comes on

continuously. The reserve when

the warning first comes on is

approximately 8 litres.

READY

O GO

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

EMISSIONS CONTROLS

EOBD (European On Board
Diagnosis) is a diagnostics
system which complies with,
among others, the standards

on emissions limits of:

CO (carbon monoxide),

HC (unburnt hydrocarbons),

NOx (nitrogen oxides), detected
by oxygen sensors placed
downstream of the catalytic
converters,

- particles.

UNDER-INFLATION DETECTION

This system
continuously monitors
the pressures of the four
tyres, as soon as the

vehicle is moving.

A pressure sensor is located in the
valve of each tyre (except the spare

wheel).
The system triggers an alert if a drop
in pressure is detected in one or more

tyres.

The tyre under-inflation detection

system is an aid to driving which
does not replace the need for

vigilance on the part of the driver.

The driver is warned of any
malfunction of this emissions
control system by the illumination

of this warning lamp in the instrument

panel.
If this warning lamp comes on, have

it checked by a CITROËN dealer or a

qualified workshop.

This system does not avoid the

need to check the tyre pressures

regularly (including the spare

wheel) and before a long journey.

Driving with under-inflated tyres

adversely affects road holding,

extends braking distances and causes

premature tyre wear, particularly under
arduous conditions (vehicle loaded,

high speed, long journey).

Driving with under-inflated tyres

increases fuel consumption.

The tyre pressures for your vehicle
can be found on the tyre pressure

label.

Refer to chapter 9, "Identification

markings" section.

The tyre pressures must be checked

when the tyres cold (vehicle stopped
for 1 hour or after driving for less then

6 miles (10 km) at moderate speed).

Otherwise, add 0.3 bar to the values

indicated on the label.

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

The alert is maintained until
the tyre or tyres concerned is

reinflated, repaired or replaced.

The spare wheel (space-saver type or

a steel rim) does not have a sensor.

Operating fault

Under-inflation alert

The loss of pressure detected
does not always lead to visible

deformation of the tyre. Do not rely

on just a visual check.

The alert is given by the fixed

illumination of this warning lamp,
accompanied by an audible signal,
and depending on equipment, the

display of a message.

The flashing and then

fixed illumination of the

under-inflation warning

lamp accompanied by the

illumination of the "Service" warning
lamp, and depending on equipment,
the display of a message indicates a

fault with the system.
In this case, monitoring of the tyre

pressures is not assured.

In the event of a problem on one of
the tyres, the symbol or the message
appears, according to equipment, to

identify it.
-

Reduce speed, avoid sudden

steering movements or harsh brake

applications.

- Stop as soon as it is safe to do so.
-

In the event of a puncture, use

the temporary puncture repair kit

or the spare wheel (according to
equipment),

or
-

if you have a compressor, the one
in the temporary puncture repair

kit for example, check the four tyre

pressures when cold,

or
- if it is not possible to check the

tyre pressures at the time, drive

carefully at reduced speed.

This alert is also displayed when

one or more wheels is not fitted

with a sensor (for example, a

space-saver or steel spare wheel).

Go to a CITROËN dealer or a qualified

workshop to have the system checked

or, following the repair of a puncture, to
have the original wheel, equipped with

a sensor, refitted.

READY

O GO

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

UNDER-INFLATION DETECTION WITH REINITIALISATION

System which automatically checks the

pressures of the tyres while driving.

The system monitors the pressures
in the four tyres, once the vehicle is

moving.
It compares the information given by
the four wheel speed sensors with
reference values, which must be
reinitialised every time the tyre
pressures are adjusted or a wheel
changed

The system triggers an alert as soon

as it detects a drop in the inflation

pressure of one or more tyres.

The under-inflation detection

system does not replace the need
for vigilance on the part of the

driver.

This system does not avoid the need to

check the tyre pressures (including the

spare wheel) every month as well as

before a long journey.

Driving with under-inflated tyres

impairs road holding, extends braking

distances and causes premature
tyre wear, particularly under arduous
condition (high loading, high speed,

long journey).

Driving with under-inflated tyres

increases fuel consumption.

The inflation pressures defined for

your vehicle can be found on the

tyre pressure label.

For more information on the

identification markings, refer to the

corresponding section.

Tyre pressures should be checked

when the tyres are "cold" (vehicle

stopped for 1 hour or after a journey of

less than 6 miles (10 km) at moderate

speeds).

Otherwise (when hot), add 0.3 bar to

the pressures shown on the label.

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

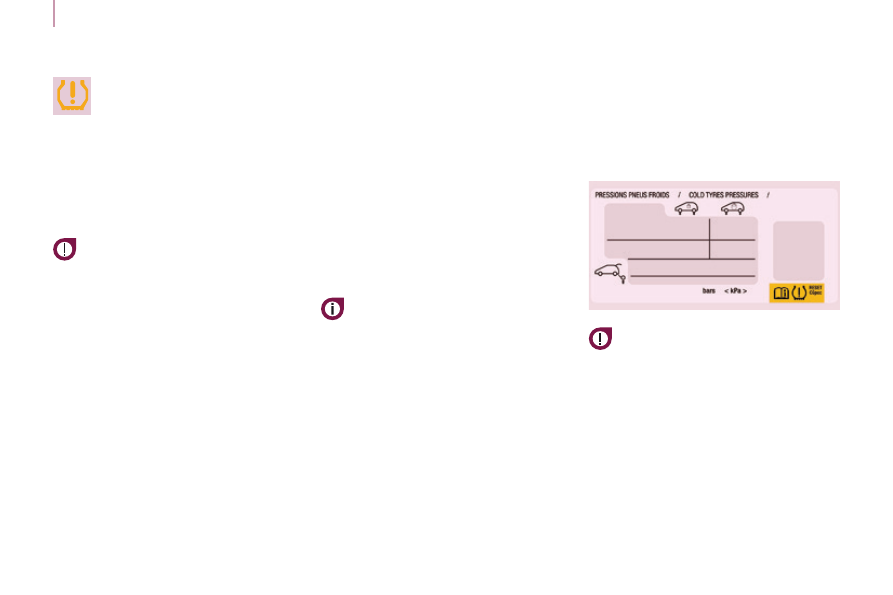

Under-inflation alert

This is given by fixed

illumination of this warning lamp,
accompanied by an audible signal
and, depending on equipment,

the display of a message.

Before reinitialising the system,
ensure that the pressures of
the four tyres are correct for the

use of the vehicle and in line with the
recommendations on the tyre pressure

label.

The under-inflation alert can only

be relied on if the reinitialisation of
the system has been done with the
pressures in the four tyres correctly

adjusted.

The under-inflation detection system

does not give a warning if a pressure is

incorrect at the time of reinitialisation.

The loss of pressure detected
does not always cause visible

bulging of the tyre.

Do not satisfy yourself with just a visual

check.

The alert is maintained until the

system is reinitialised.

F Reduce speed immediately, avoid

excessive steering movements and

sudden braking.

F Stop the vehicle as soon as it is

safe to do so.

F If you have a compressor, such as

the one in the temporary puncture

repair kit, check the pressures of

the four tyres when cold.

If it is not possible to make this

check immediately, drive carefully

at reduced speed.

or
F In the event of a puncture, use

the temporary puncture repair kit

or the spare wheel (depending on

equipment).

Reinitialisation

It is necessary to reinitialise the system
every time one or more tyre pressures

are adjusted, and after changing one

or more wheels.

READY

O GO

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

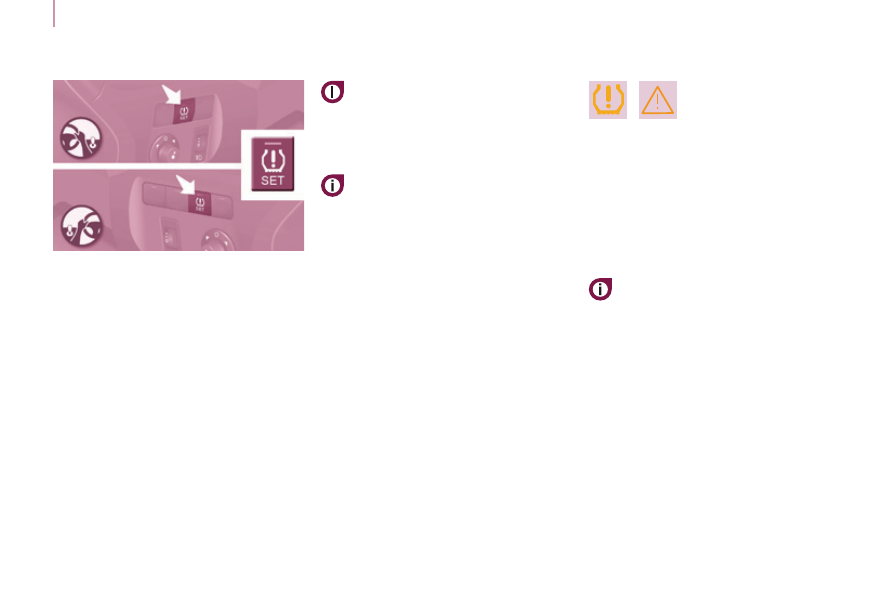

Reinitialisation of the system must be done with the ignition on and the vehicle

stationary:

- in the vehicle configuration menu for vehicle fitted with a display screen,

- using the button on the dashboard, for vehicles without display screen.

Screen A

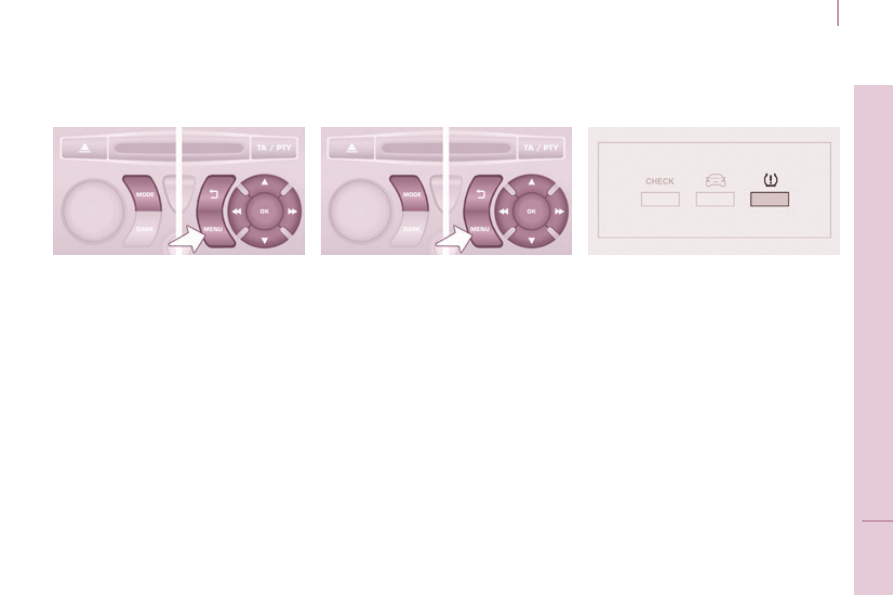

F Press the MENU button for access

to the main menu.

F Press the "5" or "6" button to

select the menu

Veh config, then

confirm by pressing the OK button.

F Press the "5" or "6" button to

select the "

Reinit inflat", menu,

then confirm by pressing the OK

button.

A message is displayed to confirm

the instruction.

Confirm by pressing the OK button.

Screen C
F Press the MENU button for access

to the main menu.

F Press the "5" or "6" button to

select the "Personalisation-

configuration" menu, then confirm

by pressing the OK

button.

F Press the "5" or "6" button

to select the "

Define vehicle

parameters

" menu, then confirm

by pressing the OK

button.

F Press the "5" or "6" button to

select the "Tyre pressures" menu,
then the "Reinitialisation" menu,

then confirming by pressing the

button.

A message confirms the

reinitialisation.

Touch screen tablet
F Press the MENU

button.

F Select the "Driving

" menu.

F In the secondary page, select

Under-inflation initialisation".

A message is displayed to confirm the

reinitialisation instruction.
F Select "Yes" or "No

", then confirm.

A message confirms the reinitialisation.

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

The new pressure settings registered
are considered to be reference values

by the system.

The under-inflation alert can only

be relied on if the system has
been reinitialised with all four tyres

inflated to the correct pressures.

Before doing anything to the
system, the pressures of the four

tyres must be checked and the

system reinitialised.

Snow chains
The system does not have to be

reinitialised after fitting or removing

snow chains.

Dashboard button
F

Make a long press on this button.

A high tone audible signal confirms the

reinitialisation.
A low tone audible signal indicates that

the reinitialisation was not completed.

Operating fault

The flashing and then fixed illumination

of the under-inflation warning lamp

accompanied by illumination of the
Service warning lamp indicates a fault

with the system.

In this case, under-inflation monitoring

of the tyres is no longer assured.

Have the system checked by a

CITROËN dealer or a qualified

workshop.

Citroen Berlingo (2017 year). Manual - part 3
