Citroen Berlingo First (2012 year). Manual - part 4

ACCESS and STARTING -

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine control sys-

tem as soon as the ignition has been

switched off and therefore prevents

starting of the vehicle by anyone who

does not have the key.
The ignition key has an electronic

chip which has a special code. When

the ignition is switched on, the code

must be recognised for the vehicle to

start.
If the system does not function

correctly, the central locking button

indicator light, situated in the centre

of the fascia, fl ashes rapidly when the

ignition is switched on (2nd notch),

accompanied by an audible signal

and a message on the display.
In this case your vehicle will not start.
Contact a CITROËN dealer as soon

as possible.

Key in ignition

A buzzer sounds on opening the driv-

er's door, if the key has been left in

the ignition.

Make a careful note of the

number of each key. This

number is coded on the label

attached to the key.

The high frequency remote control is

a sensitive system; do not operate it

while it is in your pocket as there is a

possibility that it may unlock the vehi-

cle, without you being aware of it.
The remote control does not operate

when the key is in the ignition, even

when the ignition is switched off,

except for reprogramming.
Do not operate the deadlocking function

if there is anyone inside the vehicle.
Driving with the doors locked may

make access to the passenger com-

partment by the emergency services

more diffi cult in an emergency.
As a safety precaution (with children

on board), remove the key from the

ignition when you leave the vehicle,

even for a short time.
Do not repeatedly press the buttons

of your remote control out of range of

your vehicle.
You run the risk of stopping it from

working and the remote control would

have to be reprogrammed.
When purchasing a second-hand ve-

hicle, have the key codes memorised

by a CITROËN dealer, to ensure that

the keys in your possession are the

only ones which can start the vehicle.
Do not make any modifi cations to the

electronic engine immobiliser system.

If the keys are lost
Visit a CITROËN dealer with the vehi-

cle's V5 registration certifi cate and your

personal identifi cation documents.
The CITROËN network will be able to

retrieve the key code and the trans-

ponder code to order a replacement

key.

A heavy object (key fob...), attached

to the key and weighing down on

its shaft in the ignition switch, could

cause a malfunction.

ACCESS and STARTING

48 -

* According to country.

THE ALARM SYSTEM *

The alarm offers two types of protection:
-

exterior protection: the alarm

sounds if a door, the boot or the

bonnet is opened ;

interior protection: the alarm

sounds if there is a variation in

the

volume inside the vehicle

(breaking of a window or move-

ment inside the vehicle) .

Setting the alarm
Switch the ignition off and get out of

the vehicle.
Activate the alarm within fi ve minutes

following your exit from the vehicle,

by locking using the remote control

key (the red indicator lamp in the

switch 1 , which can be seen from the

outside, fl ashes once a second).

Warning
If, on setting the alarm, a door, the

boot or the bonnet are not closed

correctly, the siren sounds for a mo-

ment.
Close the vehicle correctly to set the

alarm.
If the interior protection alarm is trig-

gered ten times in succession, it is

disarmed automatically. It must be

set again in order for it to operate

correctly.

When the alarm is triggered, the

siren sounds and the direction indi-

cators fl ash for thirty seconds.
After it has been triggered, the alarm

becomes operational again.

Note: if you wish to lock your vehicle

without setting the alarm, lock it us-

ing the key in the door lock.

Disarming the alarm
Unlock the vehicle using the remote

control key (the red indicator lam in

the switch 1 goes off).

Note: if the warning light fl ashes, it is

a sign that the alarm has been trig-

gered in your absence.
To stop it, switch on the ignition.

Note: when the alarm is set, but the

remote control no longer works:
) unlock the doors using the key

and open the door; the alarm is

triggered;

) switch the ignition on within ten

seconds; the alarm is disarmed.

To set the alarm with exterior

protection only.
If, while you are away from the vehicle,

you wish to leave a window partially

open or a pet inside the vehicle, you

need to select exterior protection only:
● Switch off the ignition.
● Press the button 2 until the lamp 1

comes on continuously.

● Get out of the vehicle.
● Press the locking button of the re-

mote control.

● The doors lock.
● The red lamp in the switch fl ash-

es once a second.

Operating fault

When the ignition is switched on, fi xed

illumination of the red indicator lamp,

located in the centre of the dashboard,

indicates an anomaly with the siren.
Contact a CITROËN dealer to have

the system checked.

Do not make any modifi ca-

tions to the alarm system, this

could cause malfunctions.

ACCESS and STARTING -

FRONT DOORS AND SLIDING

SIDE DOORS

Front doors

Side doors

Front doors
The driver's door opening control

permits complete unlocking of the

vehicle.

Side doors

Opening the doors from inside

Opening the doors from outside

Sliding side doors

If the fuel tank cap is re-

moved, the right-hand side

door cannot be opened.

Locking/Unlocking from the

inside

Front doors
To lock, lower button A .
The closing control of one of the front

doors permits complete locking of

the vehicle.
To unlock and open, lift button A and

pull the handle towards you.
The driver's door opening control

permits complete unlocking of the

vehicle.

From the inside, the sliding

side door is opened and

closed using the handle.

A point of resistance at the end of the

opening travel secures the door in

the open position.

The side door opening/clos-

ing control only controls the

door concerned.

To close, push the control B forwards

and slide the door.
To open, pull the control B rearwards

and slide the door.

ACCESS and STARTING

50 -

Locking from the inside
Lower or raise control C to lock or

unlock from the inside.

Locking from the inside
Pressing control

D operates the

central locking, when the doors are

closed.

Automatic central locking
Your vehicle can lock automatically

while driving (speed greater than

6mph (10 km/h)). You can activate or

deactivate this function.

Unlocking from the inside
Press control D .
It is still possible to open the doors

from the inside.

Activation
Press and hold control D .
Activation of the function is accom-

panied by an audible signal and a

message on the display.

Deactivation
Press and hold control D .
Deactivation of the function is ac-

companied by an audible signal.

Notes:
- doors locked and ignition off: the

indicator light fl ashes,

- doors locked and ignition on: the

indicator light remains on.

ACCESS and STARTING -

REAR DOORS

Side door child lock

Opening the doors from outside
To open, pull the rear right door han-

dle A towards you and open the rear

left door by pulling the lever B on the

inside.
You can unlock the rear doors by in-

serting the key in the lock C .

This prevents opening of the side

door from the inside.
Turn the control a quarter turn using

the ignition key.

TAILGATE

To open the tailgate, operate the

handle 1 and lift it.
You can unlock the tailgate by insert-

ing the key in the lock 2 .

ACCESS and STARTING

52 -

Opening the doors from inside

To open the other door, push lever B .
Note: when closing from the inside,

close the right-hand door fi rst ensuring

that lever B is in the vertical position

then close the left-hand door.

Opening the rear doors to 180°

The rear door opening controls only

unlock these doors.
To open, lift lever D .

To open the rear doors to 180°, re-

lease the check strap E towards you

when the door is partially open.
When closing the door, the check

strap hooks itself in place again

automatically.

ACCESS and STARTING -

OPENING THE BONNET

Inside the vehicle: pull the lever on

the left-hand side, under the dash-

board.
Outside the vehicle: lift the safety

catch and raise the bonnet.

BONNET STAY

Secure the stay to hold the bonnet

open.
Before closing the bonnet, return the

stay to its housing.

FILLING WITH FUEL

When the minimum

fuel level in the tank is

reached, this warning

light comes on.

When the cap is removed,

the right-hand sliding side

door cannot be opened.
The key cannot be removed

from the lock until the cap

has been replaced on the

fuel tank.

A label reminds you which type of

fuel to use.
When you fi ll your tank, do not con-

tinue after the third cut-off of the

pump. This could cause your vehicle

to malfunction.

To close
Lower the bonnet and release it at

the end of its travel.
Check that the bonnet has latched

correctly.

Low fuel level

You have enough fuel remaining

to drive for approximately 30 miles

(50 km).
The engine must be switched off

when fi lling with fuel.
) Insert the key then turn it to the

left.

) Remove the cap.

The capacity of the tank is approx-

imately 55 litres for petrol engines

and 60 litres for Diesel engines.
) After fi lling the tank, lock the cap.

When the engine is hot, take

care when handling the safe-

ty catch and the bonnet stay

(risk of burns).

VISIBILITY

54 -

Dipped/Main beam change
Pull the stalk towards you.
Note: with the ignition off, when the

driver's door is opened, a buzzer

sounds if you have left your lights on.

LIGHTS STALK

Lights off

Side lights

Dipped/Main beam head-

lamps

Front fog lamps and rear

fog lamp

Rotate the ring forwards to switch on

and backwards to switch off. The sta-

tus is confi rmed by the indicator light

on the instrument panel.

"Follow-me-home" lighting
In poor light, or at night, if you leave

your vehicle, the side lights and

dipped headlamps may remain on for

approximately one minute.
To activate this function:
-

place the key in the STOP position,

place the lights stalk in position 0 ,

fl ash the headlamps,

exit the vehicle and lock it.

In good or rainy weather,

both day and night, the front

fog lamps and the rear fog

lamp are dazzling and are

prohibited.

Do not forget to switch them off when

they are no longer needed.

Left: downwards.
Right: upwards.

Direction indicators (fl ashers)

Vehicles fi tted with a rear

fog lamp only (ring B)

Vehicles fi tted

with front

fog lamps and

a rear fog lamp

(ring B)

Front fog lamps (fi rst rotation of the

ring forwards).
Front and rear fog lamps (2nd rotation

of the ring forwards).
Note: to switch off the rear fog lamp

and the front fog lamps, turn the ring

backwards twice in succession.

Front and rear lights

Selection is by turning ring A.

Rotate the ring forwards.
This only operates with the dipped/

main beam headlamps.

Daytime running lamps

Your vehicle may be fi tted with day-

time running lamps. The dipped

beam headlamps come on when the

vehicle is started.

VISIBILITY -

Windscreen wipers

2 Fast wipe

(heavy rain).

1 Normal wipe

(moderate rain).

  I    Intermittent wipe.
  0    Off.
  È    Single wipe

(press downwards).

WINDSCREEN WIPER STALK

Windscreen and headlamp wash

(according to country)
Pull the windscreen wiper stalk to-

wards you. The windscreen wash

then the windscreen wipers operate

for a fi xed period.
The headlamp wash is also activated,

if the headlamps are on.

Rear windscreen wiper

Turn ring A to the fi rst notch.

The wiping speed is inverse-

ly proportional to the speed

of the vehicle.

In winter, in the event of a

considerable amount of snow

or ice, switch on the rear win-

dow demister. Once deicing is

complete, remove the snow or

ice which has accumulated on the rear

wiper blade. You can now ope rate the

rear windscreen wiper.

Rear windscreen wash
Turn ring

A past the fi rst

notch: the windscreen wash

then the windscreen wiper

operate for a fi xed time.

Operation
In position

1 or

2 , when the vehicle

stops, the windscreen wiper changes

to a lower wiping speed, then resumes

its initial speed when the vehicle starts

again.
In the I ntermittent position, the wiping

speed is proportional to the speed of

the vehicle.

Automatic rear windscreen

wiping
) place the front wipers stalk in a

position other than 0 ,

) engage reverse gear,
) the rear wiper operates with inter-

mittent wiping.

Note : if a bicycle carrier is used, contact

a CITROËN dealer to have this function

disarmed.

It is necessary to reactivate wiping

if the ignition has been off for over

one minute:
-

rotate the stalk to any position,

then move it to the desired position.

VISIBILITY

56 -

ELECTRIC WINDOWS

Always remove the ignition

key when leaving the vehicle,

even for a short time.

If an obstacle is encountered while

the electric windows are in use, you

must reverse the movement of the

window. To do this, press the switch

concerned.
When the driver operates the pas-

senger electric window switches, he

must ensure that no one is prevent-

ing correct closing of the windows.
The driver must ensure that passengers

use the electric windows correctly.
Be aware of children when operating

the windows.

1. Driver's electric window

switch

2. Passenger electric window

switch

You have two options:
-

Manual operation:

Press switch 1 . The window stops

as soon as the switch is released.

Automatic operation (driver):

Press and hold switch

1 . One

touch completely opens or closes

the window.

Automatic closing only operates

when the engine is running.

REAR WINDOWS

To partially open the rear windows,

tilt the lever and push it fully to lock

the windows in the open position.

VISIBILITY -

THE EXTERIOR MIRRORS

Passenger side exterior

mirror electric control

From the driver's seat, move the con-

trol 1 in all four directions to adjust.

THE MANUAL INTERIOR

MIRROR

Manual mirrors

Move the lever in all four directions

to adjust.
When the vehicle is parked, the exterior

mirrors can be folded back manually.

The interior mirror has two positions:
- day

(normal),

- night

(anti-dazzle).

To change from one to the other,

push or pull the lever on the lower

edge of the mirror.

LIFE ON BOARD

58 -

LIFE ON BOARD -

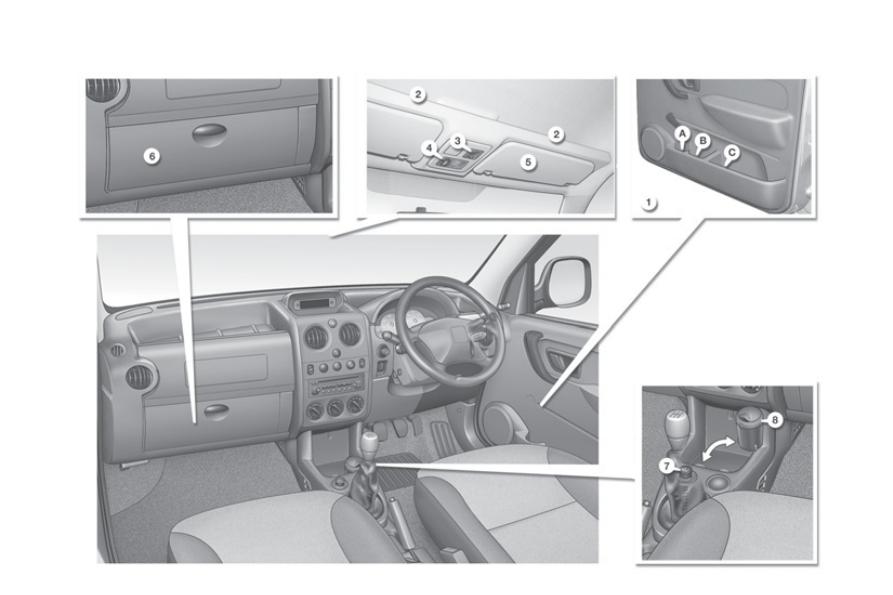

FRONT FITTINGS

4. Courtesy lamps

5. Sun visors

Permanently off.

On entering the vehicle:
- they come on when the

vehicle is unlocked or

when a door is opened,

Permanently on when the key

is in the accessories position

or the ignition is on.

  1. Storage in the doors
   A.  Bottle holder.
  B.  Can holder.
  C.  Storage compartment.

2. Overhead storage
Maximum load: 5 kg .

3. Map reading lamps
Turn the dial to the right or to the left

to switch them on.
Place the dial in the centre to switch

them off.

6. Glove box

7. Cigarette lighter
It permits the connection of a telephone

charger, a baby's bottle warmer, ...

8. Removable ashtray
Pull the cover to open the ashtray.
To empty, after opening, remove it by

pulling upwards.

- they go off after approximately

30 seconds with the doors closed, or

when the ignition is switched on.

On leaving the vehicle:
- they come on when the key is

removed from the ignition (timing

of approximately 30 seconds) or

when a door is opened,

- they go off after approximately

30 seconds with all of the doors

closed, or immediately when the

vehicle is locked.

In this position, the courtesy light

may fl ash while driving if a door is not

closed correctly.
If a door is open, it will switch off auto-

matically after approximately 10 minutes

or when the ignition is switched on.

LIFE ON BOARD

60 -

STEERING WHEEL

ADJUSTMENT

HEADLAMP

ADJUSTMENT

HORN

HAZARD WARNING LIGHTS

Press the button, the direction indicators

fl ash.
They can operate with the ignition off.

Press one of the spokes or

the centre of the steering

wheel.

   0 -   With no load.
  1 -   With partial load.
  2 -   With average load.
  3 -   With maximum authorised load.

0 - 1 or 2 people in the front

seats.

- - 3 people.
1 -

4 or 5 people.

2 -

4 or 5 people + maximum

authorised load.

3 - Driver + maximum authorised

load.

Initial setting is position 0.

Depending on the load in your vehi-

cle, it is recommended that the head-

lamp beam is adjusted.

When stationary, lower the handle

to release the steering wheel adjust-

ment mechanism.
Adjust it to the desired height, then lift

the handle to lock the steering wheel

adjustment mechanism.

LIFE ON BOARD -

LASHING RINGS

It is recommended that the

load is immobilised by secur-

ing it fi rmly using the lashing

rings on the fl oor.

Use the 6 lashing rings on the lug-

gage compartment fl oor to secure

your loads.
You can use suitable load retainers

(half-height partitions, grille, etc.)

supplied by the CITROËN network.

LIFE ON BOARD

62 -

Content .. 2 3 4 5 ..
