Seats

REAR BENCH SEAT

Each 1/3 - 2/3 section can be folded

fully, then removed individually.

Head restraint

High position: lift and raise the head

restraint.

Low position: press on the head

restraint to lower it.

To remove the head restraint, after

raising it press the tab and lift the head

restraint.

To install the head restraint, engage

the rods of the head restraint in the

holes keeping it in line with the seat

back.

The 1/3 - 2/3 rear bench seat is ﬁ tted

with "comma" head restraints.

Seats

Fully folded position

Example of operations for the

1/3 section. They are identical for the

2/3 section.

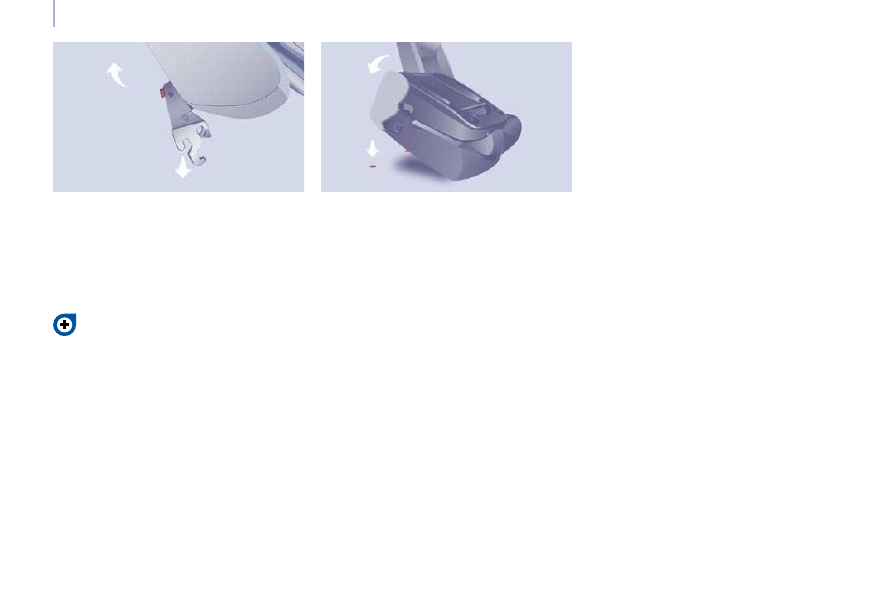

- Place the head restraints in the low

position.

- If necessary, move the front seats

forward.

- Press the grey control located on

the upper part of the seat back.

- Fold the seat back onto the seat

cushion.

- Raise the grey control bar, located

at the rear of the seat cushion.

- Tilt the entire seat forward.

Putting back in place

Tilt the entire seat rearwards until it

locks.

Raise the seat back.

The seat is locked correctly when the

control (at the top of the seat back) is

no longer visible.

Check that the seat is locked

on the ﬂ oor securely when it is

returned to the sitting position.

Seats

Removing the bench seat

- If necessary, move the front seats

forward.

- Place the bench seat (1/3 section

and/or 2/3 section) in the fully

folded position.

Refitting the bench seat

- Offer up the bench seat (1/3 section

and/or 2/3 section) vertically.

- Place the hooks between the

two bars.

- Fold the bench seat rearwards.

Refer to the "fully folded position"

described on the previous page.

To return the bench seat

(1/3 section and/or 2/3

section) to the "passenger

transportation" position, refer to the

"fully folded position" described on the

previous page.

- Tilt the entire seat rearwards by

approximately 45°.

- Lift the bench seat vertically to the

limit of the anchorages.

- Straighten bench seat by tilting it

forwards then lift it.

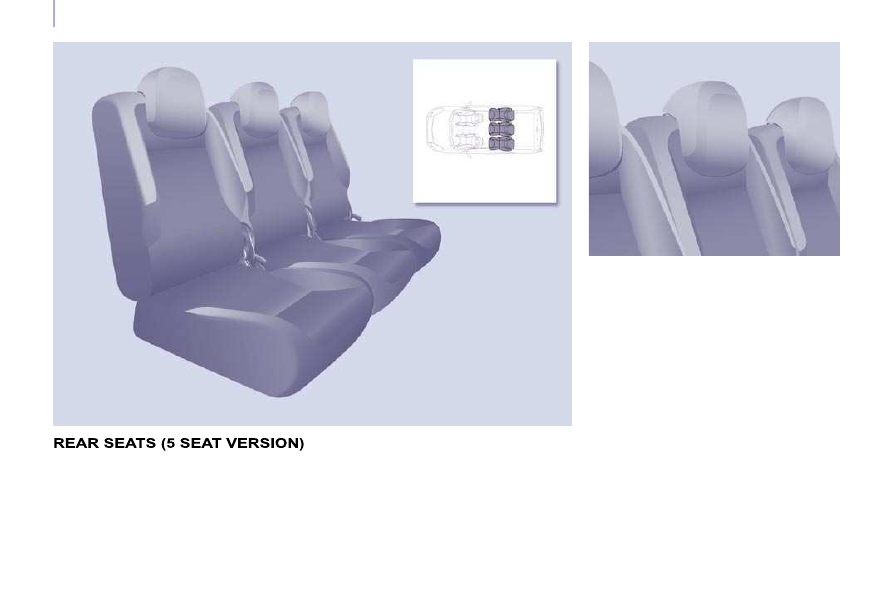

Seats

Head restraint

High position: lift and raise the head

restraint.

Low position: press on the head

restraint to lower it.

To remove the head restraint, after

raising it press the tab and lift the head

restraint.

To install the head restraint, engage

the rods of the head restraint in the

holes keeping it in line with the seat

back.

Each seat can be removed individually.

Each time a seat is returned to the

sitting position or after removing then

reﬁ tting a seat, check that it is locked

on the ﬂ oor securely.

The three independent rear seats are

ﬁ tted with "comma" head restraints.

The back of the centre seat, folded onto

the seat cushion, has a shell which

serves as a table with cup holder.

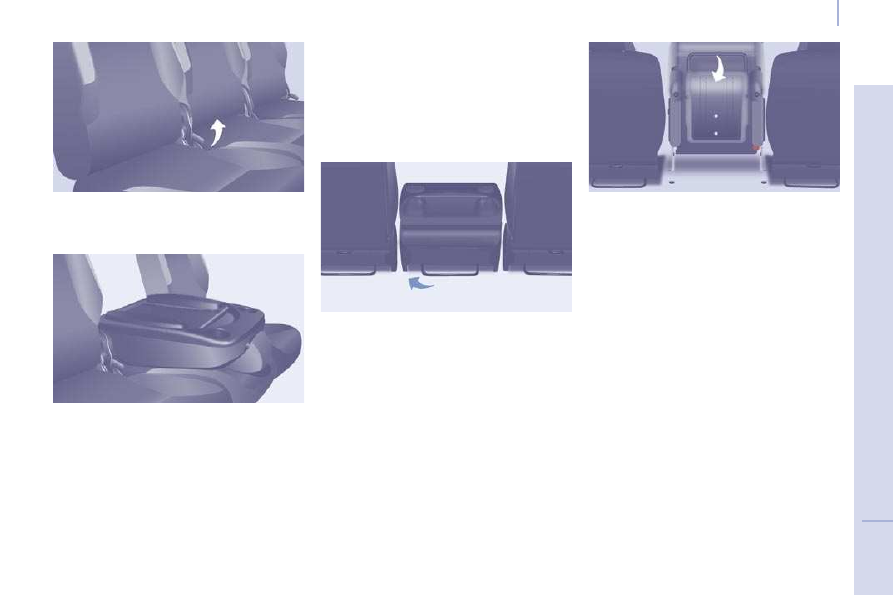

Seats

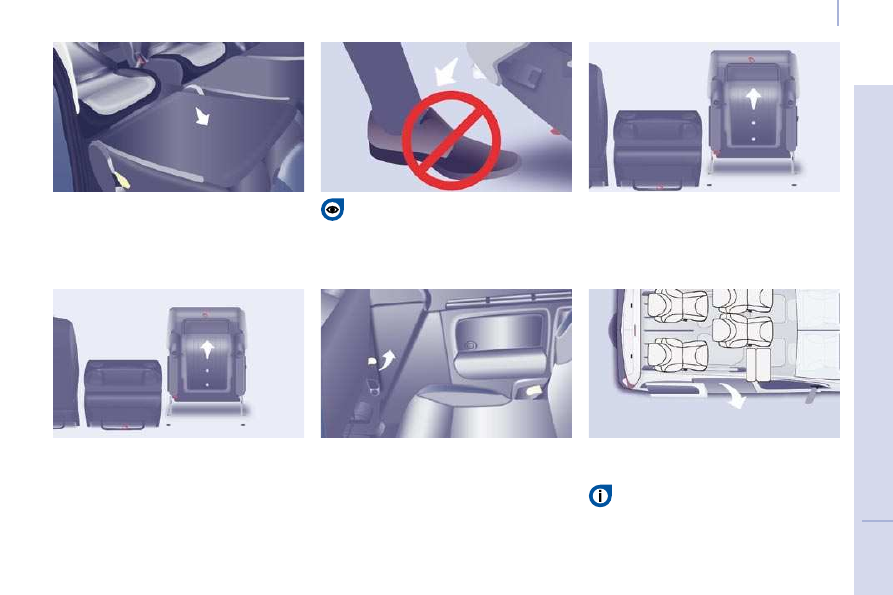

Adjusting the angle of the seat back

- Operate the control and adjust the

angle of the seat back.

Placing the seat back in the
table position

- Pull the control to fold the seat back

onto the seat cushion.

Do not place hard or heavy objects

on the table. They could become

dangerous projectiles in the event of

sharp braking or impact.

Returning the seat back to the
sitting position

- Release the seat back by pulling

the control, then return it to its

original position.

When returning the seat back to the sitting

position, ensure that it is locked securely.

Placing the seat in the fully
folded position

- Pull the control to place the seat

back in the table position.

- Raise the bar located behind the seat

to release the rear anchoring points.

- Tilt the entire seat forwards, until it

locks.

Returning the seat to its original position

Push the red control.

- Fold back the seat to ﬁ x the rear

anchoring points.

Raise the seat back by pulling the control.

Check that the entire seat is anchored

securely.

Seats

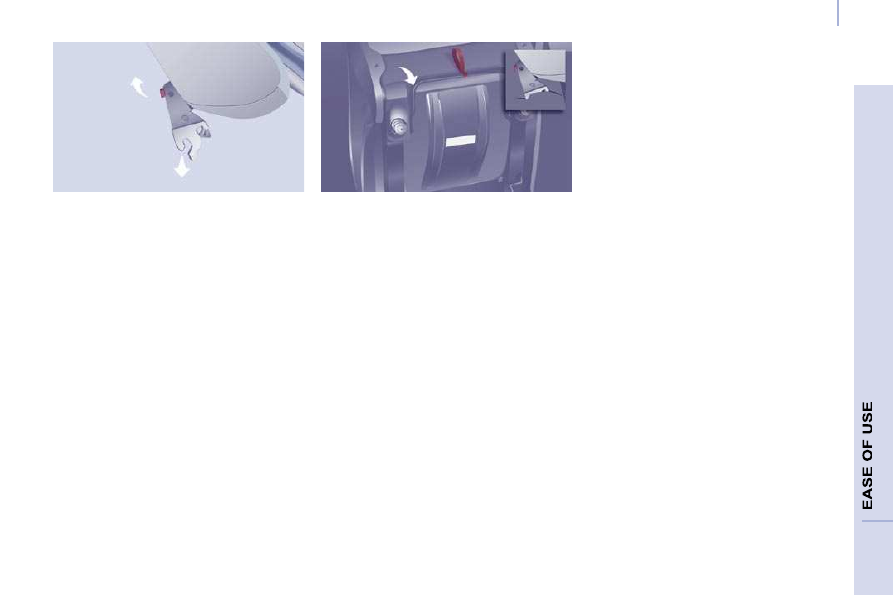

Removing the seat

- If necessary, move the front

seats forward and lower the head

restraint.

- Place the seat in the fully folded

position.

Good practice

Following the various operations:

- do not remove a head restraint

without storing it and ﬁ x it to a

support,

- ensure that the passengers can

always access the seat belts and

fasten them easily,

- a passenger must never take

his seat without adjusting and

fastening his seat belt.

Refer to the "fully folded position"

described on the previous page.

- Press the red lever to release the

front feet.

- Tilt the entire seat rearwards by

approximately 45° without releasing

the lever.

- Release the lever.

- Lift the seat vertically to the limit of

the anchorages.

- Straighten the seat by tilting it

forwards then lift it.

Putting the seat back in place

- Tilt the seat forward by 45°.

- Place the hooks between the two

bars.

- Fold back the seat to ﬁ x the rear

anchoring points.

- Pull the control to return the seat

back to its initial position.

- Raise the head restraint.

Check that no object is obstructing

the anchoring recesses or preventing

correct locking of the seats.

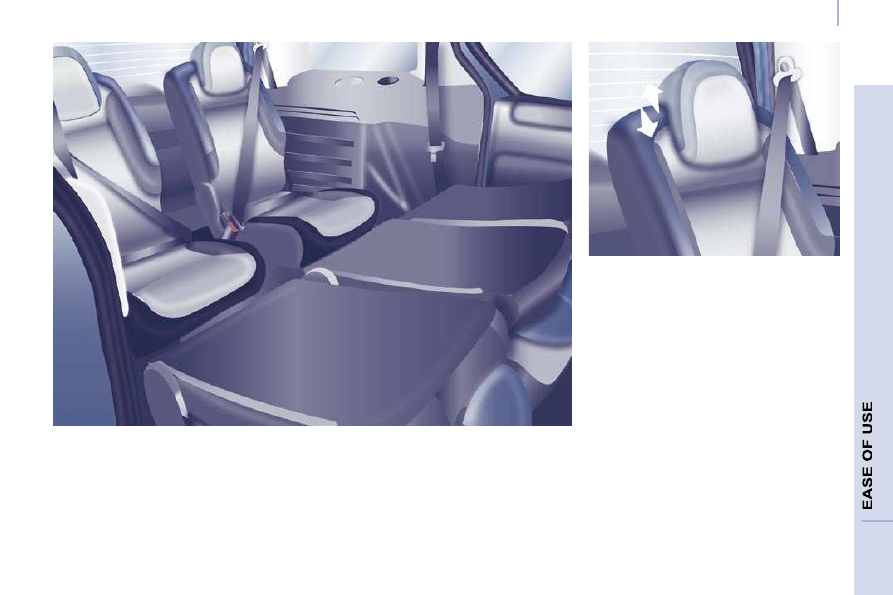

Seats

Head restraint

This is of the "comma" type.

High position: press the tab, lift and

raise the head restraint.

Low position: push the tab and press

the top of the head restraint to lower it.

To remove the head restraint: place it in

the high position, lift it, then remove it.

Store it inside the vehicle, securing it

ﬁ rmly.

To install the head restraint: engage

the rods of the head restraint in the

holes keeping it in line with the seat

back.

Each seat can be removed and must

be replaced in the speciﬁ ed position,

indicated by a symbol on its label.

The seats of row 2 and row 3 are

independent and adjustable.

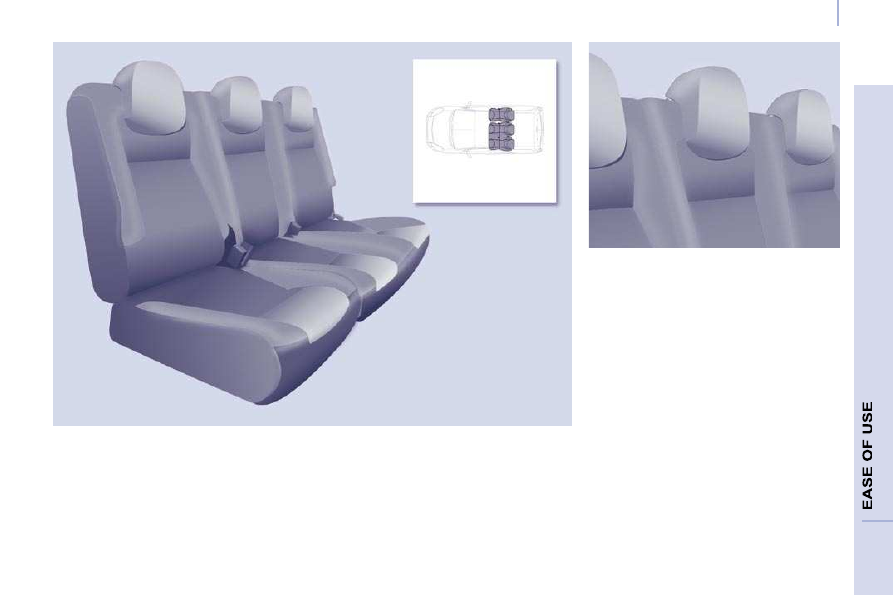

REAR SEATS (7 SEAT VERSION)

Seats

Left-hand side seat

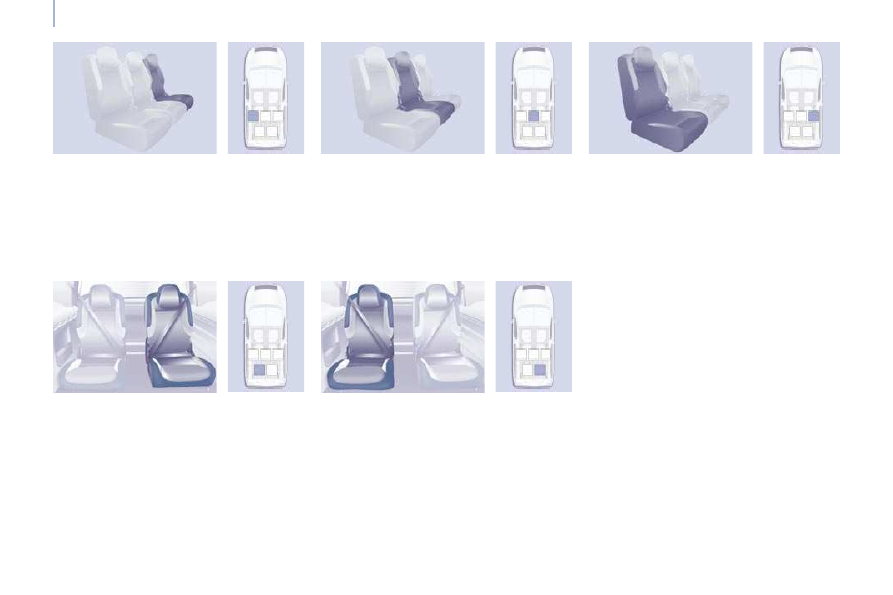

Types of Row 2 seat

Types of Row 3 seat

Centre seat

Right-hand side seat

Left-hand side seat

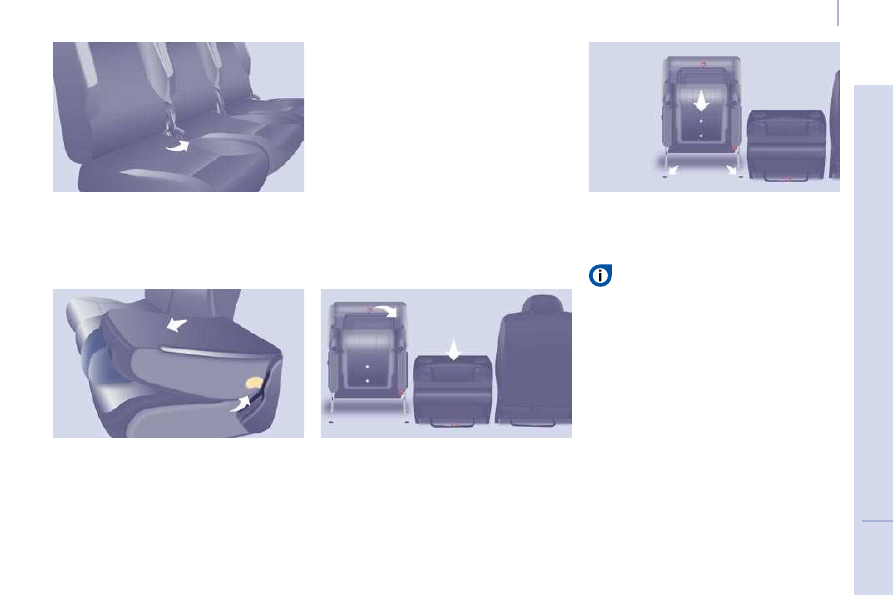

Seats

Adjusting the angle of the seat back
- Operate the control and adjust

the angle.

Placing the seat in the table position
- Lower the head restraint fully.

- Operate the control to fold the seat

back onto the seat cushion.

Returning the seat back to the
sitting position
- Release the seat back by pulling

the control, then return it to its

original position.

Ensure that the entire seat is anchored

securely.

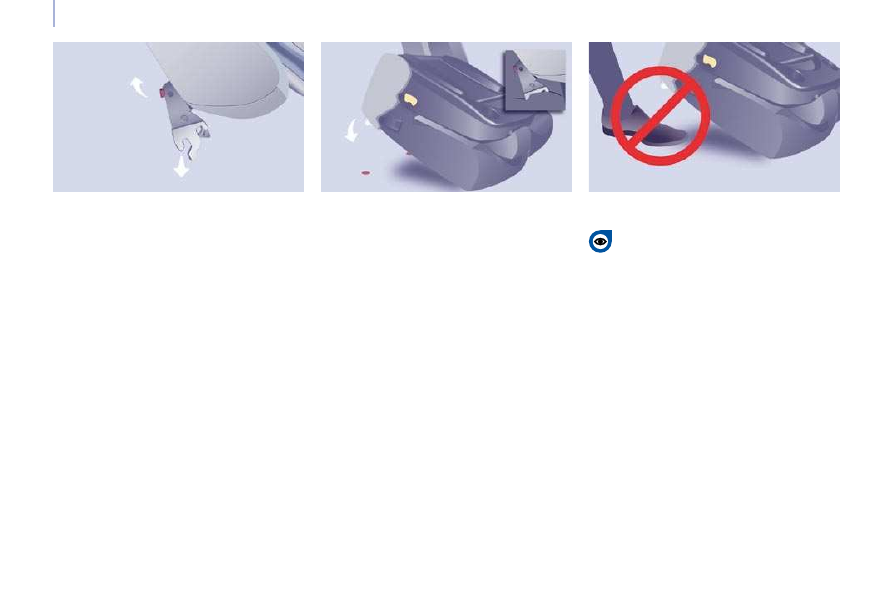

Placing the seat in the fully folded
position
- Place the seat in the table position.

- Pull the red strap, located behind

the seat, to release the feet of

the seat from their anchorage on

the ﬂ oor.

- Tilt the entire seat forwards.

Row 2 seat adjustments

Returning the seat to its original
position
- Fold back the entire seat.

Before folding the seat, ensure

that:

- in row 3, no passenger's foot is

at one of the seat anchorages

on the ﬂ oor,

- the seat is locked securely on

the ﬂ oor,

- the seat belt is available for

the passenger.

Seats

Row 3 seat adjustments

Placing the seat back in the table
position
- Lower the head restraint fully.

- Operate the control to fold the seat

back onto the seat cushion.

Returning the seat back to the
sitting position
- Release the seat back by pulling

the control, then return it to its

original position.

Ensure that the entire seat is anchored

securely.

Returning the seat to its original
position
-

Push the red control.

- Fold back the entire seat.

Placing the seat in the fully folded
position
- Place the seat in the table position.

- Raise the bar ﬁ tted with a red

strap, located behind the seat, to

release feet of the seat from their

anchorage on the ﬂ oor.

- Tilt the entire seat forwards.

Ensure that:

- the seat is locked securely on

the ﬂ oor,

- the seat belt is available for

the passenger.

Seats

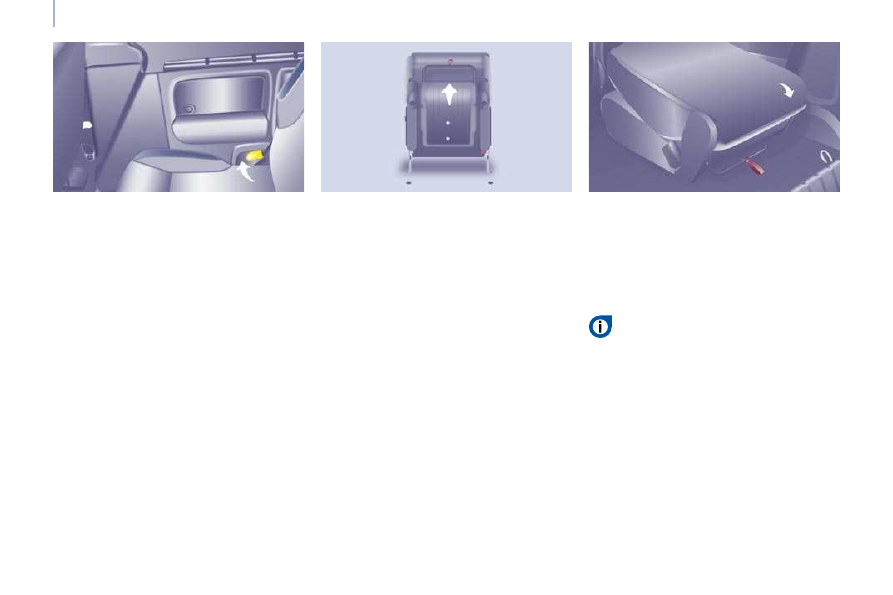

Entering, exiting from row 3

Entering
- Place the row 2 seat in the table

position.

Exiting
- Lower the head restraint fully.

- Operate the yellow control, located

on the back of the row 2 seat back.

- Fold the seat back to the table

position.

Ensure that the stored centre

seat belt is placed correctly in its

strengthener in the headlining.

Tilt it to the fully folded position to

allow access.

- Pull the red strap to place the seat

in the fully folded position.

- Tilt the entire seat forwards.

- Exit via the side door.

Before folding it back, ensure that

the feet of the passenger in row 3

are not obstructing the row 2 seat

anchoring points.

Seats

Removing the seat
- If necessary, move the front seats

forward.

- Lower the head restraint.

- Place the seat in the fully folded

position.

- Tilt the entire seat forwards then

lift it.

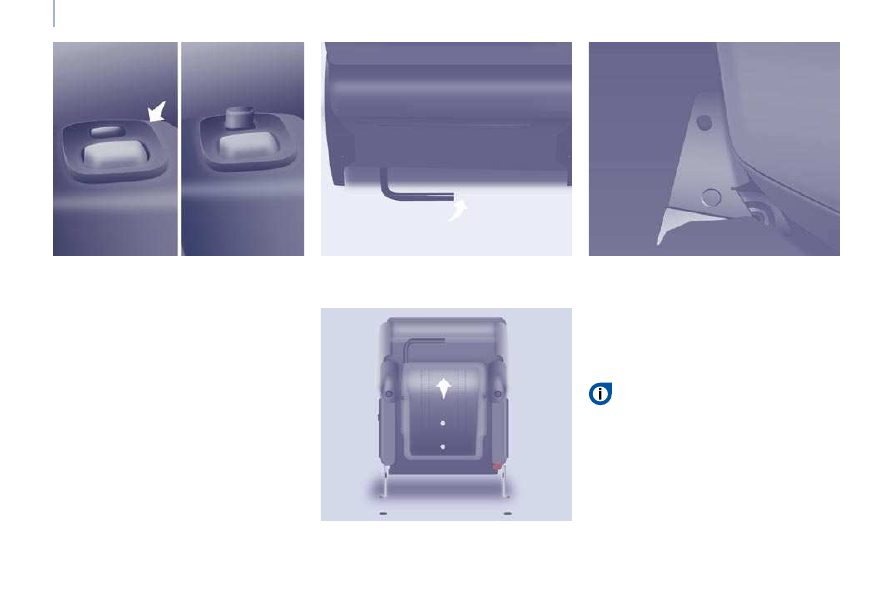

Repositioning the seat
The label on the seat indicates the

position in which it must be installed.

- Place the hooks of the front feet

between the two bars.

- Fold back the seat to ﬁ x the rear

anchoring points.

- Operate the control to raise the

seat back to its initial position.

- Raise the head restraint.

Ensure that no object or foot of

a passenger seated in the rear

is obstructing the anchoring

recesses or preventing correct locking

of the seat.

Handling the Row 2 seat

Seats

Handling the Row 3 seat

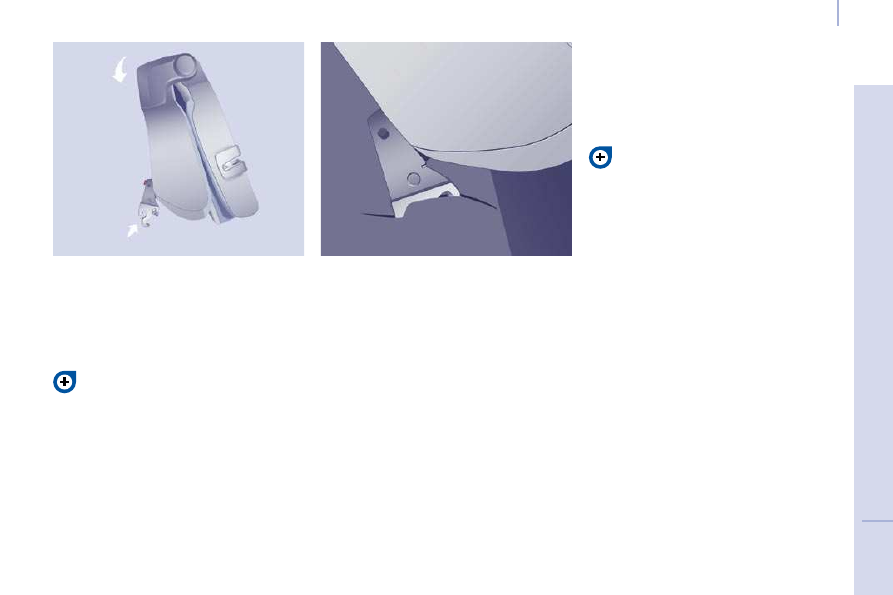

Removing the seat
- Lower the head restraint.

- Place the seat in the fully folded

position.

- Tilt the entire seat forwards.

- On each side, take hold of the

uprights of the folded seat, tilting it

forward slightly, and lift it.

Repositioning the seat
The label on the seat indicates the

position in which it must be installed.

- Place the hooks of the front feet

between the two bars.

- Ensure that no object or foot is

obstructing the rear anchoring

recesses and that the seat belt is

positioned correctly and available.

- Fold back the seat to ﬁ x its rear

anchoring feet.

- Operate the control to raise the

seat back to its initial position.

- Raise the head restraint.

Good practice

Do not place hard or heavy objects on

the seat backs forming a table, they

could become dangerous projectiles in

the event or sharp braking or impact.

Following the various operations:

- do not remove a head restraint

without storing it, ﬁ x it to a support

in the vehicle,

- ensure that the passengers can

always access the seat belts and

fasten them easily,

- a passenger must never take

his seat without adjusting and

fastening his seat belt.

- a passenger seated in row 3 must

ensure that he does not obstruct

the row 2 seat anchoring recesses.

Seats

ADJUSTMENTS AND DIFFERENT CONFIGURATIONS OF THE SEATS

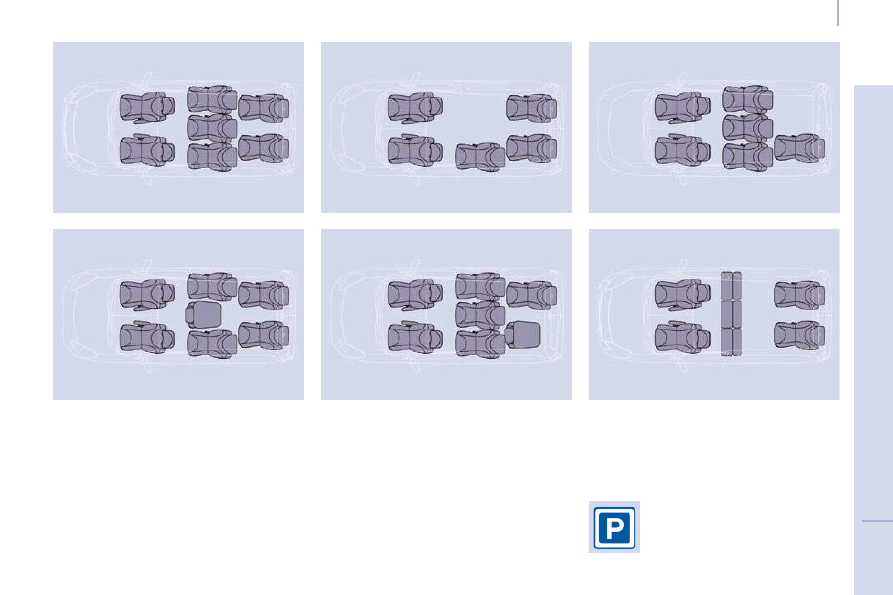

5 seat layouts

Seats

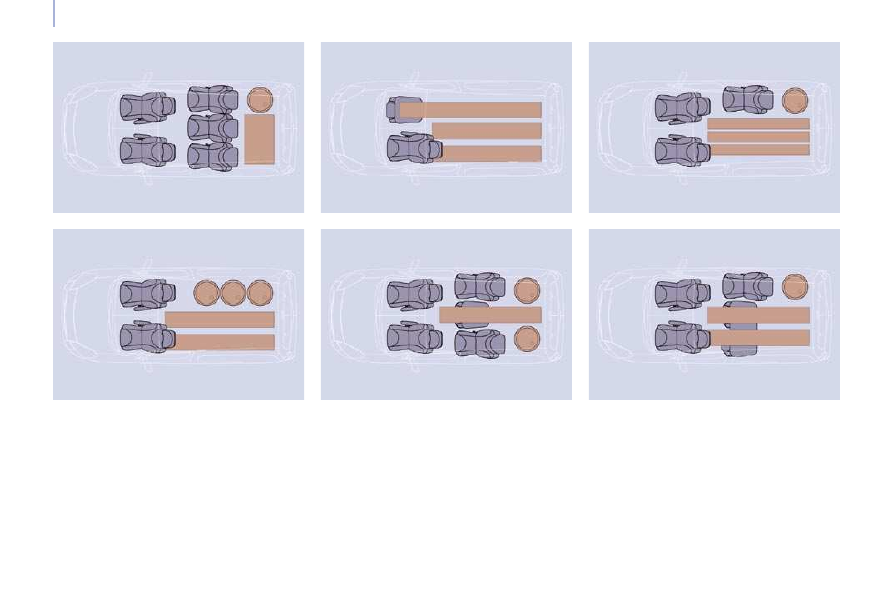

7 seat layouts

The various operations

must be carried out while

stationary.

Steering mounted controls

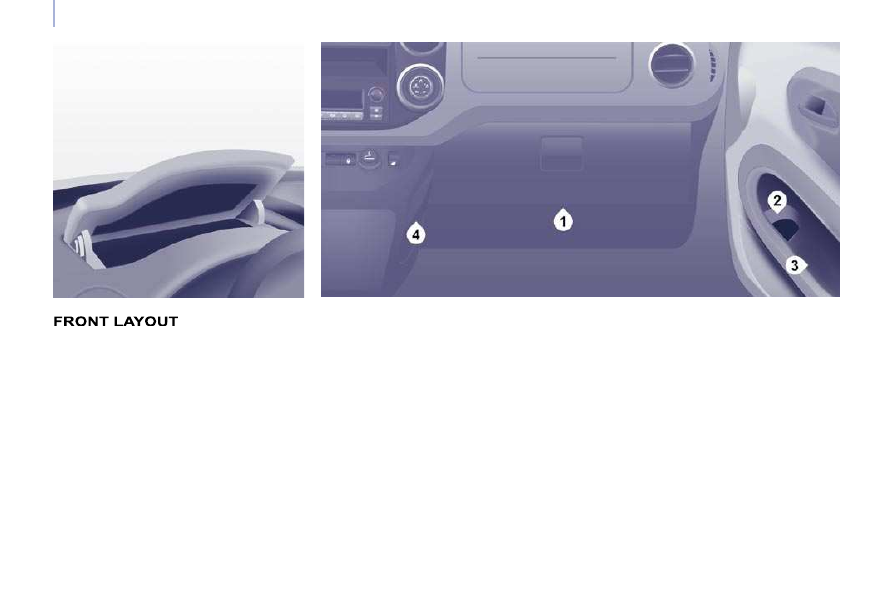

1. Lower glove box

This may or may not be ﬁ tted with a lid.

Upper storage compartment

This is located on the fascia, behind

the steering wheel.
A recess makes lifting of the lid easier

when opening. Guide it to its rest
position.
To close, guide the lid then press the
centre gently.
Any liquid which could spill risks

causing an electrical short circuit and

therefore a potential ﬁ re.

3. Side storage compartment

4. Bag hook

Only hang ﬂ exible bags which are not

too heavy on this hook.

2. Storage tray and bottle holder

(1.5 L)

Content .. 3 4 5 6 ..
